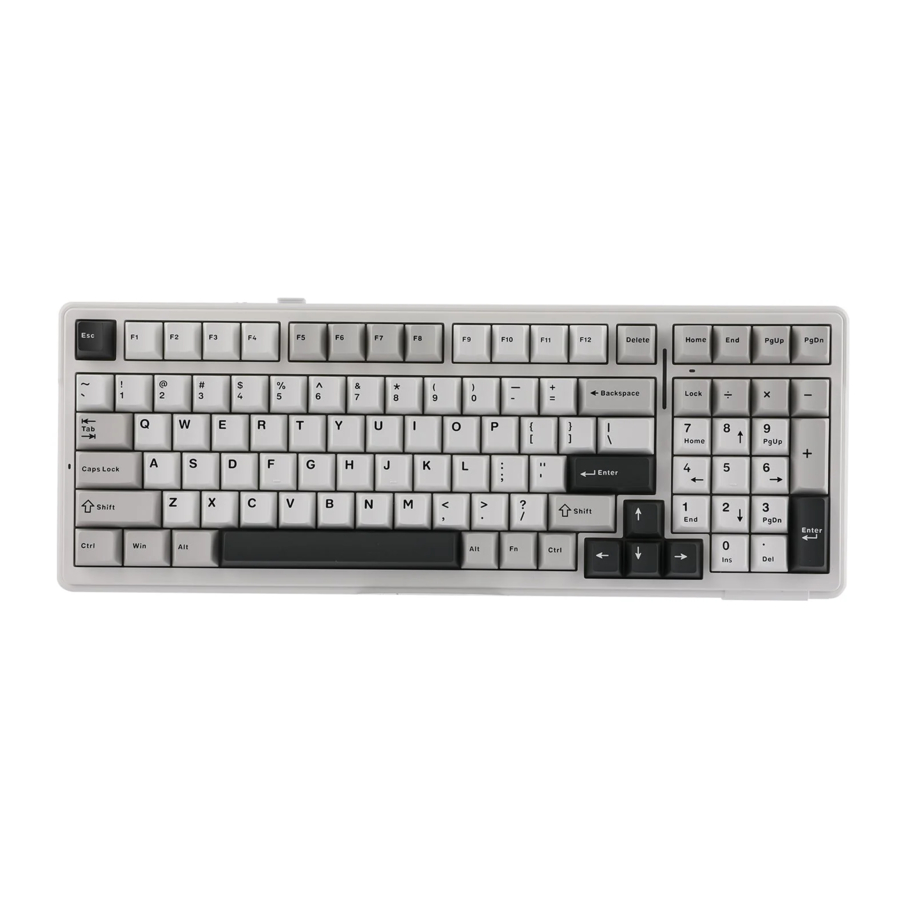

AULA F99 Manual

Functions and Indicators

Product features

Stylish design with Gasket construction and a fine, soft and flexible feel. Keycaps and mechanical switches are pluggable.

4000mAh* 2 large-capacity lithium battery can be recharged, with power switch, environmental protection and energy saving, saving worry and money, effectively extending battery life.

key combination to switch between 15 RGB light effects.

With the drive with music rhythm RGB lighting effect, there are 5 lighting effect modes to choose from under this lighting effect.

Cooperate with the drive keys with custom functions and macro definitions.

Humanized design of the keyboard, adding a series of commonly used shortcut

Specifications

Description of shortcut keys (you have to switch to the corresponding mode in the upper left corner to be able to long press on the code)

FN+Q=Android system (Q button red light flashes for 3s), F area single press function and F area FN combination function

FN+W=Windows system (W key red light flashes for 3s), F area single press function and F area FN combination function

FN+E=Mac system (E button red light flashes for 3s), F zone single press function and F zone FN combination function

FN+R=IOS system (R key red light flashes for 3s), F-zone single press function and F-zone FN combination function

2.4G mode: the upper left switch is dial ed to 2.4G mode, the cyan light of the key blinks slowly, and then press FN+ key for 3 seconds to enter the code pairing state, then plug in the receiver to finish the code pairing, the cyan light of the key is on for 2s, the 2.4G connection is successful. The factory default has been pairing code.

BT Mode: Top left switch toggle to Bluetooth mode BLE5.0/BLE3.0 (device name AULA-F99 3.0/AULA-F99 5.0), can connect 3 devices:
FN+1=BT 1, the blue indicator light under the key is flashing fast, back to the connection is flashing slowly, the blue light is on for 2s when connected
FN+2=BT 2, the blue indicator light under the key is fast flashing, back to connect slow flashing, connect to blue light 2s
FN+3=BT 3, the blue light under the key is flashing fast, back to connect the slow flash, connect the blue light 2s.

Wired mode: Top left switch to center position = wired mode, white light on "4" button lights up for 2s

Fn+Esc long press for three seconds = Restore default. The original connected BT device save will not be cleared

FN+Shift-R=Switch light bar light mode, FN+/? = switch light bar colour; FN+AIt-R = light bar brightness cycle, FN+Ctrl-R = light bar speed cycle

Fn+↑=Brightness+ Fn+ ↓=Brightness-

FN+Q=Android, FN+W=Windows, FN+E=Mac, FN+R=IOS

Fn+Tab=Toggle light effect colour.

Fn+WIN-L=Lock/open left WIN window key (Lock WIN indicator light is always on when locking WIN, under WIN system)

After switching to Mac/IOS system, WIN-L/ALT-L position is swapped (without locking WIN)

FN+B=RGB ambient light bar can show keyboard power level, charging streaming light display. Full long bright green, 5 lights each green light indicates 20% battery. Low battery all red indication.
