Pelonis PHO15A2AGW Manual

SPECIFICATIONS

Product Model	PHO15A2AGW
Voltage	120V~
Frequency	60Hz
Power	1500W

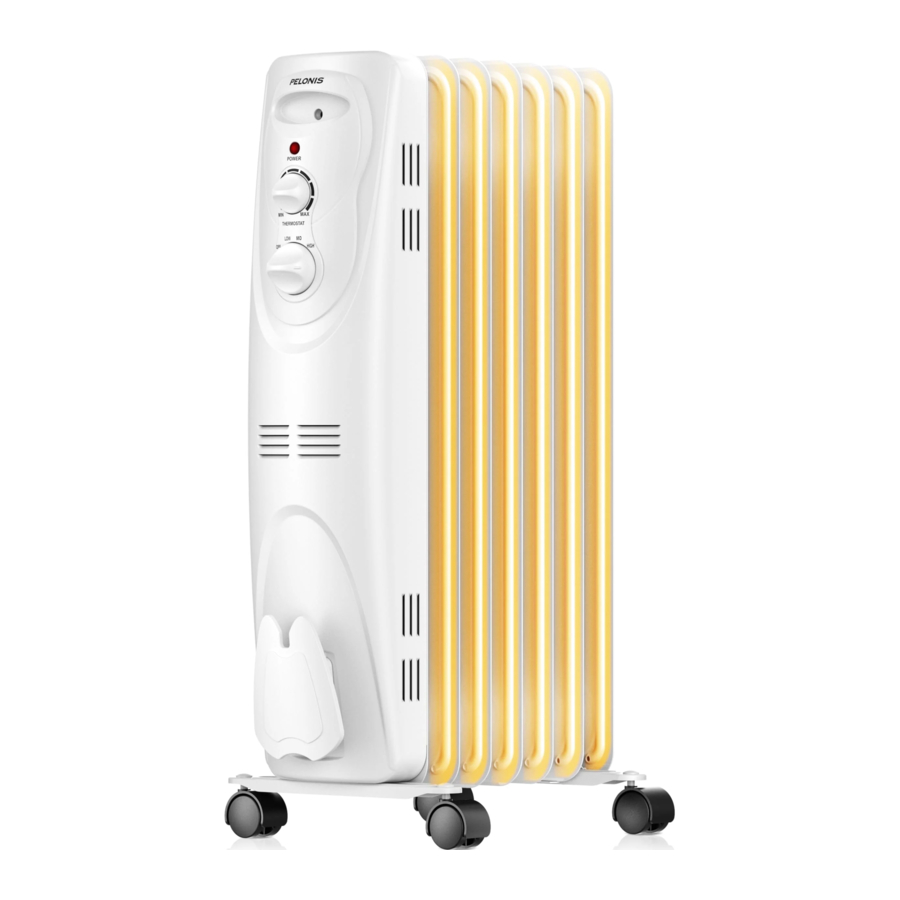

PRODUCT OVERVIEW

information NOTE
All the pictures in this manual are for explanation purposes only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real model.
Your heater is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your outlet. DO NOT defeat the safety purpose of the polarized plug.

UNPACKING AND SET-UP INSTRUCTIONS

Unpack your heater and find the wheel holding plates and butterfly nuts between the fin assemblies.

Make sure the heater is unplugged and the power and setting control is in the "OFF" position.
TURN THE HEATER UP SIDE DOWN.
Attach the wheel holding plates onto the heater as Fig.1 shows. One is fixed between the last two fins and the other one is fixed next to metal control box.
Insert the butterfly nuts and tighten them securely.
TURN THE HEATER UP RIGHT.

Risk of fire - Do not operate heater without wheel assemblies attached. Operate heater in upright position only (wheels on bottom, controls on top). Any other position could create a hazardous situation.

OPERATION INSTRUCTIONS

Place the heater on a firm level surface free from obstructions, and at least 3ft. away from any wall and any other objects such as furniture, curtains, plants or combustible material.
With the Power and Setting Control " 3 " in the " OFF " position, plug the heater into a grounded 120V outlet.
Turn the heater "ON" by turning the Power and Setting control " 3 " clock - wise to your desired power setting (LOW, MED, HIGH). The Power Indicator Light " 1 " will illuminate.
Turn the Thermostat Control " 2 " to your desired setting from "MIN" to "MAX".
Setting for Optimum Comfort: When the room reaches a comfortable temperature, slowly turn the Thermostat Control " 2 " counter-clockwise until the heater turns off. This is the point at which the thermostat setting equals the room temperature. At this setting, the thermostat will automatically turn the heater on and off to maintain this selected temperature.

information NOTE
This heater include a safety tip over switch, which will shut the heater off in case it is tipped over. If at any time, the heater does tip over, please put the heater back in the upright position (wheels on bottom, controls on top). The heater will resume its normal operation.
This heater includes an Overheat Protection System that shuts the unit off if it overheats due to abnormal conditions. If this occurs turn the heater "OFF", unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, plug it back in, and resume normal operation.

ADDITIONAL FEATURES

This heater has additional features:

Cord Wrap-Neatly stores power cord when the heater is not used.
Convenient Carry Handles and Heavy-Duty Caster Wheels-Allow for easy maneuvering from room to room.

CLEANING AND MAINTENANCE

It is recommended that the heater be cleaned at least one time during the operating season in order to provide the optimum level of performance. ALWAYS TURN THE POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING. Be sure to save the box for off-season storage.

Turn the heater "OFF", unplug it and wait for the heater to cool down.
Use a dry cloth to clean only external surfaces of the heater.
Do not use any cleaning agents or detergents.
Never immerse the heater in water.
Pack the heater in the original carton and store it in a cool and dry place.

TROUBLESHOOTING

If the product does not operate or does not operate properly, first check according to the following list. If the reason the product does not operate or does not operate properly is not included in the following list, the product may have failed. At this time, it is recommended to send the product to the dealer for treatment.

Problem	Cause	Solution
After the power is engaged, the machine does not work	The plug may not be in plugged in well.	Check whether the plug is properly inserted into the receptacle.
The machine suddenly stops during heating	The temperature exceeds the threshold of the thermal cutoff.	Unplug the heater and cool the machine before use.
The plug overheats or ignites	The current overload of the socket or the aging of the socket causes the contact to loosen, prolonged use can easily lead to overheating or ignition of the plug.	Highly recommended that users use sockets that meet the requirements and standards of their respective countries or regions.
Burnt odor and inability to operate (caused by the accumulation of dust inside)	The machine is used in an environment with a lot of dust or hair.	Recommended to place the machine in a clean and well-ventilated area.

IMPORTANT INSTRUCTIONS

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

burn hazard shock hazard
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, injury to persons, and hyperthermia, including the following:

Read all instructions before using this heater.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
Risk of fire-Do Not Operate without Legs (Base) Attached.

In order to avoid overheating, do not cover the heater.
Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair.
This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep electrical cords, furnishings and any other combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
Do not use outdoors.
This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
Always unplug heater when not in use.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
To disconnect heater, press the button to off, then remove plug from outlet.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
The heater must not locate immediately below a socket-outlet.
Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
This heater is filled with a precise quantity of special oil. Repairs requiring opening of oil-container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak. When scrapping the heater, follow the regulations concerning the disposal of oil.
To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
Always plug heaters directly into a wall outlet/ receptacle. Never use with an extension cord or relocatable power tap.
Hyperthermia can result in death. Symptoms of hyperthermia include high body temperature, head ache, nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to experience symptoms related to hyperthermia, turn off the heater and seek medical attention.
To avoid excessive room temperatures which can cause hyperthermia: DO NOT leave product running unattended in a confined space around infants, or individuals with reduced physical, sensory, or mental capabilities.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
