Summary of Contents for QUAD 33

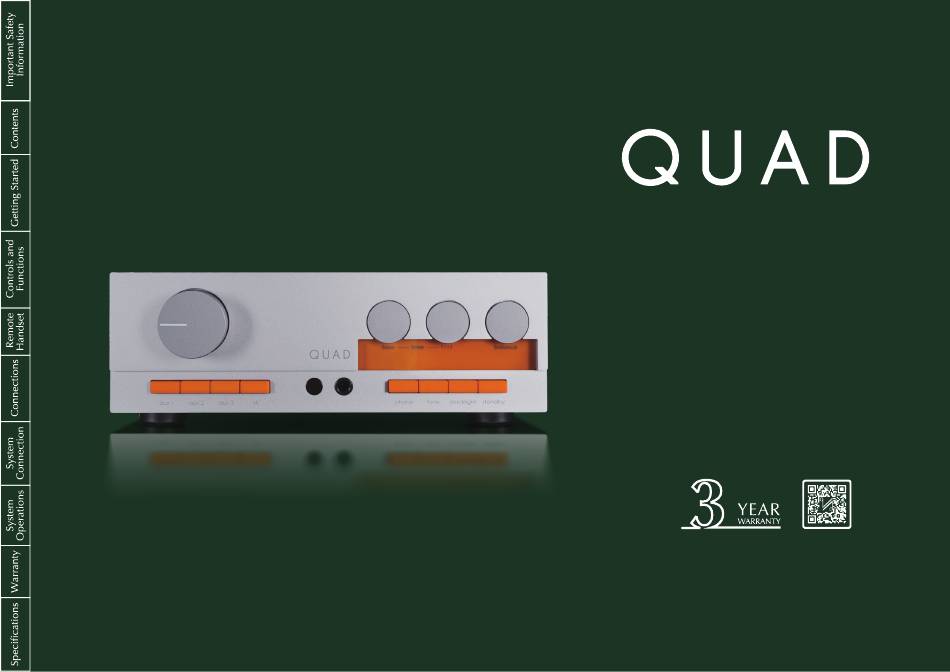

- Page 1 QUAD 33 User Manual Scan the QR code using a smart-phone device, for product warranty registration online.
-
Page 2: Important Safety Information
Important Safety Information Do not install this equipment in a confined or built-in space such as a bookcase or similar CAUTION unit, and keep well-ventilated in an open space. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, tablecloths, curtains etc. RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: Only use attachments/accessories specified or provided by the manufacturer... -
Page 3: Table Of Contents
Contents QUAD 33 Getting Started Controls and Functions Remote Handset Connections System Connection System Operations Warranty Specifications... -
Page 4: Quad
Mains Supply • One pair Phono (MM/MC) inputs Before you connect the QUAD 33 to the AC mains power, ensure your AC mains voltage corresponds to the rating on the rear panel of the product. If in doubt, consult your dealer. -
Page 5: Controls And Functions
Controls and Functions Volume Control Source Select Remote Headphone Phono Tone Backlight Standby Bass/Tilt/ Receiver Jack Balance Adjust Power Mains Voltage Analogue Phono Grounding Input Switch Input Switch Outputs Update Output Trigger Inputs Input... -
Page 6: Remote Handset
The handset should be within 15 meters of the player and there should be a clear line of sight between the handset and unit for optimum remote control operation. Note: To get the best out of the remote control functions, please use ONLY the supplied remote control with your QUAD 33. -
Page 7: Connections
12v Trigger functionality. Balanced Input Balanced connections provide greater dynamic range and lower noise. If your source has balanced outputs, please connect them to the QUAD 33 balanced inputs. You will need one Mains Input XLR balanced cable per channel. -
Page 8: System Connection
System Connection Stereo mode with a stereo amplifier (such as the QUAD 303) RIGHT LEFT LOUDSPEAKER LOUDSPEAKER POWER TRIG UPDATE QUAD ELECTROACOUSTICS HUNTINGDON, UK PRE AMPLIFIER MODEL: QUAD 33 Made in China AUX1 PHONO RIGHT LEFT RIGHT LEFT AUX2 AUX3 AC 220-240V～50/60Hz 20W... - Page 9 System Connection Bridged mode with Mono amplifiers (such as the QUAD 303) LEFT RIGHT LOUDSPEAKER LOUDSPEAKER POWER TRIG UPDATE QUAD ELECTROACOUSTICS HUNTINGDON, UK PRE AMPLIFIER MODEL: QUAD 33 Made in China AUX1 PHONO RIGHT LEFT RIGHT LEFT AUX2 AUX3 AC 220-240V～50/60Hz 20W...
-
Page 10: System Operations
The ‘tone’ settings bass range is -3dB to +3dB. The ‘Tilt’ range is +3/-3dB to -3/+3dB. After initial power on, the QUAD 33 will be in 'Standby' mode and the standby button will be in dimly illuminated. To use the QUAD 33, press the 'Standby' button to wake from... -
Page 11: Firmware Update
Long press the backlight button for 5s on remote control to activate thee contrast adjust For MCU firmware updates please visit the QUAD website to find the latest version. Please fucntion. Use the -/+ button on remote control to decrease or increase contrast. Default read the update instructions before commencing any update. -
Page 12: Warranty
Warranty QUAD warrants its products, subject to the following terms and conditions below, to be application. Incorrect dates or mismatched purchase receipt dates that are outside of the free from defects in materials and workmanship. warranty terms will immediately invalidate any warranty claim. - Page 13 Other than the warranty and services set out in this warranty, to the fullest extent permitted typhoon, storm, earthquake, hurricane, natural disaster, tsunami, flood, war, riot, public by law, QUAD shall not be liable to you and/or any third party or entity whatsoever for: disturbance.
-
Page 14: Specifications
Illuminated LCD screen Standby Power Consumption Dedicated High Performance Low Noise MM/MC Phono stage Net weight 4.96kg Classic QUAD ‘Tilt’ adjustment Gross weight 258 x 165 x 82.9 Classic QUAD /Tone Controls Dimensions (mm) (W x H x D) 330 x 257 x 192... - Page 16 」...
- Page 20 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Email: service@QUAD-hifi.co.uk http://www.QUAD-hifi.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved © IAG Group Ltd. QUAD is a member of the International Audio Group.
Need help?
Do you have a question about the 33 and is the answer not in the manual?
Questions and answers
Using a 5 pin Din plug into the auxiliary socket, what pins should I connect to the stereo jack from my iPad? (Quad model 33-303)
The Quad 33 preamplifier uses 5-pin DIN jacks for audio inputs and a 4-pin DIN jack for the preamplifier audio output. To connect a 5-pin DIN plug to a stereo jack for the QUAD 33-303 system, the typical wiring follows:
- Pin 1: Left channel signal
- Pin 2: Ground
- Pin 3: Right channel signal
For a stereo jack connection:
- Tip → Left channel (Pin 1 from DIN)
- Ring → Right channel (Pin 3 from DIN)
- Sleeve → Ground (Pin 2 from DIN)
This setup ensures proper stereo audio transmission between the Quad 33 and the connected device.
This answer is automatically generated
