Osprey VOLT 45 / 65, VIVA 45 / 65 Manual

OVERVIEW

SHARED

1. Included raincover made with PFC/PFAS-free DWR and bluesign ® approved materials
2. Dual zippered hipbelt pockets
3. Side mesh bottle pockets offer side or top access
4. Internal hydration sleeve with hose port in backpanel
5. Dual side compression straps
6. Dual ice axe/trekking pole loops
7. Front panel lash loops for attaching extra gear
8. Accessory pad straps

VOLT | VIVA 45

• Panel loading with J-zip opening makes for a clean profile and provides easy access to contents
• Internal mesh security pocket with key clip
• Zippered pocket for raincover at bottom of pack

VOLT | VIVA 65

• Top-loading design with large U-panel access on front panel offers versatile packing options
• Floating top lid allows flexibility for overloads
• Large main compartment in top lid has pocket for included raincover
• Underlid mesh security pocket with key clip
• Internal compression strap secures load for improved carry
• Buckle in sleeping bag divider keeps lower contents of bag in place

PRODUCT PROMISE

Outfitted with only the essential features, these packs deliver the high-end fit and comfortable carry Osprey is known for.

VOLT 45

MEN'S

VOLT 65

MEN'S

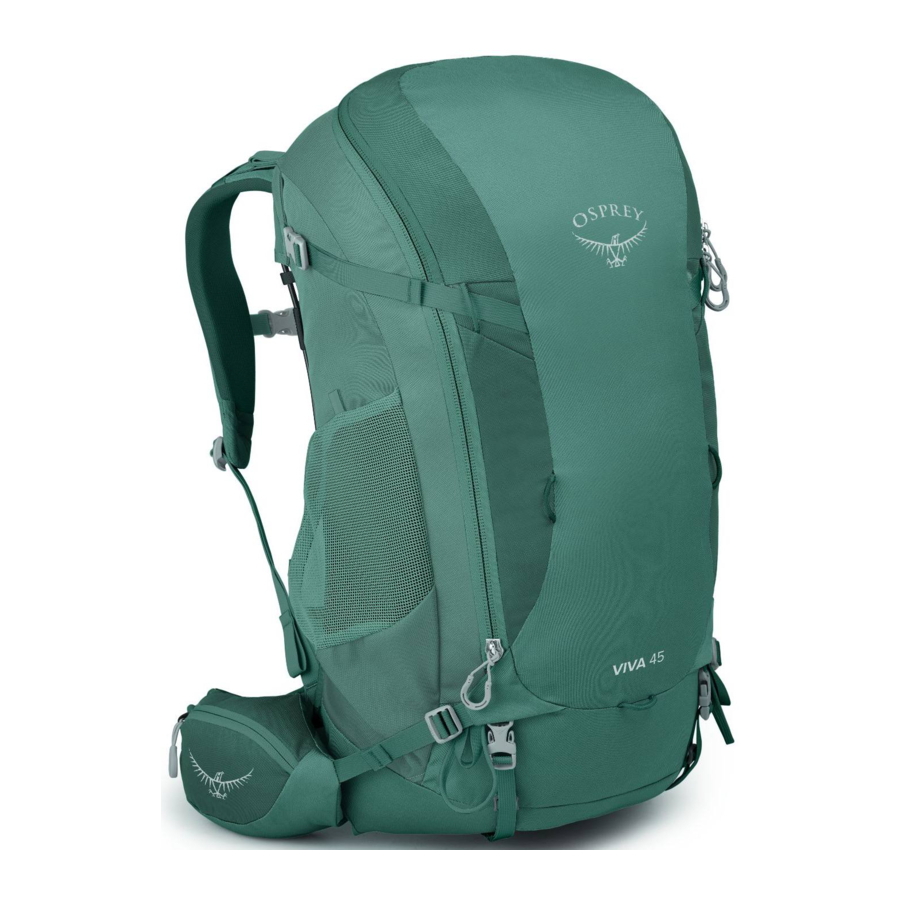

VIVA 45

WOMEN'S

VIVA 65

WOMEN'S

CARRY

LIGHTWIRE SUSPENSION

• 4mm LightWire peripheral frame effectively transfers the load from harness to hipbelt
• Atilon framesheet spreads load across the entire backpanel to the peripheral frame

AIRSCAPE BACKPANEL

• Mesh-covered ridged foam allows maximum ventilation while keeping the load close to the body

ADJUSTABLE TORSO LENGTH

• Fit is fine-tuned using easily accessed adjustable web system
• Floating yoke design ensures consistent fit comfort at any setting

SPACEMESH HARNESS AND HIPBELT

• Soft edgeless padded mesh offers a soft breathable contact surface and comfortable load support
• Adjustable sternum strap with rescue whistle

SIZING / FIT

VOLT — MEN'S SIZING

O/S: 18-22" / 46-56 cm

VIVA - WOMEN'S SIZING

O/S: 15-19" / 38-48 cm

WOMEN'S SPECIFIC FIT

• Shorter torso length
• Narrower, shorter harness with curves designed to accommodate most women's necks, shoulders and chests
• A hipbelt designed to wrap naturally around the curves of a woman's hips, offering better load stabilization and support

HARNESS FIT

POSITION THE PACK

• Completely loosen the pack's hipbelt, harness and load-lifter straps.
• Load the pack with 10-20 lbs./ 4-9 kg. of gear.
• Put the pack on and make sure the hipbelt is centered and rests over the hipbone.
• The hipbelt padding should sit halfway above/below the hipbone.

BUCKLE HIPBELT

• Buckle and tighten the hipbelt evenly using Osprey's cross-body ErgoPull.
• The padding of the hipbelt should wrap around the hips with approximately 1-3 in./2.5-6 cm. of webbing between the buckle and the hipbelt when tightened.

TIGHTEN HARNESS

Tighten the shoulder harness straps to tension by pulling them down and back.

TIGHTEN LOAD LIFTERS

Tightening the load lifters will pull the pack close to the body and help stabilize the load.

ADJUST HARNESS

• The harness straps should wrap fully around the shoulders with no gaps between the pack and back.
• The padded part of the harness straps should end 1-2" / 2.5-5 cm below the armpit. And the harness should have 1-2" / 2.5-5 cm of webbing remaining.

STERNUM STRAP

Adjust the sternum strap to approximately 2"/5 cm below the collarbone; buckle and tighten to tension

ADJUSTABLE HARNESS (TORSO LENGTH)

1. Identify the two strap buckles, located behind where the padded hipbelt wings meets the pack.
2. Tighten the torso adjustment straps that pass through these buckles to shorten the torso length of the harness or loosen the straps to extend the torso length.
3. Adjust so that the hipbelt is centered and rests over the hipbone while the harness yoke, where the harness straps come together near the base of the user's neck, is 1-2" / 2.5-5 cm below the C7 vertebra—the large protruding bone at the base of the neck.

FEATURES

CORD LOOPS ATTACHMENT POINTS
45L / 65L
Front panel cord loops for rigging gear to pack or attaching an Osprey Daylite^®.

DUAL UPPER AND LOWER SIDE COMPRESSION STRAPS
45L / 65L
Upper and lower compression straps provide added stability when the pack is not full or offer additional attachment points for carrying gear on the outside of the pack.

DUAL MESH SIDE POCKETS
45L / 65L

FLOATING TOPLID WITH POCKET
65L

SLEEPING BAG COMPARTMENT
65L
Lower zippered compartment for dedicated sleeping bag storage with detachable divider for unimpeded access to pack interior.

SLEEPING PAD STRAPS
45L / 65L
Removable sleeping pad straps allow for quick, secure external gear attachment

ZIPPERED HIPBELT POCKETS
45L / 65L

RESERVOIR SLEEVE
45L / 65L

The dedicated internal hydration sleeve keeps the reservoir close to back, which provides proper weight distribution when carrying the pack.

• The loop with buckle ensures proper vertical orientation and stability
• Elasticized routing straps on right or left side of the pack's harness hold the reservoir hose in place
• The backpanel hydration exit port is centered allowing routing to the right or left side of the harness
• Compatible with any reservoir up to 3L

DUAL ICE TOOL/TREKKING POLE ATTACHMENT
45L / 65L

The ice tool loops and upper compression straps provide secure tool attachment.

1. Slide the tool shaft through the top of the ice tool loop and flip the shaft up toward the top of the pack.
2. Unclip the upper compression strap and wrap it around the tool handle before re-clipping.
3. Tighten the compression strap to prevent the tool/pole from shifting.
4. Reverse to remove.

For more information on this product and others, pack care, how to pack your pack, our lifetime guarantee, or to contact Osprey Customer Service, visit osprey.com.
