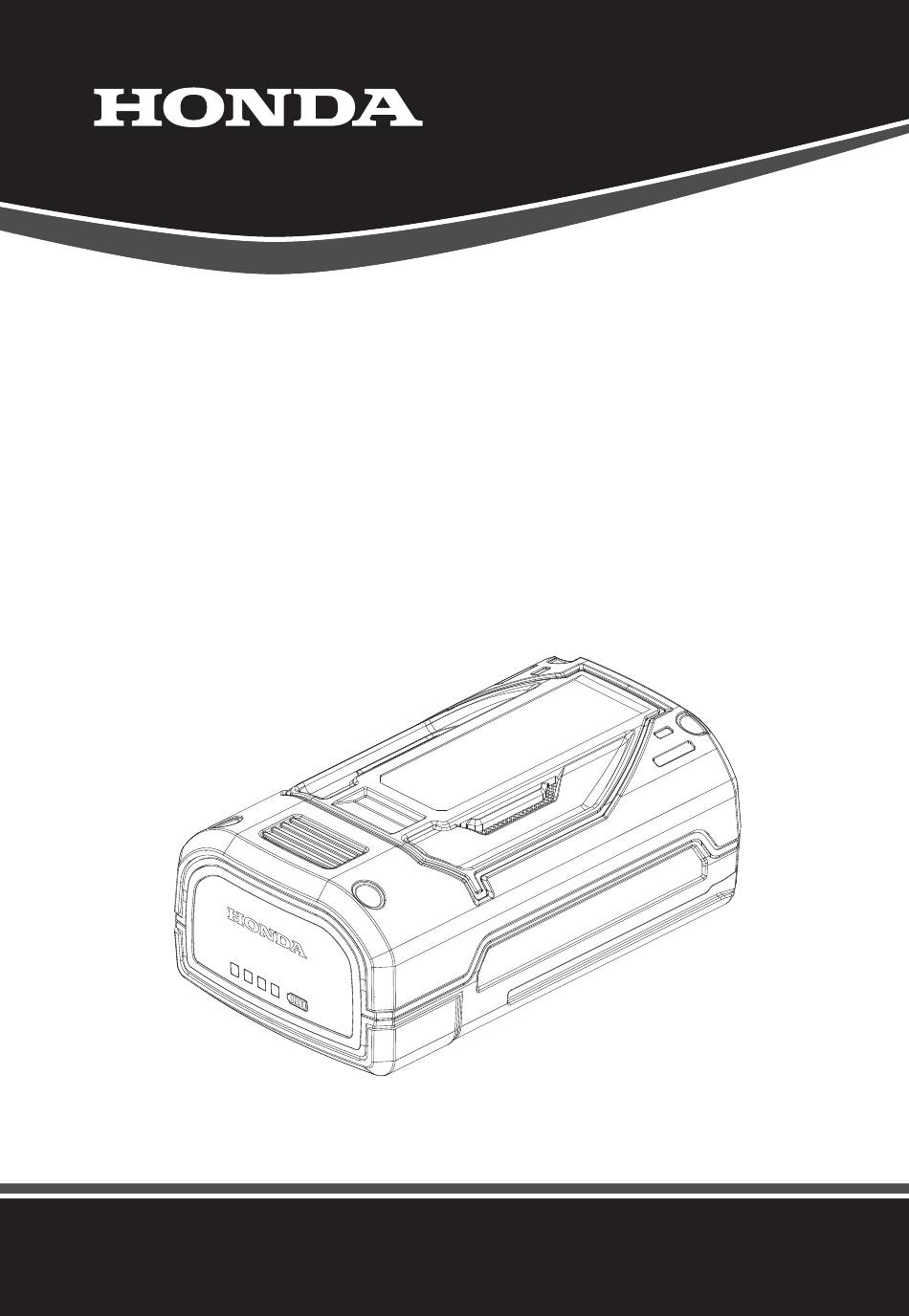

- Page 1 BATTERY DP3650XYD Owner’s Manual ORIGINAL INSTRUCTIONS Thank you for choosing Honda Battery. For your safe use, please read this manual before operating and save the manual properly.
- Page 2 The products shown in this manual may differ from the actual products. If a problem should arise, or if you have any questions about your product, consult your servicing dealer. Honda dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.
-
Page 3: Table Of Contents
CONTENTS Product Introduction......................1 Warning Label........................2 Safety Instructions........................4 Main Specification........................6 Operation..........................7 Daily Maintenance......................10 Troubleshooting.........................11 Technical lnformation.......................12... -
Page 4: Product Introduction
PRODUCT INTRODUCTION 1. Upper Cover 3. Capacity Indicator Button 2. Lower Cover 4. Capacity Indicator... -
Page 5: Warning Label
WARNING LABEL Warning labels will remind you of potential hazards that may cause harm, please read carefully. If the label falls off or the content is unclear, please contact your servicing dealer. Warning. WARNING - To reduce the risk of injury, user must read instruction manual. Do not dispose of battery packs in rivers or immerse in water. - Page 6 WARNING LABEL For best results, your battery should be charged when the temperature is less than 122°F (50°C). General symbol for recovery/recyclable. Crossed out dust bin. Batteries and battery packs should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.
-
Page 7: Safety Instructions
SAFETY INSTRUCTIONS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. a. - Page 8 SAFETY INSTRUCTIONS temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
-
Page 9: Main Specification
MAIN SPECIFICATION Model DP3650XYD Rated Voltage 36 V DC Rated Capacity 5.0 Ah Weight 1.2 kg Matched Charger CV3660XY Charger Input AC 200 V - 240 V Rated Output Voltage 36V 6A Charge Time 70 min Recommend Charge Temperature 0 °C - 40 °C Recommend Discharge temperature -17 °C - 70 °C... -
Page 10: Operation
OPERATION CAPACITY INDICATOR Press the capacity indicator button to check whether it needs to be charged. Fig. 1 Capacity Indicator Capacity Indicator Button Indicators Fully Lit Status ■ □ 75% - 100% ■■■■ 50% - 75% ■■■□ 25% - 50% ■■□□... - Page 11 OPERATION Fig. 2 HOW TO CHARGE THE BATTERY PACK 1. Plug the charger into an approved power supply and the red charging indicator on the charger is on. 2. Press down on the battery pack to be sure the contacts on the battery pack engage properly with contacts in the charger.
- Page 12 OPERATION Lights Light indicators Status One red light on Power on One green light flashing Normal charging One green light on Charge over One red light flashes at a frequency Abnormal voltage of battery of 1Hz Red light and green light flash Abnormal temperature of battery alternately at a frequency of 1 Hz...
-
Page 13: Daily Maintenance
DAILY MAINTENANCE WARNING Remove battery pack from the charger/tool before any cleaning and maintenance work. The following suggestions will help increase the safety of the battery and extend its life: • Clear off debris from the charger after use or before storage. •... -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Battery is discharged Charge the battery pack The battery pack doesn’t work Replace with new one or contact Battery pack is damaged your servicing dealer to repair Replace with new one or contact Battery pack is damaged your servicing dealer to repair Replace with new one or contact Charger is broken... -
Page 15: Technical Lnformation
TECHNICAL INFORMATION Please write down the battery pack model and purchase date on the following line. This information is required when ordering parts, technical or warranty inquiries. Battery Model Purchase Date Battery Model DAAAY-*******... - Page 16 Manufacture: Honda Power Products (Fuzhou) Co., Ltd Address: No.7 Houyu Road, Jin’an District, Fuzhou City, Fujian Province, China. 42Y0K600 © 2024 Honda Motor Co., Ltd. 00X42-Y0K-6000 Printed in China...
