Boss Audio Systems BV9384NV Manual

6. Radio Interface


7. Phone setup Interface


8. BT Music Interface

9. Music Interface


12. AUX Interface


13. AV no signal Interface


14. Camera Interface


15. Settings Interface


ACCESS SETUP INTERFACE

There are five menu in setup:
GENERAL SETUP—Menu 1

1. Setup function area: General setup, Disc setup, Audio setup, Navigation setup, Other setup
2. Subsidiary function area: Move up and down to see the general setup items.
   1. Touch to setup the present time.
   2. Touch to set present date
   3. Touch to set clock mode: 24/12 hr
   4. Touch to set AP/PM at 12 hr mode.
   5. Choose time zone according to your local place.
   6. Choose daylight savings ON/OFF according your local place time.
   7. Touch to choose radio field between: USA/Europe/Latin1/Latin2/ ORIT/China/Japan/korea.
   8. Touch to set wallpaper as you want from the 5 wallpapers storage of the system.
   9. Backlight dimmer selection: Night/Dark/Normal/Bright.
   10. Go sleep time selection: OFF/One minute/Five minute/Ten minute.
   11. Switch effect selection: Left-right/Right-left/Top-bottom/bottom-top /big-smaII/Small-big/Gradient/Random/Off.
   12. Turn it ON, it will go back from main menu to the latest playing mode in 10 seconds if you do not operate.

NOTE:
Move up and you will see some other setup subsidiary functions.

DISC SETUP -Menu 2

1. Touch to turn on or turn off the VCD PBC function.
2. Touch to set up the level of the DVD. Default password is 000000.

AUDIO SETUP -Menu 3

1. Press to enter into EQ set up menu.
2. Reverb selection: OFF/Livingroom/Hall/Concert/Cave [Bathroom [Arenal.
3. Loudness: ON/OFF.
4. Beep sound: OWOFF.
5. Subwoofer selection: OFF/80HZ/120HZ/160HZ.
6. BaIance: You can adjust the speaker volume by adjusting the front and back, left and right column.

NAVIGATION SETUP -Menu 4

OTHER SETUP -Menu 5

1. Reverse trigger: Turn on if you have a rear view camera. Turn off if you haven't.
2. Touch to enter swc menu.
3. Touch to enter calibrate menu.
4. Load factory setting.
5. Touch to see the saftware version of the unit.

SWC-STEERING WHEEL CONTROL SETTING

Touch SWC enter SWC setting menu
Press"OK"to start SWC learning.

Start learning: Set the POWER button as an example.

1. Press POWER button in the unit (Picture 1),then you will see reminder like picture 2, Press OK.

2. Press POWER key in your steering wheel. Then you can see the reminder in the unit like Picture. Setting successfully. Will show like Picture
3. CIick OK, and finished learning.
4. Repeat 1-3 to learning other keys.

SWCI: Select different SWC resistance to meet different cars. If you cannot finish all key pairing, you can press to select SWC2 SWC3,untiI all keys can learn.
NOTE: Click SWC1 you will lost all KEY learning before.

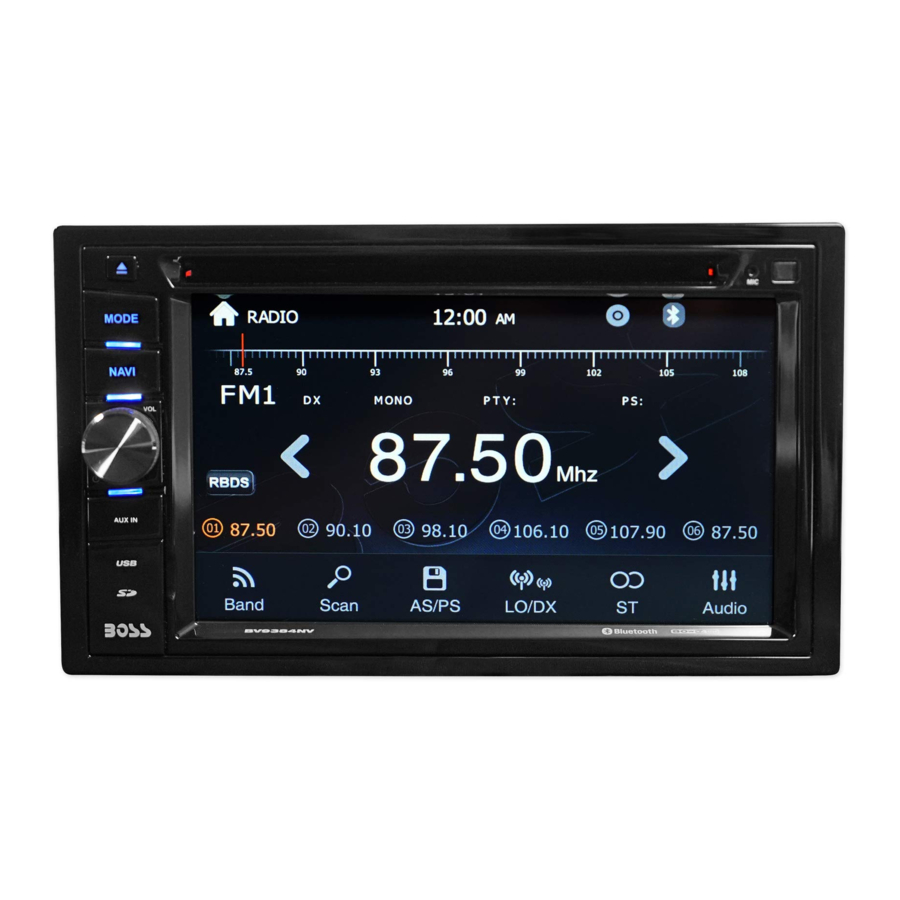

RADIO OPERATION

1. Show the present mode. Touch to go back home.
2. Click to choose the frequency.
3. Short press to seek backward. Long press to enter manual mode and backward in step.
4. Short press to seek forward. Long press to enter manual mode and forward in step
5. Preset stations area, long press to save current station.
6. Band changing: Click to change band between FM1/FM2/FM3/AM1/AM2.
7. Search the stations, play the searched one for 5S and go on to search next one and repeat this.
8. Change between AS and PS.
9. LO/DX: Touch to select Local or Distant broadcasting stations.
10. Stereo on/off: Click to turn on/off stereo when receiving a stereo signal.
11. EQ: Press to set the audio effect.

12. RBDS: Touch to enter RBDS setup menu. you can choose the program type you like to listen: news, sports, inform, etc.

1. TA(Traffic Announcement)
   ON: When the traffic station is turned on, the radio will automatically search for traffic stations. After a staton is searched, screen displays "TP" Only when traffic information is broadcasted can it be received, after traffic information is completed, the radio will automatically switch to the previous mode.
   OFF: Repress [TA] button to close TA function. In other modes, traffic announcement will automatically switch to radio mode, after the traffic announcement is completed, it will automatically switch to the previous mode.
2. AF(Auto Frequency)
   Touch the button to turn the AF function on/off. AF function is turned on, When the received station signals become weak, the radio will automatically fine-tune to other frequencies. When receiving an emergency announcing, the screen will display warning message.
3. CT (Clock Time)
   To provide current time correction information, the RBDS station can automatically correct the system clock of the receiver when the clock RBDS is opened.
4. PTY (Programming Type)
   Touch the button the screen displays program types, users can search station according to program type.
   Note: If RBDS is turned OFF, AF/TA/PTY will not function.

DISC PLAYBACK-VIDEO

1. Icon gray mean no disc loaded, orange mean disc loaded.
2. Function Area: show the process and time of the present video. This bar will disappear in a while, and click this area to show this function bar again. Touch the bar to set the playing time.
3. Click to show the information of present video.
4. Function bar same as audio playing menu. Press the function key and you will see the following to choose chapter:
   Click the relevant key to choose the chapter

   NOTE: When properly installed, DVD video cannot be displayed unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the screen displays the following warning.


DISC PLAYBACK-AUDIO

1. Total time of the playing song.
2. ID3 information of the music playing such as singer's name, music style, music name etc. if available.
3. Present playing one/total music numbers.
4. Random play.
5. Loop playback.(ALL/SlNGLE loop play)
6. PREV: Press to choose previous music.
7. PLAY/PAUSE: Touch to begin playing. And press the icon again to pause playing.
8. NEXT ONE: Press to choose next music.
9. CIick to see the music play list menu. And user's can choose which one to play here.

10. Press to going into EQ setting interface:


BLUETOOTH OPERATION

MUSIC PLAYING MENU
Press MUSIC in the main menu, it refers to the music file from SD and USB.

BLUETOOTH OPERATION MENU
Click phone icon and will enter into Bluetooth function interface:

1. Bluetooth setting menu:
   1. ON/OFF: Turn on and turn off of Bluetooth when not using. Turn on: show gray BT. and the icon turn blue when paired phone.
   2. Answer automatically: Can turn on or turn off the function of listen to calls automatically.
   3. Connect automatically: Can connect the devices automatically which have already been connected before
   4. Default Bluetooth name for this unit: BOSS AUDIO
   5. PlN code: Default password "0000", and can be change by yourself click"0000"

2. Function area:
   1. Click and see the dialing keypad, users can dial no. and make phone calls.
   2. Click to see the Bluetooth phone book menu.
   3. Click to see the Bluetooth call history.
   4. Bluetooth pairing interface as following:

   5. Bluetooth setting menu.

BLUETOOTH DIALING

1. Shows the number you press in, and press to delete wrong number.
2. Key area.
3. Touch to call out.

BLUETOOTH CALL

1. Press to hang up the phone call.
2. Touch to talk through Bluetooth.
3. Touch to talk through cellphone.
4. Touch to mute mic
5. Touch to get keypad.
6. Show contact name.

BLUETOOTH PHONE BOOK

BLUETOOTH PHONE CALL HISTORY

1. Touch to show the dialed phone number.

2. Touch to show the received phone number.
3. Touch to show missed calls.

BLUETOOTH MUSIC-A2DP

1. Show playing song name and ID3
2. Previous song
3. Play/pause.
4. Next sony
5. Enter EQ setting menu.

PHOTOS


1. Press to turn to the previous picture.
2. Press to turn to the next picture.
3. PLAY/PAUSE: touch to begin play. Press again the icon to pause. During picture playing mode, one picture will be played for 5s automatically and goes to the next if you do not press it.
4. Zoom in the present picture.
5. Zoom out the present picture.
6. Turn left 90 degrees.
7. Turn right 90 degrees.
8. Press to tailor the picture as you want. Touch and drag the corner to decide the picture and press ,you can set the picture as the background of the unit. And this background will remain the same till you reset it.

9. Press to see the picture list:


1. Touch to change between picture mode and picture list mode.
2. Scan the picture file of your SD or USB.

CAMERA/AUX/AV MENU

CAMERA: Rear view function, the rear view video signal can display automatically when you reversing the car, and back to the last sources after reversing the car.

AUX IN: External audio input function Connect the audio device to the unit by the 3.5mm jack in front of the panel and touch AUX INPUT icon.
AV INPUT: External video and audio input function Connect the video and audio device to the unit by the RCA jacks and touch AV INPUT icon.

TROUBLESHOOTING

Table 1: Error message

Table 2:GeneraI problems

Table 3: TFT monitors

Table 4: Tuner

Table 5: Disc

SPECIFICATIONS
