Summary of Contents for Winext AN-307
-
Page 2: Table Of Contents

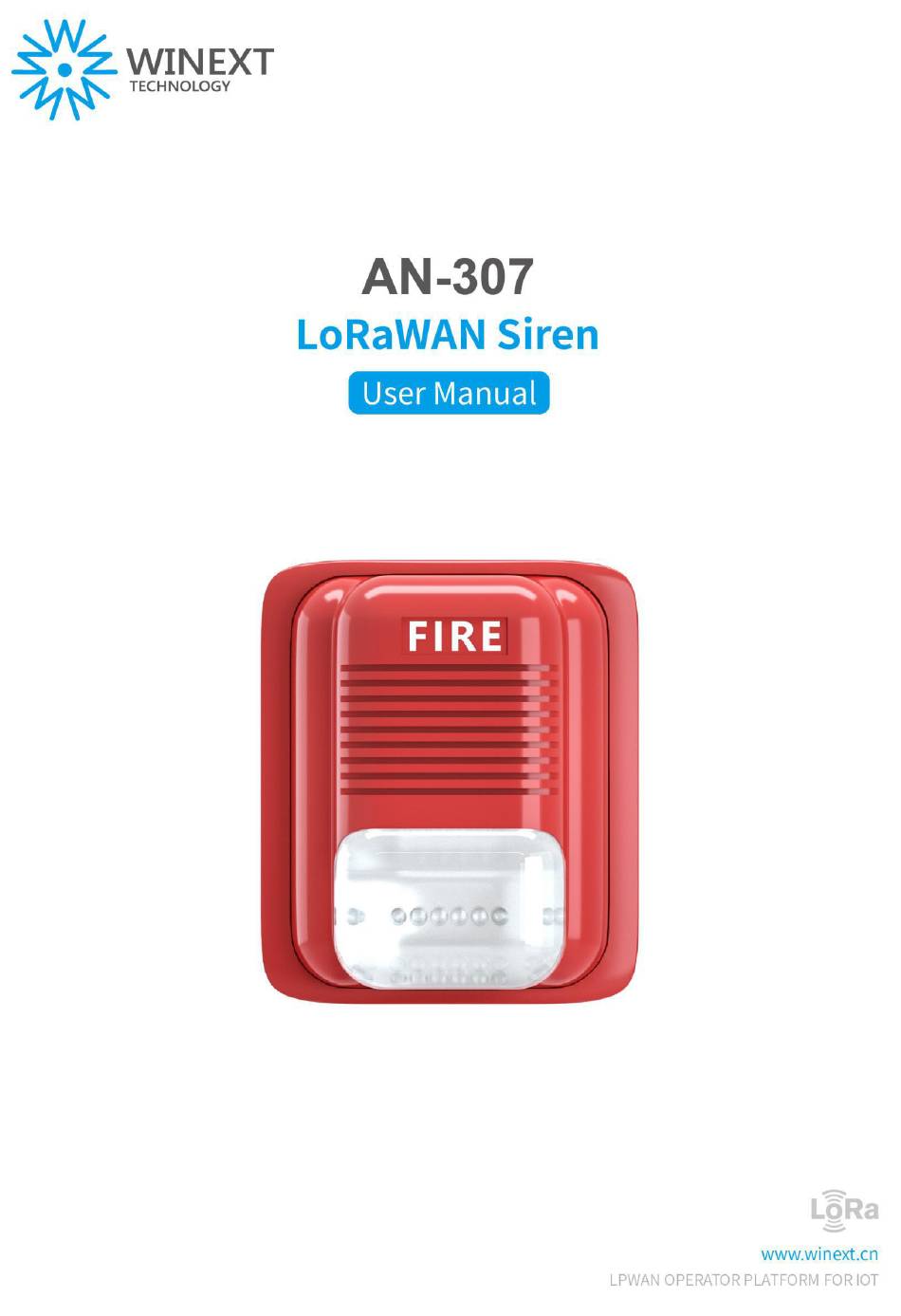

AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. Content 1. Introduction........................2 1.1 Profile........................2 1.2 Feature........................ 2 1.3 Specification......................2 2. Structure........................4 2.1 Dimension......................4 2.2 Install and wiring....................4 3. How to work....................... 5 4. Configuration......................5 4.1 Prepare for configuration..................5 4.2 Install wireless configuration tool driver.............6... -
Page 3: Introduction
1. Introduction 1.1 Profile The AN-307 LoRaWAN Siren makes light and sound to tell the guard management there is an alert. It supports standard LoRaWAN protocol. It has high detection accuracy. With a durable shell, it has a long life span. - Page 4 AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. antenna Temperature Working -10℃~﹢55℃ condition Humidity ≤95％RH(non-condensation) Power DC12V (with adaptor Power supply optional) Working ≤28mA current Current Tx current ≤125mA Size 125x125x47(mm) 120 times/minute±10％ Light alarm Flash energy ≥1.2WS Siren ≥110dB...
-
Page 5: Structure
AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. 2. Structure 2.1 Dimension 2.2 Install and wiring 1. Before installation, please check if the device intact with full accessory kits. 2. The alarm shall be installed on the wall. It is recommended to be fixed as 0.2m away from the ceiling. -
Page 6: How To Work
After a sensor triggered, it sends alarm data to management platform. After receiving the data, it sends messages to AN-307. Then AN-307 generates sound and light as a warn for prompt alarm management. Once the alarm disarming, it makes sounds and light for 10 seconds. -
Page 7: Install Wireless Configuration Tool Driver
AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. Note: 1. Please contact our technical staff for Web configuration tool docs (host configuration tool). 2. Serialport.exe: CP210x_Windows_Drivers 4.2 Install wireless configuration tool driver (1) . Open the file and select the wireless configuration tool driver program. - Page 8 AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. Select Accept the License Agreement and click on Next. Wait for a while and click on Finish. Check the driver program after installation done. Click on Computer-Attribute- Device manager icon...
-
Page 9: Configuration Process
AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. 4.3 Configuration process (1) . Insert the wireless serial port tool into the USB port of the laptop. (2) . Open the web-based configuration tool folder, “serialport-win32-x64” folder, double-click “serialport.exe” to open the web-based configuration tool software. - Page 10 Lock device Put the device close to configuration tool and turn it on. If the device is turned, please reboot. The ID will pop up automatically on in the Winext Manage App. Then please lock the device. d. Device parameters query and setting...
- Page 11 AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. It returns acknowledgement message after query or setting at the bottom of the interface. When the device locked successfully please query or set promptly. If there is no any operation, after 10 seconds it will lose connection. It needs to operate from first step.
- Page 12 AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. e.Some parameters can not be set. You can query it only. f. Activation After finishing setting, please click unlock icon and reboot the device.
-
Page 13: Communication Format
Shenzhen Winext Technology Co., Ltd. 5.Communication format 1. AT_COMMAND packet definition Byte Description 0x06 Sensor type 0x01: Turn on device; 0x00: Turn off device 1-65534,Timing(in Hex) Here is an example to turn on AN-307 and set timing as 10s. e.g.: 06 01 00 0A... -
Page 14: Cautions
AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. 2. AT_COMMAND uplink packet definition Byte Description 0x06: Sensor type 0x01: Sensor disabled 0x00: Sensor enabled 3. Heartbeat packet uplink definition Byte Description 0x09: Sensor type 0x00: Sensor online 6. Cautions 1.Prohibit the use of salt spray, acid, alkaline and organic solvents in the environment. - Page 15 AN-307 LoRaWAN Siren User Manual-V2 Shenzhen Winext Technology Co., Ltd. Shenzhen Winext Technology Co., Ltd. Address: 5 Floor, Building B50, Zhongchuang Industrial Park, Liuxian Rd, Taoyuan Street, Nanshan District, Shenzhen 518055, China Tel：(+86) 0755-23990916 Web: www.winext.cn http://winext.en.alibaba.com --------------------------------------------------------------------------------------------------------------------------------- This is a product manual as an installation, operation and use file. Specifications subject to change are without...
