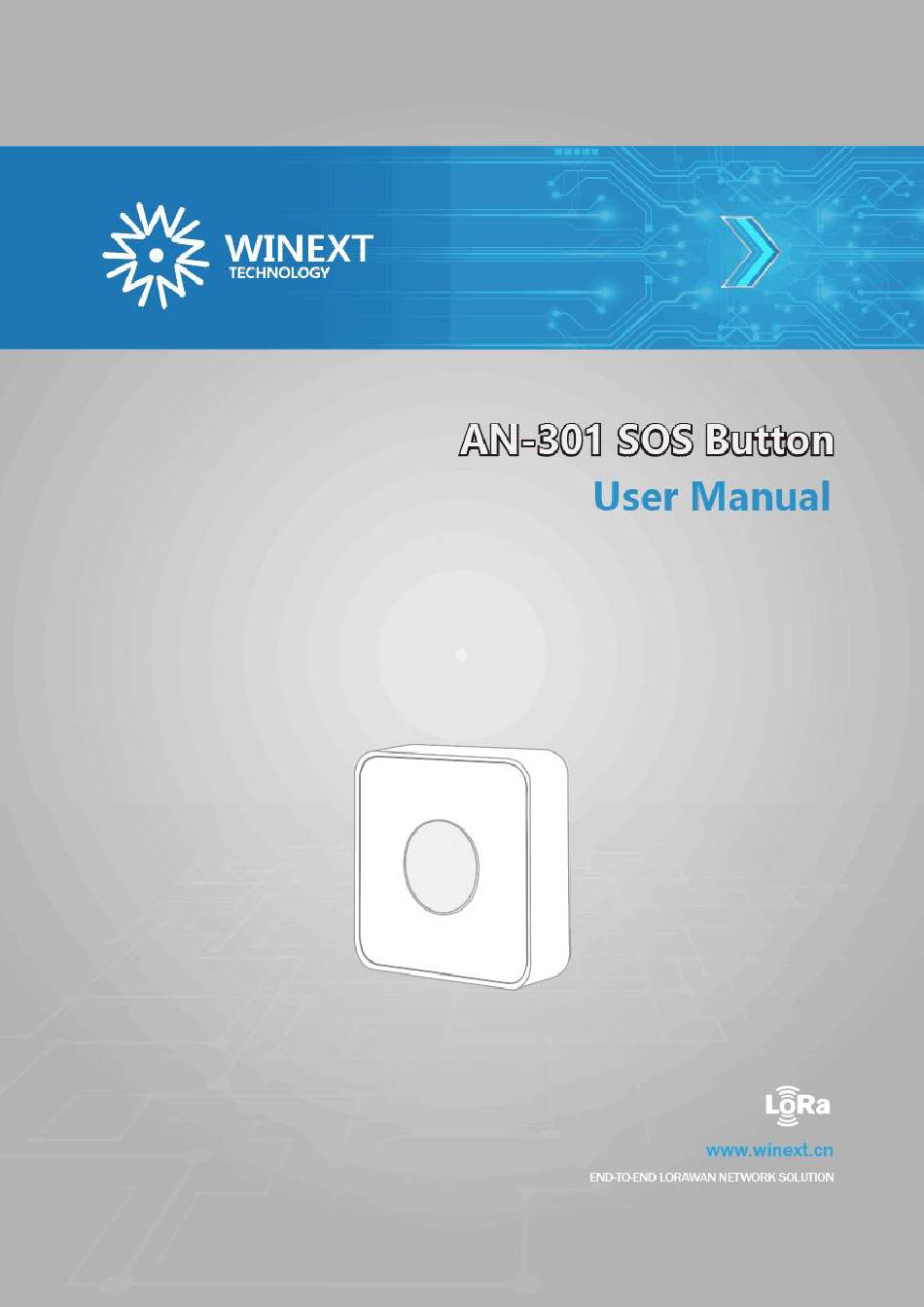

- Page 1 AN-301 One Button SOS Alarm User Manual...
-
Page 2: Table Of Contents
AN-301 One Button SOS Alarm User Manual Content 1. Description ......................................2 1.1 Production Description ..............................2 1.2 Features ..................................... 2 1.3 Specification ..................................2 2. Structure ......................................3 2.1 Appearance and dimension .............................. 3 2.2 Software ..................................... 3 2.3 Packing List ..................................4 3 How to work .....................................4... -
Page 3: Description
1.1 Product Description The AN-301 is a versatile one-button SOS wireless alarm device that operates on the LoRaWAN protocol, designed for quick response to emergencies like terrorist attacks, fires, explosions, or stampedes. With SOS button press, it sends an alarm signal to a monitoring platform, ensuring prompt attention from personnel. -
Page 4: Structure
Standby electric current ≤6uA Rx current ≤16uA Tx current ≤125mA Dimension 86.9*86.9*26mm 2. Structure 2.1 Appearance and dimension Figure: AN-301 Figure: AN-301 Dimension(mm) 2.2 Software AN-301 SOS Button software structure consists of AN-301 software, LoRa wireless serial port module and host configuration... -
Page 5: Packing List
This structure works for alarm data and process data from the host configuration tools simultaneous. That makes it provide a functional system to clients. Host configuration tool Host has user-friendly graphic interface. It can configure parameters of AN-301 SOS Button, when it is connected via serial port module. 2.3 Packing List... -
Page 6: Network Connection
AN-301 One Button SOS Alarm User Manual 3.2 Network connection Figure: AN-301 SOS Button Workflow... -
Page 7: Alarm System
When the SOS button is pressed to trigger the alarm, alarm data will immediately be reported to the monitoring platform in time. When the data transmission blocked due to network fault, AN-301 SOS Button will try to send alarm data to the monitoring... -
Page 8: Alarm System Structure
The network fault information will be sent together as well. After the alarm data successfully sent, AN-301 SOS Button will report the alarm data again regularly until it receives the platform request to cancel the alarm. -
Page 9: Installation
Winext reserves the interpretation of installation. 4.2 Installation tool Please prepare proper tools for installation. Here are tools may be used for reference: Figure: Installation Tools 4.3 Quick installation guide AN-301 has 2 installation methods, desk installation and wall mounted installation. - Page 10 Make the 3M tape adhere to the device back board. Then make the device back board and the device back holder fit together well. Locate AN-301 SOS Button on a proper position where 3M tape to be attached. Press several times to make sure it gets fixed. Recommended installation height is at least 1.5m.
-
Page 11: Configuration
AN-301 One Button SOS Alarm User Manual 5. Configuration 5.1 Tool list Item Description Laptop AN-303 installation Wireless Configuration Tool Used to communicate with AN-301 Host Configuration Software Configure AN-301 via host graphical interface User manual and configuration doc. For user manual and configuration doc., please contact our technical staff. - Page 12 AN-301 One Button SOS Alarm User Manual 32-bit operating system selects “CP210xVCPInstaller_x86.exe”. 64-bit operating system selects "cp210xvcpinstaller_x64.exe". (3). Install Wireless LoRa module driver program. Here takes an example to use the 64-bit operating system to install the wireless configuration module driver.
-
Page 13: Parameter Setting
AN-301 One Button SOS Alarm User Manual Check the driver program after installation done. Click on “Computer”-”Attribute”- “Device manager”. 5.2.3 Parameter setting (1). Insert the wireless configuration module into the laptop USB port. Start host configuration near the device installation... - Page 14 AN-301 One Button SOS Alarm User Manual (2). Insert the wireless configuration tool to the USB port. Click on “Computer”-”Attribute”-”Device manager” and find the correct port. Note: there are two ports for wireless configuration module, only one of them is for setting.
- Page 15 AN-301 One Button SOS Alarm User Manual (4).Reboot device. Select the DevUI accordingly in the check box and click on “Lock address”.
- Page 16 AN-301 One Button SOS Alarm User Manual After the device locked successfully, it will show “OK” in the bottom message box. After the device locked successfully, you can edit parameters for setting up and query. The parameters are for functions and LoRaWAN setting.
-
Page 17: Remote Configuration
AN-301 One Button SOS Alarm User Manual Note: After the device reboot, the device is in wireless configuration mode. Please click on “Lock address” within 5 seconds. It will try to join the network in 5 sends later. After the device locked successfully, and without operation in 15 seconds, the device will exit from wireless configuration to network connection. - Page 18 AN-301 One Button SOS Alarm User Manual 2. Enter the device management platform, click “Downlink”, and fill in the data and port number After entering in the data and port number, click “Confirm”. Waiting for the node to report, the platform will send the data...
-
Page 19: Communication Protocol
AN-301 One Button SOS Alarm User Manual 6. Communication Protocol Fport=210,data reported in hexadecimal format,the communication protocol for the sensor is as below: Field Type Byte Value Reserved Data 0x00 Type 0x01 Terminal Product Model Data 0x01 Type 0x04 Battery Voltage Data uint16，unit: mV... -
Page 20: Trouble-Shooting
4. How to choose the frequency of AN-301 correctly? A: The frequency point setting of the AN-301 should be consistent with that of the gateway, so that the data can be reported to the cloud platform. - Page 21 AN-301 One Button SOS Alarm User Manual Shenzhen Winext Technology Co., Ltd. Address: Room606, 6thFloor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen China Tel：(+86) 0755-23990916 Email: kenpan@winext.cn Web: www.winext.cn ------------------------------------------------------------------------------------------- This is a product manual as an installation, operation and use file. Specifications subject to change are without notice. For...
