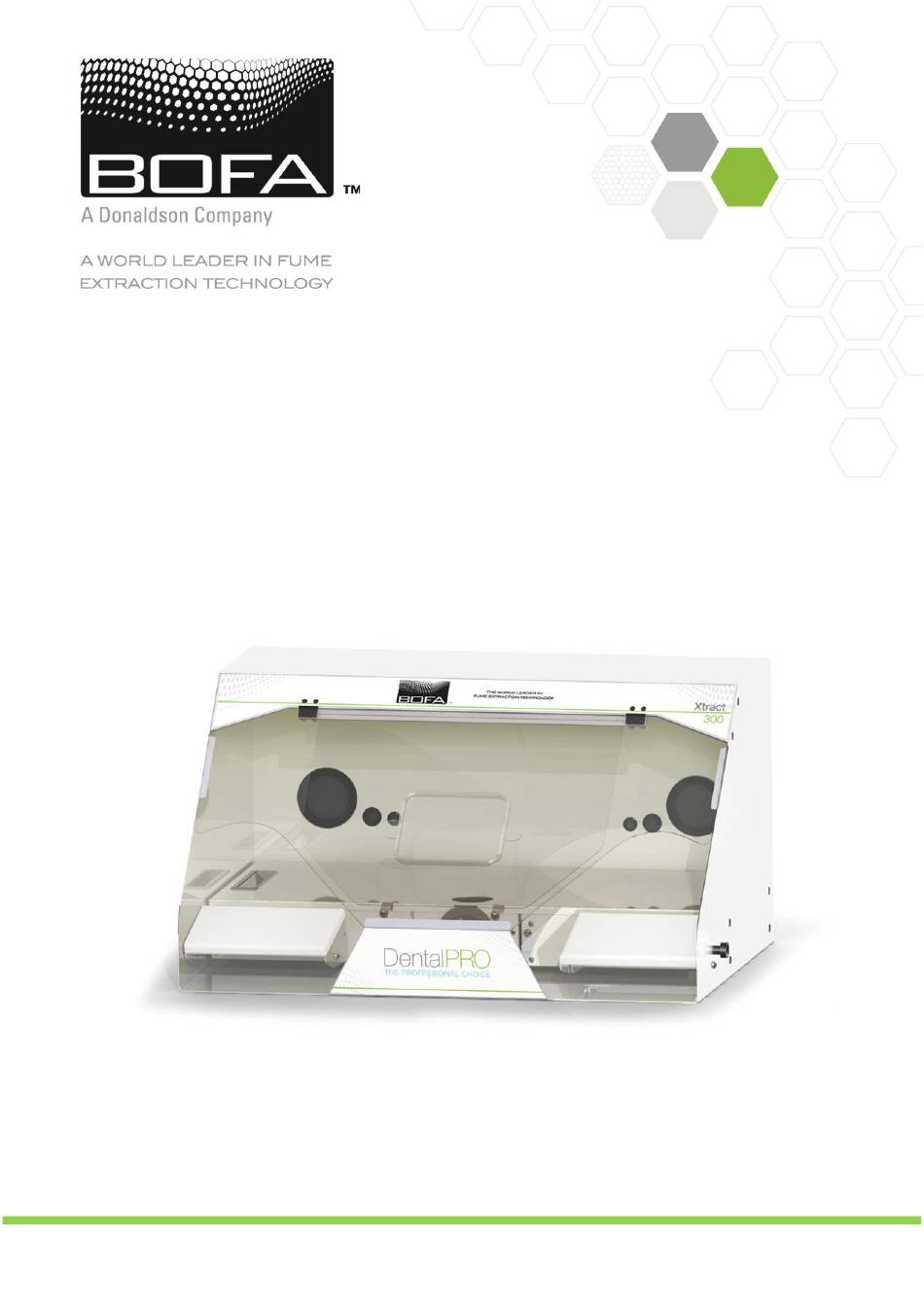

- Page 1 DentalPRO Xtract 300 USER MANUAL...
- Page 2 Contents Overview of your Xtract 300 system (front) V1 May 16 Overview of your Xtract 300 system (back) Overview of your Xtract 300 Accessories Important safety notes Safety labels Unpacking the unit placement Connecting to power supply Added Features Cleaning the unit DentalPRO Xtract 300 Specifications...
- Page 3 Overview Screen Hinges Company Branding Transparent polycarbonate protective panel Transparent anti-static polycarbonate panel Air Inlet Removable Downdraught Tray (Air Inlet) Adjustable Arm Rests Cut-outs at each Removable Tray side for hands...
- Page 4 LED Strip Light Inside Overview LED Light Power Inlet Cable Inlets Armrest Adjustment Knob Air Inlet (to extractor unit) 75mm...
- Page 5 Air Inlet (Optional Accessories) Overview Air Outlet (to Xtract 300 Unit) Company Branding Company Branding Polycarbonate Visor Hardware Recovery Trap Air Inlet Air Outlet (to Xtract 300 Unit)
-
Page 6: Safety Instructions
Electrical Safety Safety Instructions The Xtract 300 has been designed to meet the safety requirements of the Low Voltage Directive 2006/95/EC (previously numbered 73/23/EEC) Important To reduce the risk of fire, electric shock or injury: Important safety notes Concerning symbols used on the DentalPRO Xtract 300 and Use only as described in this manual. -
Page 7: Before Installation
Before Installation Packaging Removal & Unit Placement Before installation, check the extraction unit for damage. All packaging must be removed before the Xtract 300 is connected to the power supply. Please read all instructions in this manual before using this unit. 1. -
Page 8: Installation
Installation Specification: DentalPRO Xtract 300 Dimensions: Height 380mm Depth 509mm Width 738mm Weight: 30kg Input: 100-240V 50/60Hz Current: 0.6A Connection to Power Supply Ensure the power supply is suitable before connecting the Xtract system. Check the Integrity of the electrical power cable, if the supply cord is damaged the unit should not be connected to the mains. - Page 9 The DentalPEG has been designed to work alongside the Installation Xtract 300 as an additional extraction accessory. The DentalPEG features a replaceable polycarbonate visor to protect the user whilst also featuring a hardware recovery system. Should a piece of hardware (screws, nuts etc.) be drawn into the extraction system they will be caught in a recovery chamber located at the back of the DentalPEG where they can be easily retrieved by removing the cap.
-
Page 10: Maintenance
To remove the panel, simply turn the latch that is secured to Maintenance the main panel through 180˚. The panel can then be slid downwards and out of the slot located in between the hinges and replaced with a new panel. Maintenance UK It is a legal requirement, under regulation 9 of the COSHH regulations that all local exhaust ventilation systems are... -
Page 11: System Specifications
System Specifications Unit: DentalPRO Xtract 300 Weight: 30kg 66lbs Input: 100-240V 50/60Hz Current: 0.6A Size: Metric Imperial (mm) (inches) Height 14.9 Depth 20.0 Width 29.0... -
Page 12: Contact Information
Contact Information BOFA Headquarters 19-20 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DU Phone: +44 (0) 1202 699 444 BOFA Americas 303 S.Madison Street Staunton Illnois 62088 Phone: +1 (618) 205 5007 BOFA International GmbH Sudring 62 D-21465 Wentorf bei Hamburg Germany Phone: +49 (0) 40 7393735-15...
