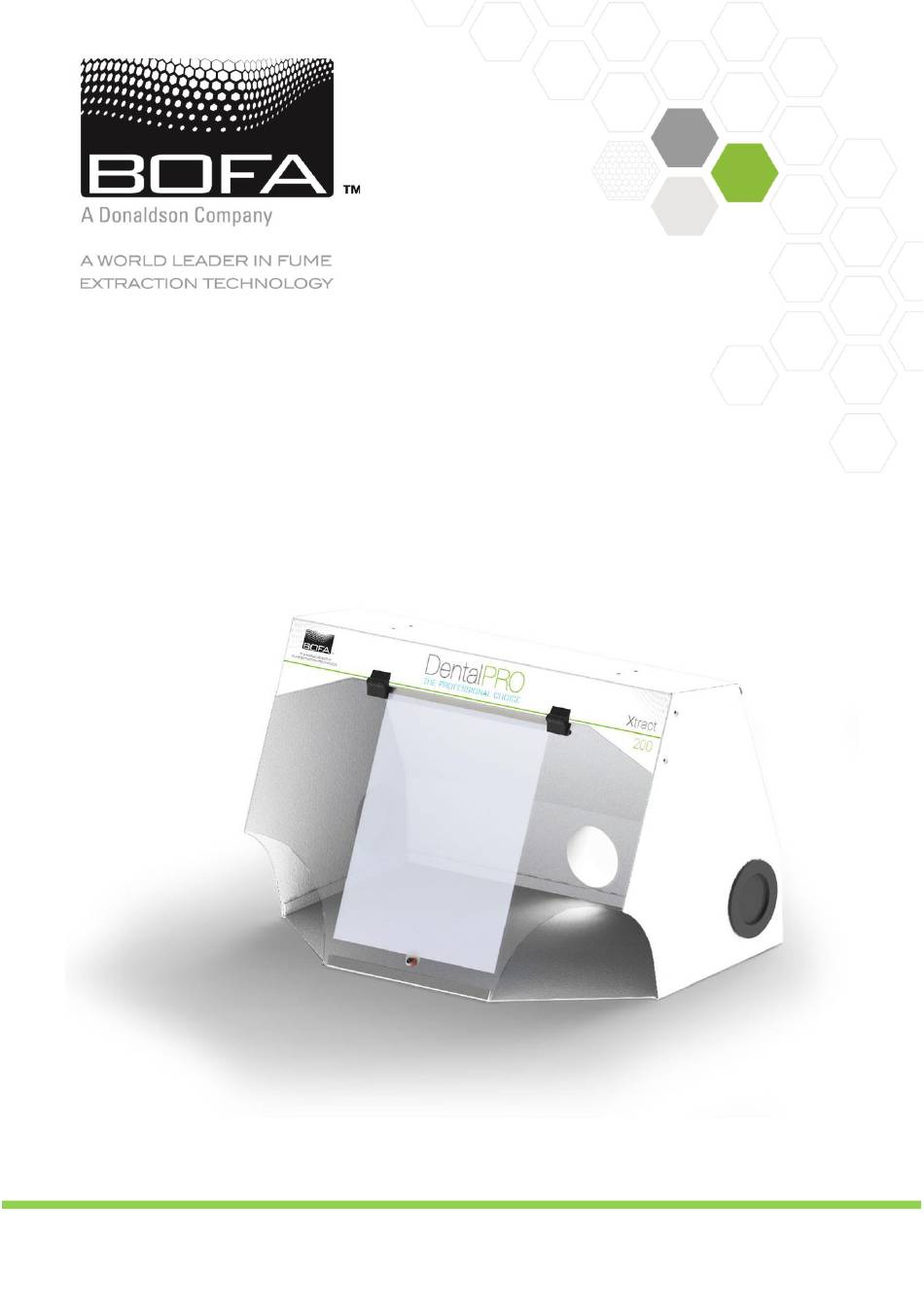

- Page 1 DentalPRO Xtract 200 USER MANUAL...
- Page 2 Contents Overview of your Xtract 200 system (front) V2 May 16 Overview of your Xtract 200 system (back) Important safety notes Safety labels Unpacking and unit placement Connecting to power supply Fume capture methods Cleaning the unit DentalPRO Xtract 200 Specifications...
- Page 3 Overview Screen Hinges Company Branding Transparent anti-static polycarbonate panel Transparent polycarbonate protective panel Cut-outs at each side for hands...
- Page 4 LED Strip Light Inside Overview LED Light Power Inlet Cable Inlets Air Inlet (to extractor unit)
- Page 5 Electrical Safety Safety Instructions The Xtract 200 has been designed to meet the safety requirements of the Low Voltage Directive 2006/95/EC (previously numbered 73/23/EEC) Important To reduce the risk of fire, electric shock or injury: Important safety notes Concerning symbols used on the DentalPRO Xtract 200 and Use only as described in this manual.
- Page 6 Before Installation Packaging Removal & Unit Placement Before installation, check the extraction unit for damage. All packaging must be removed before the Xtract 200 is connected to the power supply. Please read all instructions in this manual before using this unit. 1.
- Page 7 Installation Specification: DentalPRO Xtract 200 Dimensions: Height 354mm Depth 402mm Width 548mm Weight: 11.8kg Input: 100-240V 50/60Hz Current: 0.6A Connection to Power Supply Ensure the power supply is suitable before connecting the Xtract system. Check the Integrity of the electrical power cable, if the supply cord is damaged the unit should not be connected to the mains.
- Page 8 Flexible Arm & Nozzle Extraction (Optional Kits) Installation The stay put arm should be mounted as close as possible to the marking point. Unscrew the push fit connector from the other side of the flexible hose. Cut the flexible hose to suit the distance back to the extractor connection and push onto the extractor inlet.
- Page 9 To remove the panel, simply turn the latch that is secured to Maintenance the main panel through 90˚. The panel can then be slid downwards and out of the slot located in between the hinges and replaced with a new panel. Maintenance UK It is a legal requirement, under regulation 9 of the COSHH regulations that all local exhaust ventilation systems are...
- Page 10 System Specifications Unit: DentalPRO Xtract 200 Weight: 11.8kg 26lbs Input: 100-240V 50/60Hz Current: 0.6A Size: Metric Imperial (mm) (inches) Height Depth 15.8 Width 21.5...
- Page 11 Contact Information BOFA Headquarters 19-20 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DU Phone: +44 (0) 1202 699 444 BOFA Americas 303 S.Madison Street Staunton Illnois 62088 Phone: +1 (618) 205 5007 BOFA International GmbH Sudring 62 D-21465 Wentorf bei Hamburg Germany Phone: +49 (0) 40 7393735-15...
