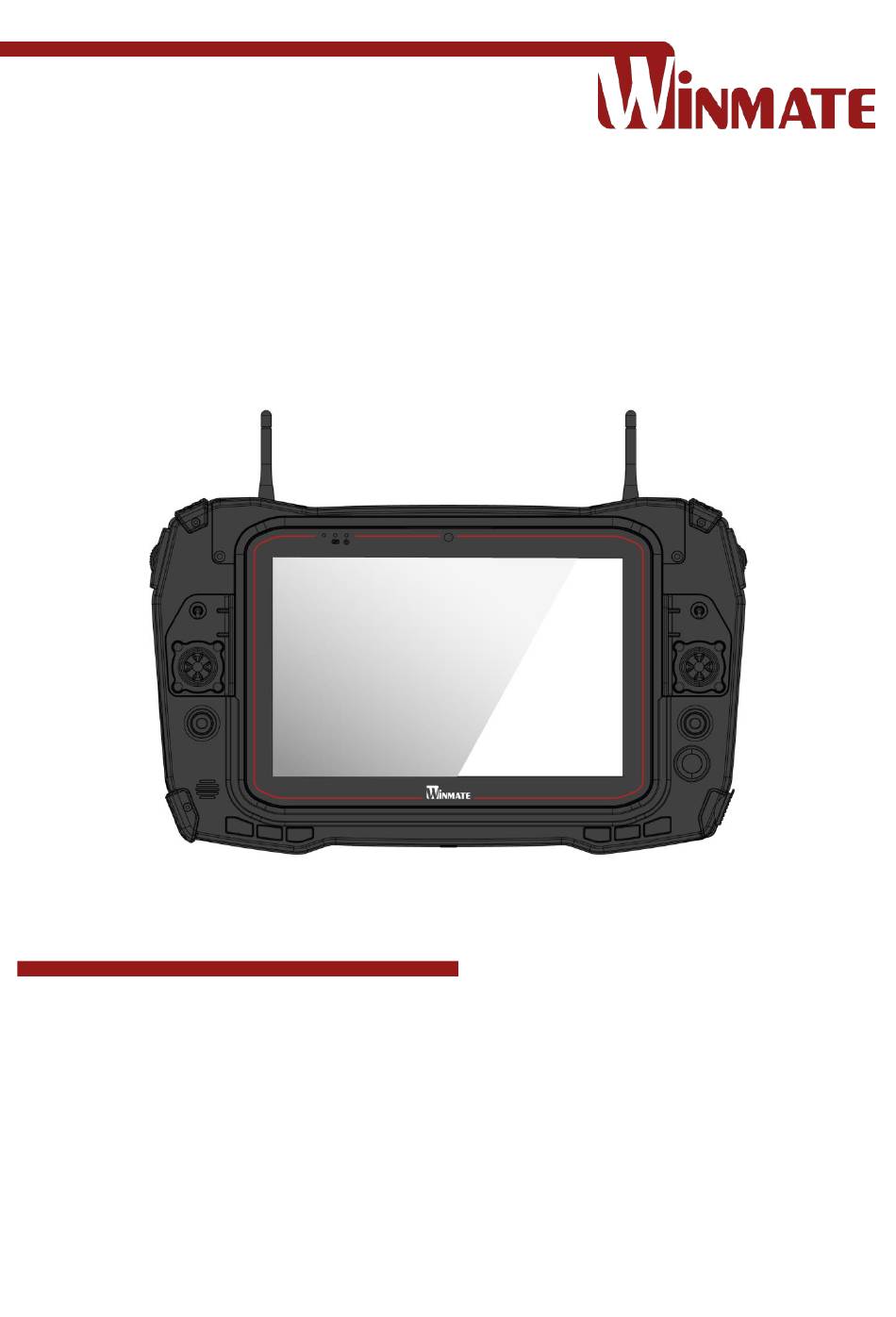

- Page 1 G101TG Ground Control Station 10.1" Rugged Handheld Controller Intel Core i5-1135G7 @ 2.4GHz (turbo boost up to 4.2 GHz) User Guide Version 1.0 Document Part No. 9152101K101W...
-
Page 2: Table Of Contents
Rugged Handheld Controller G101TG User Guide Content Chapter 1: Read Me First .......................... 3 1.1 Advisory Conventions .......................... 3 1.2 Safety Information ..........................4 1.3 Handling and Maintenance ........................6 1.4 Declaration of Conformity (DoC) ......................7 1.5 Copyright Notice ..........................8 1.6 Trademark Acknowledgement ...................... - Page 3 Chapter 1: Read Me First 5.1.3 Advanced Display Setting ......................34 5.2 Using Recovery Wizard to Restore Controller ................... 36 5.3 COM Port Definition .......................... 38 Chapter 6: Troubleshooting ........................40 6.1 Basic Troubleshooting ........................40 Appendix ..............................41 Appendix A: Product Specifications ......................41...
-
Page 4: Chapter 1: Read Me First
Rugged Handheld Controller G101TG User Guide Chapter 1: Read Me First 1.1 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. -
Page 5: Safety Information
Chapter 1: Read Me First 1.2 Safety Information Precaution on Battery Pack When the Battery Pack Has Deteriorated, Pré caution avec le bloc-pile Replace It with a New Battery. Continued use of a damaged battery pack may result in heat generation, ignition, or battery rupture. - Page 6 Rugged Handheld Controller G101TG User Guide General Product Safety This product should not be used near water Sé curité gé né rale des such as bathtubs, sinks, swimming pools, wet basement, etc. produits [FR] Ce produit ne dois pas être utilisé près de l'eau comme les baignoires, les éviers, les...
-
Page 7: Handling And Maintenance
Chapter 1: Read Me First 1.3 Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the product. General Guideline [FR] Essuyer délicatement l'écran avec un Guide Gé né ral chiffon doux non pelucheux. Ne pas utiliser d'alcool ou un détergent sur le produit. -
Page 8: Declaration Of Conformity (Doc)
Chapter 1: Read Me First 1.4 Declaration of Conformity (DoC) FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may ... -
Page 9: Copyright Notice
Brand and product names are trademarks or registered trademarks of their respective owners. 1.7 Disclaimer Winmate Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume... -
Page 10: Chapter 2: Getting Started
2.1 Introduction Congratulations on purchasing Winmate® 10. 1-inch Ground Control Station. G101TG is a rugged handheld controller with robust features designed to withstand industrial use while providing tech solutions that increase productivity, improve safety, and reduce operational costs. The proc power comes from the 11* generation Intel®... -
Page 11: Description Of Parts
Chapter 2: Getting Started 2.3 Description of Parts Dimensions: 366x 219 x 49.5 mm Front Left Right Item Description Item Description 10.1" Touch Display and act as one of Toggle A type of electrical switch Screen the inputs for the Switches that is actuated by moving Controller... - Page 12 Rugged Handheld Controller G101TG User Guide 2: Getting Started Rear Bottom Item Description Camera & Flash 8MP Auto-focus Camera with LED Flash Metal Bracket Metal grip to handle Wireless module RF module with communication functions Control Buttons Send out sound and voice from the...
-
Page 13: Indicators
Chapter 2: Getting Started 2.4 Indicators Icon Indicator Description Power Indicator Blue– Controller is ON No light–Controller is OFF Battery Status Orange–AC adapter is plugged in and charging No light – Battery is in use 2.5 First-Time Operation 2.5.1 Installing Battery To install the standard battery pack: 1. -
Page 14: Charging Your Controller
Rugged Handheld Controller G101TG User Guide 2: Getting Started 2.5.2 Charging Your Controller The controller operates either on external AC power or internal battery power. It is recommended to use AC power when you start up the controller for the first time. -
Page 15: Starting The Controller
Chapter 2: Getting Started 2.5.3 Starting the Controller Important: When powering on the device for the first time, please make sure there's no interruption during the Windows setting up process, for example, accidentally powering off. If it happened, please access the recovery menu by pressing Fn1 button to initiate the recovery process. Press and hold the power button for 3 seconds until the blue LED power indicator light up. -
Page 16: Chapter 3: Setting Up Windows For The First Time
This chapter details how to setup the Windows that may be installed on the controller for the first time. 3.1 Introduction The G101TG handheld controller operates on Windows 10 IoT Enterprise operating system. Caution Make sure the battery is full charged before starting the controller for the first time with internal battery power. - Page 17 Chapter 3: Setting Up Windows for the First Time 3. Select your preferred keyboard layout, then tap Yes. 4. Tap Add layout if you want to add a second keyboard layout, or tap Skip for the next step.
- Page 18 Rugged Handheld Controller G101TG User Guide 5. Windows will then try to connect you to a network. Select your network or tap I don't have internet to continue without a wireless connection, as you can set up the network later. You'll then jump to 7.
- Page 19 Chapter 3: Setting Up Windows for the First Time 7. Type your name, then tap Next. 8. Create your password, then tap Next.
- Page 20 Rugged Handheld Controller G101TG User Guide 9. Read each privacy settings and choose it, you can tap Learn more for more information, or tap Accept to save them. You can change these settings at any time. 10. Read any introductory screens describing features of your controller, and tap Next upon completing...
-
Page 21: Chapter 4: Operating The Device
Chapter 4: Operating the Device Chapter 4: Operating the Device This chapter describes how to operate the G101TG controller, including camera, Hottab, barcode, WWAN, WLAN features. 4.1 Hottab Introduction Hottab provides quick access to the controller 's functions and features, such as setting up shortcuts, using camera, powering on/off built-in devices, programming function keys, and changing power management. -
Page 22: Shortcuts
Rugged Handheld Controller G101TG User Guide Enables/disables controller's hardware functions. The configurable functions are WLAN, WWAN (4G/LTE), GPS, Bluetooth, Camera, LED indicators, Barcode Reader, and GPS Antenna routing options. Device ON/OFF Provide PC information, battery status, device settings such as power management setting, and function key mappings. -
Page 23: Using Camera
Chapter 4: Operating the Device 4.3 Using Camera CAUTION Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eyes. This Hottab menu option allows users to take a picture or record a video. Before use, make sure the camera is on under the Device ON/OFF menu with the following scenarios. - Page 24 Rugged Handheld Controller G101TG User Guide No Item Description Switch Camera Switch between front camera or rear camera. Settings Set picture quality. Review. Picture Save: modify/inspect saved location for pictures. Review Video Save Folder: modify/inspect saved location for video recordings.
-
Page 25: Built-In Devices On/Off
Chapter 4: Operating the Device 4.4 Built-in Devices On/Off This section describes how to get quick access to set up built-in devices, including turning on/off RF modules and setting up barcode reader. 4.4.1 Using the Wireless LAN (Optional) To use the wireless LAN (WLAN) feature to connect to the network, perform the following procedure: 1. -
Page 26: Using The Wireless Wan (Optional)
Rugged Handheld Controller G101TG User Guide 4.4.2 Using the Wireless WAN (Optional) The controller supports data connection with 4G/LTE modules. 4.4.2.1Using Wireless WAN Feature (Optional) To connect to the network using wireless WAN: 1. Launch the Hottab Utility application. 2. Tap on the Device ON/OFF button. -
Page 27: Turning On/Off Led Indicators
Chapter 4: Operating the Device 4.4.5 Turning On/Off LED Indicators The LED Indicators for Power and Battery status can be turned on/off from Hottab menu. To enable/disable the LED indicators: 1. Launch the Hottab Utility application. 2. Tap on the Device ON/OFF button. 3. -
Page 28: Changing Touchscreen Modes
Rugged Handheld Controller G101TG User Guide 4.4.7 Changing Touchscreen Modes The controller supports three built-in operating modes for different usage scenarios: Mode Description In Hand/Rain mode, the touchscreen rejects false inputs from liquid drops. When the liquid is removed, the touchscreen accepts touch inputs from bare fingertips. - Page 29 Chapter 4: Operating the Device 4.4.7.2 Switch via Programmable Function Buttons: To switch between the different touchscreen modes via the programmable function buttons, ensure the touchscreen mode switching is set to the programmable function buttons first. Launch the Hottab Utility application. Tap on the Setting button.
-
Page 30: Usb Report Protocol
Rugged Handheld Controller G101TG User Guide 4.5 USB Report Protocol BYTE REPORT ID = 0x01 Roller Switch L1 0~255 Roller Switch L2 0~255 Joystick RX -127~127 Joystick RY -127~127 Joystick LX -127~127 Joystick LY -127~127 Roller Switch R 0~255 Joystick... - Page 31 Chapter 4: Operating the Device...
-
Page 32: Check For Update
Rugged Handheld Controller G101TG User Guide 4.6 Check for Update To check for software update, perform the following procedure: 1. Launch the Hottab Utility application. 2. Tap on the Setting button. 3. Check the Check for Update. 4. The available update will show up. Click Update to download and install it. -
Page 33: Chapter 5: Frequently Used Settings
Chapter 5: Frequently Used Settings 5.1 Screen Resolution Setting The G101TG's 1920 x 1200 high-resolution display is perfect for viewing images, videos, or other applications. However, when the device is used alone or connected to other device, the Windows user interface (icons, buttons, and other elements) may be too small to read and operate at the default Windows settings. -
Page 34: Changing Screen Resolution
Rugged Handheld Controller G101TG User Guide 2. On Display Window, click on the drop-down option under the Scale and layout and change the scaling option to 150% (Recommended) or any other desired display scaling. 5.1.2 Changing Screen Resolution Alternatively, instead of changing the display scaling setting, user may choose to change the overall resolution setting to make screen elements bigger. -
Page 35: Advanced Display Setting
Chapter 5: Frequently Used Settings 2. Click on the drop-down option next to Resolution and select the desire resolution by tapping on the scale. 3. Hit Apply. A Display Settings prompt will show up to ask the user if the applied resolution is usable. 4. - Page 36 Rugged Handheld Controller G101TG User Guide 2. When the G101TG is connected to external display, the Advanced display setting options is available. Click Advanced Display settings. 3. On the Choose display, change the display then change the refresh rate to 30.000 Hz.
-
Page 37: Using Recovery Wizard To Restore Controller
Chapter 5: Frequently Used Settings 5.2 Using Recovery Wizard to Restore Controller G101TG Controller has a dedicated recovery partition stored on the controller's hard drive to enable a quick one-key recovery process. This partition occupies about 11GB of the storage space and comes built- in to each G101TG Controller. - Page 38 Rugged Handheld Controller G101TG User Guide 5. Wait till the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of the recovery process. 6. After the recovery is complete, please press any key to continue, and the controller will shut down...
-
Page 39: Com Port Definition
Chapter 5: Frequently Used Settings 5.3 COM Port Definition G101TG controller uses Hottab utility for built-in peripherals control. All the COM port numbers have been defined in the OS image coming with the package. COM Port Device COM 20 USB series Device... - Page 40 Rugged Handheld Controller G101TG User Guide Tap on the Port Setting tab and click on Advanced button. Tap on the drop-down list, choose the correct COM Port Number (refer to the COM Port Definition Table), and click OK. Double-check Device Manager to make sure the COM Port number has been re-defined successfully,...
-
Page 41: Chapter 6: Troubleshooting
Chapter 6: Troubleshooting Chapter 6: Troubleshooting 6.1 Basic Troubleshooting Problem Solution The removable battery is not charging. Make sure the AC adapter is properly connected and that the removable battery is properly inserted. Nothing appears on the screen. The controller may be in sleep mode. -
Page 42: Appendix
Rugged Handheld Controller G101TG User Guide Appendix Appendix A: Product Specifications G101TG Model Name Size 10.1 inches Resolution 1920x1200 Brightness 800 nits Contrast Ratio 800:1 (typ) 85,85,85,85 Display View Angles Type Projected Capacitive Multi-Touch Bonding Optical Bonding for Sunlight Viewability... - Page 43 1. Accessories and Integrated Options may vary depending on your configuration. The product shown in this document is a standard model. For diagrams that contain customized or optional I/O, please contact the Winmate Sales Team for more information. 2. All specifications are subject to change without prior notice.
- Page 44 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2024 Winmate Inc. All rights reserved.
