ADVANCED Network Devices ZONE-LO Quick Start Manual page 2

AND Zone Line Out Controllers work with
a wide variety of amplifiers. Please refer
to the technical documentation for your
specific product when connecting the
audio input.
Technical specifications for the audio
output from the Zone
Controller:
RCA Line Out
10k Ohm, unbalanced, 2Vpp line-level
output. Dynamic Range: 93dB. THD+N:
0.008%

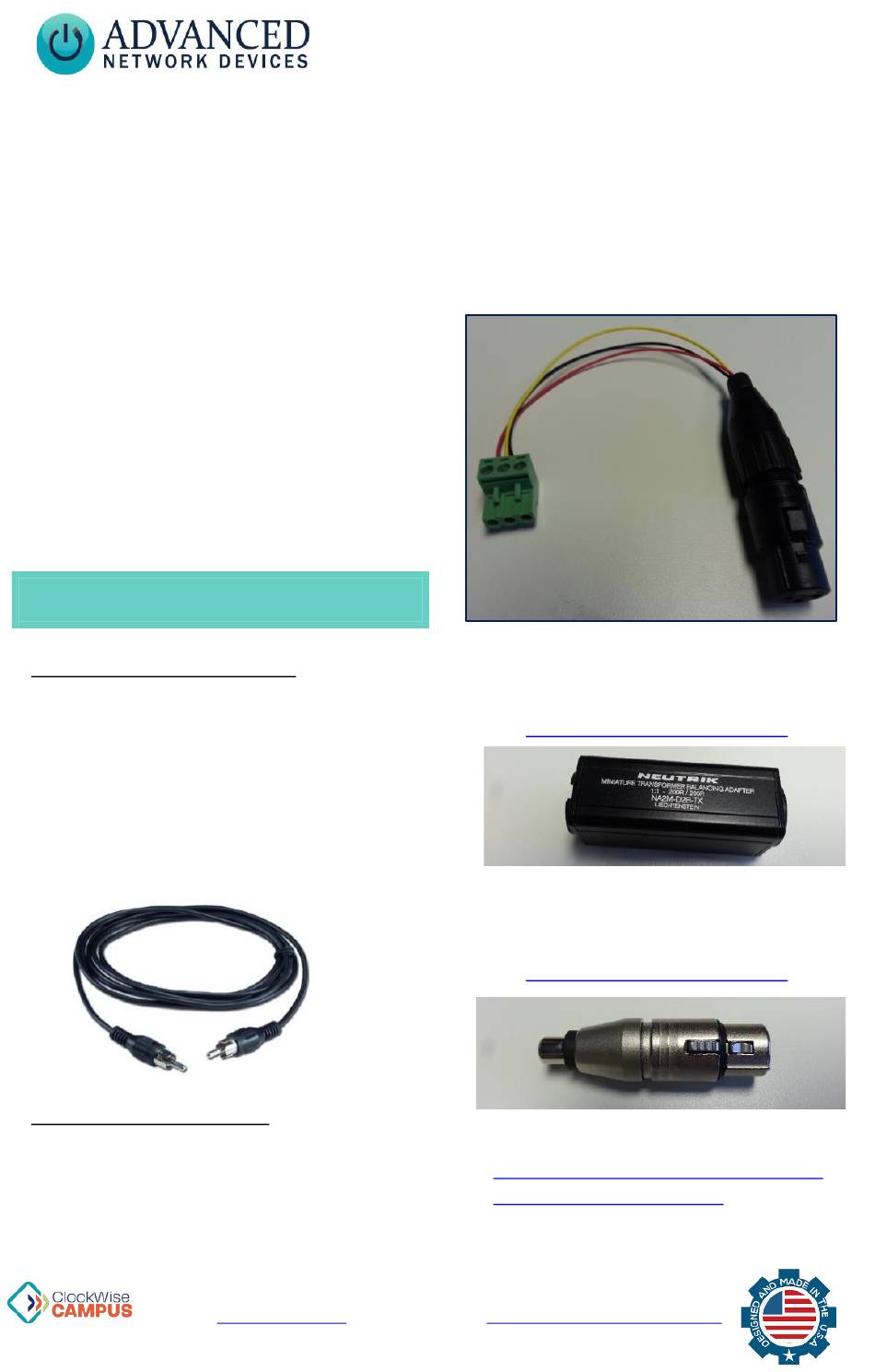

CABLES AND ADAPTERS
Unbalanced Amplifier Input
The ZONE-LO includes an RCA audio line-
level output port, enabling use of a
standard male-to-male RCA cable for
unbalanced amplifier inputs. You can
purchase this item off-the-shelf from a
variety of electronics stores.
Balanced Amplifier Input
If the amplifier only features balanced
inputs, then the recommended use of
XLR works as the most straightforward
method of adapting the unbalanced
Advanced Network Devices • 3820 Ventura Drive Arlington Heights, IL 60004
Support:
Line Out
tech@anetd.com • 847-463-2237 •
Zone Line Out Controller
audio output from the ZONE-LO. We
recommend a short RCA cable and a
longer XLR cable whenever possible due
to the enhanced noise rejection on the
XLR. These two tested RCA-to-XLR
adapter options proved to work.
1. Neutrik XLR adapter with audio
transformer:
Mouser Electronics Website
2. Neutrik
transformer:
Mouser Electronics Website
Source:
http://en.wikipedia.org/wiki/XLR_connector
#Technical_usage_information
www.anetd.com/user-support/
2
(ZONE-LO)
XLR adapter without
v1.3
