ADVANCED Network Devices ZONE-LO Quick Start Manual

OVERVIEW

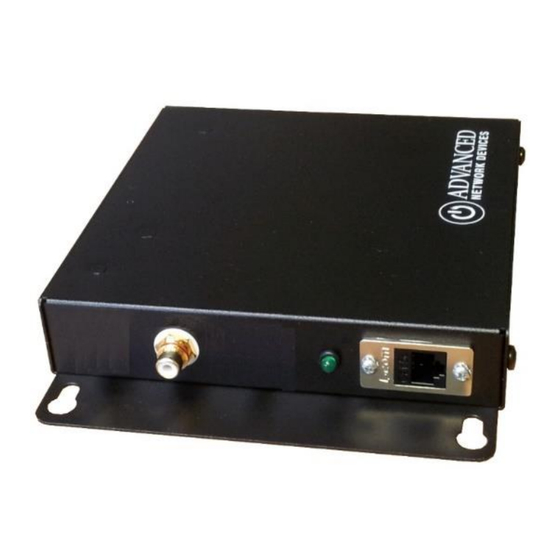

The ZONE-LO provides access to a line-
level audio output signal*. You can
access the signal via a front panel RCA
connector, typically used to connect to
analog amplifiers.
*10k Ohm, unbalanced, 2Vpp, Dynamic Range:
93dB. THD+N: 0.008%
INSTALLATION
The device can mount to a wall using the
four keyhole features located at the
corners of the device, with wall anchors
appropriate to the installation surface.
Power the device with PoE or PoE+,
connected via an Ethernet cable to the
PoE input. With power applied, the
green Power LED on the front panel will
illuminate.
Advanced Network Devices • 3820 Ventura Drive Arlington Heights, IL 60004
Support: tech@anetd.com • 847-463-2237 •
Zone Line Out Controller
SETUP AND USE
WARNING:
equipment when making connections,
and to set audio equipment volume to a
low value before powering on to avoid
any audio "pop" in the output.
The ANetD ZONE-LO works with a wide
variety of amplifiers. Please refer to the
technical
speaker product when connecting to the
audio input.
Line Level Output
The RCA
connection
provides an
unbalanced
line-level
output,
typically used to connect to analog
amplifiers.
automatically any time the ZONE-LO
receives audio streams. More detailed
specifications
unbalanced, 2Vpp line-level output.
AMPLIFIER INTERFACE
Figure 1
www.anetd.com/user-support/
1
(ZONE-LO)
Make sure to turn off
documentation
This output
include: 10k
for your
activates
Ohm,
v1.3
