Page 1: Instruction Manual

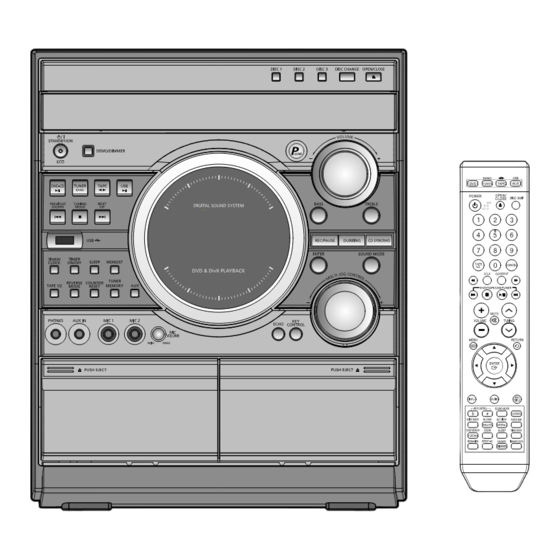

3 DVD MINI COMPONENT SYSTEM WITH USB HOST DVD/VCD/CD/MP3-CD/CD-R/RW PLAYBACK THIS APPLIANCE IS MANUFACTURED BY: MAX-DT95 MAX-DT96 Instruction Manual COMPACT V I D E O DIGITAL VIDEO AH68-01840B... -
Page 2: Safety Warnings
Safety Warnings Precautions Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUCT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. -
Page 3: Table Of Contents
Skipping Scenes/Songs....................................25 Angle Function.......................................26 Power Saving Function Repeat Playback......................................27 A-B Repeat playback ....................................29 The MAX-DT95/DT96 automatically shuts itself off after 20 minutes in the stop mode. Zoom Function.......................................30 Selecting Audio/Subtitle Language................................31 Moving Directly to a Scene/Song...................................32 Customized TV Screen Display JPEG File Playback .......................................33... -
Page 4: Description
2.1 Channel Speaker Output Terminals( for MAX-DT96) 7. Voltage Selector (Option) Note The picture of Rear panel is based on MODEL:MAX-DT95 MAX-DT95: 2.0 Channel Speaker Output MAX-DT96: 2.1 Channel Speaker Output Accessories STANDBY/ON/ECO 19. Cassette Deck 2 Demo/Dimmer 20. Echo Function Selection buttons 21. -
Page 5: Remote Control
Description —Remote Control— Insert Remote Batteries TAPE button TUNER(BAND) button USB(AUX) button DVD button Remove the battery Insert two 1.5V AAA Replace the battery OPEN/CLOSE button cover in the direction batteries, paying cover. POWER button DISC SKIP button of the arrow. attention to the correct polarities (+ and –). -
Page 6: Connecting The Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connect the connecting jacks (2) to the back of mini-compact system. Make sure the polarities (+and -) are correct. MAX-DT95 MAX-DT96 VIDEO OUT... -
Page 7: Connecting To A Tv
Connecting to a TV P.SCAN Function (Progressive Scan) Please be sure to turn off the power and unplug the power cord before moving or installing this unit. Unlike regular Interlace Scan, in which two fields of picture information alternate to create the Please choose one of three video connection methods. -
Page 8: Connecting External Components
Connecting the FM, AM ( MW ) Antennas Connecting External Components Connecting an External Analog Component Example: Analog signal components such as a VCR, Camcorder, and TV. FM Antenna (supplied) If AM reception is poor, connect an outdoor AM antenna(not supplied). AM Loop Antenna (supplied) Snap the tabs on the loop into... -
Page 9: Setting The Clock
Setting the Clock For each step, you have a few seconds to set the required options. If you exceed this time, you must start again. Switch the system Press TIMER/CLOCK on by pressing Checking the Remaining Time twice. POWER button. Press the REMAIN button. -
Page 10: Disc Playback
Disc Playback Selecting a CD in the Disc changer Disc terminology The CD function is automatically selected when Disc Skip is pushed. To select a specific disc, press the corresponding DISC (1, 2, 3) button on the front panel or DISC SKIP on the remote control, until the required disc indicator flashes. -
Page 11: Divx Playback
DivX Playback 5 Minute Skip function During playback, press the button. • Go to the screen about 5 minutes after whenever you press button. Skip Forward/Back • Go to the screen about 5 minutes earlier whenever you press button. During playback, press the button. -
Page 12: Playing Media Files Using The Usb Feature
Skip Forward/Back Playing Media Files using the USB feature During playback, press the button. You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, • etc. using the player's USB function. When there is more than a file, when you press the button, the next file is selected. -
Page 13: Displaying Disc Information
Displaying Disc Information Fast/Slow Playback You can view playback information on the disc on the TV screen. Fast Playback Press and hold Press INFO button on the remote control . • Each time the button is held down during playback, •... -
Page 14: Skipping Scenes/Songs
Skipping Scenes/Songs Angle Function This function allows you to view the same scene in different angles. Press Cursor Briefly press Press INFO button. button to move to • Each time the button is pressed briefly during playback, the previous or next chapter, ANGLE display. -
Page 15: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). To Select a Repeat Playback Mode in the Disc Information Screen JPEG Press Cursor button Press CD REPEAT button. Press INFO button to move to REPEAT twice . -
Page 16: A-B Repeat Playback
A B Repeat Playback Zoom Function This function allows you to enlarge a particular area of the displayed image. Zoom (Screen Enlarge) Function Press REP. A B Press REP. A B Press Cursor , , Press ENTER Press ZOOM at the beginning of , buttons to at the end of the button. -
Page 17: Selecting Audio/Subtitle Language
Selecting Audio Subtitle Language Moving Directly to a Scene/Song Audio Language Selection Function Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor , Press Cursor or numeric buttons to select Press INFO button. buttons to move to Press INFO button buttons or numeric the desired title/track and then... -
Page 18: Jpeg File Playback
JPEG File Playback JPEG Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player. Slide Mode Rotate/Flip Function Place the JPEG disc on the disc tray. Press Cursor , , , buttons during playback. -
Page 19: Using Disc Menu
Using Disc Menu Using the Title Menu You can use the menus for the audio language, subtitle language, profile, etc. For DVDs containing multiple titles, you can view the title of each movie. DVD menu contents differ from disc to disc. Depending on the disc, this function may either not work at all or may work differently. -
Page 20: Setting The Language
Language Code List Setting the Language Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” OSD language is set to English by default. and/or “Disc Menu” (See page 37). Press Cursor Press ENTER In stop mode,Press Code Language Code... -
Page 21: Setting Tv Screen Type
Setting TV Screen type Adjusting the TV Aspect Ratio (Screen Size) Press Cursor button to move to In stop mode,Press The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high ‘Setup’ and then definition TVs is 16:9. -
Page 22: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Setting the Password Use this to restrict playback of adult or violent DVDs you do not want children to view. You can set the password for the Parental (rating level) setting. Press Cursor Press Cursor button to Press Cursor Press Cursor... -
Page 23: Setting The Wallpaper
Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. -
Page 24: Setting The Drc (Dynamic Range Compression)
AV SYNC Setup Setting the DRC (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at Video may look slower than the audio if it is connected with digital TV. low volume at night. In this case, adjust the delay time of audio to optimal status to fit the video. -
Page 25: Listening To Radio
Listening to Radio Presetting Stations You can store up to: You can listen to the chosen band (FM,MW broadcast stations) by using either 15 FM stations the automatic or manual tuning operation. 15 AM stations Remote Control Unit Example: Presetting FM 89.1 in the memory Press the Press TUNER/ Tune in to the... -
Page 26: (Your Dvd Player Will Only Play Dvds That Are Labeled With Identical Region Codes.) Listening To A Cassette
Listening to a Cassette Selecting the Cassette Playback Mode Always treat your cassettes with care; refer, if necessary, to the section entitled Your mini component system has three cassette playback modes which “Precautions When Using Audio Cassettes” on page 62. enable you to listen to both sides of a cassette automatically. -
Page 27: Recording A Compact Disc
Recording a Compact Disc Coping a Cassette(Dubbing) You can record a compact disc on a cassette in two different ways: ou can copy a cassette from Tape 1 to Tape 2. • Normal speed dubbing in selecting Tape function mode. •... -
Page 28: Recording A Radio Program
Recording a Radio Program Direct recording You can record a radio program of your choice. You do not need to adjust the volume, as it has no effect on the recording. The direct recording mode enables you to start recording with any track on the compact disc. Switch the system Load a compact Insert a blank... -
Page 29: Timer Function
Canceling the Timer Timer Function • The timer enables you to switch the system on or off at specific times. • If you no longer want the system to be switched on or off automatically, you must cancel the timer. After having set the timer, it will start automatically as shown by the TIMER indication on the •... -
Page 30: Dvd Player Directly To Your Tv, Not To A Vcr. Connecting To A Vcr Results In A Distorted Picture Sleep Timer Function / Mute Function
Sleep Timer Function / Mute Function POWER SOUND AND SOUND MODE Function Sleep Timer Function You can set the time that the DVD player will shut itself off. Press SLEEP button. • Each time the button is pressed, the selection changes as follows: 90 MIN 60 MIN 45 MIN... -
Page 31: Demo Function / Dimmer Function/Eco Function
DEMO Function / DIMMER Function/ Bass/Treble Level (USER EQ) Function ECO Function BASS Level Function DEMO Function DIMMER Function BASS function stresses low tones providing thudding sound effects. You can view the various functions available on You can adjust the brightness of the display on the main your system. -
Page 32: Connecting Headphones/Microphone(Option)
Connecting Headphones/Microphone(option) Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause breaks in You can connect a set of headphones to your micro component system so that you playback. Be especially careful not to scratch discs when handling them. can listen to music or radio programmers without disturbing other people in the room. -
Page 33: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom... -
Page 34: Notes On Discs
Notes on Discs Notes on Terminology Recorded onto some DVD discs are scenes which have been simultaneously shot Disc Recording Format ANGLE from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.). CD-R Discs With such discs, the Angle button can be used to change the angle of view for •... -
Page 35: Specifications
Output power Coolpix 4100 Nikon Digital Camera Dimage Xt Minolta Digital Camera Front Speaker(3 ) 200W/CH RMS,IEC (total harmonic distortion: 10 %)(MAX-DT95) Coolpix 5200 Nikon Digital Camera AZ-1 Olympus Digital Camera Front Speaker(3 ) 200W/CH RMS,IEC (total harmonic distortion: 10 %)(MAX-DT96) - Page 36 20G HDD MP3 PLAYER YEPP YH-925 samusung 20G HDD MP3 player I-pod apple HDD MP3 player(40G) I-pod mini Apple HDD MP3 Player(20G) YEPP (YP-T7) SAMSUNG MP3 PLAYER YEPP(YP-MT6) SAMSUNG MP3 PLAYER YEPP(YP-T6) SAMSUNG MP3 PLAYER YEPP(YP-53) SAMSUNG MP3 PLAYER YEPP(YP-ST5)
