U-Line APEX H-11557 Manual
  1. Manuals
  2. Brands
  3. U-Line Manuals
  4. Freezer
  5. APEX H-11557
  6. Manual
U-Line APEX H-11557 Manual

U-Line APEX H-11557 Manual

Evaporative cooler
Hide thumbs

Advertisement

Table of Contents

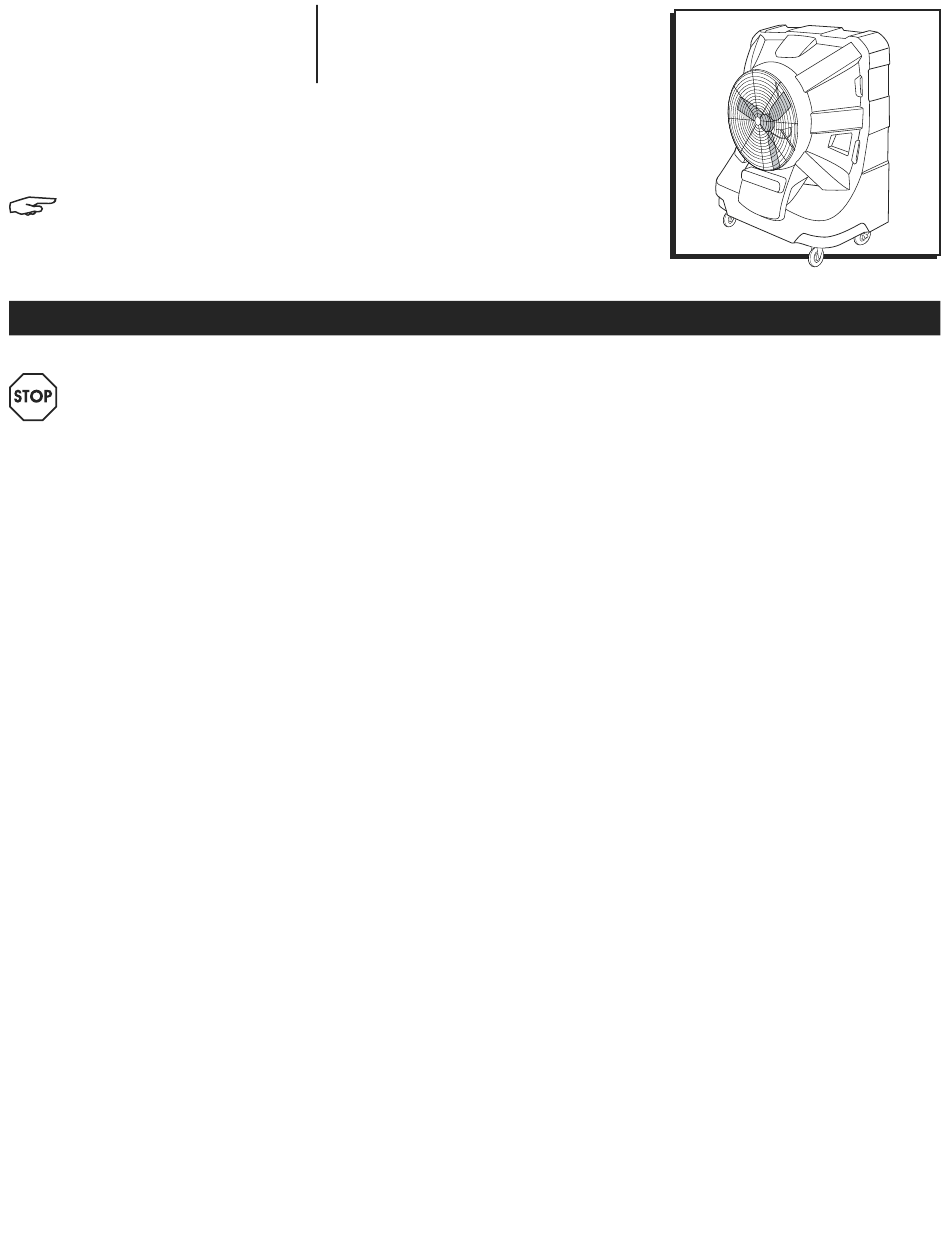

H-11557, H-11564
π
H-11565, H-11566
APEX™ EVAPORATIVE
COOLER
NOTE: Proper maintenance is required to
keep unit in peak operating condition.
See page 6 for Maintenance.
WARNING! Service by trained personnel
recommended.
• Rotating fan blades can cause serious
injury. Keep hands clear. Turn off unit before
servicing.
• Hazardous voltage inside. Disconnect power
before servicing. GFCI device required.
• Some components are flammable. Keep
away from heat or flames.
• Do not operate pump without water in
product, as this can cause damage to
components.
• Not for use by children.
• Not for use by persons with reduced physical,
sensory or mental capabilities.
• Review the owner's manual before use.
To reduce the risk of electric shock, fire or injury:
• Do not operate any evaporative cooler with
a damaged cord or plug.
• Do not run power cord under carpeting or cover
with throw rugs, runners or similar coverings.
Arrange power cord away from traffic areas to
avoid tripping hazards.
• Always unplug the unit before servicing.
• Do not plug in the evaporative cooler unless all
evaporative media is securely in place.
• Test the GFCI receptacle or breaker monthly to
ensure it is working correctly.
• Always pull on the plug, not the cord, when
unplugging the evaporative cooler.
PAGE 1 OF 9
1-800-295-5510
uline.com
SAFETY
• Keep away from anything that has open flames or
• When cleaning the unit, ensure the unit is off and
• Do not use with any solid-state speed control
• The use of extension cords with evaporative
• Be careful when moving the evaporative cooler
• Evaporative coolers should not be modified in
• If the evaporative cooler is damaged or
may cause sparks.
unplugged.
device.
coolers is not recommended. However, if use of an
extension cord is required, the following must be
met:
• Use properly grounded 14 AWG or greater for
H-11557, H-11564 and H-11565.
• Use properly grounded 12 AWG or greater for
H-11556.
• Extension cord must not exceed 50' in length.
• Extension cord must be properly grounded.
with a full tank of water; only transport it on all
four caster wheels, and do not tilt the evaporative
cooler forward or backward.
any way (other than repairs made by qualified
individuals with manufacturer replacement parts).
malfunctions, do not continue to operate it. Refer
to Troubleshooting beginning on page 8 or call
Uline Customer Service at 1-800-295-5510.
1024 IH-11557

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APEX H-11557 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line APEX H-11557

Summary of Contents for U-Line APEX H-11557

  • Page 1 H-11557, H-11564 π 1-800-295-5510 H-11565, H-11566 uline.com APEX™ EVAPORATIVE COOLER NOTE: Proper maintenance is required to keep unit in peak operating condition. See page 6 for Maintenance. SAFETY WARNING! Service by trained personnel • Keep away from anything that has open flames or recommended.

  • Page 2: Operation

    SETUP UNPACKING All of these inspections have been performed at the factory, but shipping may have caused these Unit is shipped completely assembled and sitting on a connections to loosen. wood pallet with a large cover box strapped over the Cooling pads may now be replaced.

  • Page 3: Filling With Water

    OPERATION CONTINUED When the unit is placed near a wall or other obstruction, it is recommended that a distance of at least three feet is maintained from any wall or obstruction to the face of the cooling pads. This allows the unrestricted flow of warm air to the cooling pad side of the unit.

  • Page 4: Alert Codes

    OPERATION CONTINUED 4. Water Level Indicator – Displays the reservoir's water • Wide – Louvers move outward to diffuse air, providing level and warns when the level is low. All five indicator a wider coverage area of steady flow. bars will be lit up when the reservoir is full. When the NOTE: Cooling can be customized with precise water level is low, the last bar will turn yellow.
  • Page 5 ALERT CODES CONTINUED ALERT CODE ALERT TEXT OPERATING ISSUE RECOMMENDATIONS PUMP ERR The pump does not appear 1. Turn cooling mode to Max Cooling. Listen to be running as intended. for water circulation and look for proper media wetting. If water is not circulating, disconnect power and proceed to step 2.

  • Page 6: Maintenance

    ALERT CODES CONTINUED ALERT CODE ALERT TEXT OPERATING ISSUE RECOMMENDATIONS NO WATER The water level is too low to Refill the water reservoir to continue normal continue cooling. operation. OVER FILL The water level appears to 1. Shut off the water supply. be too high.

  • Page 7: Pad Replacement

    MAINTENANCE CONTINUED STORAGE PAD REPLACEMENT 1. Drain all water from the tank and wipe it clean. Ensure all water is removed from the unit and all power Ensure the pads and tank are completely dry. is disconnected. Remove all impediments to access the component you are checking or replacing.

  • Page 8: Troubleshooting

    MAINTENANCE CONTINUED REPLACING H-11557 COOLING MEDIA (PADS) Figure 4 1. Remove media cover by removing the two bottom screws and loosening the two center screws. (See Figure 4) 2. Pull the cover out and down to access the media. Remove the distribution media on top of the Loosen media pad.
  • Page 9 TROUBLESHOOTING CONTINUED OPERATING ISSUE POSSIBLE CAUSES RECOMMENDATIONS Cooler starts, but air Fan error code. Check for fan error codes in Alerts menu delivery is not adequate. and consult the Alert Codes section of these instructions. Media fouling is restricting 1. Clean evaporative media of any dirt airflow.

This manual is also suitable for:

Apex h-11564Apex h-11565Apex h-11566

Table of Contents
