SIRETTA Oscar 17 Mounting

1. Preparing the Pole
Pole Requirements: Ensure the pole is
sturdy and securely anchored. The diameter
should be compatible with the supplied clamp
and U-bolt (between 22 - 45mm).
d.
c.
d.
e.
3. Installing the Antenna
Attaching to the Clamp: Align the
antenna with the bracket (c), secure
the L-bracket with the M6 wing nuts
(d), and fix antenna with the M20 nut (e).
Registered in England No. 08405712
VAT Registration No. GB163 04 0349

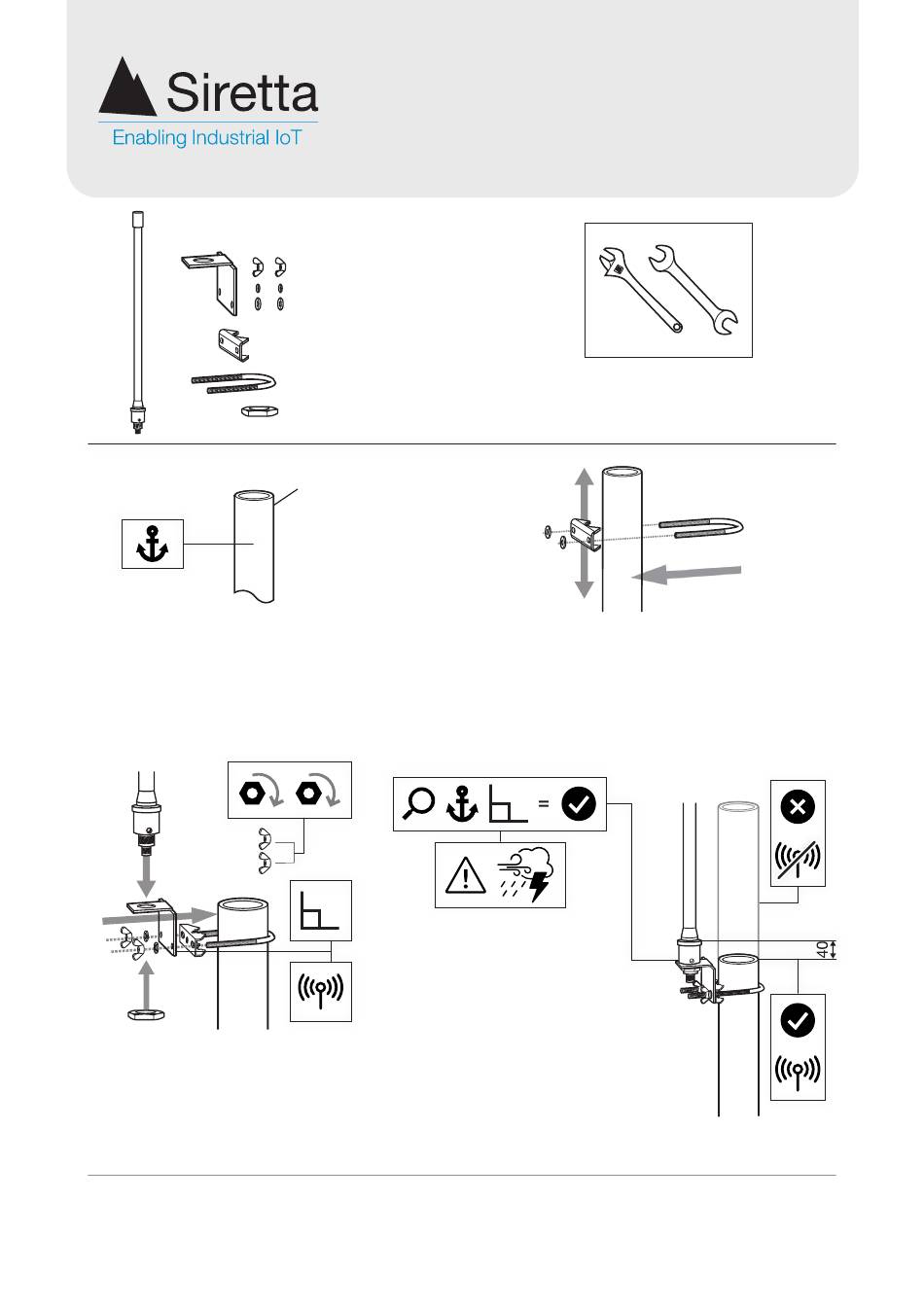

Oscar 17 Antenna Installation Guide
Materials Supplied:
• 1x L-shaped bracket
(fitted to the antenna)
• 2x M6 wing nuts
• 2x spring washers
• 2x flat washers
• 1x clamp
• 1x M6 U-bolt
• 1x M20 nut
22 - 45
Ø
Ø
2. Attaching the Clamp and U-Bolt
Positioning the Clamp: Place the clamp around the pole
at the desired height (a).
Securing the U-Bolt: Thread the U-bolt through the clamp
and around the pole (b).
4. Post-Installation Check
Inspection: Confirm the antenna is
firmly mounted and aligned correctly.
Maintenance: Periodically inspect for
any looseness or corrosion, especially
in harsh weather environments.
Positioning: For best results, ensure that
the top of the pole does not extend more
than 40mm below the L-shaped mount.
Pole Mounting
Required Tools: 24mm spanner or
adjustable wrench.
a.
b.
