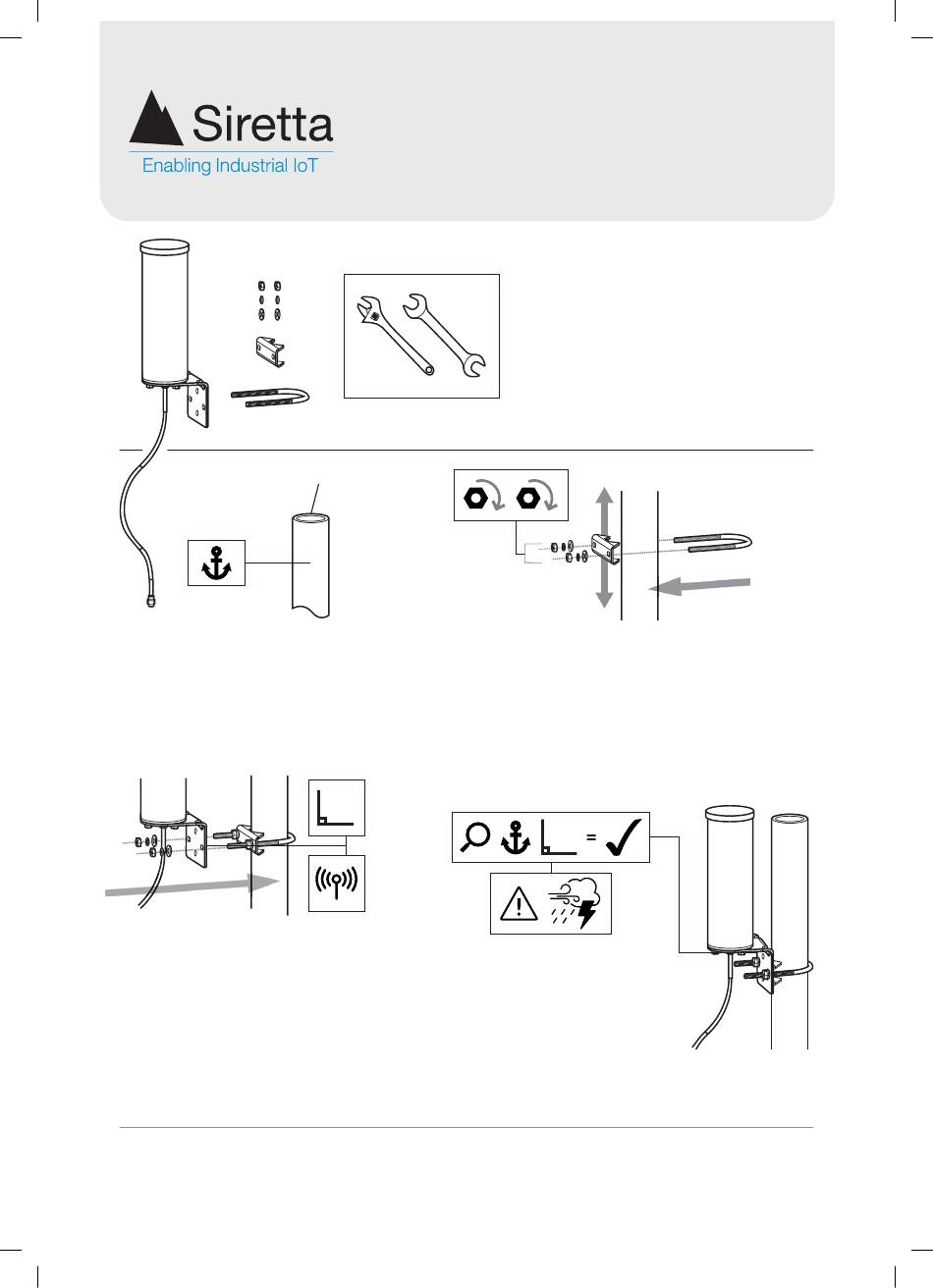

SIRETTA Oscar 40 Installation Manual

Ø
1. Preparing the Pole
Pole Requirements: Ensure the pole is
sturdy and securely anchored. The diameter
should be compatible with the supplied clamp
and U-bolt (between 22 - 52 mm).
3. Mounting the Antenna
Attaching to the Clamp: Align the
L-shaped bracket with the clamp and
secure it using the remaining nuts and
washers.
Alignment: Adjust the antenna to the
desired orientation, ensuring it's vertical
for optimal signal reception.
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Oscar 40 Antenna Installation Guide
22 - 52
Ø
2. Attaching the Clamp and U-Bolt
Positioning the Clamp: Place the clamp around the pole
at the desired height (a).
Securing the U-Bolt: Thread the U-bolt through the clamp
and around the pole (b). Secure with the supplied nuts and
washers, ensuring even pressure on both sides (c).
4. Post-Installation Check
Inspection: Confirm the antenna is firmly
mounted and aligned correctly.
Maintenance: Periodically inspect for any
looseness or corrosion, especially in harsh
weather environments.
Pole Mounting
Materials Supplied:
• 1x L-shaped bracket (fitted to the antenna)
• 2x spring washers
• 2x M6 nuts
• 2x flat washers
• 1x clamp
• 1x M6 U-bolt
Required Tools: 10mm spanner or
adjustable wrench.
a.
b.
c.
