DUSS DIA 303 W Original Operating Instructions

Original operating instructions

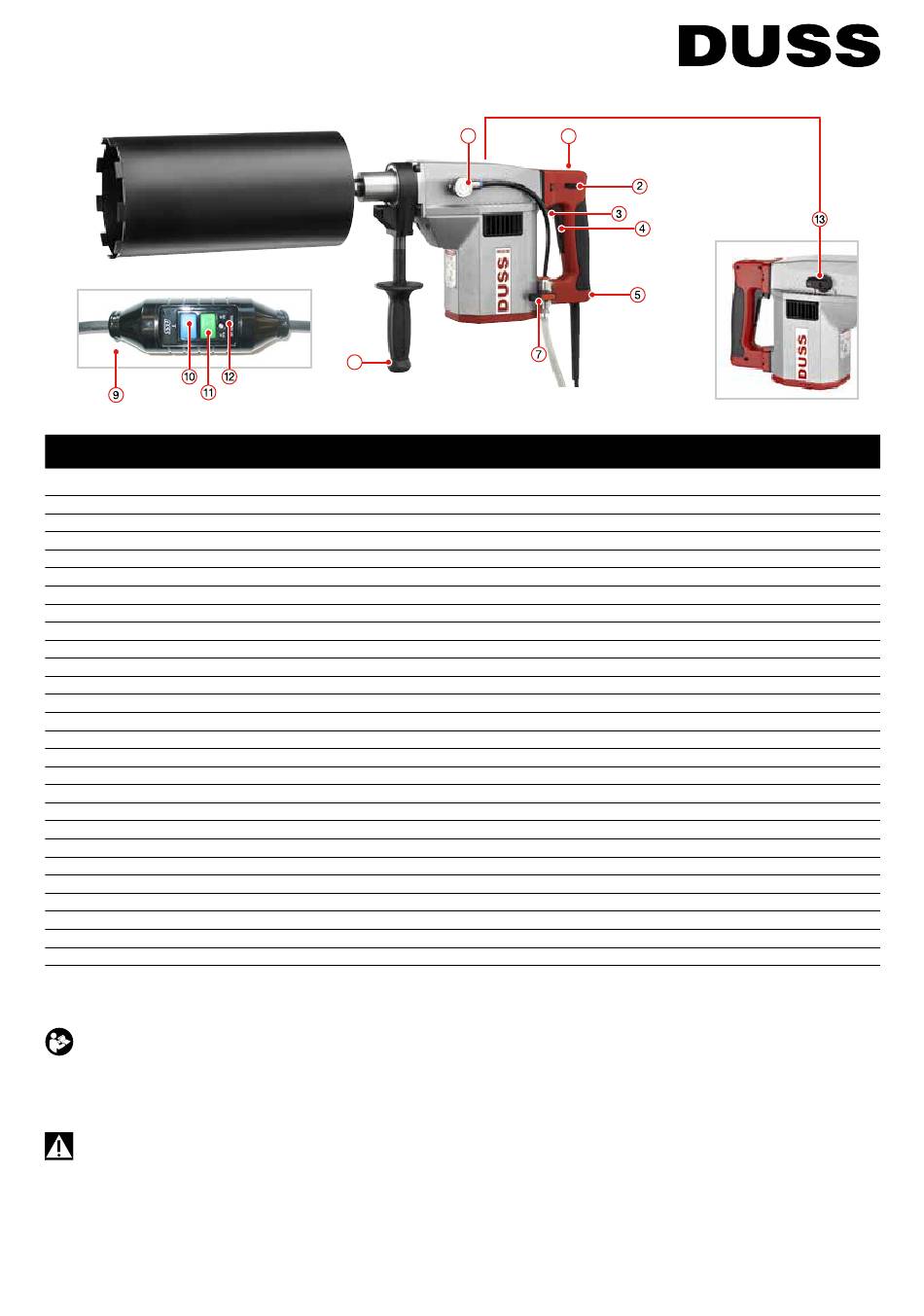

DIA 303 W diamond core drill
TECHNICAL DATA
Power input
Voltage
Current input
Frequency
Machine weight
Drilling speed under load
1st gear
2nd gear
3rd gear
Drilling range with diamond core bit
1st gear
2nd gear
3rd gear
Max. drilling diameter
Chuck
Permanent lubrication
Swivelling side handle and screw-in auxiliary handle
Push-button switch on/off with trigger lock, ensuring non-fatiguing work
Safety clutch
Electronic for speed control, full load speed = no load speed
Speed infinitely adjustable with adjusting dial
Electronic overload indicator
Service indicator
Self-disengaging carbon brushes
Optional dust extraction / optional wet/dry vacuum cleaner
Operator safety switch PRCD
Class I device, mains electricity supply with protective earth conductor required
Specifications subject to change
Familiarize yourself with all operating instructions, safety
information, instructions, illustrations and technical data
provided with the product before use.
SAFETY WARNINGS
WARNING Read all safety warnings and instructions.
Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury. Save all warnings and instructions
for future reference.
SAFETY WARNINGS FOR DRILLS
Sicherheitshinweise für alle Arbeiten
Use auxiliary handle. Loss of control can cause personal injury.
info@duss.de · www.duss.de
8
6
Support the power tool securely before use. This power tool gene-
rates a high torque. Failure to properly support the power tool during
operation may result in loss of control and injury.
Hold the power tool by insulated gripping surfaces, when per-
forming an operation where the cutting accessory may contact
hidden wiring or its own cord. Cutting accessory contacting a „live"
wire may make exposed metal parts of the power tool „live" and could
give the operator an electric shock.
Safety instructions when using long drill bits
Never operate at higher speed than the maximum speed rating
of the drill bit. At higher speeds,the bit is likely to bend if allowed to
rotate freely without contacting the workpiece, resulting in personal
injury.
Always start drilling at low speed and with the bit tip in contact
DIA 303 W original operating instructions
1
dia. 137 - 202 mm (hand-held up to dia. 300 mm)
Response threshold 10 mA
DIA 303 W
2000 W
230 V
9.4 A
50 - 60 Hz
6.4 kg
290 - 360 U/min
540 - 680 U/min
1010 - 1270 U/min
dia. 82 - 137 mm
dia. 32 - 82 mm
300 mm
G 1/2" external thread
Order-No. SK / IS 35 M
1
