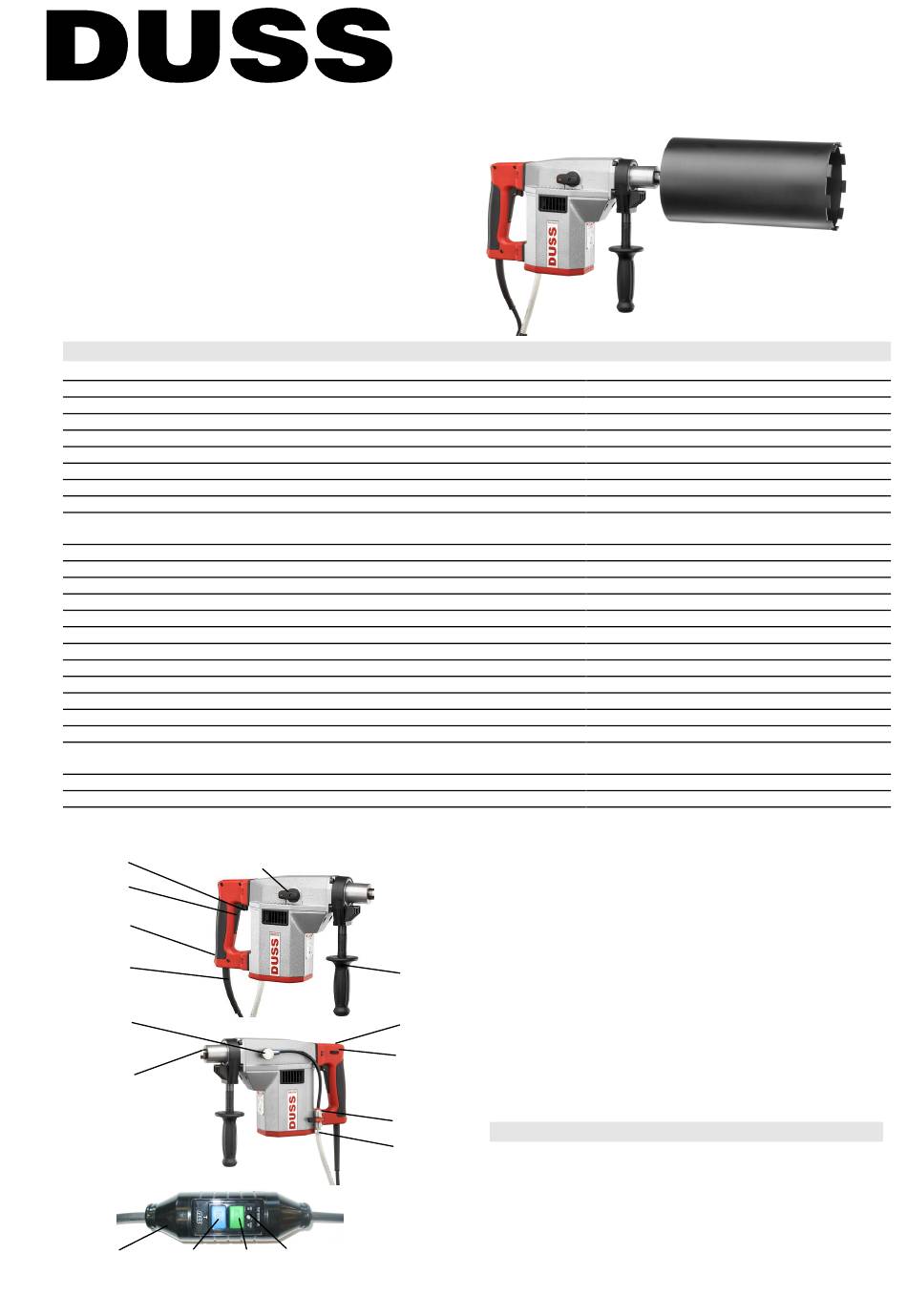

DUSS DIA303W Operating Instructions

Technical Data
Power input
Voltage
Current input
Frequency
Weight without accessories
Speed under load 1st gear
2nd gear
3rd gear
Drilling range 1st gear
2nd gear
3rd gear
Drill spindle
Permanent lubrication
Swivelling side handle and secondary screw-mounted handle
On/Off switch with locking button for continuous operation
Safety clutch
Electronic overload indicator
Service indicator
Automatic carbon brush cutout
Electronic speed control and overload protection
Manual speed control thumbwheel (can be used when drill is running)
Class of protection I as per CENELEC/EN 60745-1
(mains electricity supply with protective earth conductor required)
Radio and TV interference suppression as per EN 55 014
Operator safety switch ( PRCD)
We reserve the right to alter technical specifications without notice
1
3
4
5
7
8
15
14
13
2
6
9
10
11
12
16
Operating Instructions
for the DUSS DIA303W
diamond core drilling machine
1 Locking button for continuous operation
2 Gear selector
3 On/Off switch
4 Overload indicator/service indicator
5 Supply cord with PRCD
6 Side handle
7 Water flow regulator
8 Drill spindle
9 Fastening nut for secondary handle
10 Drill speed controller thumbwheel
11 Stop-cock
12 Water supply
13 Operator safety switch (PRCD)
14 Test button
15 Reset button
16 Indicator lamp
Applications
The DIA 303W diamond core drill is suitable for wet drilling
into concrete, asphalt and all types of masonry and dry drilling
with dust extraction into all types of masonry. Drilling
operations may only be carried out by trained personnel. The
user alone is liable for any damages resulting from improper
use
2000 W
230V
9,4 A
50 - 60 Hz
6,4 kg
290 - 360 rpm
540 - 680 rpm
1010 - 1270 rpm
137 – 202 mm
(hand guided up to Ø 300mm)
82 – 137 mm
32 – 82 mm
Outer thread G ½"
Response threshold 10 mA
