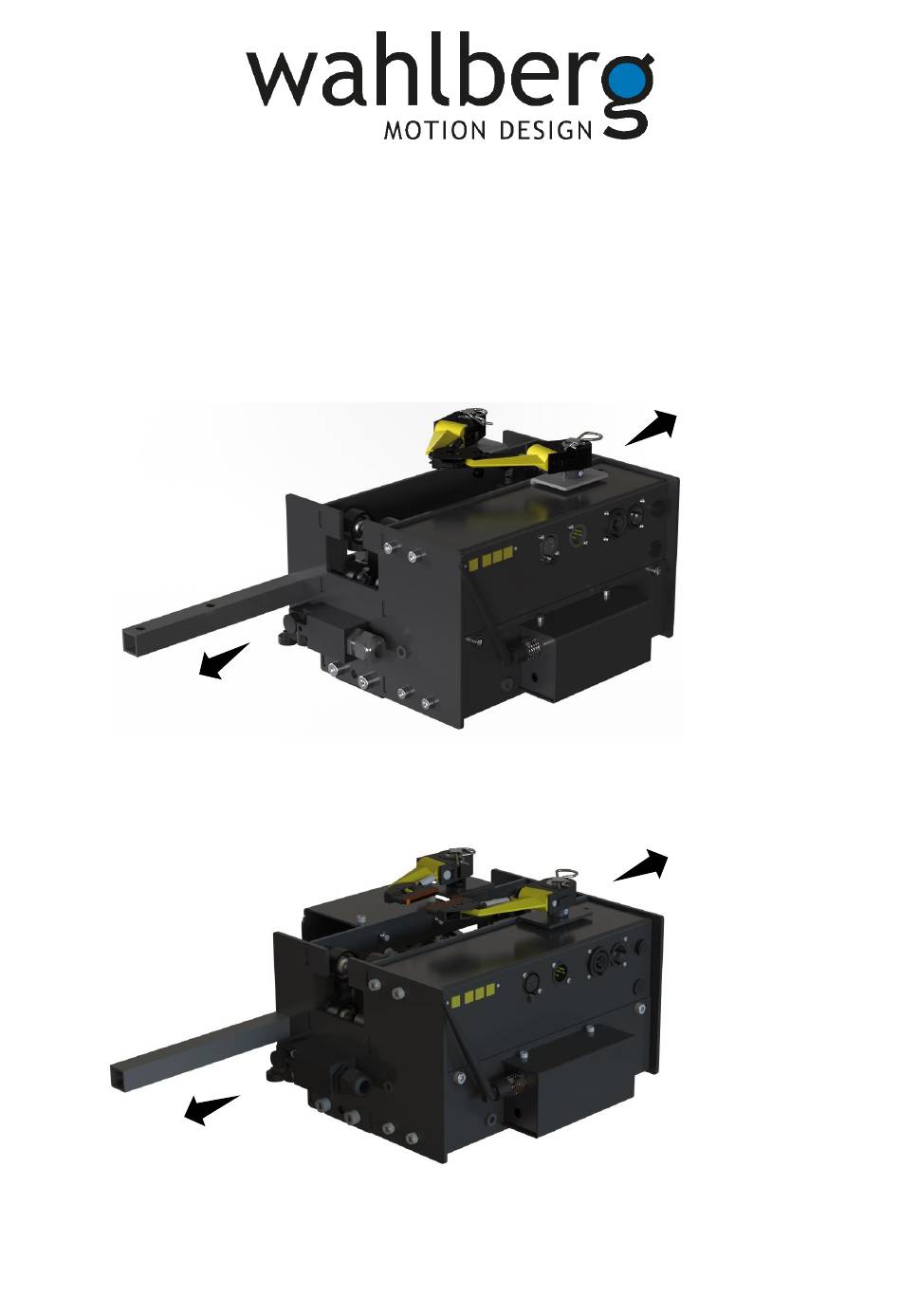

- Page 1 Track Runner Series User Manual Cogwheel Item No. 352.701 (Fast Motor) & 352.702 (Slow Motor) Friction Wheel Item No. 353.701 (Fast Motor) & 353.702 (Slow Motor) WWW.WAHLBERG.DK JENS JUULS VEJ 1 TELEPHONE: +45 86 18 14 20 8260 VIBY EMAIL: sales@wahlberg.dk DENMARK...
-
Page 2: Safety Information
Read this manual before installing, powering or servicing the product; follow the safety precautions listed below and observe all warnings in this manual and printed on the product. If you have questions about how to operate the product, please contact you Wahlberg Motion Design supplier or Wahlberg Motion Design. -
Page 3: Table Of Contents
Index SAFETY INFORMATION INDEX TECHNICAL SPECIFICATIONS DRAWINGS INTRODUCTION ............................6 ACKAGE CONTENT ............................... 6 ESCRIPTION ............................... 7 REA OF USE ..........................7 SING FOR THE FIRST TIME ..............................7 RANSPORT PRODUCT OVERVIEW ............................8 RACK PROFILES ............................. 9 RACK ACCESSORIES PHYSICAL INSTALLATION ..................... -
Page 4: Technical Specifications
Technical specifications Model: Track Runner Series Item no.: 352/CW (Cogwheel) and 353/FW (Friction wheel) Dimensions: (L×W×H) without track, switches and antenna etc. 352 (CW) 288 × 223 x 160 mm (11.3 x 8.8 × 6.3 in) 353 (FW) 288 × 251 x 160 mm (11.3 x 9.9 × 6.3 in) Supply range: 115/230 V AC 50-60 Hz. -
Page 5: Drawings
Drawings Track Runner Cogwheel (352) More detailed drawings can be found in Appendix 1 on page 27 Track Runner Friction Wheel (353) More detailed drawings can be found in Appendix 2 on page 28 352-353.805.007 Date: 2023-07-07... -
Page 6: Introduction
Introduction Thank you for selecting the Track Runner Series, a DMX controlled motor system from Wahlberg Motion Design. Before using the product for the first time, please read this manual carefully. Failure in handling can cause injury of persons and/or damage the Track Runner and attached equipment. -
Page 7: Area Of Use
Check the Wahlberg Motion Design website at www.wahlberg.dk for the most recent documentation and technical information about the product. Wahlberg user manual revisions are identified by the revision number at the bottom of each page. − Check that the local AC mains power source is within the voltage and frequency ranges specified on the rating label, and/or selected on a voltage/frequency range switch when applicable. -
Page 8: Product Overview
Product overview Track profiles 341_Track Profile with conductor rails 340_Track Profile 343_Track Profile with conductor rails and tooth rack 342_Track Profile with 345_Track Profile Tooth rack with external conductor rails. Possible with without tooth rack. Track runners 354.0_Track 352_Track Runner with Runner Passive cogwheel 100kg... -
Page 9: Track Accessories
Track accessories 344.702_Bracket with Manfrotto clamp for 344.701_End stop pipe or truss 344.705_Track runner mounting tool 344.703_Track (Applicable only for connection (for tracks with conductor joining sections of rails) tracks) 344.720_Cable runner 344.704_End cover set bracket 344.711_Tools for 344.710_Adjustment track assembly tool for aligning gear racks across track joints... -
Page 10: Physical Installation
Alternatively, they can be mounted onto a tube or truss using the specially designed Wahlberg bracket. Prior to installation, ensure that the entire surface can support a weight at least 10 times that of all the equipment to be installed. Additionally, ensure that the installation complies with all locally applicable regulations. -
Page 11: Ac Power
AC power WARNING! Read “Safety Information” on page 2 before connecting the product to AC mains power. WARNING! For protection from electric shock, do not power the track when not in use or when servicing. Power cables and power plug The track system requires a power input cable with a Neutrik powerCON TRUE1 NAC3FX-W(-TOP) cable connector for AC mains power input, and also the Track Runner requires a NAC3MX-W(- TOP) cable connector for AC output to a powered fixture. -
Page 12: Setup
Setup WARNING! Read “Safety Information” on page 2 before installing, powering, operating, or servicing the product. WARNING! Only experienced DMX users should operate the product. Do not operate the product when the mounting bracket is removed. WARNING! Make sure the load is mounted safely on the unit and do not exceed 100 kg (220.4 lb) as the specified maximum weight of the load. -
Page 13: Mounting Runner On The Track
Mounting runner on the track The Track Runner series can be mounted from the left or from the right side of the track profile. NOTE: Track runners with fast motor, can be pushed onto the track by hand, without applying power to the runner. -
Page 14: Mounting The Load
Track runners that are powered through power rails, may need re-tightening of current collectors after some usage. Please follow the procedure described below to perform the operation correctly. For additional information you should contact Wahlberg Motion Design. 1. Remove the locking pin. - Page 15 2. Loosen M5 set-screw. 3. Use 13mm wrench to tighten the current collector by turning clockwise. Hold the wrench in position when desired tension is reached and tighten the set screw. 4. Mount back locking pin. Note that the pin must be turned sideways as shown. 352-353.805.007 Date: 2023-07-07...
-
Page 16: Data Link
Data link A DMX 512 data link is required in order to control the product via the Wireless DMX transmitter [A] (ordered separately) or a cable carrier [E] to the Track Runner [B]. The unit have a 5-pin XLR connector [C] for DMX data output connected to the equipment mounted on the unit [D]. The pin- out on all connectors is pin 1 = shield, pin 2 = (data -), and pin 3 = (data +). -
Page 17: Radio Control
Radio Control WARNING! This equipment can cause radio interference, make sure this equipment respects all national and local regulations before use. CAUSION: Change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The product has a build-in in CRMX wireless DMX to control the operation, and the radio device uses the 2.4 GHz band as accepted in Europe and USA. -
Page 18: Connecting The Wireless Data Link
Connecting the wireless data link To connect the Track Runner to data: 1. Connect the DMX data output from the DMX controller to the Wireless DMX transmitter male 5-pin XLR DMX input connector (DMX 512 IN). 2. Connect the DMX output of the transmitter to the DMX input of other equipment or terminate the link with a 120 Ohm resistor. -
Page 19: Mode Setting
Mode setting The mode switch is found on the front panel left to the DMX address switches and this can be used to select various functions and ramps for normal operation and setup. Mode setting overview MODE Function Description Note None Track Runner is stopped. - Page 20 DMX channel overview channel Function Description Position rough This channel controls the position of the unit, with the speed (DMX channel 3). This rough position works together with the fine position (DMX channel 2). The rough position and the fine position are multiplied in to a 16 bit channel. The rough position is the MSB.
-
Page 21: Linear Or Circular Mode
Since circular mode always takes the shortest path to the wanted position, even if it means crossing the zero-point it makes it simple to run continuously for multiple revolutions. To use circular mode additional magnetic sensors must be installed on the Track Runner. Please contact sales@wahlberg.dk for additional information. 352-353.805.007 Date: 2023-07-07... -
Page 22: Setting The Movement Range In Linear Mode (Dmx Operation)
Setting the movement range in linear mode (DMX operation) When the unit is ready, the first step is to set the soft-limit left and right positions. See channel description for channel 4, 5 and 6 on the previously page. When the range has been set once on channel 6 it is saved and does not need to be set again unless a new range is needed, or when the unit has been manually operated or removed from the track. -
Page 23: Setting The Movement Range In Circular Mode (Dmx Operation)
Setting the movement range in circular mode (DMX operation) From August 2023 circular mode was introduced to the Track Runner. It can be used if the Track Profile makes a loop so that the Track Runner can run continuously one way as shown below. position position Zero-point... -
Page 24: Duty-Cycle
Position slippage The Track Runner with a friction wheel uses an external encoder to track its position as accurately as possible. However, it will never be 100% precise and its position will shift over time. The Track Runner position will slowly drift/slip to one side. Over time this slip will add-up. This means that if a desired position is at 100 cm it will go to 100 cm the first time. -
Page 25: Service And Maintenance
Spare parts Only parts ordered at or approved by Wahlberg should be used in the product to ensure correct function and stability. Contact Wahlberg to inquire about spare parts. -
Page 26: Checklist
Checklist Use the check-list accordingly; before each use, each month etc. Check Type Result Installed / mounted correct Inspection End stops secured on the track Inspection End caps secured on the track Inspection Load and LEDs visible for the operator Inspection Load mounted safely with or without safety Inspection... -
Page 27: Appendix 1 - Dimensions
Appendix 1 - Dimensions Track Runner CW (Cogwheel) 352-353.805.007 Date: 2023-07-07... -
Page 28: Appendix 2 - Dimensions
Appendix 2 - Dimensions Track Runner FW (Friction Wheel) 352-353.805.007 Date: 2023-07-07... -
Page 29: Appendix 3 - Power Connectors
Appendix 3 – Power Connectors 352-353.805.007 Date: 2023-07-07... - Page 30 352-353.805.007 Date: 2023-07-07...
-
Page 31: Appendix 4 - Block Diagram
Appendix 4 - Block Diagram Input/output 2.4GHz Power out Power in Band 100-240 DMX signal DMX signal powerCON powerCON XLR 5 pole XLR 5 pole TRUE 1 TRUE 1 Current Collectors Power Wireless Wireless AC Mains supply receiver transmitter (External) Microcontroller Control input DMX... -
Page 32: Track Runner Series - Cheat Sheet
Track Runner Series – Cheat Sheet MODE Function DMX Ch. Function 0, 1, 6 None, Track Runner is stopped Position rough (Hi of a 16-bit DMX channel) Manual REVERSE slow (no DMX needed) Position fine (Lo of a 16-bit DMX channel) Manual reverse fast (no DMX needed) Set the maximum speed Manual FORWARD slow (no DMX needed)
