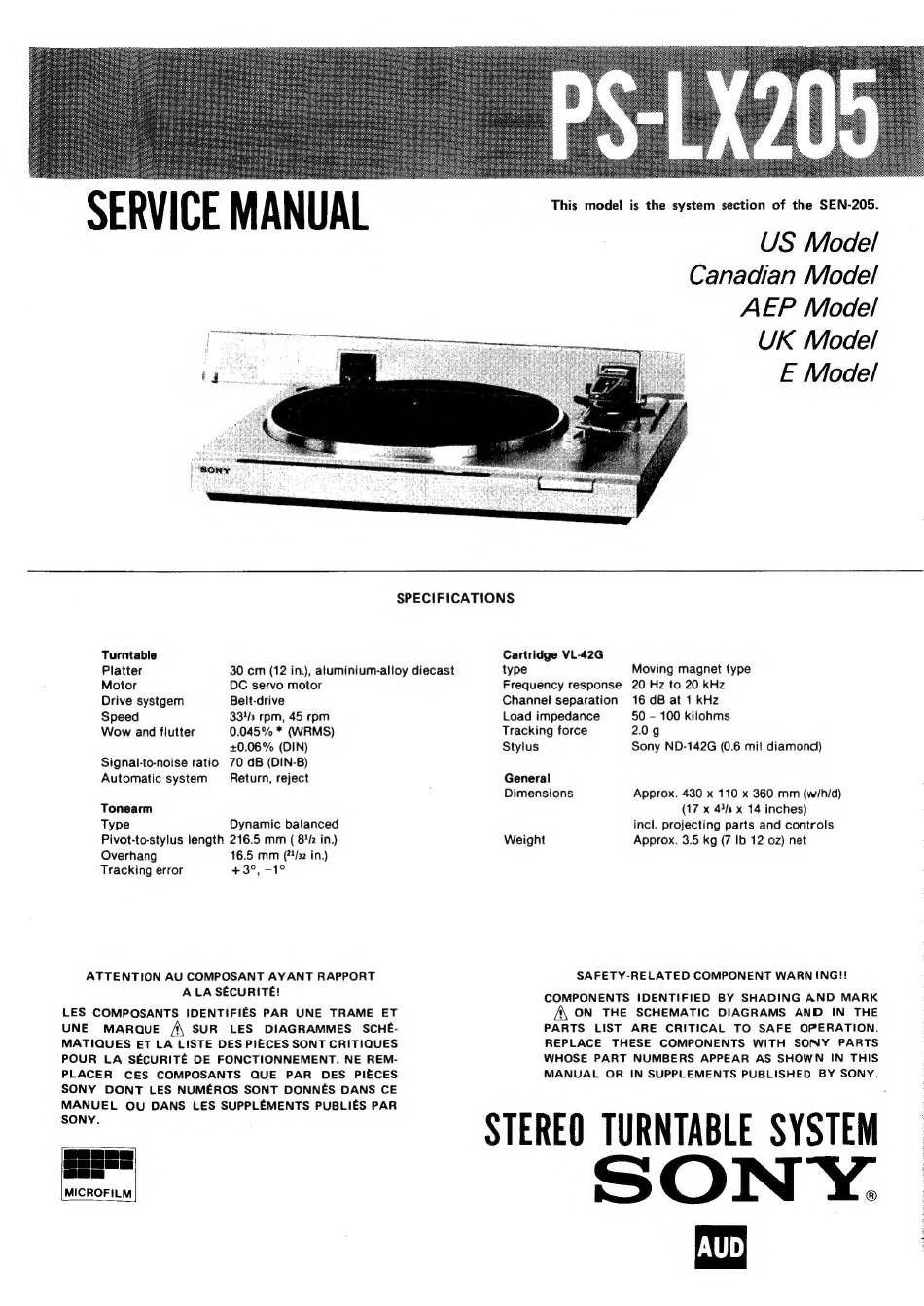

Sony PS-LX205 Service Manual

SERVICE MANUAL
SPECIFICATIONS
Turntable
Platter 30 cm (12 in.), aluminium-alloy diecast
Motor DC servo motor
Drive systgem Belt-drive
Speed 33/3 rpm, 45 rpm
0.045% * (WRMS)
+0.06% (DIN)
Signal-to-noise ratio 70 dB (DIN-B)
Automatic system Return, reject
Wow and flutter
Tonearm
Type Dynamic balanced
Pivot-to-stylus length 216.5 mm ( 84/2 in.)
Overhang 16.5 mm (4/32 in.)
Tracking error + 3°, -1°
ATTENTION AU COMPOSANT AYANT RAPPORT
ALA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE A SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
sess
MICROFILM
This model is the system section of the SEN-205.
US Model
Canadian Model
AEP Model
UK Model
E Model
Cartridge VL-42G
type
Moving magnet type
Frequency response 20 Hz to 20 kHz
Channel separation 16 dB at 1 kHz
Load impedance
50 - 100 kitohms
Tracking force 2.09
Stylus Sony ND-142G (0.6 mii diamond)
General
Dimensions Approx. 430 x 110 x 360 mm (w/h/d)
(17 x 43/8 x 14 inches)
incl. projecting parts and controls
Weight Approx. 3.5 kg (7 Ib 12 oz) net
SAFETY-RELATED COMPONENT WARN ING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
STEREO TURNTABLE SYSTEM
SONY.
AUD
