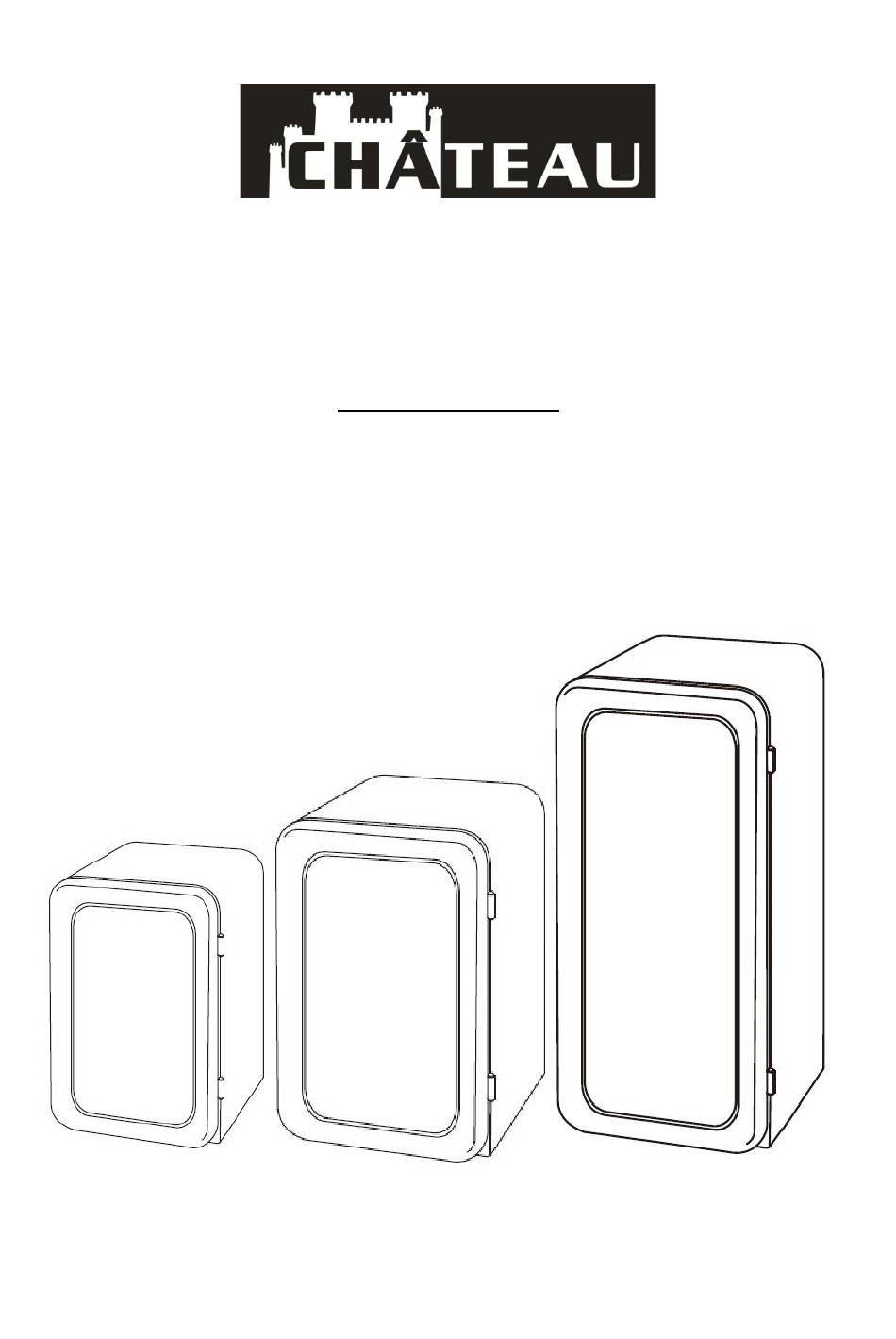

- Page 1 INSTRUCTION MANUAL WINE CHILLER Palette Series CW P461CH CW P651BH CW P241RH CW P241CH CW P461GH CW P651CH Please read this manual carefully before using this product Please follow all safety rule and operating instructions...
-
Page 2: Table Of Contents
CONTENT Important Safety Instruction ------------------------------------------------------------1-2 Installation -----------------------------------------------------------------------------------3 Product Overview --------------------------------------------------------------------------4 Operation ------------------------------------------------------------------------------------4 Control Panel --------------------------------------------------------------------------------5-6 Wine Storage --------------------------------------------------------------------------------7-8 Care and Maintenance --------------------------------------------------------------------9 Troubleshooting ----------------------------------------------------------------------------10 Failure Display -------------------------------------------------------------------------------11 Technical Specification --------------------------------------------------------------------12 Warranty & Service ------------------------------------------------------------------------13... -
Page 3: Important Safety Instruction
Dear Customer, Thank you for having purchased and given your preference for our product. This manual provides a means to make full use of the features of this appliance. We recommend that you read this manual for the best performance and to extend the life of your appliance. Please preserve this manual for future use, in the event that doubts arise relating to the operation. - Page 4 Warning: Do not allow the refrigerant circuit to become damaged while using or installing the appliance. Should it become damaged, do not use the appliance until you are instructed to do so by qualified technical personnel. Refrigerant can ignite or cause damage to the eye when leaking.
-
Page 5: Installation
INSTALLATION OF YOUR WINE CHILLER Remove the exterior and interior packing. Note: Before connecting the wine chiller to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 6: Product Overview
PRODUCT OVERVIEW 1. LED light 2. Control panel 3. Magnetic door 4. Shelves 5. Adjustable feet 6. Bottom rack 7. Wine glass hanging shelf OPERATION The wine chiller should be placed where the ambient temperature is between 10-32℃ (50-90 Fahrenheit). If the ambient temperature is above or below this range, the performance of the unit may be affected. -
Page 7: Control Panel
CONTROL PANEL To turn off or on the wine chiller, press and hold the key for 6 ON/OFF seconds. To turn off or on the inner light of the wine chiller. LIGHT The display shows the current temperature of the wine chiller. ... - Page 8 The body of the wine chiller can be warm during operation, this is normal. Operation Noise To reach to the desired temperature, Chateau wine chiller, like all other wine chillers which operating with compressor and fan, may produce some noise. These noises are normal and may occur as follows: o Gurgling sound –...
-
Page 9: Wine Storage
WINE STORAGE The wine chiller is equipped with storage shelves. You can follow the placement of the bottle in the guide below. Note: Loading capacity varies depending on the arrangement of the wine or depending on the bottle sizes. ... - Page 10 CW P651BH / CW P651CH (Single Zone) Capacity: 65 standard size bottle (750ml) REMOVING OF WOODEN SHELF To prevent damaging the doors or gasket, make sure to open the door fully before removing the shelves. CW P241RH / CW P241CH CW P651BH / CW P651CH Remove it by lifting the back of the shelf upwards and gently pull it out.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Cleaning The Wine Chiller Turn off the power, unplug the appliance, and remove all items including shelves and rack. Clean the interior with warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. -
Page 12: Troubleshooting
TROUBLESHOOTING Try the suggestions below before calling the customer service center. PROBLEM POSSIBLE CAUSE Not plugged in. The appliance is turned off. Wine chiller does not operate. The circuit breaker tripped or a blown fuse. Check the temperature control setting. ... -
Page 13: Failure Display
FAILURE DISPLAY The wine chiller is equipped with safety devices to protect the electronic system and if an abnormality occurs, the wine cooler will enter into protective state automatically and the following error codes will show: Error code Problem The temperature continues to be higher than 26°C after the wine chiller is turned on for more than 10 hours. -
Page 14: Technical Specification
TECHNICAL SPECIFICATION Model Number CW P241RH / CW P241CH Color Red / Cream Voltage/Frequency 220-240V/50Hz Refrigerant/Weight R600a/17g Volume Loading Capacity 24 Bottles Net Weight 23.5 kgs Unit Dimension (WxDxH) 440*475*680 mm Noise Level 39 dB(A) Electricity Consumption 100 kWh/annum Model Number CW P461CH / CW P461GH Color Cream / Mint Green... -
Page 15: Warranty And Service
WARRANTY AND SERVICE Please get ready the model number of your appliance, date of purchase, and the product issues when contacting our customer care center. For appliances under warranty, proof of purchase is required. To activate your warranty, please register your appliance. ...
