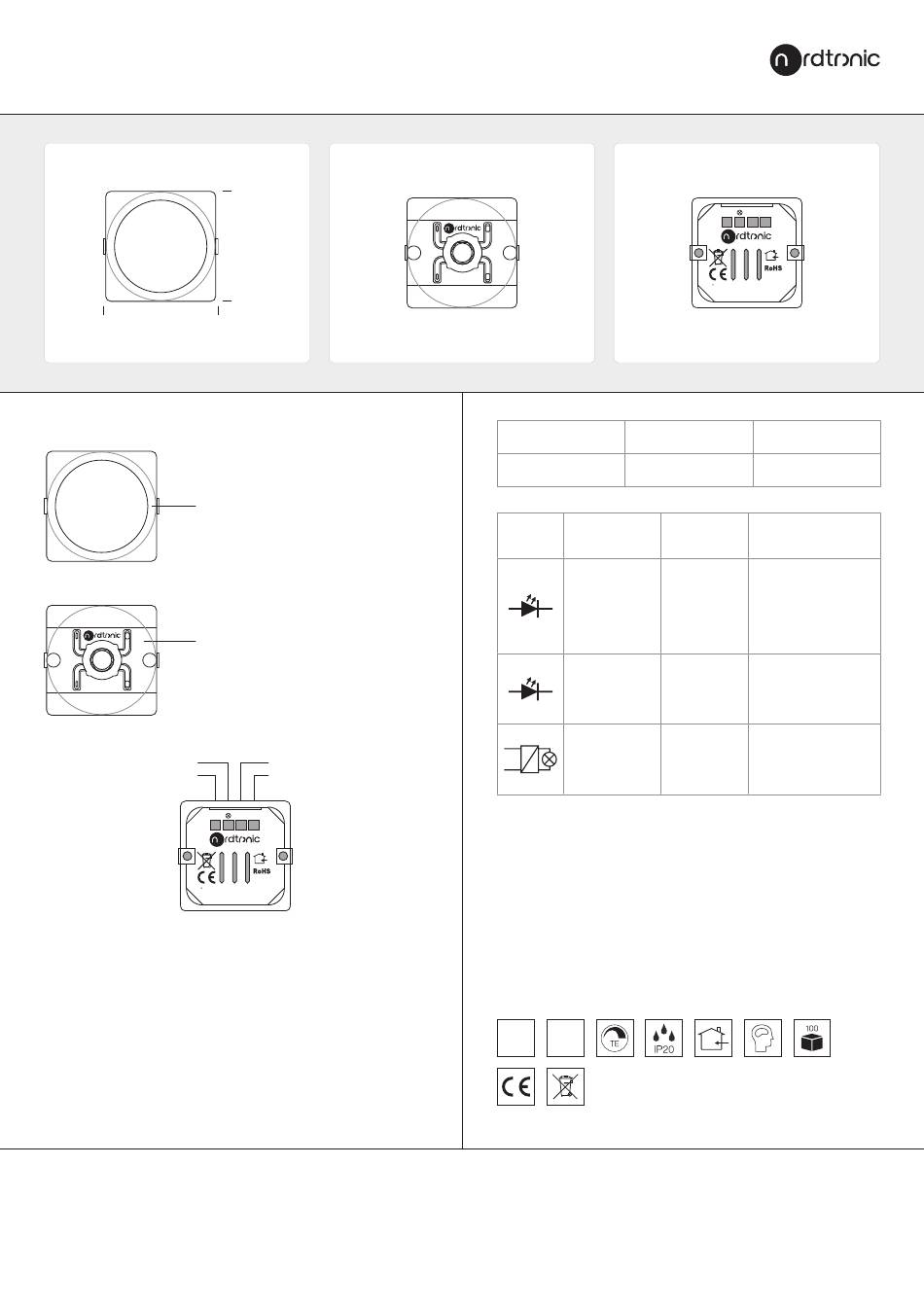

Nordtronic 98445072 Manual

Rotary Dimmer Triac
46,8 mm
Function introduction
Rotary knob, short press to turn on/off,
rotate clockwise to increase brightness,
rotate counterclockwise to decrease brightness
K1 / Min. set: for minimum brightness and
K1
startup brightness setting
Min. set.
Reset
K2
Item no. 98445072
Max. 150W LED
1ch dim output
Main input 230VAC
L
tc=75°C
Ratings: 100-240V~ 50Hz
Max. 150W LED
Find the updated manual on our website – nordtronic.com
With reservation for typing errors
Nordtronic A/S | Flade Engvej 4 | DK-9900 Frederikshavn | Denmark | CVR: 29808708
Tel: +45 7020 9531 | nordtronic.com
44 mm
Push switch input 230VAC
Neutral input
S N
Item no. 98445072
ta=-25°C-+50°C
K1
Min. set.
Reset
K2
Item no. 98445072
Max. 150W LED
Input voltage
230VAC
Load
Load type
symbol
Dimmable
LED lamps
Dimmable
LED drivers
Low voltage
halogen lighting
with electronic
transformers
5-150W
230 Vac
LED
L S N
Item no. 98445072
tc=75°C ta=-25°C-+50°C
Ratings: 100-240V~ 50Hz
Max. 150W LED
Output voltage Output Current
230VAC max. 1.1A
Maximum
Remarks
load
Due to variety of LED
lamp designs, maximum
number of LED lamps
150W @ 230V
is further dependent on
power factor result when
connected to dimmer
Maximum permitted
number of drivers is
150W @ 230V
150W divided by con-
nected load
150W @ 230V
›››››
98445072 | 09-2024
Manual
