Sanyo RP77 Service Manual

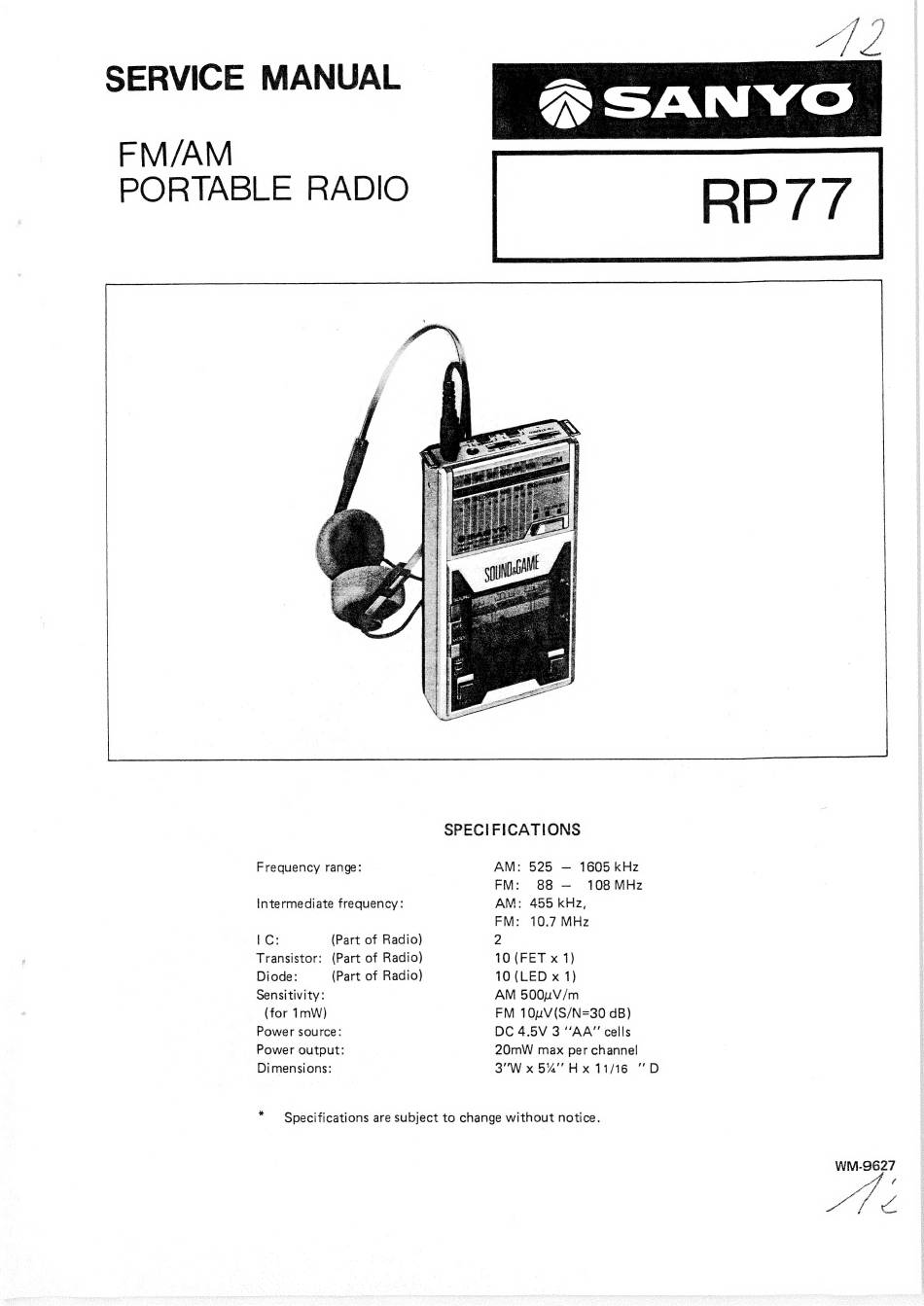

SERVICE MANUAL
FM/AM
PORTABLE RADIO
Frequency range:
Intermediate frequency:
LC: (Part of Radio)
Transistor: (Part of Radio)
Diode: (Part of Radio)
Sensitivity:
(for ImW)
Power source:
Power output:
Dimensions:
¥
SPECIFICATIONS
AM: 525 — 1605 kHz
FM: 88 — 108MHz
AM: 455 kHz,
FM: 10.7 MHz
2
10 (FET x 1)
10 (LED x 1)
AM 500uV/m
FM 10uV(S/N=30 dB)
DC 4.5V 3 "AA" cells
Z2OmW max per channel
3°W x 5%" Hx 11/16 "D
Specifications are subject to change without notice.
