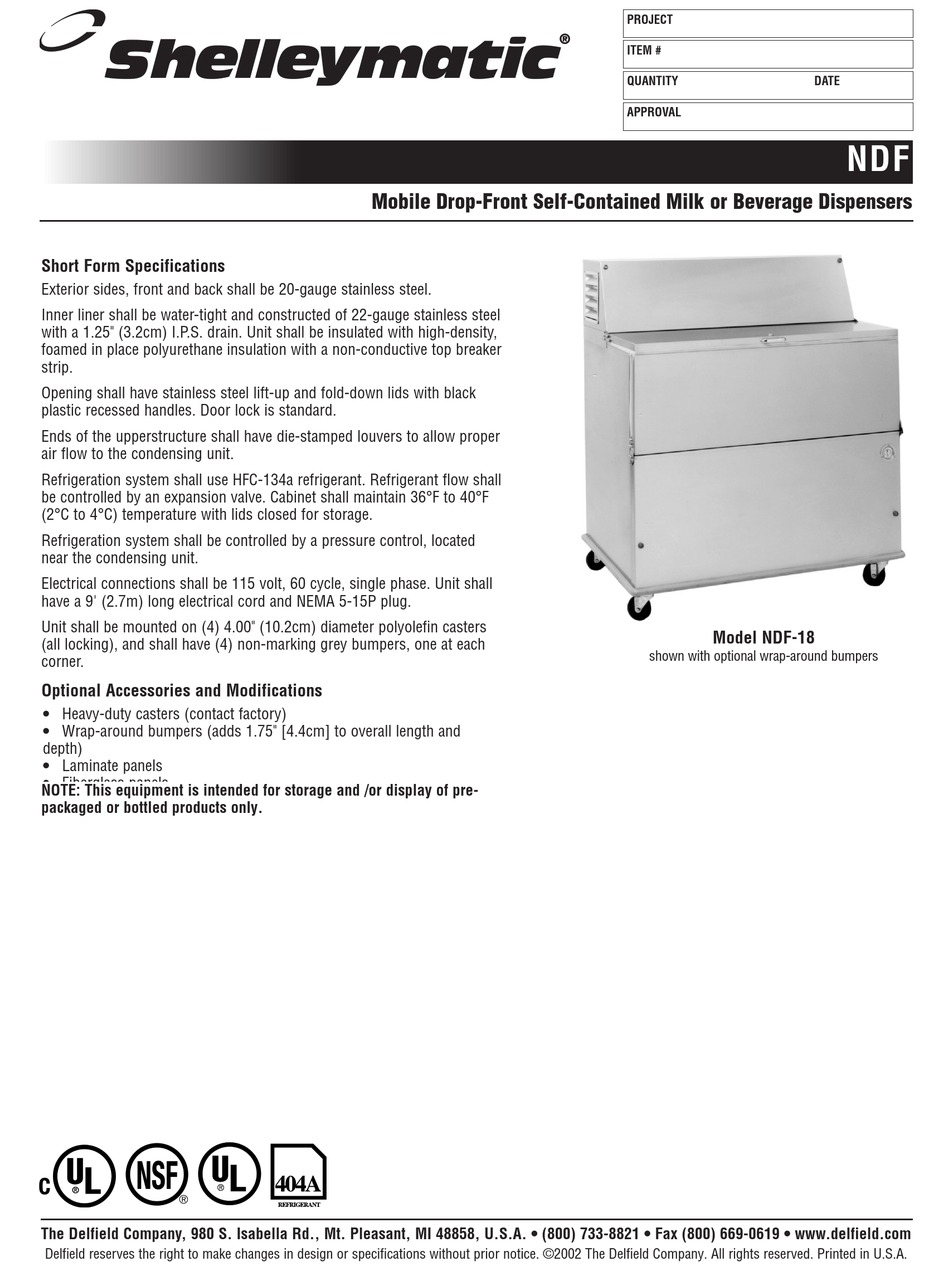

Delfield Shelleymatic NDF Specification Sheet

Short Form Specifications

Exterior sides, front and back shall be 20-gauge stainless steel.
Inner liner shall be water-tight and constructed of 22-gauge stainless steel
with a 1.25" (3.2cm) I.P.S. drain. Unit shall be insulated with high-density,
foamed in place polyurethane insulation with a non-conductive top breaker
strip.
Opening shall have stainless steel lift-up and fold-down lids with black
plastic recessed handles. Door lock is standard.
Ends of the upperstructure shall have die-stamped louvers to allow proper
air flow to the condensing unit.
Refrigeration system shall use HFC-134a refrigerant. Refrigerant flow shall
be controlled by an expansion valve. Cabinet shall maintain 36°F to 40°F
(2°C to 4°C) temperature with lids closed for storage.
Refrigeration system shall be controlled by a pressure control, located
near the condensing unit.
Electrical connections shall be 115 volt, 60 cycle, single phase. Unit shall
have a 9' (2.7m) long electrical cord and NEMA 5-15P plug.
Unit shall be mounted on (4) 4.00" (10.2cm) diameter polyolefin casters
(all locking), and shall have (4) non-marking grey bumpers, one at each
corner.

Optional Accessories and Modifications

• Heavy-duty casters (contact factory)
• Wrap-around bumpers (adds 1.75" [4.4cm] to overall length and
depth)
• Laminate panels
• Fiberglass panels
NOTE: This equipment is intended for storage and /or display of pre-
• Special voltages (contact factory)
packaged or bottled products only.
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
Mobile Drop-Front Self-Contained Milk or Beverage Dispensers
PROJECT
ITEM #
QUANTITY
APPROVAL
Model NDF-18
shown with optional wrap-around bumpers
DATE
NDF
