QuickStart guide WMS101
The WMS101is a Micro Bit Acceleration Measurement Kit with 0.96-inch OLED screen and Motor
shield. You can view acceleration data on the bright OLED screen and control motors.
The Arduino is already preprogrammed with our
For a more detailed version of the assembly
code, but you can modify and download the
instructions and explanation how it works, you
Arduino source code on our GitHub page using
can follow our tutorial video using the QR code
the QR code below.
below.

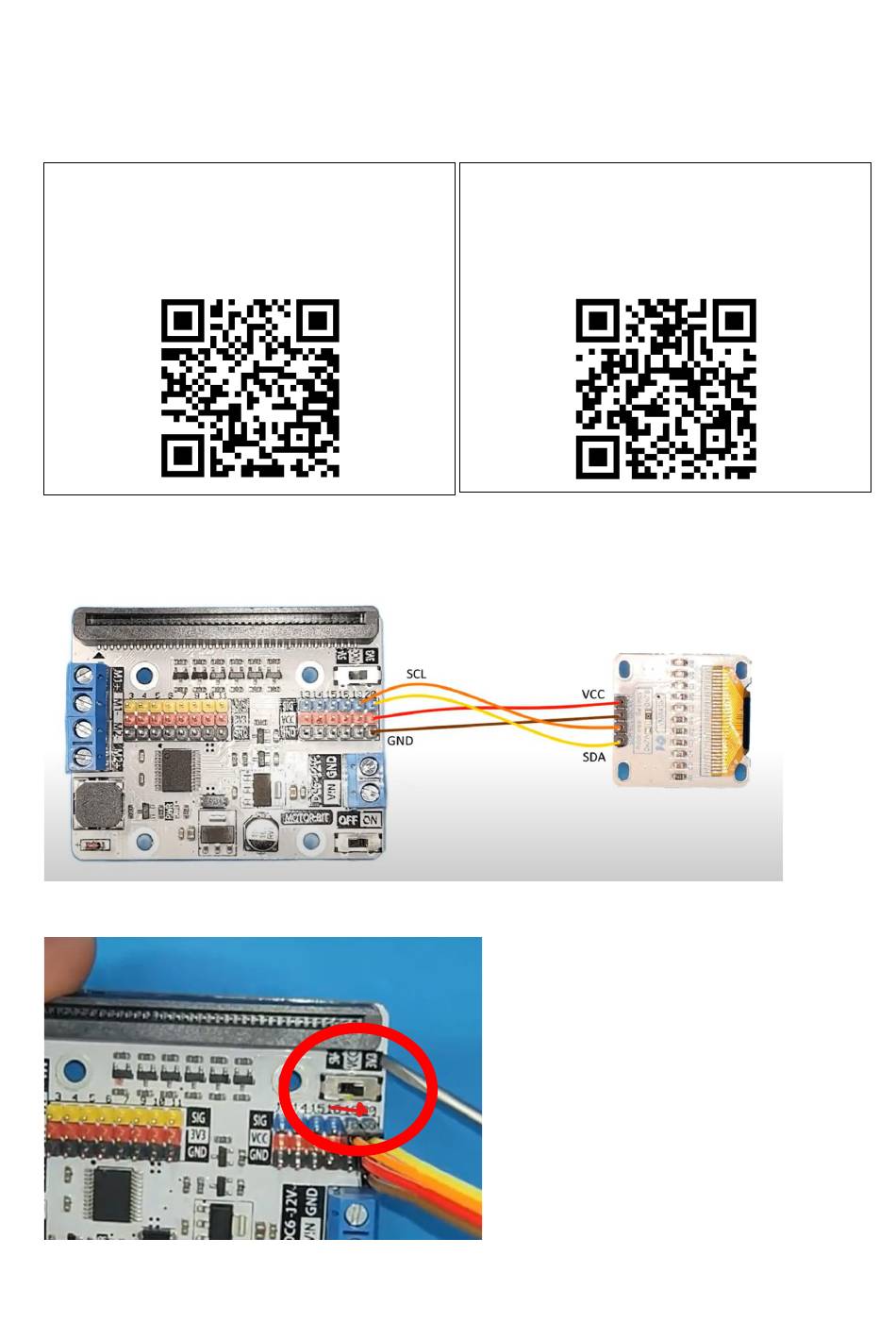

Now unbox everything and connect the OLED screen to the motor board like in the picture below using
4X Female to Female jumper cables
Make sure the Slide switch is set to 3V3
