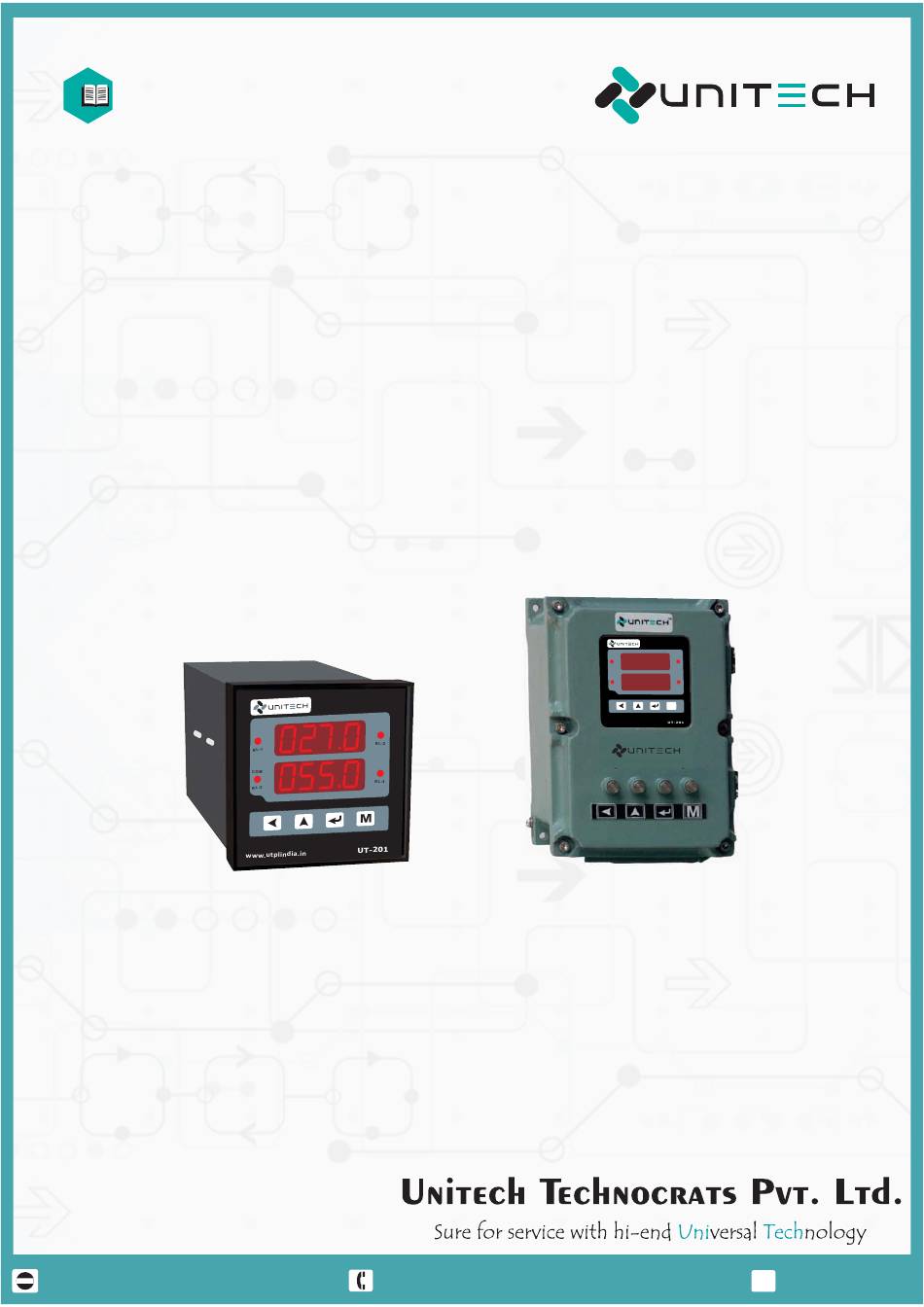

- Page 1 INSTRUCTION MANUAL Model No. : UT-201 DUAL CHANNEL TEMPERATURE AND HUMIDITY INDICATOR / CONTROLLER 027.0 RL-1 RL-2 055.0 RL-3 RL-4 www.utplindia.in 96 x 96 Flame Proof www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 12 / 24 VDC – a switch, fuse (1A, 125A) or a circuit breaker. The above items should be installed together with UT-201 for the products electrical protection. The switch, Fuse or circuit-breaker should be located close to the controller, within easy reach operator.
-
Page 3: Table Of Contents
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 CONTENTS OVERVIEW ....................INTRODUCTION ..................NSTALLATION ........................................MOUNTING ....................EXTERNAL DIMENSION ....................TECHNICAL SPECIFICATIONS ....................WIRING DIAGRAM PROGRAMMING ..................................OPERATION INTERFACE ..............MODE ACCESS FLOW CHART OPERATIONAL MODES ................................CONFIGURATION MODE .................... -
Page 4: Overview
Parameters can also be hidden to user to prevent improper configuration of the unit Mount Anywhere The UT-201 product group is Process control instruments that must be panel mounted. The wiring terminals must be provided. the UT-201 is environmentally hardened and, if suitably handled, can be mounted virtua -lly anywhere in plant or factory;... -
Page 5: Technical Specifications
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Technical Specifications TECHNICAL SPECIFICATIONS Pt-100, Pt-1000 Type of Input [CH:1 & CH:2] VOLTAGE [Analog] Linear : 0.5~2.5VDC, 1~5VDC, 0~10VDC Class A Accuracy Input + 0.1% of Full Scale ANALOG Cold Junction Comp. Automatic Software based self compensation... -
Page 6: Wiring Diagram
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Wiring Diagram 1 2 3 4 5 6 RTD:PT-100 HUMIDITY CAUTION TEMPERATURE SENSOR[5V] WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, CH:1 INPUT CH:2 INPUT Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. -
Page 7: Programming
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 PROGRAMMING Operation Interface FRONT VIEW CH:1 PV 8.8.8.8. 2 .0 TEMPERATURE Relay-2 LED Relay-1 LED RL-1 RL-2 CH:2 PV 8.8.8.8. 5 .0 HUMIDITY COM LED PASS Key MODE Key UP Key ENTER Key www.utplindia.in NORMAL VIEWS Channel:1 Present 4 Digit 7 segment dedicated to display the Ch:1 Present value. -
Page 8: Mode Access Flow Chart
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Mode Access Flow Chart. Setup Configuration Change Calibration Mode Mode Mode Password Mode Normal Mode 8888 MODE MODE MODE MODE CH:1 & 8888 COnf SETP CPAS CH:2 Mode Selection pass pass pass pass Press &... -
Page 9: Operational Modes
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 OPERATIONAL MODES Configuration Mode ‘Configuration Mode’ will shown by pressing key in the Normal mode.. Display Parameter Range / Values pass 0000 9999 CONFIGURATION MODE PASSWORD Range : Values between 0000 Password for Config. Mode Parameters... -
Page 10: Setup Mode
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Setup Mode Conf ‘Setup Mode’ Mode will shown by pressing key, after Mode display. Display Range / Values Parameter pass 0000 9999 SETUP MODE PASSWORD Range : Values between 0000 Password for Setup Mode Parameters... -
Page 11: Calibration Mode
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Calibration Mode Setp ‘Calibration Mode’ Mode will shown by pressing key, after Mode display. Display Range / Values Parameter pass 0000 9999 CALIBRATION MODE PASSWORD Range : Values between 0000 Password for Calibration Mode Parameters... -
Page 12: Change Password Mode
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Change Password Mode ‘Change Password Mode’ Mode will shown by pressing key, after Mode display. Display Range / Values Parameter PAsS 0000 9999 CHANGE PASSWORD MODE PASSWORD Range : Values between 0000 Password for Change Password Mode. -
Page 13: Error Message
TEMPERATURE AND HUMIDITY CONTROLLER UT-201 Error Message. In case the following error messages appear in the display of controller, please refer to the Error message table below, or call technical support. Sign Description Solution OPEN Open the Input Connection Check the Input sensor wiring Sensor Break or Sensor disconnected. -
Page 14: Communication [Modbus Rtu] Protocol
DATA+ RS-485 BUS Ethernet DATA- CONVERTER www.utplindia.in UNITECH TECHNOCRATS PVT LTD All content are subject to change without notice FACTORY:- 78/1/Z/3-Makarpura G I D C .., due to continuous improvements. +91 7046223333 , 9427301436 N/R Vadasar Bridge. /p-Gayatri emple Doc.
