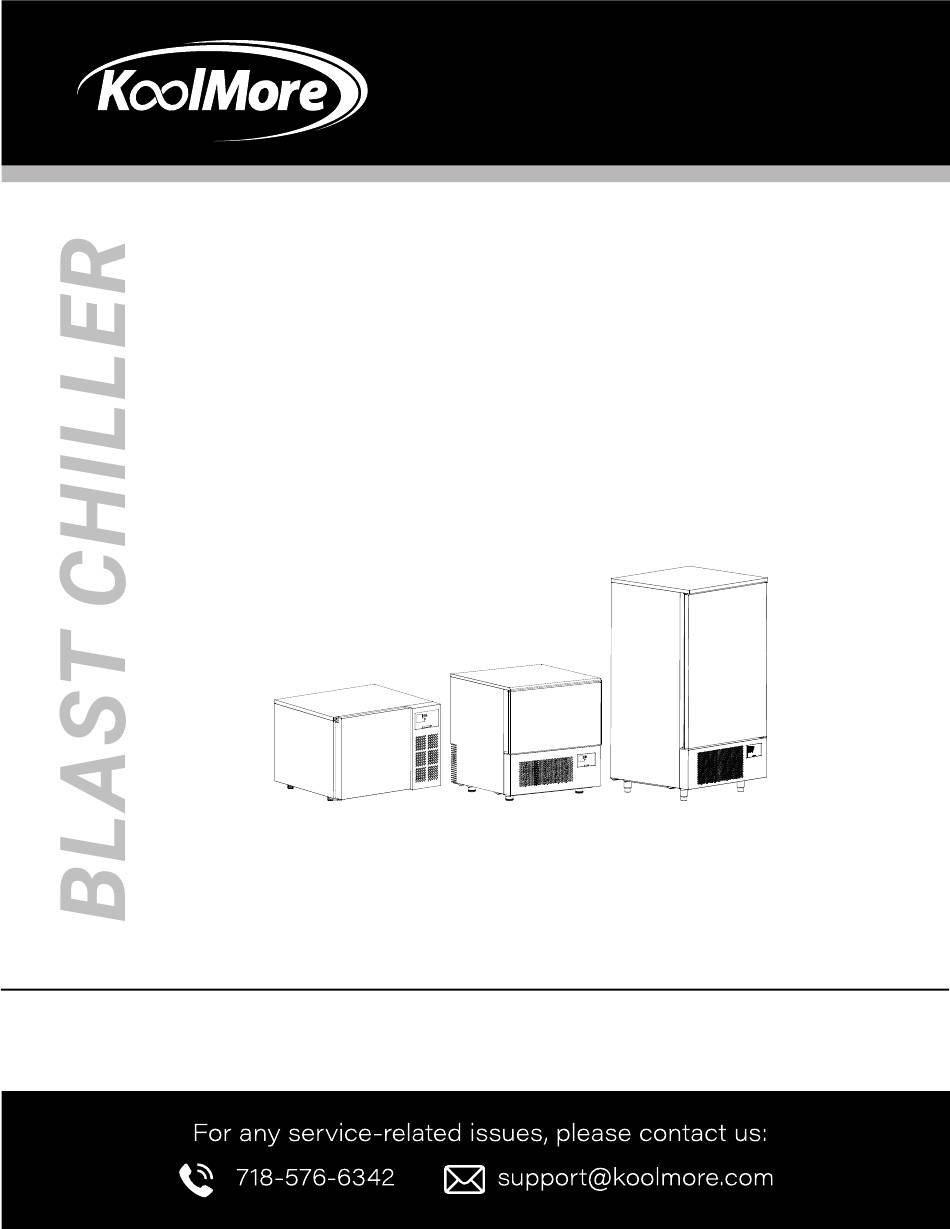

- Page 1 USER MANUAL KoolMore Countertop Blast Chiller Models: KM-CBLC-3 | KM-CBLC-5 | KM-CBLC-10 Before using, please read the operating instructions carefully to ensure proper application and achieve satisfactory results.
- Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.
-
Page 3: Table Of Contents
Contents Safety ................4 Installation ..............6 Operation ..............7 Maintenance .............. 11 Troubleshooting ............13... -
Page 4: Safety
SAFETY Power Connection • Ensure the machine’s voltage and frequency match the rating label before connecting to power. • Use a high sensitivity leakage switch (30mA) to connect the machine. • The socket must comply with national safety laws and regulations, requiring proper grounding. Electrical Safety •... - Page 5 • If the supply cord is damaged, it must be replaced by qualified personnel. • Do not store explosive substances, such as aerosol cans with flammable propellants, in the appli- ance. Ventilation and Sound • Keep ventilation openings clear of obstructions. •...
-
Page 6: Installation
Installation The packing and shipping • Packed in wooden cases, the machine should be transported with appropriate equipment, do not move manually. • When using a lifting system, such as forklifts or pallets, pay special attention to balance and pre- vent tipping. -
Page 7: Operation
Operation Rapid Cooling Process This program can quickly reduce the temperature of cooked food from 194°F to 37°F in 90 min- utes, avoiding the critical temperature range of 46°F to 154°F that can cause spoilage. Quick-cooled cooked food can be stored in the refrigerator at 37°F for up to five days. Quick-Freeze Program The quick-freeze program rapidly reduces the temperature of food from 194°F to 0°F in 240 minutes, preventing the formation of ice crystals and thereby minimizing juice and vitamin loss. -
Page 8: Control Panel And Functions
CONTROL PANEL AND FUNCTIONS Power Button When the power is connected, the machine enters standby mode. In standby mode, press the Power button to enter work preparation mode. The display will show the current temperature inside the cabinet and the last set time value. Pressing the Power button again while in work preparation mode or during operation will return the machine to standby mode. - Page 9 appropriate parameter with the SET button. Quick Freeze Shortcut Key Press this shortcut key to set the temperature to 0°F (-18°C) and the time to 04:00 hours. Then, press the START/STOP button to start the machine. Quick Cold Shortcut Key Press this shortcut key to set the temperature to +38°F (+3°C) and the time to 01:30 hours.
- Page 10 During cooling, when the temperature reaches the set value, the compressor stops. It will restart after a 2-minute delay once the temperature exceeds the set point by 5°F (3°C). SPECS Model KM-CBLC-3 KM-CBLC-5 KM-CBLC-10 Voltage, Power 110~120V, 60Hz, 300W 110~120V, 60Hz, 660W...
-
Page 11: Maintenance
Maintenance This section is intended for routine maintenance by properly trained personnel. Special maintenance and program-related tasks should be performed by authorized professionals. Cleaning and Maintenance: Regular cleaning and maintenance are essential to ensure the stability and proper functioning of the machine. Refrigeration System: The condenser must be cleaned by a professional. - Page 12 Airflow: Check if the heat exchange vent is blocked. Air Filter: Inspect the condenser air filter for dust accumulation. Clean the air filter immediately if dust is found. Machine fault code: HI, LO, E01 HI: cabinet temperature probe high temperature alarm, cabinet temperature high temperature alarm temperature set to 45°C/113°F.
-
Page 13: Troubleshooting
Troubleshooting Issue Check Solution No power supply, compressor does not work - Evaporating fan not working - Power cord and wiring - Check and repair - Circuit board output - Replace circuit board - Compressor thermal - Thermal protector and - Replace thermal protector and relay relay condition... -
Page 14: Limited Warranty
At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replace- ment appliance will carry the warranty for the remaining term of the original unit's warranty period.
