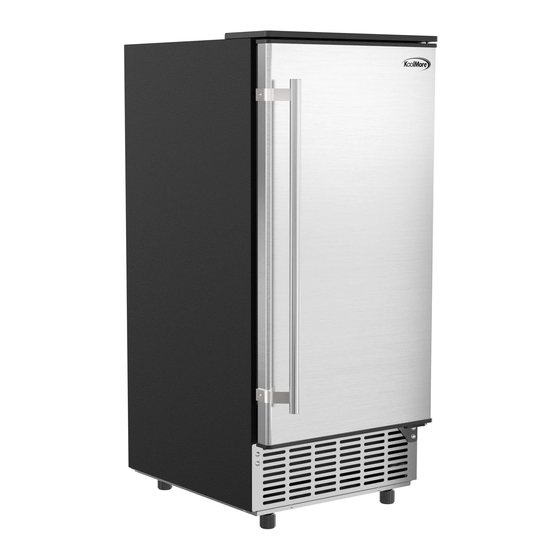

Commercial Ice Machine
Instruction Manual - Model: BIM75-BS
Thank you for purchasing our product!
Before returning to retailer, if you are having trouble with your unit, for assembly
assistance, missing or damaged parts.
Please contact customer service Phone: 718-576-6342
Email: support@koolmore.com
We are here to help.
Thank you!
Advertisement
Table of Contents
Related Manuals for KoolMore BIM75-BS
Summary of Contents for KoolMore BIM75-BS
- Page 1 Commercial Ice Machine Instruction Manual - Model: BIM75-BS Thank you for purchasing our product! Before returning to retailer, if you are having trouble with your unit, for assembly assistance, missing or damaged parts. Please contact customer service Phone: 718-576-6342 Email: support@koolmore.com We are here to help.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFO ..........................2 SPECIFICATION..............................4 DIMENSION/CONNECTION........................4 RATING..............................4 GENERAL INFORMATION ..........................5 MAIN UNIT CONSTRUCTION.......................5 ICE-MAKING AND ITS WATER TANK PARTS..................5 OPERATION PANEL..........................6 EXPLOSIVE DRAWING...........................7 OPERATION PROCEDURE AND MAINTENANCE....................9 UNPACKING YOUR ICE MAKER......................9 DOOR REVERSING (OPTIONAL)......................9 INSTALLATION LOCATION REQUIREMENT..................11 ELECTRICAL REQUIREMENT & CONNECTIONS................12 CLEANING YOUR ICE MAKER BEFORE FIRST USE.................12 WATER CONNECTION FOR YOUR ICE MAKER.................13 OPERATION OF YOUR UNIT..........................14... -
Page 3: Important Safety Info
IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. • Use this appliance only for its intended purpose as described in this owner’s manual. This icemaker must be properly installed in accordance with the installation instructions before it is used. - Page 4 WARNING: Children should be supervised to ensure that they do not play with the appliance. WARNING: Do not store explosive substances such asaerosol cans with a flammable propellant in this appliance. DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost ice maker.
-
Page 5: Specification
SPECIFICATIONS DIMENSION/CONNECTIONS RATING [20.3] [15.0] [16.8] [1.9] MODEL BIM75-BS POWER SUPPLY VOLTAGE 1Phase, 110-120/60Hz CLAIMATE CLASS 10-40C ELECTRICAL PROTECTION CLASS ICE MAKING RATING (Amps) 2.6Amp ICE HARVEST RATING (Amps) 3.0Amp ICE MAKING CAPACITY (KG/24H) 36kg/24Hour * REFRIGERANT CHARGE R290 2.65Oz / 75g NET WEIGHT (lbs) 52.5 Ibs... -
Page 6: General Information
GENERAL INFORMATION 1) Main Unit Construction 1. Door 2. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump and some detecting parts 3. Handle 4. Ice tank 5. Operation panel 6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running. 7. -
Page 7: Operation Panel
A. Evaporator (ice-making module) B. Ice full detecting board: Use to detect if the inner cabinet is full of ice or not, and to check if the ice-harvest process is complete or not. C. Water tank D. Water supplying pipe E. -
Page 8: Explosive Drawing
4) Explosive Drawing 33 34 36 37 38 Part Name Specifications Door seal Door SUS & Foams Water tank side cover ABS White Float switch Electrical part DC5V Water tank cover ABS White Handle Pump Electrical part AC115V Water Tank ABS White Drain tube for water tank Silicone tube, FDA... -
Page 10: Operation Procedure And Maintenance
OPERATING PROCEDURE & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check to ensure that all the accessories, including instruction manual, ice scoop, white water inlet pipe, 4-ways-to-2-ways water quick connector and the water draining pipe, etc., are inside. If any parts are missing, please contact our customer service. 2. - Page 11 4. Lift the door up and take off the door. 5. Set the freezer door on a non-scratch surface with the exterior up. 6. Unscrew the 2 screws on the handle, fix on the opposite side of the door. Remove the screw on the right fix piece, attach the left fix piece (from accessory bag) to the door.
-
Page 12: Installation Location Requirement
INSTALLATION LOCATION REQUIREMENT a) This unit is not for outdoor use. Keep the proper room temperature and inlet water temperature between 41-77 degrees Fahrenheit. Otherwise it will affect the ice making performance. b) This unit should not be located near any heat resource. c) The unit should be located on a firm &... -
Page 13: Electrical Requirement & Connections
ELECTRICAL REQUIREMENT & CONNECTIONS WARNING: THIS UNIT MUST BE EARTHED Electrical Shock Hazard • Plug into a grounding wall outlet. • Never remove the ground prong. • Use separate power supply or receptacle. • Never use an adapter. • Never use an extension cord. •... -
Page 14: Water Connection For Your Ice Maker
WATER CONNECTION FOR YOUR ICE MAKER Important: Be sure to use the new hose-sets supplied with the appliance to connect to water main. Old hose-sets should not be reused. 1. Connect the water supplying hose to the unit First remove the tape on the water inlet port for water supply (indicated in the following illustration as “B”) located at unit back, then use your other hand’s finger to press the out circle. -
Page 15: Operation Of Your Unit
OPERATION OF YOUR UNIT Operation button and display area diagram Operation of the ice-making process 1. To start the process, plug in the power plug and the Power symbol will flash in the display window. Press the ON/OFF button on the control panel and the machine will start to make ice. When enough water has been added to reach the standard level on the water tank the Power symbol will stop flashing in the display window. - Page 16 4. When the End of Cycle symbol will light up and the machine will stop working when the ice- making process is complete. 5. Shut down the unit: After the unit has completed making ice, press the “ON/OFF” button on the control panel.
-
Page 17: Wiring Diagram
WIRING DIAGRAM Normal Sounds Your new ice maker may make sounds that you are not familiar with. Most of these sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder than they are. The following describes the kinds of sounds that might be new to you and what may be making them. -
Page 18: Cleaning And Maintenance
7. Disconnect the water drainpipe from the main drain pipeline or floor drain. Plug the drain cap back 8. Drop the door open to allow for circulation and prevent mold and mildew. 9. Leave water supply hose and power cord disconnected until ready to reuse. 10. -
Page 19: Interior Cleaning
INTERIOR CLEANING For Ice Storage Bin The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is used for the first time and reused after stopping for an extended period. It is usually convenient to sanitize the bin after the ice making system has been cleaned and the storage bin is empty. -
Page 20: Ice-Machine Cleaner
ICE MAKING ASSEMBLY SYSTEM CLEANING BY USING NU-CALGON NICKLE SAFE Ice-machine Cleaner Minerals that are removed from water during the freezing cycle will eventually form a hard, scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends upon how hard your water is. -
Page 21: Cleaning Suggestion
WARNING The ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based cleaner products. Use rubber gloves to protect hands. Carefully read the material safety instructions on the container of the ice machine cleaner. 8. Open the water faucet of the main water supply. Let the water flow into the unit. Again, press the “TIMER CLEAN”... -
Page 22: Normal Trouble Shooting
NORMAL TROUBLE SHOOTING Problem Possible Cause Solution Check the main water supply pressure or the water supply hose to ensure that it is No water supply not blocked, increasing the water pressure, or cleaning the hose if necessary. Floating ball of the water level Clean the water tank and the water level detecting switch is blocked, “... -
Page 23: Correct Disposal Of This Product
ERROR INDICATOR a) Ambient temp sensor breakdown Display “E1” in digital window. b) The machine is not making ice or display window is reading as “E2.” c) Magnetic control switch cutoff----“Full” light will be on when plugging on or just turning on the unit. It will delete the breakdown display if this switch is electrically shorted. -
Page 24: Limited Service Warranty
• Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency outside of preventative maintenance and cleaning. • Parts deemed by Koolmore to be normal wear and tear parts, including hoses and select plastic or rubber components For Warranty Inquiries or Service: This warranty is only valid on equipment purchased from an authorized dealer.
