- Page 1 PR+RU Reversing Marine Autopilot Hydraulic Pump With Reservoir and Unloader Installation and Service Instructions Please record your pumps serial number here Serial Number R4508-m23 ISS.06...
- Page 2 Please keep this manual in a safe place The information in this manual was, to the best of our knowledge, correct when it went to press and Hydraulic Projects Ltd cannot be liable for any inaccuracies or omissions. There may also be differences between the specifications in the manual and the product as a result of ongoing development for which we accept no liability.
- Page 3 • Dimensions Pump Selection Location Orientation Hydraulic Connections Hydraulic Fluid Commissioning Servicing • Fault Finding General Information Contact details Disposal Declaration of conformity • About Hydraulic Projects Ltd.
-
Page 4: Important Safety Information

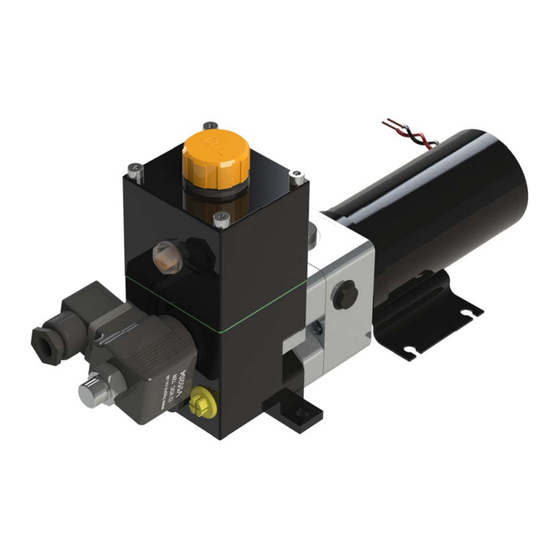

IMPORTANT SAFETY INFORMATION Failure to install and maintain this equipment in accordance with the in- structions contained in this Manual could result in damage or injury. This equipment must be installed and maintained by a person who is qualified to do so. This equipment is only for use with marine auto pilots within the limitations stated in the following pages. - Page 5 DESCRIPTION "PR+RU" reversing type gear pumps are driven by 12 or 24 volt DC permanent magnet motors. Incorporated in the design are pilot operated check valves that prevent the pump being back driven by the manual steering system or rudder load. The motors have an IP67 rating and can be removed from the pump without allowing air into the hydraulic system or fluid to escape.
- Page 6 TECHNICAL DATA Voltage 12 / 24 VDC Typical amp-hour Typical current Current 5 bar at 25% duty Intermittent 55 bar max PR+RU 06 PR+RU 08 14.0 PR+RU 10 19.0 PR+RU 15 24.0 11.0 PR+RU 20 25.0 12.0 PR+RU 25 34.0 15.5 Ingress Protection IP67...
- Page 7 DIMENSIONS...
-
Page 8: Pump Selection
PUMP SELECTION It is important to select the correct size PR+RU pump as it directly influences the steering performance and power consumption. The type of vessel to be steered must be considered. The hard-over time may need to be faster on lightweight planing craft and modern yachts or slower on displacement power boats or long keel yachts. - Page 9 LOCATION The PR+RU pump is designed for “Under Deck” installations only. When considering where to mount the pump the following points should be taken into account. Keep hose and cable runs short. Mount away from sources of heat. Install the pump above areas liable to flooding. Use a solid surface to prevent noise transmission and amplification.
-
Page 10: Hydraulic Connections
HYDRAULIC CONNECTIONS The ports marked 'A' and 'B' are the service line connections to the cylinder. The hydraulic hoses and connections must be of a suitable pressure rating. Refer Technical data. Use only bonded rubber/metal washers to seal the fittings. Do not use tapered adapters, sealing compound or P.T.F.E tape. -
Page 11: Hydraulic Fluid
HYDRAULIC FLUID Caution! Do not use “brake fluid” Use only mineral based good quality hydraulic fluid compatible with nitrile rubber hydraulic seals. The PR+RU pump is designed to operate on a wide range of hydraulic fluids. Check the cylinder manufacturers recommendations for compatibility. - Page 12 SERVICING Please quote your units serial number when ordering. Seals: In the unlikely event that new seals are required a kit is available. Part No.: PR+RU-sk. Motor: The motor is a non-serviceable item and when it reaches End of Life should be replaced with a new motor.
-
Page 13: Fault Finding
FAULT FINDING 1) Motor does not run : check electrical connections. : check auto pilot output. : check fuse / trip rating. Refer Technical Data. 2) Motor runs, but erratic or no cylinder movement. : check for air in system. : check for incorrect hydraulic connections. -
Page 14: General Information
Model Number: ________________________________ Serial Number: ________________________________ Date of Purchase: ________________________________ Dealer: ________________________________ CONTACT DETAILS Hydraulic Projects Limited Dawlish Business Park Dawlish Devon EX7 0NH UK Tel: +44 (0)1626 863634 Email: sales@hypro.co.uk Web: www.hypro.co.uk DISPOSAL Please dispose of End of Life items responsibly. In the event that you are unable to use your nearest local authority civic amenity sites to recy- cle, units can be returned to us. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY... - Page 16 Hydraulic Projects Ltd supply the world's leading autopilot manufactur- ers with hydraulic pumps, cylinders and valves of the highest quality for steering yachts and commercial craft. Our in-house design and technical teams offer the expertise and sup- port expected of an established world-class manufacturer.
