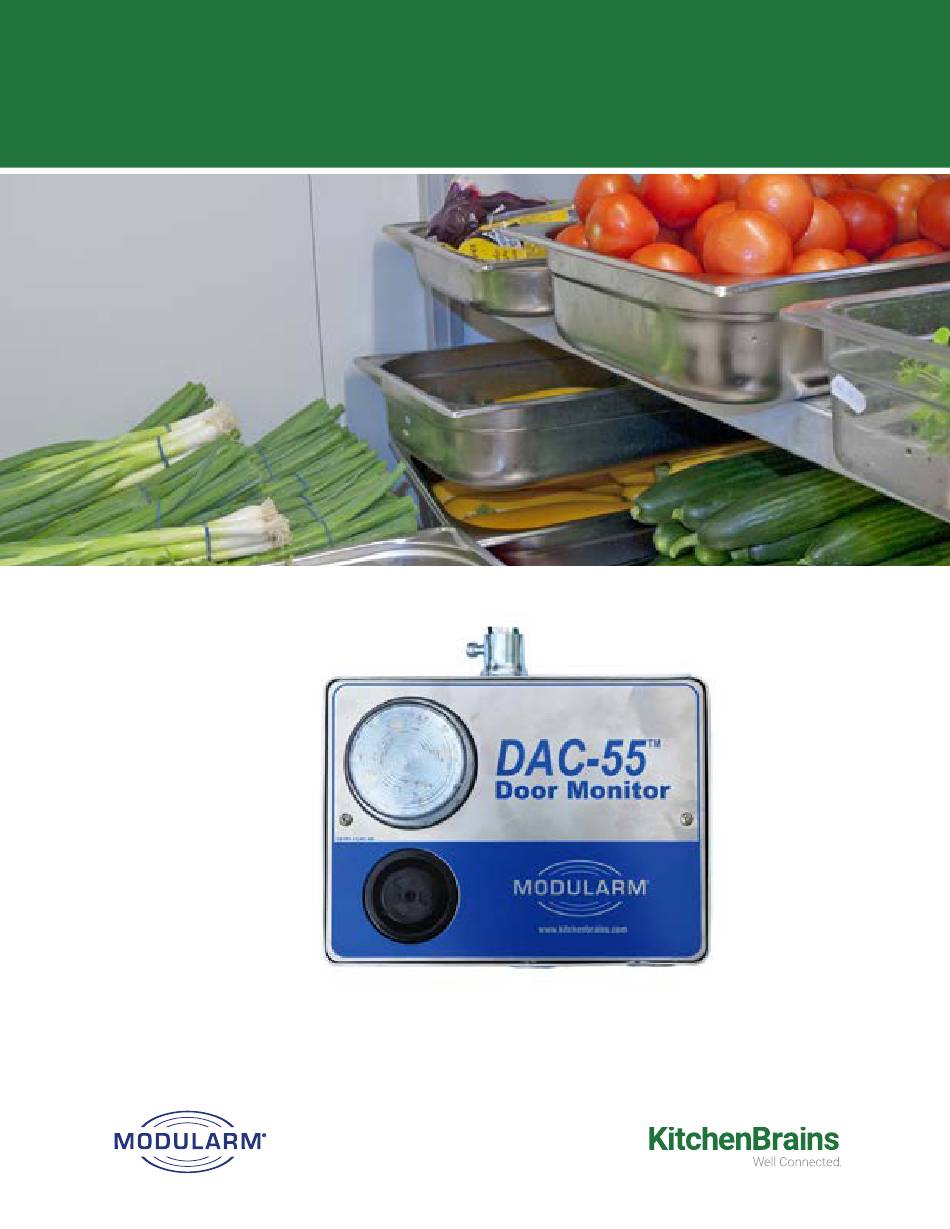

- Page 1 MODULARM DAC-55™ ® Refrigerator/Freezer Door Alarm and Monitor I N S TA L L AT I O N A N D OPERATING MANUAL...
- Page 2 MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® NOTICE Before installing, please thoroughly read these instructions so that you can fully benefit from all of the capabilities offered by the DAC-55. CONTENTS PRODUCT OVERVIEW DAC-55 OPERATION OPERATION WITH IP-1 ILLUMINATED PUSHBUTTON INSTALLING THE DAC-55 AND OPTIONAL IP-1 CONNECTING THE DAC-55...
-
Page 3: Product Overview
MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® PRODUCT OVERVIEW Kitchen Brains Modularm DAC-55™ Refrigerator/Freezer Door Alarm and Monitor is an easy-to-install, ® ® full-featured door monitor for walk-in freezer and cooler doors that saves energy, trains personnel to close doors, increases operator safety and operational efficiency, and helps to maintain product integrity. -
Page 4: Operation
MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® DAC-55 OPERATION Door status is monitored by the provided low voltage magnetic contacts. Additional contacts may be added to monitor multiple doors (A low current electromechanical switch, opening when the door is opened, may also be utilized). - Page 5 MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® OPERATION WITH IP-1 ILLUMINATED PUSHBUTTON The DAC-55 has been designed to accept a low voltage, Illuminated Pushbutton (Part# IP-1) as an additional means of device activation. The IP-1 is an optional accessory that mounts inside the monitored compartment and includes a piezo horn.
- Page 6 MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® INSTALLING THE DAC-55 AND OPTIONAL IP-1 MOUNTING: MAGNETIC CONTACTS: 1. INSTALLATION TIP: IF DESIRED, AND IF DOOR CONFIGURATION PERMITS, THE MAGNETIC CONTACT SWITCH PART MAY BE MOUNTED INSIDE THE DAC-55 ENCLOSURE. THIS WILL ENSURE A CLEANER INSTALLATION AND NOT AFFECT THE OPERATION OF THE CONTACTS.
- Page 7 MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® CONNECTING THE DAC-55 AND OPTIONAL IP-1 LOW VOLTAGE CONNECTIONS (See the 4 Green Terminal Strips inside of unit): 1. Strip insulation on all low voltage wires approximately ¼”. a. Terminal Strip connections are made by pressing down on the respective actuator button with a small screwdriver and inserting the wire into the hole below the actuator.
-
Page 8: Setup And Test
MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® SETUP AND TEST 1. Apply Power to the DAC-55. NOTE: If the door is closed when powered up, interior lights will turn on for 10 minutes and then shut off. This is a safety feature to insure that lights will turn back on if a momentary power failure, such as from a thunderstorm, occurs while there are personnel in the compartment. - Page 9 MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® DAC-55 DIAGRAM DAC-55 DOOR MONITOR WIRING AND SETUP DIAGRAM ™ HI SIDE NEUTRAL SOLENOID FANS, 30A LIGHTS, 30A (BLACK) (WHITE) 3 A, N/C AC POWER 120 VAC SELECT ONLY ONE ALARM DELAY SWITCH.
- Page 10 Product. Failure to comply with the Instructions, and the instructions and specifications of the Equipment manufacturers, may result in personal injury and/or property damage and may void the warranty of the Product. Retain the Instructions for future reference or view them on the Kitchen Brains website at www.kitchenbrains.com.
-
Page 11: Specifications
MODULARM DAC-55 REFRIGERATOR/FREEZER DOOR ALARM AND MONITOR | OPERATING MANUAL ® SPECIFICATIONS DAC-55 DIMENSIONS FAN CONTACTS 8” L x 6” W x 1.8” D N/O, 30A @ 120VAC OR 240VAC POWER SUPPLY SOLENOID CONTACTS 120VAC/60Hz @ 90mA max N/C, 3A @ 120VAC OR 240VAC 20mA Quiescent LIGHT CONTACTS Surge Protected... - Page 12 In the U.S., Canada and the Caribbean 1-800-327-8766) 1-800-FASTRON ( Elsewhere 1-203-377-4414 saashelpdesk@kitchenbrains.com 905 Honeyspot Road, Stratford, CT 06615 kitchenbrains.com 203-377-4414 800-327-8766 CONNECTICUT | FLORIDA | LONDON | SHANGHAI | SINGAPORE © 2021 Kitchen Brains I Confidential Proprietary Information I Duplication Prohibited 229-40073D...
