- Page 1 MODULARM 75LC MULTI-MONITOR ® I N S TA L L AT I O N A N D OPERATING MANUAL A KITCHEN BRAINS BRAND...
-
Page 2: Table Of Contents
FLUSH MOUNT CUTOUT TEMPLATE MD-1 AND MD-2 CONNECTIONS MD-1 CONNECTIONS DIAGRAM MD-2 CONNECTIONS DIAGRAM MODULARM 75LC WIRING DIAGRAM REV 3 SPECIFICATIONS USE THE 75LC TO CONTACT INFORMATION This document contains confidential information. Dissemination, publication, copying, or duplication of this document or software described herein without prior written authorization is strictly prohibited. -
Page 3: Product Overview

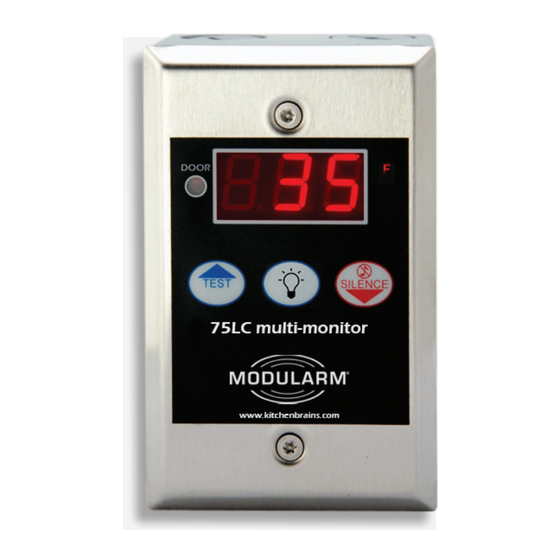

MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OVERVIEW 75LC The Kitchen Brains Modularm 75LC Multi-Monitor is the standard in walk-in monitoring. The 75LC ® ® provides temperature, door ajar, AC failure and panic alarms. Using Autoset™ technology, the Modularm 75LC automatically adjusts alarm set points, thus eliminating the need for manual programming. -
Page 4: Product Accessories
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT ACCESSORIES The accessories listed below connect directly to, and are powered by, the 75LC. These accessories may be used individually, or in combination, to meet the unique requirements of each installation. AUTODETECT TECHNOLOGY selects the right alarm temp setpoints for monitoring a cooler or a freezer automatically, virtually eliminating the need for manual programming. -
Page 5: Product Features
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT FEATURES AC POWER FAILURE ALARM • 75LC “chirps” every 30-seconds • “Power Failure” displays on screen • For power failures less than one-minute: • Normal operation restores automatically • Incident is ignored •... -
Page 6: Product Operation
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING CONTROL OPERATION WITHOUT ACCESSORIES THERE ARE TWO OPTIONS FOR CONTROLLING LIGHTS: • Regular Timed Lighting (default): • To turn lights on and activate the lights-off timer, press the “Light” button on the 75LC •... -
Page 7: Lighting And Panic Control Operation With Ip-1 Installed
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING AND PANIC CONTROL OPERATION WITH IP-1 INSTALLED THERE ARE TWO OPTIONS FOR CONTROLLING LIGHTS: Patented Timed Lighting with AutoPanic (default): • To turn lights on and activate the lights-off timer and AutoPanic alarm, press the “Light” button on the 75LC •... -
Page 8: Lighting And Panic Control Operation With Ip-1 And Mc-1 Installed
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING AND PANIC CONTROL OPERATION WITH IP-1 AND MC-1 INSTALLED THERE ARE TWO OPTIONS FOR CONTROLLING LIGHTS: Patented Timed Lighting with AutoPanic (default) • Open door to turn lights on • When door is closed, the lights-off and AutoPanic timers activate •... -
Page 9: Lighting And Panic Control Operation With Ip-1, Mc-1 And Md-1 Or Md-1+2 Installed
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® PRODUCT OPERATION LIGHTING AND PANIC CONTROL OPERATION WITH IP-1, MC-1 AND MD-1 OR MD-1+2 INSTALLED THERE ARE TWO OPTIONS FOR CONTROLLING LIGHTS: Patented Timed Lighting with AutoPanic (default) • Open door to turn lights on •... -
Page 10: Configuration Mo0De
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE ALARM OPERATION MODE The 75LC has four modes of operation: Sleep, Run, Test, and Program. SLEEP MODE: The 75LC ships from the factory in Sleep Mode. (The rechargeable battery is connected physically but is not connected electrically until AC power is applied) To restore Sleep Mode if the alarm has been powered up: 1. -
Page 11: Pas-Pro™ Password Programming Instructions
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE USING PAS-PRO™ TO SELECT AN OPERATION PASSWORD PROGRAMMING (50 – 59) See passwords and corresponding program menu parameters in tables on previous page. NOTE: Parameter passwords “50” thru “59” are “entry points” into the programming menu. The programming menu is an “endless loop”... -
Page 12: Operation Password Examples
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE OPERATION PASSWORD EXAMPLES PASSWORD PROGRAM MENU PARAMETER FACTORY SETTING TO REMOVE ACCESSORIES LOCKING THE KEYPAD UNLOCKING THE KEYPAD FACTORY DEFAULTS PARAMETER LIST PASSWORD PARAMETER SYMBOL RANGE SCALE F or C PROBE CALIBRATION (1) Prb + CAL -5 to +5 HI ALARM TEMP SETPt HI + ALr -40F to 125F... -
Page 13: Probe Calibration (Password 51)
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® CONFIGURATION MODE PROBE CALIBRATION (PASSWORD 51) The 75LC comes pre-calibrated to read proper temperature with Automatic Scale Conversion from F to C. Calibration parameter provides a means for offsetting the displayed temperature by +/-5 if so desired. NOTE: CALIBRATING offset doesn’t change setpoints RINGBACK DELAY (PASSWORD 56) Ringback generates timed repeat audible alarms during an ongoing temperature or power failure alarm condition. -
Page 14: Installation
• All personnel operating, maintaining, repairing or interfacing with the Product must be instructed in the use of the Product and provided with the Instructions, which are accessible on the Kitchen Brains website at www.kitchenbrains.com. • WARNING: Hazard of electric shock! Power sources must be turned off or otherwise disconnected prior to installation or servicing of the Product. -
Page 15: Installation General Safety Measures And Product Limitations
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® INSTALLATION GENERAL SAFETY MEASURES AND PRODUCT LIMITATIONS Any enclosure used for 75LC mounting must provide multiple wire access hubs for running line voltage Mounting the Enclosure For wiring and low voltage wiring in separate conduits. Determine the wire access hubs to be utilized for The 75LC the installation and plug and seal any remaining unused openings with hardware and/or sealant. -
Page 16: Installation General Safety Measures And Product Limitations
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® INSTALLATION GENERAL SAFETY MEASURES AND PRODUCT LIMITATIONS Low Voltage Wiring The low voltage terminal blocks will accept wire from 24-16AWG. Accessories and sensors are typically provided with 24-22AWG wire. General Accessories and sensor connections are shown on (The stripped end of the low voltage wire the accompanying 75LC Connections diagram. -
Page 17: Flush Mount Cutout Template
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® FLUSH MOUNT CUTOUT TEMPLATE 1 1/4" FLUSH MOUNT CUTOUT TEMPLATE 2 1/2" 75LC ENCLOSURE POSITION IMPORTANT!! MOUNT THE 75LC ENCLOSURE WITH THE GROUND LUG TO THE LEFT SO THAT THE BATTERY DOES NOT CONTACT THE GROUND LUG WHEN THE GROUND ALARM IS INSTALLED... -
Page 18: Md-1 And Md-2 Connections
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® MD-1 AND MD-2 CONNECTIONS STANDARD ACCESSORIES AND BUILDING CONNECTION SCHEMATIC This document contains confidential information. Dissemination, publication, copying, or duplication of this document or software described herein without prior written authorization is strictly prohibited. 1-800-327-8766 kitchenbrains.com Page 18 of 24... -
Page 19: Connections Diagram
OF COMPARTMENT, DOOR AJAR, BWRY DOOR MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL AND AUTOMATIC "LIGHTS-ON" AT ® TEMP TEMP EACH DOOR. SENSOR SENSOR 75LC # 2 ONLY READS TEMP *NOTE: ALL CONNECTIONS SHOWN ARE LOW VOLTAGE USING RECOMMENDED INTER-CONNECT MD-1 CONNECTION WIRE: [22AWG,MULTI-CONDUCTOR,STRANDED] PROVIDE SEPARATE CONDUIT FOR LOW VOLTAGE WIRING. -
Page 20: Connections Diagram
CHING INSIDE TMENT, DOOR AJAR, MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® BWRY DOOR BWRYDOOR ATIC "LIGHTS-ON" AT TEMP TEMP SENSOR SENSOR 75LC # 2 ONLY READS TEMP 75LC # 3 ONLY READS TEMP NECTIONS SHOWN ARE LOW MD-2 CONNECTIONS RECOMMENDED INTER-CONNECT ULTI-CONDUCTOR,STRANDED] TE CONDUIT FOR LOW VOLTAGE WIRING. -
Page 21: Modularm 75Lc Wiring Diagram Rev
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® MODULARM 75LC WIRING DIAGRAM MODULARM 75LC WIRING DIAGRAM REV 3 LINE VOLTAGE CONNECTIONS SUPPLY LIGHTS EXPANSION 8.3A@120VAC POWER CONTACTS PORT 1000W 120 VAC TXRX SHLD NC NO NEUTRAL 75LC FROM *75LC MUST BE GROUNDED... -
Page 22: Specifications
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® SPECIFICATIONS 75LC HUMIDITY DIMENSIONS 90% non condensing 4.5” L x 2.75” W x 2.0” D (Dimensions include outdoor type single gang MEASUREMENT outlet box.) TEMPERATURE RANGE POWER SUPPLY -40ºF to 125ºF (-40ºC to 52ºC) 120VAC +/- 10% TEMPERATURE SENSOR POWER CONSUMPTION... -
Page 23: Use The 75Lc To
MODULARM 75LC MULTI-MONITOR | OPERATING MANUAL ® USE THE 75LC TO: Monitor your Condenser Monitor your Monitor your Reach-In’s Door Openings Monitor your Monitor your Evap Walk-In’s Monitor your Temperature This document contains confidential information. Dissemination, publication, copying, or duplication of this document or software described herein without prior written authorization is strictly prohibited. 1-800-327-8766 kitchenbrains.com Page 23 of 24... -
Page 24: Contact Information
In the U.S., Canada and the Caribbean 1-800-327-8766) 1-800-FASTRON ( Elsewhere 1-203-377-4414 saashelpdesk@kitchenbrains.com 905 Honeyspot Road, Stratford, CT 06615 kitchenbrains.com 203-377-4414 800-327-8766 CONNECTICUT | FLORIDA | LONDON | SHANGHAI | SINGAPORE © 2022 Kitchen Brains Confidential Proprietary Information Duplication Prohibited 229-40072H...
