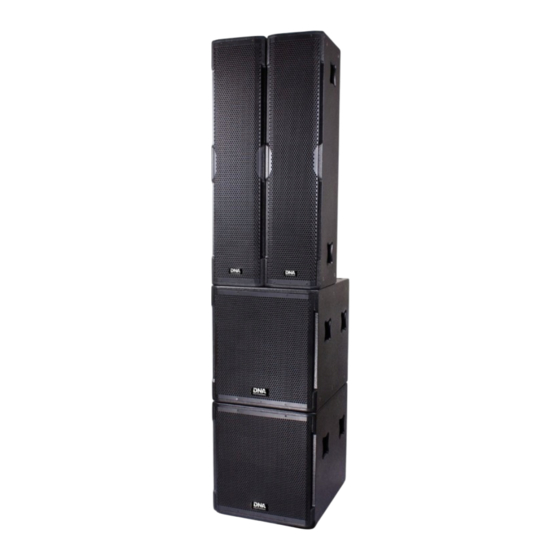

DNA Professional RLX3300-SAT User Manual

RLX3300-SAT
User Manual / Instrukcja obsługi
English
Professional Speaker Systems are a high performance yet economical source of portable sound repro-
duction. Applications include speech, vocals and music playback. Used in accordance with the information
provided this product will give years of trouble free use.
FEATURES
• Wooden construction
• Rubber feet for added stability
• Perforated metal grill
• Built-in 1-½" (38mm) pole mount socket
• 8'' High power speaker

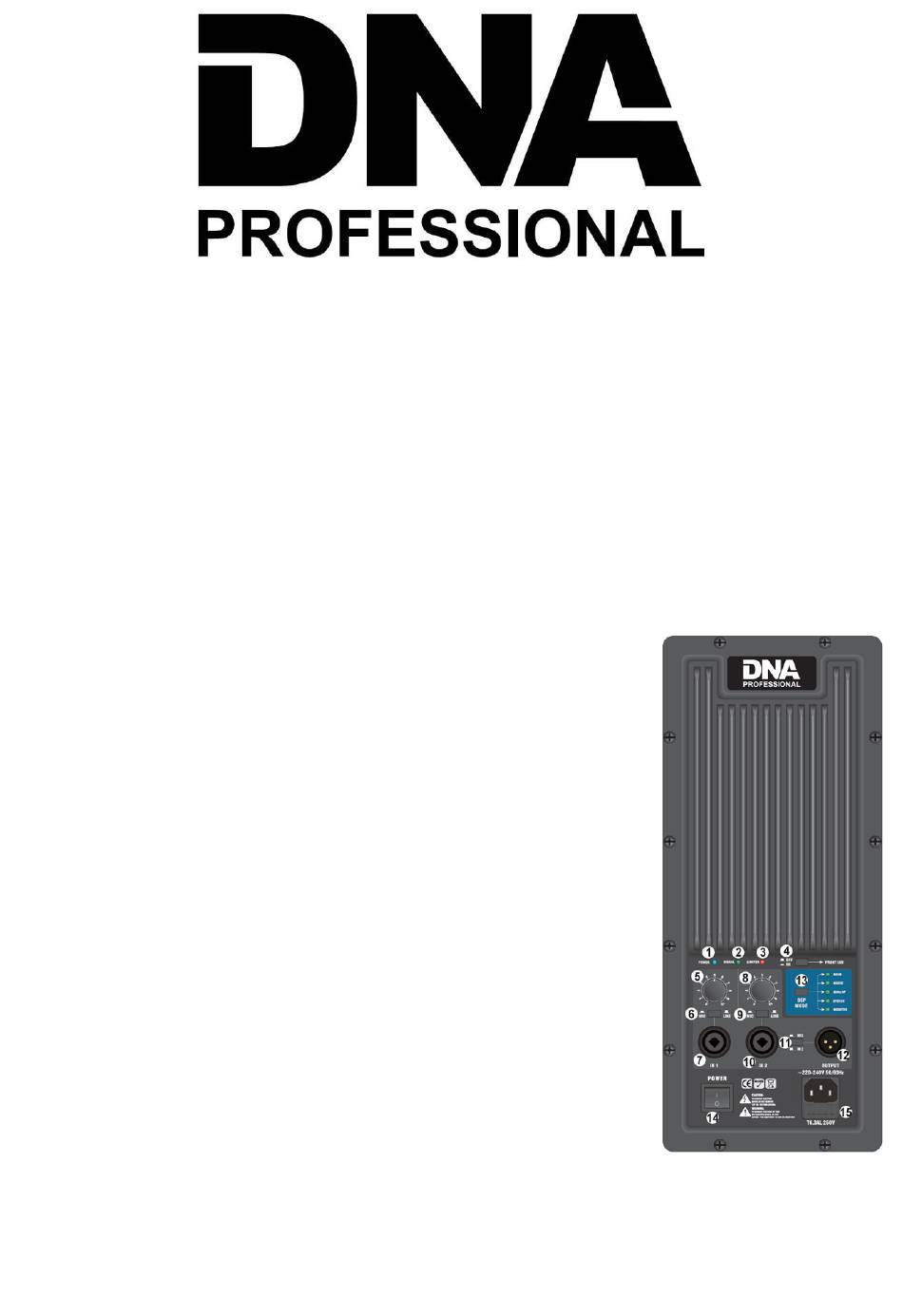

SUBWOOFER/AMPLIFIER FUNCTION
1. Power indicator
2. Signal indicator: The LED lights up when signal input.
3. LIMIT Indicator: Illuminated just before the sub amplifier begins to clip
and distort. Adjust the sub level control and signal level from your source
so this illuminates only briefly on peaks in the music. Using the system with
this on all or much of the time will result in poor sound quality and damage
the speakers and electronics.
4. FRONT LED Switch: ON(depressed), OFF(disengaged).
5. Volume control for INPUT1: Control the volume for INPUT1 when using
the
INPUT1.
6. MIC/LINE Switch: Use the MIC position (depressed) when a micro-
phone is connected. Use the LINE position(disengaged) when a line level
source such as an audio mixing console, audio playback device,
or electronic musical instrument is connected.
7. MIC/LINE input for INPUT1: Use combination XLR or 1/4" Jack con-
nector balanced or unbalanced.
8. Volume control for INPUT2: Control the volume for INPUT2 when using the
INPUT2.
9. MIC/LINE Switch: Use the MIC position (depressed) when a microphone is connected. Use the LINE
position (disengaged) when a line level source such as an audio mixing console, audio playback device,
