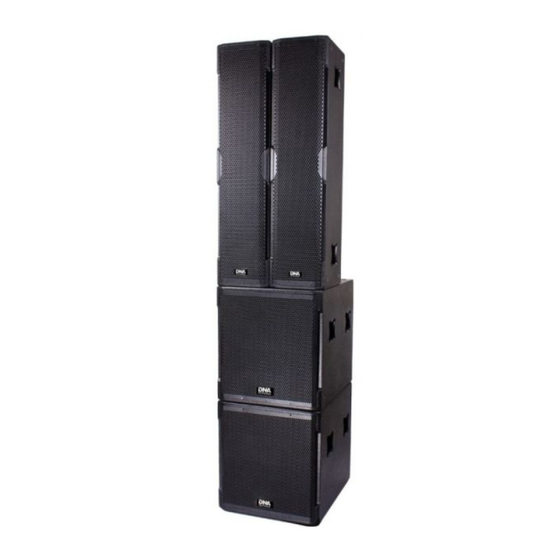

DNA Professional RLX3300-SUB User Manual

Professional speaker systems

Available languages

Download this manual

User Manual / Instrukcja obsługi

Professional Speaker Systems are a high performance yet economical source of portable sound reproduction.

Applications include speech, vocals and music playback. Used in accordance with the information provided

this product will give years of trouble free use.

SUBWOOFER FEATURES

• Wooden construction

• Rubber feet for added stability

• Perforated metal grill

• Built-in 1-½" (38mm) pole mount socket

• 18'' High power woofer

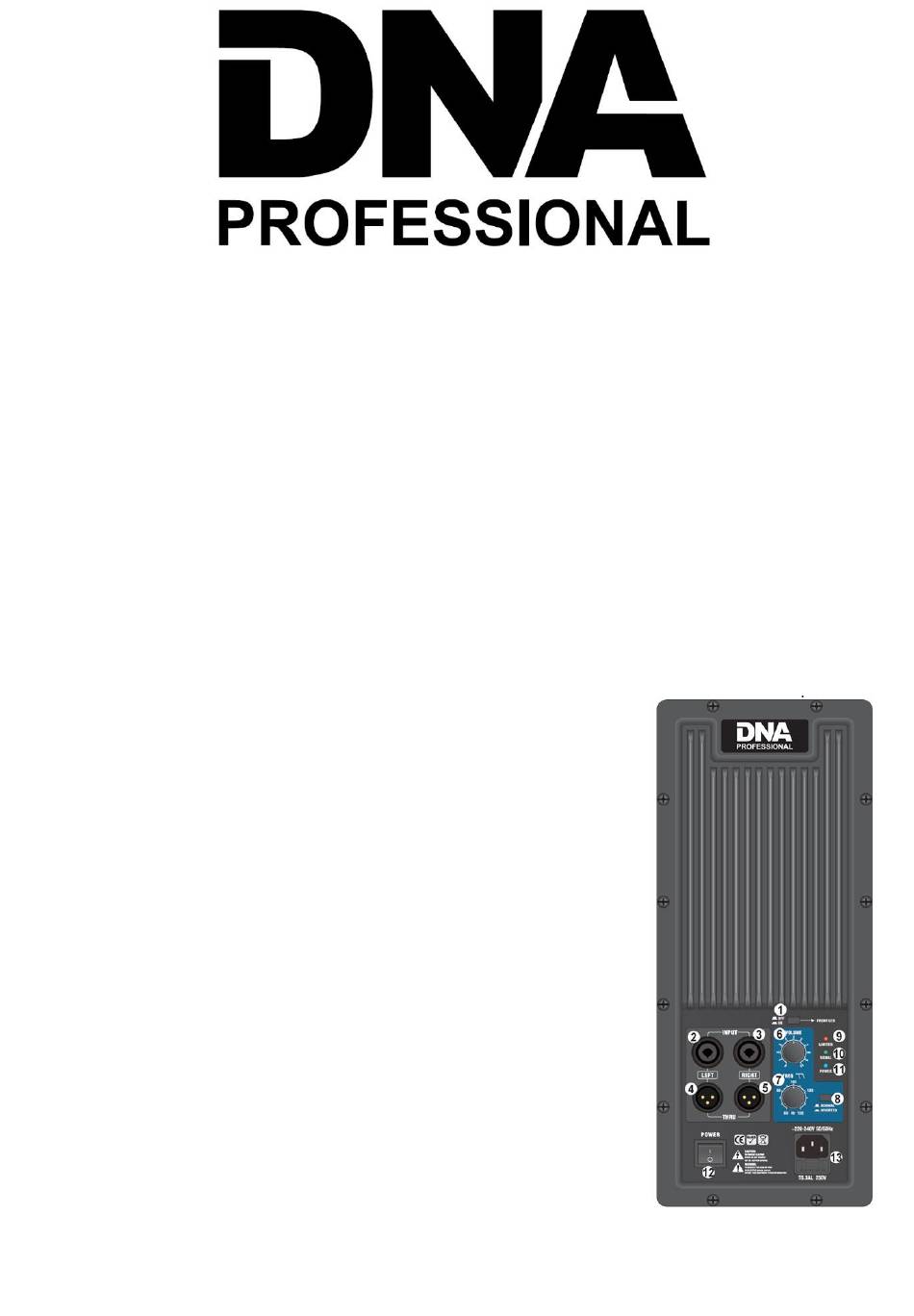

SUBWOOFER/AMPLIFIER FUNCTION

1. FRONT LED Switch: ON(depressed), OFF(disengaged).

2. Left Input: A combination XLR and 1/4"jack line input. It is not compatible

with microphone level input and it is not suitable for direct connection with

a microphone. Use this to pass the signal if only one channel signal.

3. Right Input: A combination XLR and 1/4"jack line input. It is not compatible

with microphone level input and it is not suitable for direct connection with

a micro- phone

4. Left THRU: Used for signal connection among other amplified speakers,

the signal comes from left input.

5. Right THRU: Used for signal connection among other amplified speakers,

the signal comes from right input.

6. Volume control: Adjusts the overall level available from the subwoofer.

7. Low Pass control: Adjusts the upper frequency limit of the sub from

80Hz(fully anti-clockwise) to 150Hz(fully clock- wise).

8. Phase Switch: The subwoofer has phase switch NORMAL and INVERTED. Pressing this switch reverses

the phase of subwoofer output with respect to signal input.

RLX3300-SUB

English

Need help?

Do you have a question about the RLX3300-SUB and is the answer not in the manual?

Page 1 RLX3300-SUB User Manual / Instrukcja obsługi English Professional Speaker Systems are a high performance yet economical source of portable sound reproduction. Applications include speech, vocals and music playback. Used in accordance with the information provided this product will give years of trouble free use.
Page 2 9. LIMITER indicator: Illuminated just before the amplifier begins to clip and distort. Adjust the level control and signal level from your source so this illuminates only briefly on peaks in the music. Using the system with this on all or much of the time will result in poor sound quality and damage the speakers and electronics. 10.
Page 3 POLSKI RLX 3300 to aktywny system nagłośnieniowy charakteryzujący się wysoką skutecznością i dobrą repro- dukcją dźwięku. Przed użyciem zapoznaj się z instrukcją aby w pełni wykorzystać jego możliwości. CECHY • Obudowa ze sklejki • Gumowe nóżki • Grill z perforowanej stali •...
Page 4 7. Przed podłączeniem kolumny upewnij się, że wszystkie potencjometry są ustawione na minimum. 8. Tylko sygnał o poziomie liniowym może być wysyłany do Twojej kolumny. Nie przestrzeganie którejkolwiek z tych zasad powoduje utratę gwarancji. UWAGA! URZĄDZENIA NIE WOLNO WYRZUCAĆ DO ODPADÓW DOMOWYCH. To oznaczenie oznacza, że produkt nie może być...
