SR Research EyeLink 1000 Plus Quick Start Manual

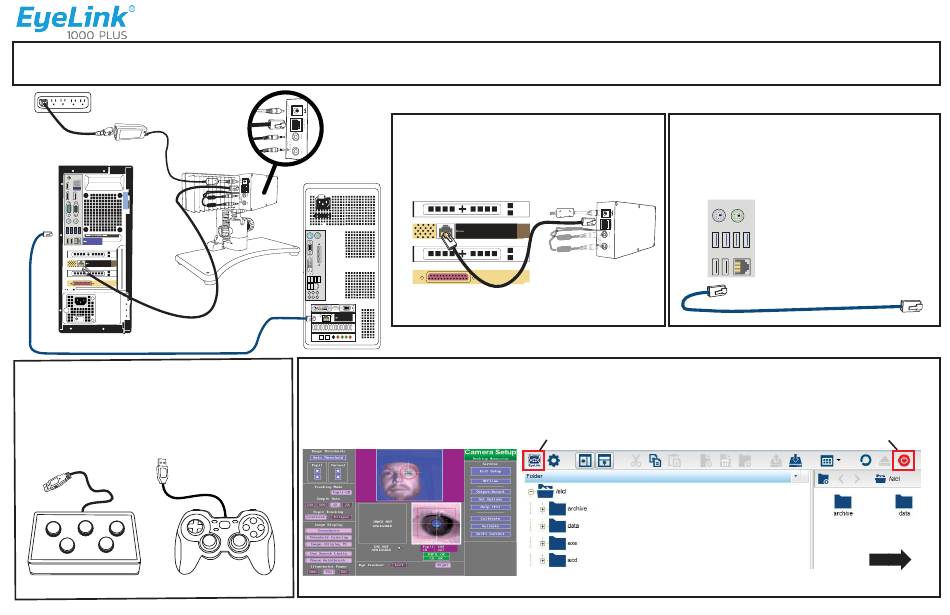

1 Basic PC Setup
Set up your Worksta琀椀on Host PC (included) and Display PC as you would any other computer by connec琀椀ng the keyboard, mouse, monitor, and power cables.
The Display PC can be any modern Windows (7 or 10), macOS (Intel Mac 10.6.8 or later), or Linux PC with Ethernet, and may have been op琀椀onally acquired from SR Research.
Surge Protector

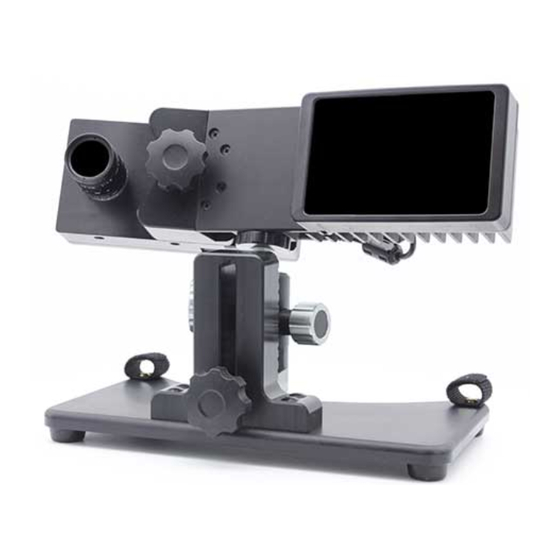

EyeLink® 1000 Plus
Worksta琀椀on Host PC
with Desktop Mount
Windows ®
Display PC Ethernet
EyeLink® Camera
Op琀椀onal Response Box Connec琀椀on
4
Connect the op琀椀onal response box to the USB port of
the computer. The MilliKey bu琀琀on box (Le昀琀) should
be connected to the Display PC, while the Logitech F310
Gamepad (right) should be connected to the Host PC.
USB Port on Host PC
USB Port on Display PC
Logitech F310 Gamepad
MilliKey Button Box
EyeLink® 1000 Plus Quick Start Guide
Worksta琀椀on Host PC with Desktop Mount
Camera Connec琀椀on
2
Using the black Ethernet cable, connect the Host PC
Ethernet port labeled "EyeLink Camera" to the
Ethernet port on the EyeLink 1000 Plus camera.
Display PC
EyeLink® Camera
EyeLink Ethernet
Test that the Setup is Working
5
Turn on the Host PC to verify that
the Host Applica琀椀on starts. Once the
Host PC is up and running you should
see the Camera Setup screen.
Host PC to Display PC Connec琀椀on
3
Using the
Ethernet port labeled "Display PC Ethernet" to an
Ethernet port on your Display PC. Configure that port
with the following sta琀椀c IP address:
See Chapter 9 of the EyeLink 1000 Plus Installa琀椀on Guide for detailed instruc琀椀ons
To exit to the File Manager from the Host Applica琀椀on, press Ctrl-Alt-Q (or click Offline and
then Exit EyeLink). The File Manager interface is Illustrated below. You can use the bu琀琀ons
highlighted below to start the Host PC Applica琀椀on or shut down the Host PC.
Starts Host Applica琀椀on
Version 5.12W
Ethernet cable, connect the Host PC
blue
IP Address: 100.1.1.2
Subnet Mask: 255.255.255.0
Leave the default gateway and
other se琀�ngs blank.
Shuts down Host PC
Con琀椀nued
on back
