BRICK Ergopixel Altura ALT12DSK Manual

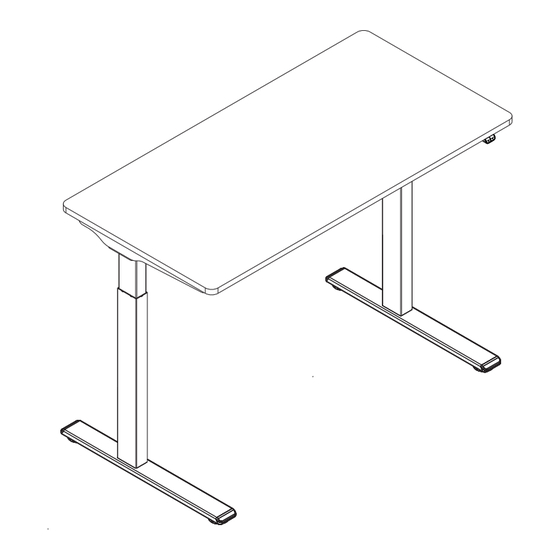

Technical Data
Column Number
Maximum Load
Max Speed
Input Voltage
Lowest Position
Highest Position
Desktop Size
Continuous operation for 2 mins at most after
Duty Cycle
pause for 18 mins
Applicable Temperature

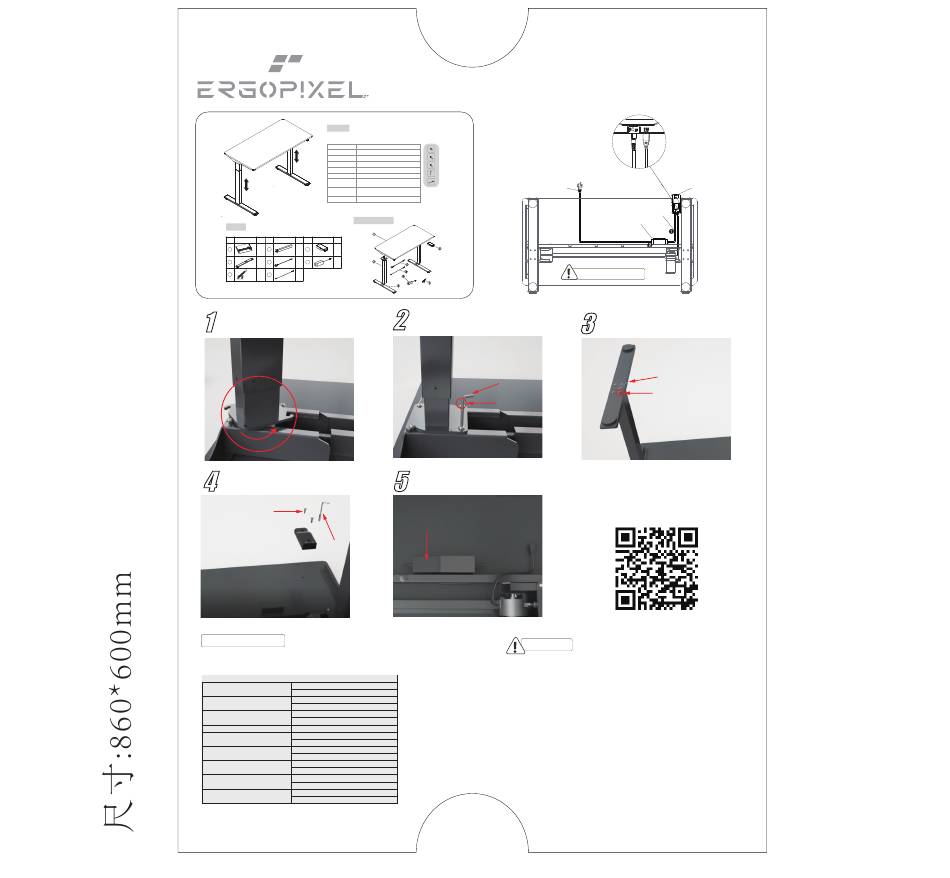

Installation Instruction
List
1
No. Part Qty No. Part Qty No. Part Qty
2 1
1 1 2 3
Tabletop Lifting column Handset
4 2 5 1 6 1 2
Feet Power plug Adaptor
4
7 8 1
Cable tie
Switch cord
Insert the hexagon head of the column along the wiring
through, the side of the wire head facing the motor.
Rotate the column to make the screws on the
supporting beam into the column slot.
2
1
Position the handset (3) as shown in the picture to align
the two screw holes on the tabletop, then fix it with the
screws (E)and tighten them with a 5*5 allen key (D).
E
3
D
Common fault treatment
The following tips will help you detect and eliminate the common fault and error.If the fault you met
is not listed below, please contact with your supplier. Only the manufacturer and professionals are
capable for investigating and correcting those fault and error.
Fault phenomenon Method
No response while long pressing
1.Check if all the cables be connected well
down arrow after connected with
a power supply
2.Contact your supplier or dealer
No response while pressing up
1.Check if all the cables be connected well
arrow/ down arrow after
connected with a power supply
2.Contact your supplier or dealer
1.Check if overloaded, max loading: 50kg;
Rising in a low speed
2.Contact your supplier or dealer
The motor not move as instructed
1. Contact your supplier or dealer
1.Reposition
Go down but not go up
2.Contact your supplier or dealer
1.Check if overloaded, max loading: 50kg;
Downward sliding
2.Contact your supplier or dealer
1.Check if overloaded, max loading: 50kg;
Frequently Reposition
2.Contact your supplier or dealer
1.Restart after suspend for 18mins while
Overwork
connecting with power;
（Duty cycle:Max 2min on/18min OFF）
2.Contact your supplier or dealer;
1 1 . Perform a reset operation;
Not enough up&down height
2.Contact your supplier or dealer.
2 A
x4
50KG M6
B
X8
25mm/s
M 6
C X1
100-240V
4x4
730mm
D
X1
1230mm
5x5(With cross)
E
X2 5
1200mm
600mm
Screw for Handset
0~40°C
3
5
8
6
7
4
Tighten the screws (A) with allen key (C).
C
A
Insert the adaptor(6) to the bracket of the tabletop.
1
6
Attention
1. Power supply: AC100V-240V,50/60HZ
2. Service Environment: 0-40℃
3. Unplug the power plug before cleaning, wipe the dust on surface with slight wet dishcloth when cleaning, be careful not to
let the drops into the internal parts, not loose the connector.
4. The electric box contains electronic components, metals, plastics, wires etc., so dispose of it in accordance with each
country's environmental legislation, not the general household waste.
5. Check carefully to ensure correct and complete assembly before using.
6. Be familiar with all functions and program settings of the product before first use.
7. Children are forbidden to play on the product because of unforeseen action when playing, so any dangerous consequences
caused by this improper action will not be on manufacturers.
8. Slight noise caused by the V-ribbed belt or brake system due to structure will not have any effect on the use of the equipment.
9. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure that the cleaner used will not pollute the
environment.
10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
11. Cleaning and user maintenance shall not be made by children without supervision.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
13. Please make sure there is no hazard sources in your operating environment. e.g., do not litter the tools around. Always be
careful to treat the packaging materials in order to avoid any possible danger, e.g. plastic bag may lead to choking hazard to
children.
14. Keep the original package of the equipment if necessary in case of the future use in transportation.
Connect the switch cord
to the DC port
Connect the motor line
to the M1 port
3
8
6
Connect the power after the
wiring is completed.
Install the feet (4) to the lifting columns (2) with the
screw (B) and tighten it with 4*4 allen key (C).
4
C
B
2
Assembly Video
