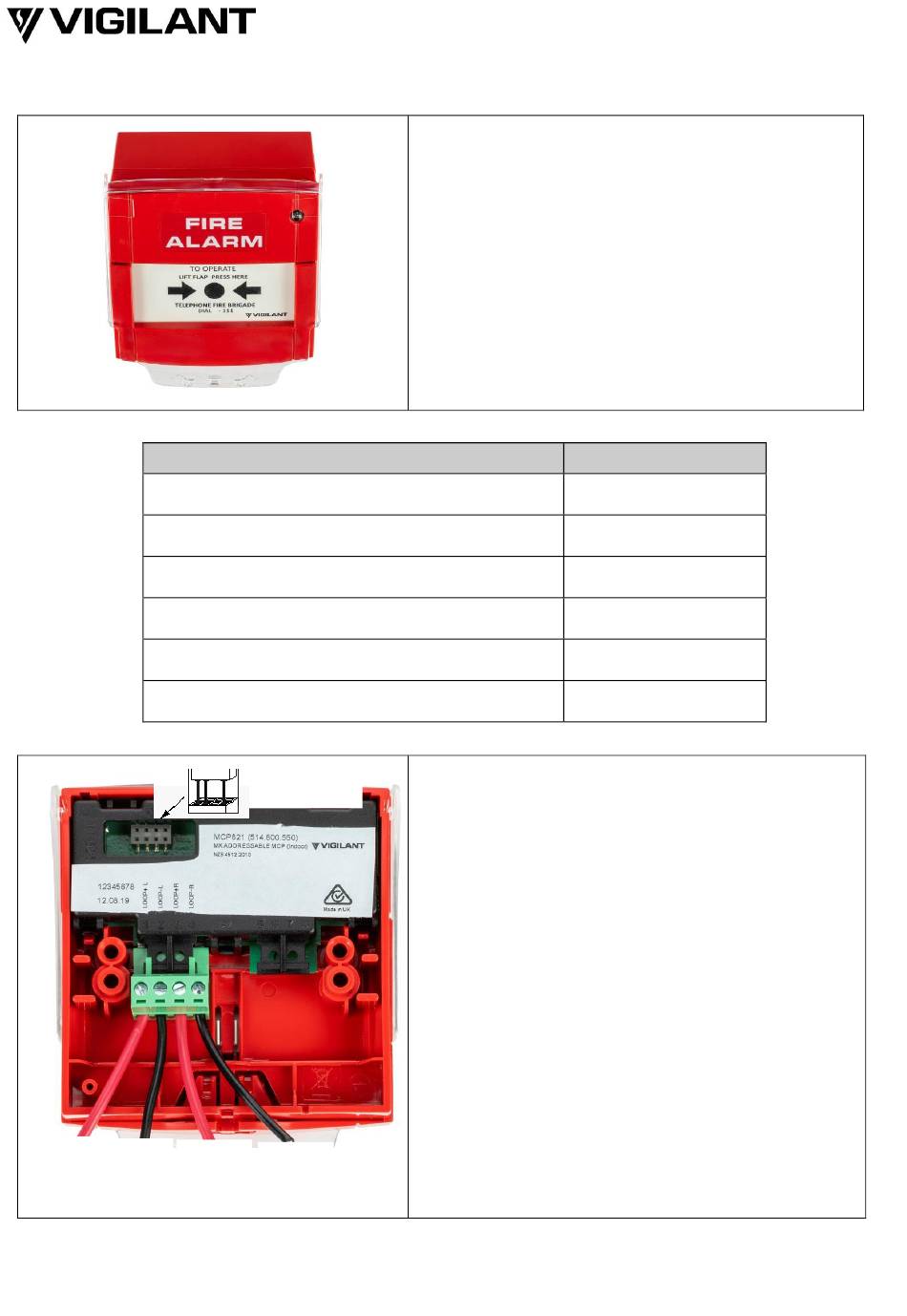

Vigilant MCP821 Manual

MCP821 Callpoint
Item
MCP821 Indoor MX Addressable MCP
Adaptor Kit for 1841 MCP (Surface or Flush)
Replacement resettable element - blank (pack of 5)
Replacement resettable element "Vigilant" (pack of 5)
Spare plastic cover
Test/Reset Key (pack of 10)
Installation
←
←
MX Loop
MX Loop
In+
In-
Page 1 of 2
Programming
Port
→
→
MX Loop
MX Loop
Out+
Out-
The MCP821 is an MX addressable manual callpoint (MCP)
suitable for indoor installation. It is supplied with a surface mount
back box and a clear plastic cover.
The callpoint signals an alarm to a compatible MX fire alarm panel
when it is activated by pressing on the deformable element. After
activation the deformable element is not destroyed and the callpoint
can be reset.
The MCP includes a short-circuit isolator and meets the
requirements of NZS 4512:2010.
Details of the Status LED and activation are on Page 2.
1. Connect the lead of the 850EMT address programming tool into
the programming port, using the correct orientation. Program the
MCP with the address required by the site configuration.
2. Mount the back box.
- For surface mounting fit the back box provided to the wall using
suitable screws.
- For flush mounting fit a suitable flush mounting box into the wall
cavity. It will need to be at least 25mm deep.
3. Route the MX loop wiring through the back box.
4. Connect the loop wiring to the demountable connector as shown.
5. Remove the callpoint sliding front plate and deformable element.
See "To replace the deformable element" overleaf.
6. Connect the demountable connector to the MCP.
7. Fit the clear plastic cover to the MCP and fix the callpoint to the
back box using the 2 long screws supplied through the now-
exposed top fixing holes.
8. Re-fit the element and front plate. Slide the front plate into
position then push upwards until it clicks into place.
9. Make sure the clear cover swings easily.
10. Test the MCP using the test key (see overleaf) and make sure
the correct address and location details are shown on the fire
panel.
Order Number
514.800.550
FP1140
515.001.127
FA2728
SU0272
SC070
Doc. 120.515.885 Version 1.0
