DMTech D9000AI T/A1R Instruction Manual

Addressable Heat Fire Detector D9000A-T A1R/A1S
Type
D9000AI T / A1R
D9000AI T / A1S
D9000A T / A1R
D9000A T / A1S
The D9000A-T is an addressable temperature detector designed for use in addressable fire alarm systems supporting
the DMTech communication protocol. The detector receives power from the panel and can be controlled via the
communication protocol. The D9000A-T detector is compatible with the B9000A base.
Technical data
1.

DMTech protocol

Certified according EN-54-5 and EN 54-17
 LED indication 360° visibility

Built-in insulator – model D9000AI-T/A1R Supply

Voltage from panel

Consumption:
current consumption in Duty mode
-
current consumption with alarm mode
-
 Maximum current in Alarm mode – RI terminal

Connecting wires

Operating temperature

Resistance to relative humidity

Degree of protection

Joining with base B9000A

Weight (with base)

Sizes (with base)

Material (plastic) - ABS

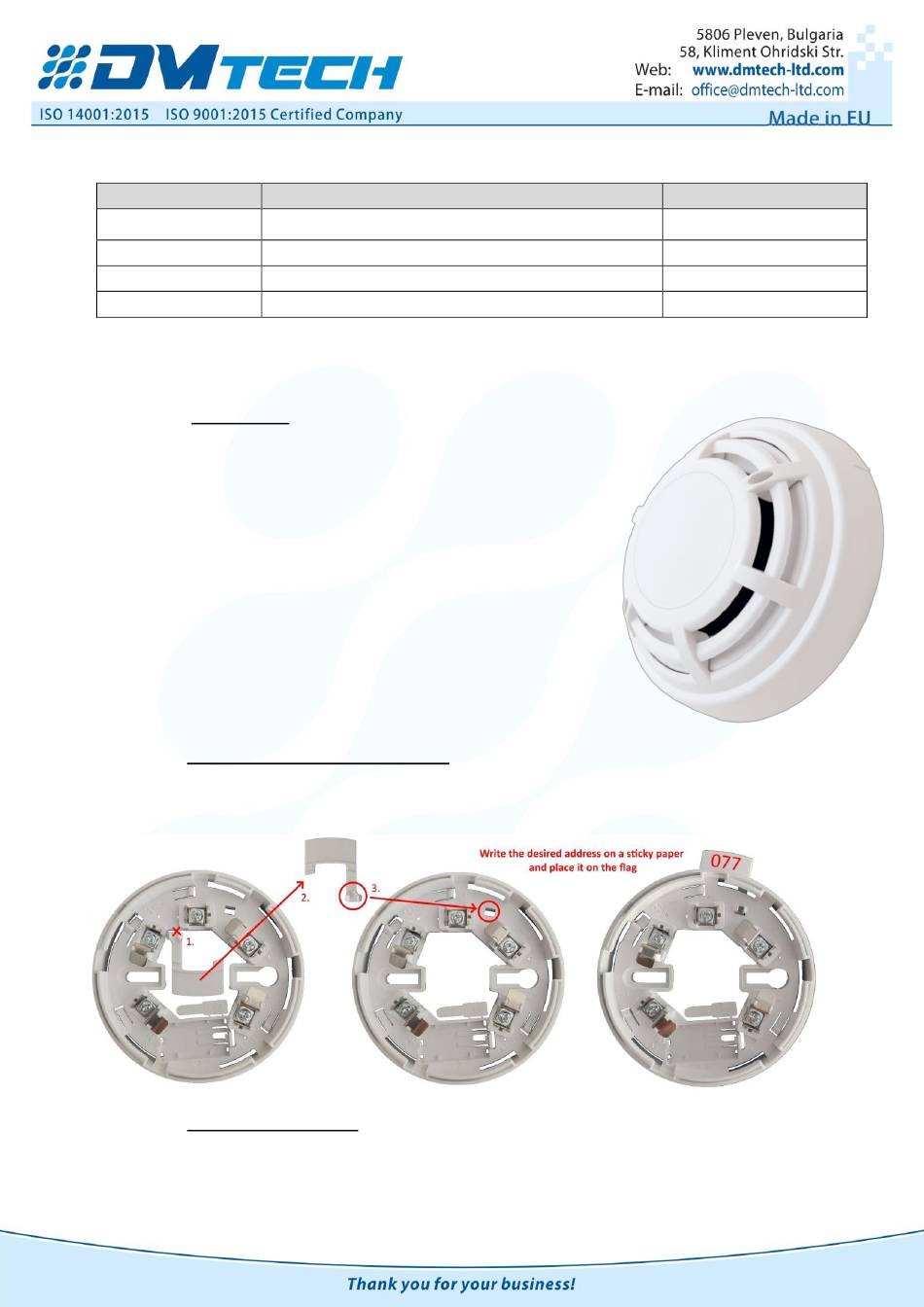

2. Mounting the flag to the base (optional)
If you would like to use the flag included in the B9000A base set, follow the instructions and the illustrations in Fig. 1:
- detach the flag from the base (1.);
- write the desired address on a sticker and place it of the flag from the side of the plastic pins (2.);
- push the plastic pins through the designated hole (3.).
3. Mounting of the detectors
- select the location (according to the project drawings) for mounting the detector;
- Install the base with suitable dowels and screws.
- connect the electrical cables according to the attached diagram (Fig. 2);
Instruction Manual
Characteristics
Thermal rate of rise heat detector with built-in insulator
Thermal maximum detector with built-in insulator
Thermal rate of rise heat detector detector
Thermal maximum detector
18-30V DC
< 500μA/28V DC
2.0 mA
2.0 mA
0.5mm² - 2.0mm²
-10°C up to +65°C
(93 ± 3)% at 40°C
IP 40
~100g
Ø100x43mm
Fig. 1
Sensitivity/|Class
A1R, EN 54-5, EN 54-17
A1S, EN 54-5, EN 54-17
A1R, EN 54-5
A1S, EN 54-5
