DMTech D9000 Series Instruction Manual

Type
D9000 SR Optical smoke fire detector
D9000 T/A1R Rate of rise heat detector
D9000 T/A1S Fixed temperature heat detector
D9000 MSR Combined optical smoke and heat detector
Caution : Read this manual before attempting to install the detector.
1. TECHNICAL DATA
- Supply voltage
- Current consumption in Standby mode
- Current consumption in Alarm condition
- Time to enter standby mode after reset
- Reset time
- Degree of protection
- Type of the connecting line to the base
- Output in Alarm condition (term. 3)
- Operating temperature range
- Humidity
- Dimensions with base
- Weight
2. INSTALLATION
- Choose the place (according to the plans of the project) for the installation of the detector;
- Mount the base with appropriate fixings;

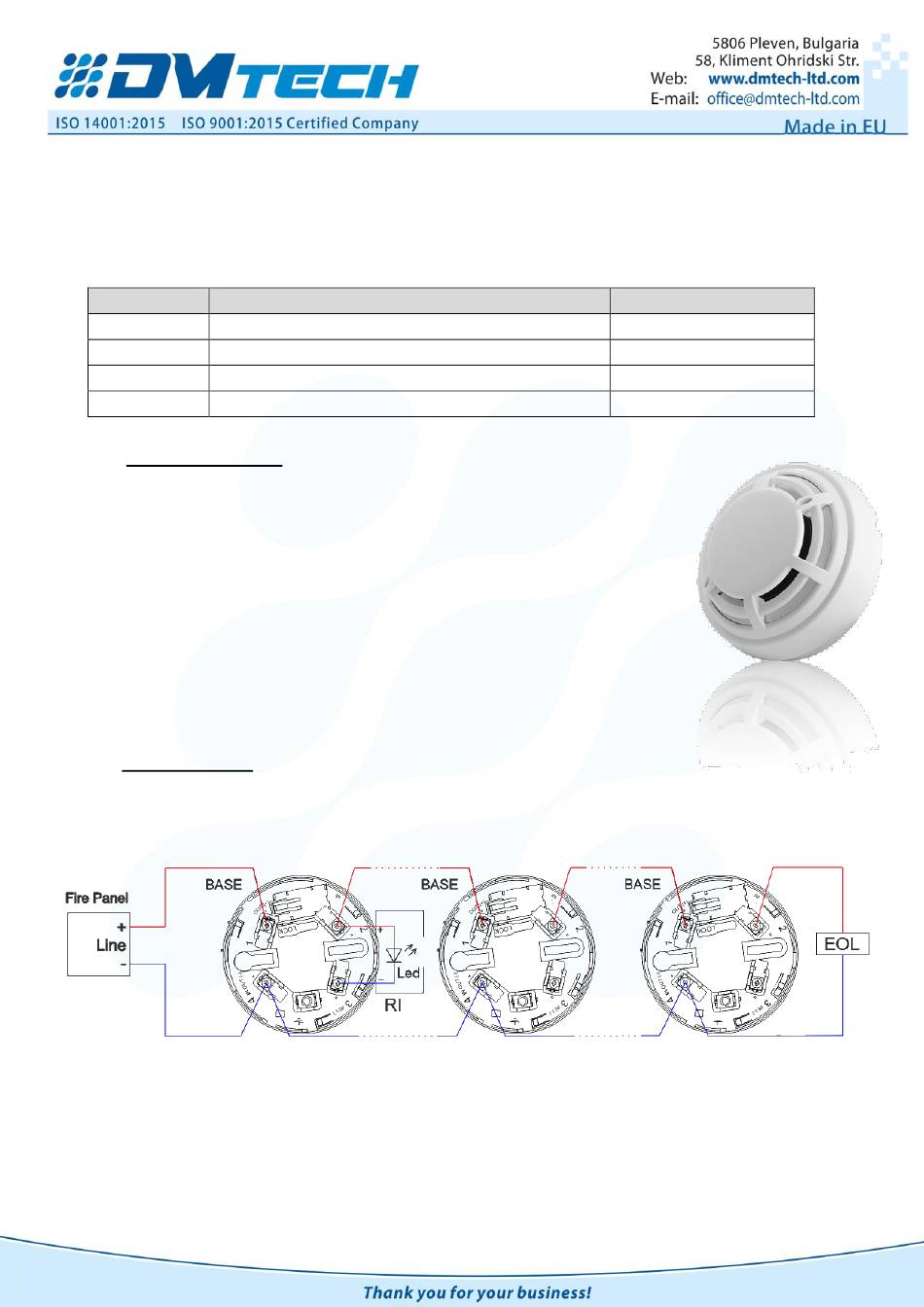

- Connect the electrical cables according to the attached diagram (Figure 1);
- Place the detector base and rotate clockwise till matching
- If you want to lock detector:

Pre remove the key from the base (Figure 2).

Break the plastic at the specified location on the bottom of the sensor (Figure
INSTRUCTION MANUAL
CONVENTIONAL DETECTORS
D9000 series
Characteristics
Fig.1
Sensitivity / Class
EN 54-7
A1R, EN 54-5
A1S, EN 54-5
A1R, EN 54-5 / EN 54-7
10-30 V DC
≤ 130 µА
20 mА/ 24V DC
up to 35s
2s
IP 43
2
0,5÷1,5 mm / two-wire
limited to 2 kΩ, negative
-10ºС up to 50ºС
(93 ± 3)% at 40ºС
Ø 100mm h ≤ 52mm
≤ 100g
markers;
3).
