Summary of Contents for Samsung HT-RP16

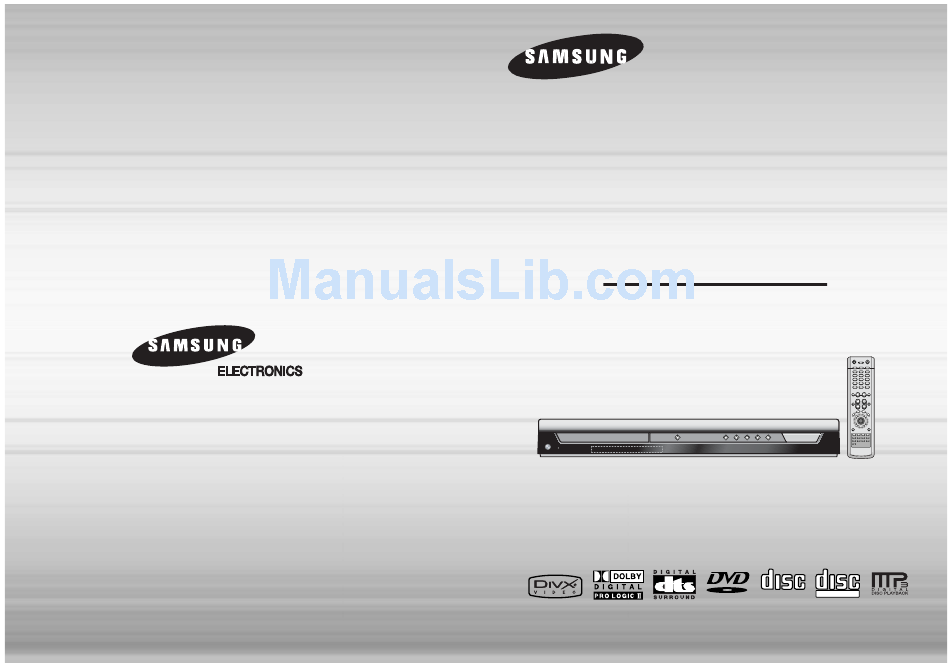

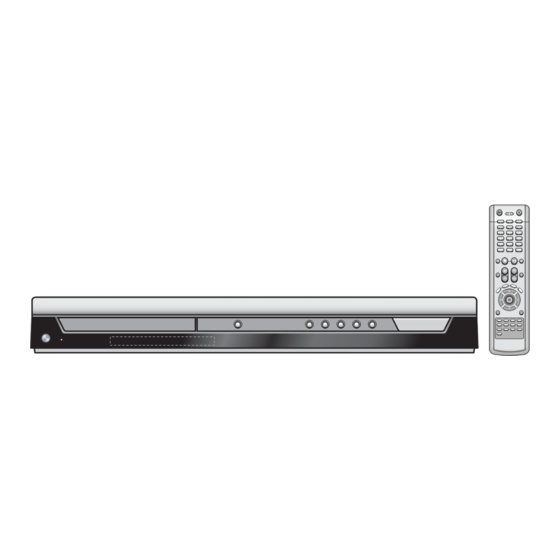

- Page 1 DIGITAL HOME CINEMA SYSTEM HT-RP16 THIS APPLIANCE IS MANUFACTURED BY: Instruction Manual COMPACT COMPACT DIGITAL AUDIO DIGITAL VIDEO V I D E O AH68-01712B...
-
Page 2: Safety Warnings
Safety Warnings Precautions Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUKT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPO- SURE TO BEAM. -
Page 3: Table Of Contents
SETUP Power Saving Function Setting the Language................................37 Setting TV Screen type...............................39 The HT-RP16 automatically shuts itself off after 20 minutes in the stop mode. Setting Parental Controls (Rating Level) ..........................41 Setting the Password................................42 Setting the Wallpaper .................................43 Setting the Speaker Mode ..............................45 Customized TV Screen Display Setting the Test Tone ................................46... -
Page 4: Notes On Discs
Notes on Discs DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital Disc Recording Format surround sound and MPEG-2 video compression technology. Now you can enjoy these V I D E O CD-R Discs realistic effects in the home, as if you were in a movie theater or concert hall. •... -
Page 5: Description
Description —Rear Panel— COMPONENT VIDEO OUTPUT jacks Connect a TV with component video inputs to these jacks. External Audio Component Input Connector —Front Panel— Stop ( ) button Power ( ) button Function button Play/Pause ( ) button FM Antenna Connector 5.1 Channel Speaker Open/Close button Output Terminals... -
Page 6: Remote Control
Description —Remote Control— Insert Remote Batteries DVD RECEIVER indicator TV indicator OPEN/CLOSE button TV, DVD POWER button MODE button TV/VIDEO, DIMMER button Remove the battery Insert two 1.5V AAA Replace the battery SLEEP button cover on the back batteries, paying cover. -
Page 7: Connecting The Speakers
Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Installing the Speaker System as 5.1CH Separated Type Center Speaker Rear Speaker (L) Front Speaker (L) Position of the DVD Player Selecting the Listening Position •... -
Page 8: How To Install Speakers
How to install speakers This guide describes RRSS All-In-One and 5.1CH Separated Type installation procedures for the speaker system. Please read the following installation procedures carefully and install the speaker system properly. Installing the Speaker System as RRSS All-In-One Type Installing the Speaker System as 5.1CH Separated Type To Install as All-In-One Type You can enjoy 5.1 channel surround sound by installing the front... -
Page 9: Connecting The Video Out To Tv
Connecting the Video Out to TV P.SCAN Function (Progressive Scan) Choose one of the three methods for connecting to a TV. Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines. -
Page 10: Connecting External Component
Connecting External Component Connecting the FM Antenna Connecting an External Analog Component Example: Analog signal components such as a VCR or TV. FM Antenna (supplied) Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. -
Page 11: Before Using Your Home Theater
Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons. • By default, the remote control is set to work with Samsung TVs. See page 61 for more information on the operation of the remote control. •... -
Page 12: Disc Playback
Disc Playback MP3-CD Playback Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 format can be played. Press OPEN/ Press OPEN/ Load a disc. Press the In Stop mode, use CLOSE button to CLOSE button to OPEN/CLOSE button to select open the disc close the disc tray. -
Page 13: Jpeg File Playback
JPEG File Playback JPEG Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player. Slide Mode Digest Function You can view 9 JPEG images on the TV screen. Press DIGEST Press Cursor buttons... -
Page 14: Divx Playback
DivX Playback Subtitle Display Press the SUBTITLE button. Skip Forward/Back During playback, press the button. • Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and “SUBTITLE OFF”. • Go to the next file whenever you press button, if there are over •... -
Page 15: Displaying Disc Information
Displaying Disc Information Fast/Slow Playback You can view disc playback information on the TV screen. Fast Playback Press INFO button. Slow Playback • Each time the button is pressed, the display changes as follows: DivX JPEG Press SLOW button. Press and hold •... -
Page 16: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG To Select a Repeat Playback Mode in the Disc Information Screen Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode Press INFO button twice. -
Page 17: A-B Repeat Playback
A-B Repeat Playback Step Function You can repetitively play back a designated section of a DVD. Press STEP button. • The picture moves forward one frame each time the button is pressed during playback. Press Cursor button • During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, Press INFO button Note and not at 4x, 8x, and 32x speeds. -
Page 18: Zoom (Screen Enlarge) Function
Zoom (Screen Enlarge) Function Selecting Audio/Subtitle Language This function allows you to enlarge a particular area of the displayed image. Audio Language Selection Function Press Cursor Press ENTER Press ZOOM buttons to Press Cursor Press INFO button button. move to the area button. -
Page 19: Moving Directly To A Scene/Song
Moving Directly to a Scene/Song Using Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. Press Cursor Press Cursor Moving to a Title/Track Moving to a Chapter In Stop mode, buttons to move to buttons to... -
Page 20: Setting The Language
Setting the Language OSD (On-Screen Display) language is set to English by default. Press Cursor Press Cursor Press Cursor Select ‘Language’ In Stop mode, button to select ‘OSD button to select the button to move to and then press press MENU Language’... -
Page 21: Setting Tv Screen Type
Setting TV Screen type Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. Adjusting the TV Aspect Ratio (Screen Size) Press Cursor In Stop mode, button to move to The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high press MENU ‘Setup’... -
Page 22: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Setting the Password Use this to restrict playback of adult or violent DVDs you do not want children to view. You can set the password for the Parental (rating level) setting. Press Cursor Press Cursor In Stop mode, button to move to button to move to... -
Page 23: Setting The Wallpaper
You can select up to 3 wallpaper settings. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. -
Page 24: Setting The Speaker Mode
Setting the Speaker Mode Setting the Test Tone Signal outputs and frequency responses from the speakers will automatically be adjusted according to your Use the Test Tone feature to check the speaker connections. speaker configuration and whether certain speakers are used or not. Press Cursor Press Cursor Press Cursor... -
Page 25: Setting The Delay Time
Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. Press Cursor Press Cursor button Press Cursor button In Stop mode, , buttons to move... -
Page 26: Setting The Audio Quality
Setting the Audio Quality You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen When manually adjusting with the SOUND EDIT button Method 1 Method 2 Press Cursor Adjusting Front Speaker Balance Adjusting Rear Speaker Balance Adjusting Center Speaker Level In Stop mode,... -
Page 27: Setting The Drc (Dynamic Range Compression)
Setting the DRC AV SYNC Setup (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video. -
Page 28: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode Dolby Pro Logic II Effect You can select the desired Dolby Pro Logic II audio mode. This function works only in Dolby Pro Logic MUSIC mode. Press PL II EFFECT button Press PL II MODE to select Panorama, then press button to select ‘MUSIC’... -
Page 29: Sound Field (Dsp)/Eq Function
Sound Field (DSP)/EQ Function Sleep Timer Function DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments. You can set the time that the DVD player will shut itself off. EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing Press DSP/EQ button. -
Page 30: Listening To Radio
Listening to Radio Presetting Stations You can store up to: • FM Frequency Modulation 15 FM stations Remote Control Unit Example: Presetting FM 89.1 in the memory Press TUNER Tune in to the Press the TUNER button. desired station. Press the TUNER Press TUNING/CH button and select MEMORY button. -
Page 31: About Rds Broadcasting
About RDS broadcasting PTY (Program Type) indication and PTY-SEARCH function Using the RDS (Radio Data System) to receive FM stations One of the advantages of the RDS service is that you can locate a particular kind of program from the RDS allows FM stations to send an additional signal along with their regular program signals. -
Page 32: Operating A Tv With The Remote Control
The remote control may not work on some brands of TVs. Also some operations may not be possible depending on your brand of TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. -
Page 33: Adjusting Display Brightness
Adjusting Display Brightness Cautions on Handling and Storing Discs You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing. Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. -
Page 34: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom... -
Page 35: Language Code List
Language Code List Specifications Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 37). Code Language Code Language Code Language Code Language Power Consumption 1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian Weight... - Page 36 Contact SAMSUNG WORLD WIDE ¤ Region Country Customer Care Center Web Site...
