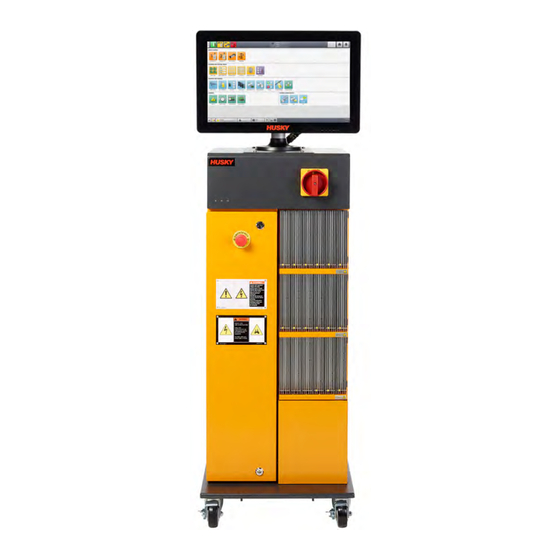

Page 1 Altanium Servo Controller User Guide Original Instructions...
Page 2 Husky® product or service names or logos referenced in these materials are trademarks of Husky Injection Molding Systems Ltd. and may be used by certain of its affiliated companies under license.
Page 3: General Information
Husky Regional Service and Sales Office. Ordering Spare Parts All spare parts for Husky equipment can be ordered through the nearest Husky Parts Distribution Center or online at www.husky.co. Ordering Additional Manuals Additional copies of this manual and other documentation can be purchased through the nearest Husky Regional Service and Sales office.
Page 4 Altanium Servo Controller (ASC) Page iv...
Page 5: Table Of Contents
Husky Regional Service and Sales Offices ........
Page 6 v 2.0 — March 2023 Altanium Servo Controller (ASC) 2.11.3 Safety Signals ............22 2.11.4 Safety Signal and No Power Effect on the Servo Axes .
Page 7 v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 5: System Setup Screen ............55 System Setup Main Screen .
Page 8 v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.2.2.3 Permission Override ..........86 7.2.2.4 Manual Control Permissions .
Page 9 v 2.0 — March 2023 Altanium Servo Controller (ASC) Steps Screen ..............128 Signals Screen .
Page 10 v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.3 Process Monitoring - Limits..........168 11.3.1 Target Settings .
Page 11: Introduction
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 1 Introduction The Altanium Servo Controller (ASC) gives you accurate servo control of all linear and rotary mold movements for up to six axes. The ASC can be used as a standalone system, but also control up to 255 temperature zones and an UltraSync-E system.
Page 12: General Safety
Obey all warnings and instructions identified on the system. • Unless written in this manual or you receive special instructions from Husky, do not try to repair the system. Maintenance that is not approved could cause damage to the system, or serious personal injury.
Page 13: Safety Signs On The Equipment
This symbol shows an electrical hazard that will cause death or serious injury. Equipment Function The Husky Altanium Servo Controller (ASC) controls linear and rotary movement for up to six axes, one UltraSync-E, and up to 255 temperature zones. ASC configurations include: •...
Page 14: Restrictions Of Use
Parameter configurations and the operation of the mold servos, UltraSync-E, and temperature zones are done with a touch screen user interface. Contact a Husky Regional Service and Sales office if a Husky product is to be used for an operation other than for what it was made.
Page 15: Environmental Operating Specifications
v 2.0 — March 2023 Altanium Servo Controller (ASC) DANGER! Electrocution and/or mechanical hazard - risk of death or serious injury and possible damage to the equipment. Incorrectly wiring the controller could cause death or serious injury and/or damage to the controller or hot runner.
Page 16 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 6...
Page 17: Integration
Know the molding cell fully, so that there are no dangerous procedures, installations, or connections. The system integrator must be supplied by the end user. Husky does not know all the necessary information for each customer and each molding cell.
Page 18: Safety
v 2.0 — March 2023 Altanium Servo Controller (ASC) EN201 Plastics and rubber machines - Injection molding machines - Safety requirements EN61000 Electromagnetic Compatibility Safety Refer to Section 1.1 for information on warnings, cautions, and notes that are used in this manual, and the safety symbols found on the ASC.
Page 19: Initial Setup Of The Asc
v 2.0 — March 2023 Altanium Servo Controller (ASC) Initial Setup of the ASC 2.4.1 Remove the ASC from the Shipping Container WARNING! Only qualified, certified, and trained personnel are permitted to remove the ASC from the shipping container and pallet. Injury to personnel and /or damage to the ASC can occur if you do not use the correct procedures.
Page 20: Lifting Procedures
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 2-1 Controller Lifting Information Webbed Straps Rated Lifting Device Altanium Controllers Ratchet Strap 2903kg (6400lb) (Lift Capacity) Single Stack 2.44 m x 25.4 mm 1.52 m 227 kg (8 ft x 1 in) – Quantity (5 ft) –...
Page 21 v 2.0 — March 2023 Altanium Servo Controller (ASC) Make sure that the webbed straps go between the caster wheel and the retaining bracket. Refer to Figure 2-3. Figure 2-3 Straps - Correct Position Make sure that no ASC cables are caught between the ASC and the webbed straps. Refer Figure 2-4.
Page 22: Assemble The Asc
v 2.0 — March 2023 Altanium Servo Controller (ASC) The ratchet strap can cause damage to the surface of the ASC. Put applicable material in all areas to prevent damage to the surface of the ASC. Refer to Figure 2-5. Figure 2-5 Cushioning Material Tighten the ratchet strap.
Page 23: Remote Operator Interface
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 2-6 Display Module - Attachment On the rear of the ASC, connect the display power, EtherCAT, and Input Comm (temperature control models only) cables from the display module to the ASC stack. NOTE: The display module receives power from the display power connection on the rear of the ASC only.
Page 24 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 2-7 Standard and Remote Operator Interface Configurations Figure 2-8 as a guideline for the correct installation position of the remote operator interface. Figure 2-8 Correct Installation Position of Remote Operator Interface Page 14...
Page 25: Connect The Input Power
400 and 240 Vac configurations. Because each ASC is different, see the controller nameplate or electrical schematics for the maximum current ratings. Contact Husky customer support if it is necessary to change the power supply configuration. Page 15...
Page 26: Overcurrent Protective Device
v 2.0 — March 2023 Altanium Servo Controller (ASC) Overcurrent Protective Device The ASC has a main power switch. Refer to Figure 2-1. The ASC does not have an input power overcurrent protective device. To obey the electromagnetic compatibility directive, EMI/RFI filters are installed in the ASC. The leakage current range is 10 to 100 milliamps (mA).
Page 27: Lockout/Tagout Procedures
v 2.0 — March 2023 Altanium Servo Controller (ASC) 2.10 Lockout/Tagout Procedures If you do maintenance on the ASC, you must do lockout/tagout procedures. Use the main power switch on the ASC cabinet to de-energize the ASC and the IMM (refer to Figure 2-1).
Page 28: X200/X201 Connections
X200/201 cable connector. This helps identify the wires when they are connected the IMM. Optional customer-specified cable connectors are also possible. Husky can supply cables with installed connectors and specified pin locations that the customer wants for the IMM side or even the controller side.
Page 29 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 2-2 +P0-X200 Connector Pin Descriptions Signal Name Description +P0-X200 Pin E-Stop Push Button Emergency stop button on the controller. OPEN when the of Controller Ch1 controller emergency stop switch is operated and causes an emergency stop of the IMM.
Page 30 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 2-2 +P0-X200 Connector Pin Descriptions (Continued) Signal Name Description +P0-X200 Pin IMM Safety Gate Ch1 IMM safety gate contacts must be CLOSED for the plastic 17,18 injection to operate. The signal must be the result of a series of mold area safety gate contacts (refer to EN 201: Safety of Plastics Molding Machines).
Page 31 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 2-3 P0-X201 Connector Pin Locations and Descriptions Signal Name Description +P0-X201 Pin Configurable Software-configurable output (isolated dry contact). Output 9 (Isolated Contact) Configurable Software-configurable output (isolated dry contact). Output 10 (Isolated Contact) Configurable Software-configurable output (isolated dry contact).
Page 32: Safety Signals
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 2-3 P0-X201 Connector Pin Locations and Descriptions (Continued) Signal Name Description +P0-X201 Pin Configurable Input Software-configurable input. 26 (X200:25) Configurable Input Software-configurable input. 27 (X200:25) Configurable Input Software-configurable input. 28 (X200:25) Configurable Input Software-configurable input.
Page 33 v 2.0 — March 2023 Altanium Servo Controller (ASC) If the controller is used in a bench mode operation, then the E-STOP push button is connected to the ASC E-STOP circuit. Isolated from the IMM, the E-STOP button causes an emergency stop of the ASC when pushed.
Page 34 v 2.0 — March 2023 Altanium Servo Controller (ASC) The ASC logic together with the user-adjustable Fault Reaction selections on the Axis Setup screen control if the axis: • Completes its last move • Does a fast controlled stop in the available stop time •...
Page 35 v 2.0 — March 2023 Altanium Servo Controller (ASC) If the switch change in step 1 was completed with the controller power off, turn the controller power on and go to step 3. Otherwise, the safety relays must be put into configuration mode to accept the changes.
Page 36: Safety Signal And No Power Effect On The Servo Axes
v 2.0 — March 2023 Altanium Servo Controller (ASC) 2.11.4 Safety Signal and No Power Effect on the Servo Axes The effect on the servo axes to an E-STOP signal or Safety Gates Open signal can be set to: • Freely comes to a stop without aid from the servo system •...
Page 37: Ethercat Connections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 2-16 Set an Axis for a Controlled Stop 2.12 Ethercat Connections The EtherCAT In/Out connector locations are on the back of the controller, above the X200/201 connectors (refer to Figure 2-17).
Page 38: Display Power And Temperature Control Connections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 2-18 Servo Motor (Axis) Connections 2.14 Display Power and Temperature Control Connections The power connection cable for the operator interface display module is on the back of the controller, at the top left (refer to Figure 2-19).
Page 39: Start The Asc
v 2.0 — March 2023 Altanium Servo Controller (ASC) 2.15 Start the ASC 2.15.1 Before You Apply Power Make sure the wheels of the ASC are locked, so that the ASC cannot move. CAUTION! Make sure that there is no blockage of the air filter cover or the air outlets. If there is not sufficient airflow, then damage can occur to the ASC.
Page 40: Apply Power To The Asc
v 2.0 — March 2023 Altanium Servo Controller (ASC) 2.15.2 Apply Power to the ASC Set the main power switch (refer to Figure 2-1) to the ON position. Set up the ASC. • Select a motor • Set a conservative force limit •...
Page 41: Chapter 3 Altanium Operator Interface
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 3 Altanium Operator Interface This chapter contains the necessary information to operate the Altanium Servo Controller (ASC) interface. Operator Interface The Altanium operator interface is a high-resolution color LCD display covered by a transparent touch screen.
Page 42: Header/Footer Buttons And Indicators
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 3-1 Altanium Matrix5 with Servo Controller Home Screen 1. Control Mode (drop-down) Buttons 2. System Status Field 3. Navigation Buttons 4. System Screen Selections 5. Alarm Buttons 6. System and User Management Buttons 7. Screen Header 8.
Page 43 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 3-1 Servo Control Modes Buttons Button Description Engage Activates Engaged mode, where the servos are controlled by internal signals and remote inputs. Disengage Activates Disengaged mode, where the servos are controlled by the operator using the ALTANIUM user interface.
Page 44: System Status Field
v 2.0 — March 2023 Altanium Servo Controller (ASC) 3.2.1.2 System Status Field This field gives a fast indication of the system status. Refer to Table 3-3. Table 3-3 System Status Field Indications Indication Description At Temperature Used on ASC systems with hot runner temperature control. Company Name This is changed on the System Setup Main Screen.
Page 45: Alarm Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 3-4 Navigation Buttons and Indication (Continued) Button Description Home Touch this button to see the Home screen. Quick Navigation Touch this button for a drop-down list of view buttons for products that are configured for your system (the I/O button will always show).
Page 46: System And User Management Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) 3.2.1.5 System and User Management Buttons The System and User Management buttons are used for user log on, mold setup, print configuration, language selection, and Altanium system help. Refer to Table 3-6.
Page 47: Servo Control Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) NOTE: For information about ASC systems with hot runner control, refer to the Altanium Matrix5 User Guide. The sections that follow identify the screen buttons for each group. 3.2.2.1 Servo Control Buttons The Servo Controller buttons give access to all the screens used to set the servo configurations and monitor their operations.
Page 48: System Configuration Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 3-8 Common Buttons Button Description Alarms Use the Alarm screen to see all errors that occur. For more information, refer to Chapter Event History Use the Event History screen to see past alarms, warnings, setpoint changes, setup changes, HMI startup, and operational events that do not agree with specified conditions.
Page 49: Temperature Control Views (Integrated Systems)
v 2.0 — March 2023 Altanium Servo Controller (ASC) 3.2.2.4 Temperature Control Views (Integrated Systems) The Temperature Control Views area of the screen lets you see zone data in different formats. Touch a view button to open the associated view screen. Included in this area is a selection for the Quick Set screen.
Page 50: Temperature Control (Integrated Systems)
v 2.0 — March 2023 Altanium Servo Controller (ASC) 3.2.2.5 Temperature Control (Integrated Systems) The Temperature Control area of the screen lets you do mold diagnostics, set zone staging, see energy accumulation and cost data, and more. Table 3-11 gives the description of the screens in this section.
Page 51: Dialog Box Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 3-11 Temperature Control (Continued) Button Description Staging You can heat or cool zones in a selected order with the use of stages. Use the Staging screen to assign zones to stages, set stage setpoints, and enter soak timers for each stage.
Page 52: Select A Language
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 3-12 Dialog Box Buttons (Continued) Button Description Exit Closes the dialog box. Print Prints the dialog box. Touch this button to see the Print dialog box that contains the available print selections. Select a Language Altanium screens are available in different languages.
Page 53: Print To A File
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 3-3 Language Dialog Box Print to a File To see the Print dialog window, touch the Print button in the footer of the screen. The Print dialog window shows. Refer to Figure 3-4.
Page 54: Print Report Types
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 3-4 Print Dialog Windows for Standalone (Left) and Integrated (Right) Systems On a standalone system, you can select the types of information to print: • Brief Zone Information • Detailed Zone Information •...
Page 55: On-Screen Help
To use the on-screen help, do the steps that follow: Touch the Help button on the Altanium screen. To close the PDF file, touch the Exit button. If Remote Service Assistance is needed from Husky, refer to Section 5.2.5. Page 45...
Page 56 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 46...
Page 57: Chapter 4 Security And Administration
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 4 Security and Administration This chapter describes user management functions. User Management and Security Screens A user type is given to each person who operates the ASC (refer to Table 4-1).
Page 58: Main Security Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Select a tab at the bottom of the Screen Security screen to see the related security selections. • Main 1 • Main 2 • Servo • Heats Page 1 (integrated controller) •...
Page 59: Main 1 Security Selections
Date and Time Select the user role that can set the date and time. Troubleshooting Data Selects the user role that can export diagnostic data for Husky service personnel to troubleshoot problems. User Management Select the user role that can use the User Management screen operations.
Page 60: Main 2 Security Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 4-2 Main 1 Security Operations (Continued) Item Description Auto Log Out Change the Auto Logout Time parameter in the User Management screen. Interface Settings Select the user role that can set the dashboard interface items on the (Shotscope NX Interface) Network tab of the System Setup.
Page 61: Servo Security Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 4-3 Main 2 Security Operations (Continued) Item Description Save Process Data Setup Select the user role that can save the process data setup. I/O Signal Interface Select the user role that can change the input and output interface fields when servo equipment is installed on the Altanium controller.
Page 62: Heats (Page 1 And 2)
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 4-4 Servo Screen Security Operations (Continued) Item Description Operating Limits – Servo move speed adjustments, jog (force limits, slow/fast speeds), and Basic monitoring windows. Operating Limits – Servo maximum acceleration, deceleration, speed, and force Advanced adjustments.
Page 63: Manage Users
v 2.0 — March 2023 Altanium Servo Controller (ASC) Manage Users Human Machine Interface (HMI) administrators can create a user, change a user's password, and delete a user using the User Management screen. NOTE: Administrator screens are only seen when logged in as Administrator. Figure 4-4 User Management Screen To manage users, do the steps that follow:...
Page 64: Saved User Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Saved User Selections A user can change the unit of measurement or make a language selection in the ASC. These selections will be saved to that user's profile when the user logs out. The same selections are loaded the next time the same user logs in again.
Page 65: Chapter 5: System Setup Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 5 System Setup Screen This chapter describes the Main fields and selections on the System Setup screen. Network and remote service assistance information is also given. For information on User Management and Screen Security, refer to Chapter If your ASC system has hot runner control installed, refer to the Altanium Matrix5 User Guide for information on heats setup.
Page 66 The complete log is transferred, or a time range can be set. Diagnostics Export Used to export diagnostics files to a USB drive. This is for Husky Technical Support use only. Contact Husky for help, if necessary. Page 56...
Page 67: Select A Language
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 5-1 Main Screen Security Operations (Continued) Item Description Air Filter Used to set a reminder interval for the air filter replacement. Servo Cabinet Used to monitor the internal temperature of the ASC cabinet. Temperature License Number The license key is shown.
Page 68: Set The Units Of Measure
v 2.0 — March 2023 Altanium Servo Controller (ASC) 5.1.3 Set the Units of Measure Use the Units dialog box to set the units of measure (SI or Imperial) that are shown on the Altanium screens. Figure 5-2 Unit Dialog Box To set the units of measure, do the steps that follow: On the System Setup - Main screen, touch the Units button.
Page 69: Air Filter
v 2.0 — March 2023 Altanium Servo Controller (ASC) 5.1.4 Air Filter For equipment protection, a fan and air filter are installed on the Altanium cabinet. There must be good air flow, so the components do not become too hot. The filter must be changed regularly, so there is no decrease in the air flow.
Page 70: Servo Cabinet Temperature
A network path can be entered for the shared network folder to upload or download files to and from the controller, in the format \\server\shared folder. For help with your controller, Husky can give assistance with a remote connection to your system with the Remote Service Assistance application.
Page 71: Wired Network
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 5-5 Network Setup Screen 5.2.1 Wired Network To change the network settings for a wired network, do the steps that follow: On the System Setup screen, touch the Network tab. Touch the Setup button in the Wired Network section of the screen.
Page 72: Wireless Network
v 2.0 — March 2023 Altanium Servo Controller (ASC) Enter the necessary information in the fields to configure the network connection. Touch the Update button. The Connected indicator will show when the network connection has been made. 5.2.2 Wireless Network To change the network settings for a wireless network, do the steps that follow: NOTE: The controller does not have a built-in wireless adapter.
Page 73: Network Share
v 2.0 — March 2023 Altanium Servo Controller (ASC) Touch the Network SSID field and a list of all available WiFi networks will show. NOTE: The SSID, Authentication method, and Signal strength for all available WiFi networks are shown. They listed in order by their signal strength. Select an SSID from the list.
Page 74 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 5-10 Network Share Configuration Dialog On the Network Share Configuration dialog, you can enter the network path for the shared network folder to upload or download files to and from the controller, in the format: \\server\shared folder.
Page 75: Dashboard Interface
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 5-2 Network Configurations (Continued) Item Description Connection Status A status field that notifies the user of the current state of the network share connection. Possible values are: Not Connected The system is not connected to the specified network share.
Page 76: Remote Service Assistance
Dashboard Interface checkbox is enabled. 5.2.5 Remote Service Assistance If you find a problem that you cannot correct, contact the nearest Husky Regional Service and Sales office. If problem cannot be corrected on the phone, the Husky representative will give you a user name and password.
Page 77: Virtual Network Computing
The Husky service technician starts a remote connection or desktop view application. You must give your approval for the remote connection when the dialog box is shown. The Husky service technician can operate or see your ASC system screens. You will be directed to make changes, if necessary.
Page 78: Vnc Client
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 5-3 describes the VNC Server Options. Table 5-3 VNC Server Option Descriptions Item Description Enable VNC service Use this checkbox to enable the VNC service. Requires Use this checkbox to enable the security challenge that is shown on the acknowledgement of server when a client tries to connect.
Page 79: Vnc Server
v 2.0 — March 2023 Altanium Servo Controller (ASC) 5.2.6.2 VNC Server The VNC server is the Altanium Servo Controller that is controlled by a VNC client. For VNC server operation, it is necessary that VNC server software be installed, and specific communication ports be available.
Page 80 v 2.0 — March 2023 Altanium Servo Controller (ASC) To download the VNC log file, do the steps that follow: On the Network tab of the System Setup, disable the Log VNC session activity option (click to remove the check mark from the checkbox). Insert a USB drive into any available USB port.
Page 81: Mold Setup
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 6 Mold Setup A mold setup contains the process parameters needed by Altanium to operate the servo motors and a hot runner system, if installed. Mold Setup Screen The Mold Setup screen is used to store and work with files such as mold setups, images, documents, and reports (refer to Figure 6-1).
Page 82 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 6-1 gives a list of the items that make up the structure of the Mold Setup screen. Table 6-1 Mold Setup Screen Item Descriptions Item Description File Tree The local drive holds all stored data contained within the Mold Setup screen.
Page 83 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 6-2 Mold Setup Screen Button Descriptions (Continued) Button Description Save Changes Permanently save all changes to the loaded mold setup file. If another item is selected on the screen, it will not have an effect on where the changes are saved.
Page 84: Create A New Mold Setup Folder
v 2.0 — March 2023 Altanium Servo Controller (ASC) Create a New Mold Setup Folder You can use a mold setup folder to store many mold setup files. To make a new mold setup folder, do the steps that follow: Touch the New Folder button.
Page 85: Save Changes To A Mold Setup File
v 2.0 — March 2023 Altanium Servo Controller (ASC) Save Changes to a Mold Setup File Once a mold setup file has been loaded, any changes made to it can be permanently saved. To permanently save changes to a mold setup file, do the steps that follow: On the Mold Setup screen, touch the Save Changes button.
Page 86: Load An Existing Mold Setup File
v 2.0 — March 2023 Altanium Servo Controller (ASC) Load an Existing Mold Setup File After a mold setup file has been made, it is automatically loaded as the operational mold setup in the system. To load a different mold setup, do the steps that follow: On the Mold Setup screen, touch the mold setup folder that contains the mold setup file to be loaded.
Page 87: Rename Files Or Folders
v 2.0 — March 2023 Altanium Servo Controller (ASC) 6.10 Rename Files or Folders To rename a file or folder, do the steps that follow: On the Mold Setup screen, touch the file or folder to be renamed. Touch the Rename button. Type the new name in the dialog box.
Page 88 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 78...
Page 89: Chapter 7 Servo Controller Screens
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 7 Servo Controller Screens The Altanium has five servo motor screens with related tab views that let you set all the conditions that give accurate control over the operation of each axis. Use the servo controller screens to: •...
Page 90: Servo Control Modes Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.1.1 Servo Control Modes Buttons The Control Modes buttons let you change the servos between disengaged and engaged modes, and to disable the servo system. Table 7-1 shows the Control Mode buttons. Table 7-1 Control Mode Buttons Button...
Page 91: Axes Compatibility
v 2.0 — March 2023 Altanium Servo Controller (ASC) Touch a group button to select all the axes in that group. Any selections before this are de- selected. Touch one axis button to select only that axis. Any selections before this are de-selected. Touch and hold an un-selected axis or group button to add it to the selection.
Page 92: Servo Home Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Servo Home Screen The Servo Home screen gives high-level information of each axis, which includes the status, current force, and current position. A graphical indicator shows the axes' positions as they cycle.
Page 93: Servo Home Screen Indicators
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.2.1 Servo Home Screen Indicators The Servo Home screen indicators are listed in the Table 7-2. Table 7-2 Servo Home Screen Indicators Item Description Enabled When the indicator is green, the drive is enabled and ready for closed loop operation.
Page 94 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-3 Manual Control Buttons Button Description Home Moves the axes to their home positions, set by the Home Position field on the Position Setup screen. Move Moves the axes from one position to the next position in the sequence.
Page 95: Stop Control
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-3 Manual Control Buttons (Continued) Button Description Jog Positive Slow Moves an axis at a slow speed in the positive direction. The speed is set in the Jogging: Slow Speed field on the Axis Setup screen. Jog Positive Fast Moves an axis at a fast speed in the positive direction.
Page 96: Permission Override
v 2.0 — March 2023 Altanium Servo Controller (ASC) The jog buttons work in Disengaged mode only. When the permission Override button is selected (ON), the jog controls use the override permissions set on the Permissions screen (refer to Section 7.6).
Page 97: Custom Status Signals
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-4 Default Access Permissions (Continued) Function Operator Supervisor Administrator Stop Override 7.2.3 Custom Status Signals This area of the Servo Home screen lets you see the status of four different signals that you configure.
Page 98 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 7-2 General Setup Screen - General Tab Figure 7-3 General Setup Screen - Modes Tab Page 88...
Page 99: Axis Activation
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.3.1 Axis Activation The Axis Activation area lets you activate or deactivate one or more axes. Axes that are not activated remain de-energized and are not monitored for faults. You can also deactivate an axis with a warning, which shows a warning on the alarms page.
Page 100: Group Names And Coupling Type
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.3.2 Group Names and Coupling Type The Altanium lets you put specified axes into groups. The Groups area on the General tab of the General Setup screen lets you change the axis group names. Touch the Name field of a group and a group name dialog shows (refer to Figure 7-5).
Page 101 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-5 Signal Type Selections Signal Type Signal Condition Position None Digital Input Digital Input 1 - 26 The first five digital inputs may be factory set for the features installed on your controller, as shown here: •...
Page 102: Permit Engaging Indication
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-5 Signal Type Selections (Continued) Signal Type Signal Condition Position Sequencer • Sequencer In Auto • Home Command • Custom Sequence • At Step • Home • Before • Step 1 - 18 Step •...
Page 103: Logic Function
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.3.6 Logic Function The conditions that you set for a configurable signal use Boolean logic to make the signal TRUE. Touch the configurable signal’s Logic Function field and then select a Boolean operator (AND, OR, or LATCHING).
Page 104: Operation Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.4.1 Operation Screen On the Operation screen of the Axis Setup, you can configure one or more axes settings for holding position, jogging, identifying the home position, speed scaling, fault reaction, and so on.
Page 105 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-6 Operation Screen Setpoints (Continued) Item Description At-Position Status The position limits in which the axis is thought to be at a certain position. At-Position Window (+-) At-Position Status Near the end of an axis move, the last part of a motion could take added time to complete.
Page 106 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-6 Operation Screen Setpoints (Continued) Item Description Profile Force Limits For This checkbox setting can be enabled for each axis. When enabled, Inertia the user-specified force limit applied during a profile move is increased by the force required to accelerate the total effective inertia (Section...
Page 107: Positions Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-6 Operation Screen Setpoints (Continued) Item Description IDLE REACTION Idle Reaction Idle time is monitored for each axis. An idle timer counts up whenever an axis is in a hold position or when force is applied. When the timer gets to the set Idle Delay time, the Idle Reaction is triggered.
Page 108 v 2.0 — March 2023 Altanium Servo Controller (ASC) The Positions screen has the setpoints necessary for axis calibration. You can specify the calibration referencing method, referencing position, traverse speed and force limit, the position after calibration has completed, and hard stop configurations. A second reference check can also be used.
Page 109 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-7 Positions Screen Setpoints (Continued) Item Description Position 1 – 4: Used to enter a position name and set the target (stop location) for the position. Values are entered in inches/millimeters for linear axes, •...
Page 110: Mechanical Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-7 Positions Screen Setpoints (Continued) Item Description Hard Stop Configuration Specifies the speed at which the axis engages the hard stop as it calibrates. Hard Stop Contact Speed Hard Stop Configuration The calibration sequence moves the axis to and from the hard stop three times to calculate reference position.
Page 111 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 7-8 Mechanical Screen The Mechanical screen configurations are described in Table 7-8. Table 7-8 Mechanical Screen Setpoints Item Description DIRECTION Motor Direction For Positive Used to select the positive direction of axis travel, speed and Travel position values used correctly.
Page 112: Transmission
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-8 Mechanical Screen Setpoints (Continued) Item Description Maximum Acceleration User-specified acceleration limit for use with the motion profile setpoints. Calculated Maximum Speed Maximum available speed calculated from the selected axis motor model parameters as well as the motor and linkage transmission values.
Page 113 v 2.0 — March 2023 Altanium Servo Controller (ASC) The entry and information fields for the Transmission area of the screen are described in Table 7-9. Table 7-9 Transmission Field Descriptions Transmission Area Fields Description Columns First Column First column: the label for each row. Only stage 1 and stage 2 may be renamed by the user.
Page 114: Motor Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-9 Transmission Field Descriptions (Continued) Transmission Area Fields Description Stage 1 These settings are application dependent and are specified by user. Stage 2 Load Total These fields show the calculated combined transmission, accounting for Motor, Stage 1, Stage 2, and Load: •...
Page 115: Motor Configuration
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.4.4.1 Motor Configuration A new controller installation comes pre-loaded with all the motors available in that ASC software release. You can copy other motor files into the Motors folder or update motor files from a USB drive or network.
Page 116: Motor Monitoring
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-10 Motor Configurations and Indications (Continued) Item Description Holding Brake When enabled, adds brake inertia to hold the servo motor in position. Parameter Download Used to download the parameters for a servo motor. A notch position search is done during the parameter download, unless the motor .hps file specifies otherwise.
Page 117: Notch Position Search
7.4.4.4 Motor Download For a system in which the servo motors running with the Altanium were not sent to the Husky factory for testing and commissioning, a motor download must be performed to load the motor parameters to the controller and find a notch position. When the motor has been connected to the Altanium, navigate to the Motor screen of Axis Setup.
Page 118: Motion Profiles Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Motion Profiles Screen The Motion Profiles screen is used to monitor the motion profiles of the servo axes in the system (refer to Figure 7-12). The motion profiles chart shows the traces for one or more selected axes, axes in a group, or all axes.
Page 119: Motion Profiles Screen Setpoints
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.5.1 Motion Profiles Screen Setpoints The Motion Profiles screen setpoints are shown in Table 7-12. Table 7-12 MOTION PROFILES Screen Setpoints Item Description MOVE SETUP Start Position Use this field to enter the axis start position. •...
Page 120: Number Of Steps
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-12 MOTION PROFILES Screen Setpoints (Continued) Item Description Deceleration Sets the deceleration of the step. NOTE: It is possible that the step will not get to this deceleration setpoint, because of travel distance of the step. Torque/Force Limit Sets the maximum torque/force limit applied to each step during the movement.
Page 121: Chart View And Adjustment Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) A two-step movement is shown here for an axis movement to Position 2. 7.5.3 Chart View and Adjustment Selections Table 7-13 shows a list of the chart view and adjustment selections used on the Motion Profiles screen.
Page 122 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-13 Chart View and Adjustment Selections (Continued) Button Description Lets you select the traces that are seen on the chart: • Non-Inertial Torque/Force • Position Deviation • Total Torque/Force • Velocity •...
Page 123: Signals Screens
v 2.0 — March 2023 Altanium Servo Controller (ASC) Signals Screens There are two Signals screens: • Permissions • Triggers The sections that follow identify and describe the settings on each screen. 7.6.1 Permissions From the Signals screen, select the Permissions tab if, necessary. Refer to Figure 7-14.
Page 124: Permission Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.6.1.1 Permission Selections Table 7-14 shows the context-sensitive permission signal selections for each Signal Type on the Permissions screen. These selections are the same as the signal selections used on the Triggers screen (refer to Section 7.6.2).
Page 125 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-14 Permissions and Triggers Signal Type Selections (Continued) Signal Type Signal Condition Position Configurable Signal Configurable signal 1 - 18 UltraSync-E • UltraSync-E Valve Gates At Close (if installed) • UltraSync-E Valve Gates At Open •...
Page 126: Move, Jog, Home, Calibrate, And Override
v 2.0 — March 2023 Altanium Servo Controller (ASC) If Servo Axis or Servo Group is selected as the Signal Type for a permission condition, then an axis or a group must be selected in the Signal Type column. If “Position =” is selected in the Condition column, then, in the Value column, select the position that the other axis or group of axes must be at for the permission to be TRUE.
Page 127: State Indicators
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-15 Move Icons Icon Name Description Start Move Shows that the related permission condition must be obeyed at the start of the operation. When the operation starts, the condition is no longer required.
Page 128: Triggers
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.6.2 Triggers Triggers are used to start actions when in Engaged mode. A trigger starts the configured action when: • In Engaged mode • A trigger start position requirement is satisfied •...
Page 129: Action Column
v 2.0 — March 2023 Altanium Servo Controller (ASC) 7.6.2.1.1 Action Column The actions that can be started by a trigger are: • Move • Apply (force or torque) • Set Relax Limit • Home • Jog Negative or Jog Positive •...
Page 130: Trigger Signals
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 7-16 Trigger Values Selections (Continued) Action Values Jog Negative / Jog No value Positive Calibrate No Value Disable Axis No Value 7.6.2.2 Trigger Signals The Trigger Signal columns of the screen are configured signals that, when TRUE, start the Trigger Actions.
Page 131 v 2.0 — March 2023 Altanium Servo Controller (ASC) The Trigger Type selections are described in Table 7-17. Table 7-17 Trigger Type Selections Trigger Type Description Level Start Only while the signal state is TRUE. Level Hold With a signal level held (TRUE), the action continues. If the signal level drops (changes to FALSE) during the action, then the action is cancelled.
Page 132 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 122...
Page 133: Sequencer
You can use these Sequencer outputs to help control the molding process. Sequencer Mode Buttons The Sequencer mode drop-down buttons are shown at the top of all Altanium ASC screens. The buttons let you change the Sequencer mode as described in Table 8-1.
Page 134 v 2.0 — March 2023 Altanium Servo Controller (ASC) If the Sequencer mode drop-down buttons do not show at the upper left corner of your screen, do the steps that follow: Touch the Sequencer button near the top of the Home screen. Touch the Options tab.
Page 135: Sequence Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Sequence Screen To see the Sequencer screens, touch the Sequencer button on the Altanium Home screen. The Sequence screen shows. Refer to Figure 8-2. Figure 8-2 Sequence Screen The sequence matrix is in the middle of the Sequence screen. The matrix shows that you can enter a maximum of 18 steps (listed horizontally across the top of the screen) and 18 signals (listed vertically down the left side of the screen).
Page 136 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 8-3 Setting Signals to High, Low, or N/A You can choose N/A (Not Applicable), High, or Low. When you select High or Low, a 1 or 0 will show in that cell. Table 8-2 describes the selections.
Page 137: Manual Control Buttons
v 2.0 — March 2023 Altanium Servo Controller (ASC) The Minimum Duration field at the bottom of each step column makes sure that the sequence stays in a step for the minimum time that you enter. The Actual Duration of each step (when in operation) is shown below the Minimum Duration field.
Page 138: Steps Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Steps Screen On the Sequencer Steps screen you can set specific values for each step (1 through 18). Touch the Steps tab to see the Steps screen. Refer to Figure 8-5. Figure 8-5 Steps Screen Table 8-4...
Page 139: Signals Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 8-4 Steps Screen Settings (Continued) Item Description Maximum Duration Alarm This is a watchdog timer. When the step duration is more than the Limit [ms] maximum limit, the alarm that follows is generated: Sequence Timeout (Step: ?, Duration: ? ms) A Fault Stop Immediate condition and alarm are given, and the sequencer switches from Auto mode to Manual.
Page 140: Signal Configurations
v 2.0 — March 2023 Altanium Servo Controller (ASC) 8.5.1 Signal Configurations To set a signal that will be used in the sequencer matrix, do the steps that follow: Touch the field in the Signal Name column to give a name to the new signal. The Name dialog window shows.
Page 141 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 8-8 Signal Type Dialog Window If a Signal Source, Condition, and Value are related to the Signal Type, they are shown in the screen's table. Touch each field and make the selections to set the condition. The Signal Type selections and their related signals are shown in Table 8-5.
Page 142 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 8-5 Signal Type Selections and Parameters (Continued) Signal Type Signal Condition Position Servo Axis Select an axis Position < Set by user (in/mm for linear; °/rev Position > for rotary) Position = •...
Page 143: Options Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) NOTE: The indicator at the right of the configured signal dialog window illuminates if the signal is TRUE. step 1 through step 6 again for each signal that is necessary to configure for your sequence matrix.
Page 144 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 8-6 Option Screen Settings Item Description UltraShot in Auto (if When enabled, the UltraShot must be in Auto mode before the installed) Sequencer can be changed to Auto mode. Servo Controller Engaged When enabled, the servo controller must be in Engaged mode before the Sequencer can be changed to Auto mode.
Page 145: I/O Screens
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 9 I/O Screens Use the I/O screens to monitor status and set the digital inputs, digital outputs, configurable signals, and safety signals transmitted between the ASC and the IMM. On the ASC Home screen, touch the I/O button to see the I/O screens. The selections and indicators on the I/O screens are divided into categories.
Page 146: Safety Signals
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 9-1 Servo I/O Selections and Indicators (Continued) Item Description Force I/O signals can be forced high or low. • When Force is set to High, the signal level at the pin is set high. •...
Page 147: Digital Inputs
v 2.0 — March 2023 Altanium Servo Controller (ASC) A list of the safety signals is shown in Table 9-2. Table 9-2 Safety Signals Signal Name Description IMM E-Stop OK During usual operation, the IMM E-Stop switch contact is CLOSED. The switch contact must be OPEN when the IMM emergency stop device is operated.
Page 148: Servo Digital Inputs
9.2.1 Servo Digital Inputs There are 26 servo digital inputs. For ASC systems with UlraSync-E, Husky sets the input signals that follow to digital inputs 1 through 5. These input signals can be changed to agree with customer IMM configurations and operations.
Page 149: Ethernet Digital Inputs (If Installed)
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 9-3 Servo Digital Input Signals from the IMM (Continued) Signal Description Valve Gates Close Command This signal is used to start the Valve Gates Close operation. External Permit Calibration This signal must be TRUE to start valve stem calibration. If this signal is lost (not TRUE) during calibration, the calibration sequence is cancelled.
Page 150: Heats Digital Inputs
v 2.0 — March 2023 Altanium Servo Controller (ASC) • UltraSync-E Valve Gates Open Command (if installed) • UltraSync-E Valve Gates Close Command (if installed) • External Permit UltraSync-E Calibration (if installed) • Servo Control Lock Request • Axes To Home Position •...
Page 151: Digital Outputs
v 2.0 — March 2023 Altanium Servo Controller (ASC) • Remote Start • Remote Stop • Manual Boost • Cooling Lines Not Enabled • Cycle Input • Reset Parts Counter • Count Parts To use an input heats signal, touch its checkbox in the In Use column, so a check mark shows. To invert an input heats signal, touch its checkbox in the Invert column.
Page 152: Servo Digital Outputs
v 2.0 — March 2023 Altanium Servo Controller (ASC) Use the Digital Outputs screens to set the digital output signals to the IMM. There are three sets of output screens that you can configure. Tabs at the bottom of the screen give you access to the digital outputs that follow: •...
Page 153 A list of the usual output signals to the IMM is shown in Table 9-4. For ASC with UltraSync-E systems, Husky sets these output signals to digital outputs 1-4. These output signals can be changed to agree with customer IMM configurations and operations. Table 9-4...
Page 154 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 9-5 shows other Servo outputs from which you can select. Table 9-5 Servo Digital Output Selections Signal Type Signal Condition Position None Digital Input Digital Input 1 - 26 The first five digital inputs may be factory set for the features installed on your controller, as shown here: •...
Page 155: Ethernet Digital Outputs (If Installed)
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 9-5 Servo Digital Output Selections (Continued) Signal Type Signal Condition Position UltraSync-E • UltraSync-E Valve Gates Closed (if installed) • UltraSync-E Valve Gates Open • UltraSync-E Ready and Engaged • UltraSync-E Valve Gates Position Sequencer (if •...
Page 156: Heats Digital Outputs
v 2.0 — March 2023 Altanium Servo Controller (ASC) • UltraSync-E Stems At Open (with UltraSync-E installed) • UltraSync-E Stems At Close (with UltraSync-E installed) • All Axes Ready And Engaged • All Axes At Home Position • Axis x At Position 1 (x = 1-4) •...
Page 157: Configurable Signals
v 2.0 — March 2023 Altanium Servo Controller (ASC) • At Standby Temperature • Max Temperature Error • Communications Error • Mold Cooling Enable • Process Outside Limit • Run Light • Boost Active • Sack Full • Remote File Loaded Use the In Use column checkboxes to enable the output signal.
Page 158: Condition Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) 9.4.1 Condition Selections You can set up to four conditions for each configurable signal. Boolean logic is used with the set conditions to make the configurable signal TRUE. Refer to Section 9.4.2.
Page 159: Logic Function
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 9-6 Configurable Signal Selections and Parameters (Continued) Signal Type Signal Condition Position Sequencer (if • Sequencer In Auto installed) • Home Command • Custom Sequence • • Home Step • Step 1 - 18 •...
Page 160: Force
v 2.0 — March 2023 Altanium Servo Controller (ASC) 9.4.3 Force When necessary, a configurable signal can be set (forced) to always be high or low, so the system will ignore the true signal status. Touch the field in the Force column for a signal and select High, Low, or None: •...
Page 161: Chapter 10 Alarms And Event History
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 10 Alarms and Event History This chapter gives information about the Alarm and Event History screens. 10.1 Alarm Screen The Alarm screen shows all errors that occur. When an alarm is active, an icon in the Alarms button in the system footer changes to yellow and flashes red.
Page 162 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 10-1 gives descriptions of the Alarms screen buttons. Table 10-1 Alarm Screen Buttons Button Description The Silence Alarm button stops the alarm sound. This button is also in the system footer of all Altanium screens. The Reset Alarms button stops the alarm light and error message.
Page 163: Opening The Alarm Screen
v 2.0 — March 2023 Altanium Servo Controller (ASC) 10.1.1 Opening the Alarm Screen To see the Alarms screen, do one of the instructions that follow: • On the Home screen, touch the Alarms button. • In the system footer, touch the Alarms Information button. 10.1.2 Alarm Conditions Table 10-3 gives a list of the Alarm conditions.
Page 164 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 10-2 Event History Screen Table 10-4 gives a list of the items on the Event History screen. Table 10-4 Event History Screen Items Item Description Number of Events The number shows how many events are on the Event History screen. Date/Time The date and time that the event occurred.
Page 165: Filter Events
v 2.0 — March 2023 Altanium Servo Controller (ASC) 10.2.1 Filter Events Events can be filtered by user selections of one or more event types. To filter events, do the steps that follow: On the Event History screen, touch the Filter button (shown here). Select the one or more filter type(s) in the Event History - Filter dialog box.
Page 166: Alarm And Event Icons
v 2.0 — March 2023 Altanium Servo Controller (ASC) 10.3 Alarm and Event Icons The icons in Table 10-5 are used on the Alarms screen and the Event History screen. Table 10-5 Event History Screen Icons Icon Description The warning is inactive. The warning is active.
Page 167: Alarm Conditions - Warning Errors
v 2.0 — March 2023 Altanium Servo Controller (ASC) 10.4 Alarm Conditions — Warning Errors Alarm conditions are shown on the Alarms and the Event History screens. The conditions listed in Table 10-6 cause audible and visual alarms. Because they are warnings, they will not shutdown the system.
Page 168: Abort Conditions - Shutdown Errors
v 2.0 — March 2023 Altanium Servo Controller (ASC) 10.5 Abort Conditions — Shutdown Errors Abort conditions are shown on the Alarms screen and the Event History screen. The conditions listed in Table 10-7 cause audible and visual alarms. Because they are shutdown errors, they will cause a zone or system shutdown condition controlled by the Priority Control Mode (PCM) settings.
Page 169 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 10-7 Shutdown Errors (Continued) Shut Down Error Description Receive Data Comm The data that the zone receives from the Altanium controller has stopped. Rev. Thermocouple The positive and negative leads from the thermocouple have been switched or the connections are reversed.
Page 170 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 160...
Page 171: Chapter 11 Data Records
v 2.0 — March 2023 Altanium Servo Controller (ASC) Chapter 11 Data Records Data Records helps monitor the operation of a mold. This tool is used for system analysis to: • Make the molding process more functional • Track errors •...
Page 172: Change A Trend Plot
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 11-1 Process Monitoring Trend Plot Screen 11.1.1 Change a Trend Plot To change the zone or process shown on the Trend Plot screen, do the steps that follow: On the Trend Plot screen, touch the Variable Selection button (shown here). On the Process Trend - Process Variable Selector dialog box, touch a minimize/maximize arrow.
Page 173 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 11-2 Process Trend - Process Variable Selector Dialog Box 1. Minimize/Maximize Arrows Select a process variable from the maximize list. Page 163...
Page 174: Process Monitoring - History Plot
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.2 Process Monitoring - History Plot The History Plot screen gives a visual report of the recorded operation, with power usage, temperature changes, setpoint values, pressures, positions, and times. Data is shown zone by zone.
Page 175: Curve Data Point
v 2.0 — March 2023 Altanium Servo Controller (ASC) Available process variables for heat zones (if installed): • Current • Earth Leakage (displayed only when configured in System Setup) • Power • Temperature • Temperature Setpoint • Voltage Available process variables for UltraSync-E (if installed): •...
Page 176: Set The Time Frame
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-2 History Plot Screen Curve Data Items (Continued) Item Description Midline The midline is the middle value of the curve. For example, if the high temperature is 540°F and the low temperature is – 90°F, the midline would be (540 + (–90)) / 2 = 225.
Page 177: Change The New Date And Time Range New
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.2.3.2 Change the New Date and Time Range New Touch the New Date and Time Range field, enter the date and time in the Old dialog window that shows, and then touch the Accept button. A change to the date range end automatically updates the date range old, with the use of the Time Frame value.
Page 178: Process Monitoring - Limits
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.3 Process Monitoring - Limits Use the Limits screen to set the specification limits for each variable. When a variable value is not in the specified limits, the variable is out of specification and triggers an alarm, a digital output, and/or the controller may stop.
Page 179 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-3 Process Targets Screen Limits (Continued) Limit Definition Out of Specification Action If selected, the operation can continue if a process variable is above or below the specified limits. Process Outside Limit Critical Variable Action The action taken when a heats variable is in a critical state.
Page 180: Target Settings
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.3.1 Target Settings Use the Target Settings fields of the screen to enable and configure the zone limit ranges for: • Current • Power • Temperature • Voltage To configure the Target Settings for one or more zones, do the steps that follow: On the process Limits screen, touch to highlight one or more zones you want to set.
Page 181: Delay Limit Check
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.3.3 Delay Limit Check If you want the Altanium controller to wait a specified time or number of cycles before the system does the limit check, those parameters can be set in the Delay Limit Check area. To set the heats parameter, do the steps that follow: On the process Limits screen, touch the Heats Time Delay field and enter the number of seconds for the delay (1 to 900 seconds).
Page 182: Process Monitoring - Setup
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.4 Process Monitoring - Setup On the process monitoring Setup screen, you can set the system to record data in a time mode interval or with a cycle mode start configuration. Cool down data collection can also be enabled from this screen.
Page 183: Cool Down Data Collection
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.4.2 Cool Down Data Collection You can continue data collection for an interval of time after the controller has stopped. In the Cooldown Data Collection area of the process Limits screen, you can set a time value from 1 to 180 minutes.
Page 184 v 2.0 — March 2023 Altanium Servo Controller (ASC) To set the cycle mode configuration, do the steps that follow: Touch the Cycle Start Trigger gear icon. Select a trigger in the Configure Signal dialog and configure its parameters. Refer to Table 11-4.
Page 185 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-4 Cycle Start Trigger Selections and Parameters (Continued) Signal Type Signal Condition Position Configurable Configurable signal 1 - 18 Signal UltraSync-E • UltraSync-E Valve Gates At Close • UltraSync-E Valve Gates At Open (if installed) •...
Page 186: Data Collection Start Conditions
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.4.3.1 Data Collection Start Conditions Table 11-5 shows the data collection start conditions with specified operations enabled and disabled. Table 11-5 Cycle Mode - Conditions to Start (shown with UltraSync-E installed) Servo Cycle Mode Heats...
Page 187: Data Collection Stop Conditions
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.4.3.2 Data Collection Stop Conditions Table 11-6 shows the data collection stop conditions with specified operations enabled and disabled Table 11-6 Cycle Mode - Conditions to Stop (UltraSync-E or Altanium Servo Control Installed) UltraSync-E Servo Controller Cycle Mode...
Page 188 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-6 Cycle Mode - Conditions to Stop (UltraSync-E or Altanium Servo Control Installed) (Continued) UltraSync-E Servo Controller Cycle Mode Heats Running Engaged Engaged Conditions Condition Conditions to Stop Condition Condition Selection Shown Enabled Enabled...
Page 189 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-6 Cycle Mode - Conditions to Stop (UltraSync-E or Altanium Servo Control Installed) (Continued) UltraSync-E Servo Controller Cycle Mode Heats Running Engaged Engaged Conditions Condition Conditions to Stop Condition Condition Selection Shown Enabled Enabled...
Page 190 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-6 Cycle Mode - Conditions to Stop (UltraSync-E or Altanium Servo Control Installed) (Continued) UltraSync-E Servo Controller Cycle Mode Heats Running Engaged Engaged Conditions Condition Conditions to Stop Condition Condition Selection Shown Enabled Enabled...
Page 191: Cycle Input (Heat Control Only)
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-6 Cycle Mode - Conditions to Stop (UltraSync-E or Altanium Servo Control Installed) (Continued) UltraSync-E Servo Controller Cycle Mode Heats Running Engaged Engaged Conditions Condition Conditions to Stop Condition Condition Selection Shown Enabled Enabled...
Page 192: Cycle Time Limit
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.4.4 Cycle Time Limit This field is used to stop cycle mode if no cycle signal is received for the set time. The cycle timer starts when the cycle signal is received. If the next cycle signal is not received before the timer completes, the cycle has timed out.
Page 193: Process Data Filter
v 2.0 — March 2023 Altanium Servo Controller (ASC) 11.4.7 Process Data Filter The Process Data Filter lets you filter which process variables are shown on the Trend and History Plot screens and saved in the Process Log. The selections are: •...
Page 194: Cycle Archive
v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 11-10 Cycle Scope Screen 11.5.2 Cycle Archive The Cycle Archive screen lets you record and save the curve data that you selected on the Cycle Scope screen. The archived files can be loaded back onto the screen for reference when troubleshooting or for operation adjustment analysis.
Page 195 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure 11-11 Cycle Archive Screen The Cycle Archive screen settings and indications are described in Table 11-7. Table 11-7 Cycle Archive Screen Descriptions Item Description Enable Cycle Archiving Use this checkbox to enable the cycle archiving. Cycle Archiving Active The indicator illuminates green while the cycle archiving is active.
Page 196: Chart View And Adjustment Selections
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-7 Cycle Archive Screen Descriptions (Continued) Item Description Select Cycle Touch this button to open a dialog that lets you navigate to, and select, a cycle curve plot file that you want to load. Previous/Next Use these buttons to see the next or previous cycle curve plot.
Page 197 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table 11-8 Cycle Monitor - Chart View and Adjustment Selections (Continued) Button Description Used to set auto scale for the chart traces that follow: • Time • Signals • Force • Position •...
Page 198 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 188...
Page 199: Appendix A Glossary Of Terms
v 2.0 — March 2023 Altanium Servo Controller (ASC) Appendix A Glossary of Terms Table A-1 describes the abbreviations and terms used in this user guide. Table A-1 Altanium Servo Control Comma Separated Values (file) Human Machine Interface Hot Runner Control Injection Molding Machine Imperial Imperial Units or British Imperial Units (measurement)
Page 200 v 2.0 — March 2023 Altanium Servo Controller (ASC) Page 190...
Page 201: Appendix B Troubleshooting
UltraSync-E system. This is not a full list of problems or solutions. If a problem is not shown in this chapter, contact Husky Technical Support or the nearest Husky Regional Service and Sales office for help. Hazardous Voltage The servo power controllers have capacitors installed on the direct current (DC) bus.
Page 202 v 2.0 — March 2023 Altanium Servo Controller (ASC) Figure B-2 DC Bus Cover Warnings After you remove the cover, with a multimeter measure the voltage of the DC bus, refer to Figure B-3. Make sure that the measured voltage is less than 60 VDC before you continue maintenance or troubleshooting.
Page 203: Startup Troubleshooting
IMM and the ASC are loose. correctly. Error in software or equipment. Contact Husky Technical Support. The touch screen of the display Error in software or equipment. Contact Husky Technical module does not function Support.
Page 204 One Wire EEprom servo drive system. 1937 Actual data were not picked up on time 1938 No data is available yet Cycle power and if problem persists contact Husky Configuration Faults Alarm Description: Drive Fault: Configuration (Error Code XXXX) Error Fault Solution...
Page 205 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table B-2 Drive Faults (Continued) BMAXX5000 Error Codes: Wrong axis index (Continued) 2702 Error in the configuration of the return motion Feedback Faults Alarm Description: Drive Fault: Feedback Sensor (Error Code XXXX) Error Fault Solution...
Page 206 Check voltage at supply to controller and confirm that it is within specifications 2009 Under voltage in DC link Cycle power and if problem persists contact Husky Power Unit Over Temperature Faults Alarm Description: Drive Fault: Drive Over Temperature (Error Code XXXX) Error Fault...
Page 207 Alarm Description: Drive Fault: Drive Function (Error Code XXXX) Error Fault Solution Code 1007 Power unit safety relay Cycle power and if problem persists contact Husky. Motor Over Temperature Faults Alarm Description: Drive Fault: Motor Over Temperature (Error Code XXXX) Error Fault Solution Code...
Page 208 v 2.0 — March 2023 Altanium Servo Controller (ASC) Table B-2 Drive Faults (Continued) BMAXX5000 Error Codes: Motor I²t Overload Faults Alarm Description: Drive Fault: Motor Overload (Error Code XXXX) Error Fault Solution Code Motor I²t overload Evaluate if excessive force is being applied when motor is at position Adjust the relax limit setting in the Permissions screen to reduce the applied force as necessary...
Page 209 Check for faulty devices on the same fieldbus as the servo drive system. 2415 Timeout of transmit process Cycle power and if problem persists contact Husky 2416 Timeout of receive process Feedback Warnings Alarm Description: Drive Warning: (Error Code XXXX)
Page 210: Alarm: Position Deviation Limit Exceeded
v 2.0 — March 2023 Altanium Servo Controller (ASC) Table B-2 Drive Faults (Continued) BMAXX5000 Error Codes: Alarm Description: Drive Warning: Drive Over Temperature (Error Code XXXX) Error Fault Solution Code 1049 Temperature warning threshold heat sink Make sure there are no air obstructions above or below exceeded the drive and that the air intake filter at the back of the unit is clear of any debris or obstructions.
Page 211: Appendix C Preventive Maintenance
v 2.0 — March 2023 Altanium Servo Controller (ASC) Appendix C Preventive Maintenance The tasks that follow should be done on regular schedule. Interval Task Each Day Make sure that all safety devices operate correctly. Examine all the cables. Clean the ASC cabinet and touch screen of the display module. Examine the air filter area on the rear of the ASC.
Page 212 v 2.0 — March 2023 Altanium Servo Controller (ASC) Clean the ASC and touch screen. a. Remove all oil grease, and other unwanted material from the cabinet of the ASC. b. De-energize the display module. c. With a soft lint-free cloth, remove dust and other unwanted contamination from the touch screen.
Page 213: Index
