Regulador de Presión
Garantía Limitada - Regulador de Presión Husky de Campbell Hausfeld
1
DURACION: A partir de la fecha de compra por el comprador original tal como se especifica a continuación: Un año.
2. QUIEN OTORGA ESTA GARANTIA (EL GARANTE: Campbell Hausfeld / The Scott Fetzer Company 100 Production Drive,
Harrison, Ohio 45030 Teléfono: (800) 543-6400
3. QUIEN RECIBE ESTA GARANTIA (EL COMPRADOR): El comprador original (que no sea un revendedor) del producto
Campbell Hausfeld.
4. PRODUCTOS CUBIERTOS POR ESTA GARANTIA: Cualquier clavadora, grapadora, herramienta neumática, pistola
pulverizadora, inflador o accesorio neumático suministrado o fabricado por el Garante.
5. COBERTURA DE LA GARANTIA: Los defectos substanciales de material y fabricación que ocurran dentro del período de
validez de la garantía.
6. LO QUE NO ESTA CUBIERTO POR ESTA GARANTIA:
A. Las garantías implícitas, incluyendo aquellas de comercialidad E IDONEIDAD PARA FINES PARTICULARES, ESTAN
LIMITADOS A LO ESPECIFICADO EN EL PARRAFO DE DURACION. Si este producto es empleado para uso comercial,
industrial o para renta, la garantía será aplicable por noventa (90) días a partir de la fecha de compra. En algunos
estados no se permiten limitaciones a la duración de las garantías implícitas, por lo tanto, en tales casos esta
limitación no es aplicable.
B.
CUALQUIER PERDIDA DAÑO INCIDENTAL, INDIRECTO O CONSECUENTE QUE PUEDA RESULTAR DE UN DEFECTO,
FALLA O MALFUNCIONAMIENTO DEL PRODUCTO CAMPBELL HAUSFELD. En algunos estados no se permite la
exclusión o limitación de daños incidentales o consecuentes, por lo tanto, en tales casos esta limitación o exclusión
no es aplicable
C.
Cualquier falla que resulte de un accidente, abuso, negligencia o incumplimiento de las instrucciones de
funcionamiento y uso indicadas en el (los) manual(es) que se adjunta(n) al producto. Dichos accidentes, abusos por
parte del comprador, o falta de operar el producto siguiendo las instrucciones del manual de instrucciones
suministrado también debe incluir la desconexión o modificación de los instrumentos de seguridad. Si dichos
instrumentos de seguridad son desconectados, la garantía quedaría cancelada.
D. Los ajustes normales explicados en el(los) manual(es) suministrado(s) con el producto.
E.
Artículos o servicios normalmente requeridos para el mantenimiento del producto, tales como: anillos en O,
resortes, amortiguadores, defensas, hojas de impulsor, fusibles, baterías, empaques, almohadillas o sellos, boquillas
de fluído, agujas, boquillas para rociar arena, lubricantes, mangueras de material, elementos filtrantes, álabes de
motores, abrasivos, hojillas, discos para cortar, cinceles, retenes para cinceles, cortadores, collarines, mandriles,
mordazas para remachadoras, brocas para desarmadores, almohadillas para lijar, soportes de almohadillas,
mecanismo de impacto o cualquier otro artículo desgastable que no se haya enumerado específicamente . Estos
artículos sólo estarán cubiertos bajo esta garantía por noventa (90) días a partir de la fecha de compra original. Los
artículos subrayados sólo están garantizados por defectos de material o fabricación.
7.
RESPONSABILIDADES DEL GARANTE BAJO ESTA GARANTIA: Reparar o reemplazar, como lo decida el Garante, los
productos o componentes que estén defectuosos, se hayan dañado o hayan dejado de funcionar adecuadamente,
durante el período de validez de la garantía
8.
RESPONSABILIDADES DEL COMPRADOR BAJO ESTA GARANTIA:
A. Suministrar prueba fechada de compra y la historia de mantenimiento del producto.
B. Entregar o enviar el producto o componente Campbell Hausfeld al Centro de Servicio autorizado Campbell
Hausfeld más cercano. Los gastos de flete, de haberlos, deben ser pagados por el comprador.
C. Seguir las instrucciones sobre operación y mantenimiento del producto, tal como se indica(n) en el (los) manual(es)
del propietario
9.
CUANDO EFECTUARA EL GARANTE LA REPARACION O REEMPLAZO CUBIERTO BAJO ESTA GARANTIA: La reparación o
reemplazo dependerá del flujo normal de trabajo del centro de servicio y de la disponibilidad de repuestos.
Esta garantía limitada es válida sólo en los EE.UU., Canadá y México y otorga derechos legales específicos. Usted también
puede tener otros derechos que varían de un Estado a otro. o de un país a otro.

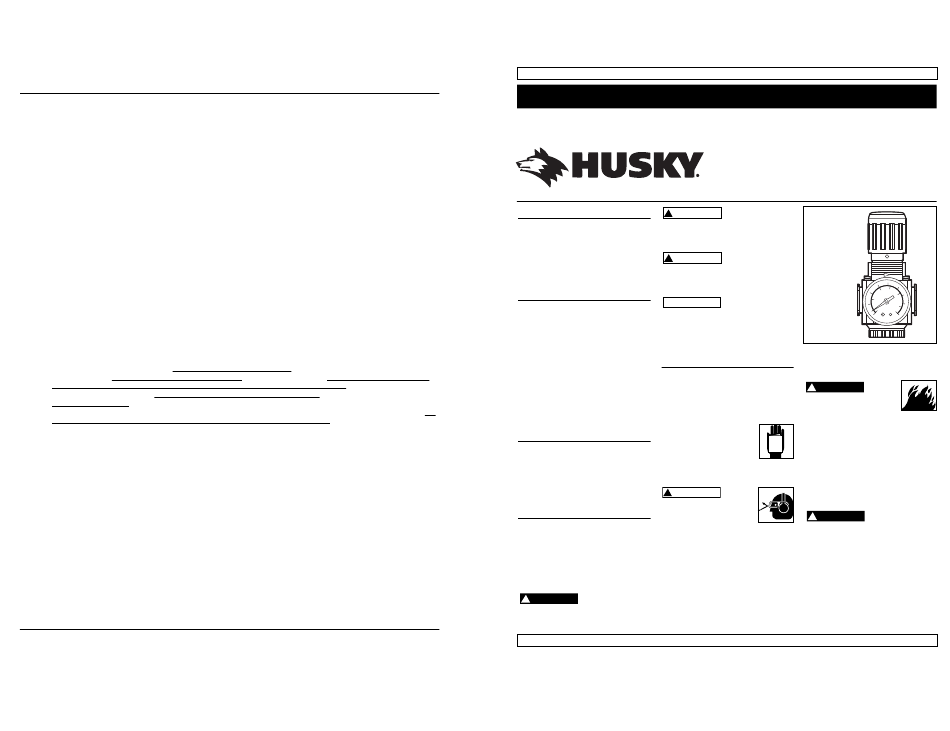

Modelo HDA707
Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.

Description

The self-relieving pressure regulator
can be used between the air supply and
an air tool to control the air pressure
on lines carrying up to a maximum of
300 psi. The regulated output pressure
range is 0-150 psi.

Specifications

Average Air Flow . . . .45.2 SCFM
(Based on 100 psi
inlet pressure
with 5 psi drop)
Regulator
style . . . . . . . . . . . . . . .relieving
Body material . . . . . . .Aluminum
Max. Temperature . . .175˚ F
Max. Pressure . . . . . . .300 psi
Air Inlet/outlet . . . . . .3/8" NPT
Weight . . . . . . . . . . . . .1.5 lbs

Unpacking

After unpacking the unit, inspect
carefully for any damage that may have
occurred during transit. Make sure to
tighten fittings, bolts, etc., before
putting unit into service.

Safety Guidelines

This manual contains information that
is very important to know and under-
stand. This information is provided for
SAFETY and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following
symbols.
DANGER
!
hazardous situation which, if not
avoided, will result in death or serious
injury.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2003
See Warranty on page 4 for important information about commercial use of this product.
Pressure Regulator
Warning indicates
WARNING
!
a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Caution indicates a
CAUTION
!
potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Notice indicates
NOTICE
important
information, that if not followed, may
cause damage to equipment.
Self
General Safety
Information
This product is a part of a high pressure
system and the following safety
precautions must be followed at all
times along with any other existing
safety rules.
Read this instruction manual
before installing this device
to the air supply system. Be
thoroughly familiar with
the controls and the proper use of the
equipment.
Safety
WARNING
!
glasses
must be worn during
1. Always work in a well
ventilated area.
2. Do not exceed any pressure rating
of any component in the system.
3. Protect air lines from damage
and/or punctures.
4. Check air hoses for weak or worn
Danger indicates
condition before each use. Make
an imminently
sure all connections are secure.
Model HDA707
Figure 1
5. Keep all nuts, bolts and screws tight
and ensure equipment is in safe
working condition.
DANGER
!
This product is specifically
designed for compressed air
service ONLY. Use with any other
material (liquid or gas) is a
misapplication and not permitted. Use
or injection of certain hazardous
MANUAL
liquids or gases in the system (such as
oxygen, alcohol or liquid petroleum
gas) will harm the unit and result in a
combustible condition or hazardous
external leakage. Misapplication will
void all warranties and manufacturer's
responsibilities.
The relief flow
DANGER
!
capacity of
regulators is limited. Install additional
pressure relief devices to alleviate over
pressurized conditions. Written
approval must be obtained from
manufacturer if this device is to be
used for life support systems or other
non-industrial applications.
IN291700AV 10/03
