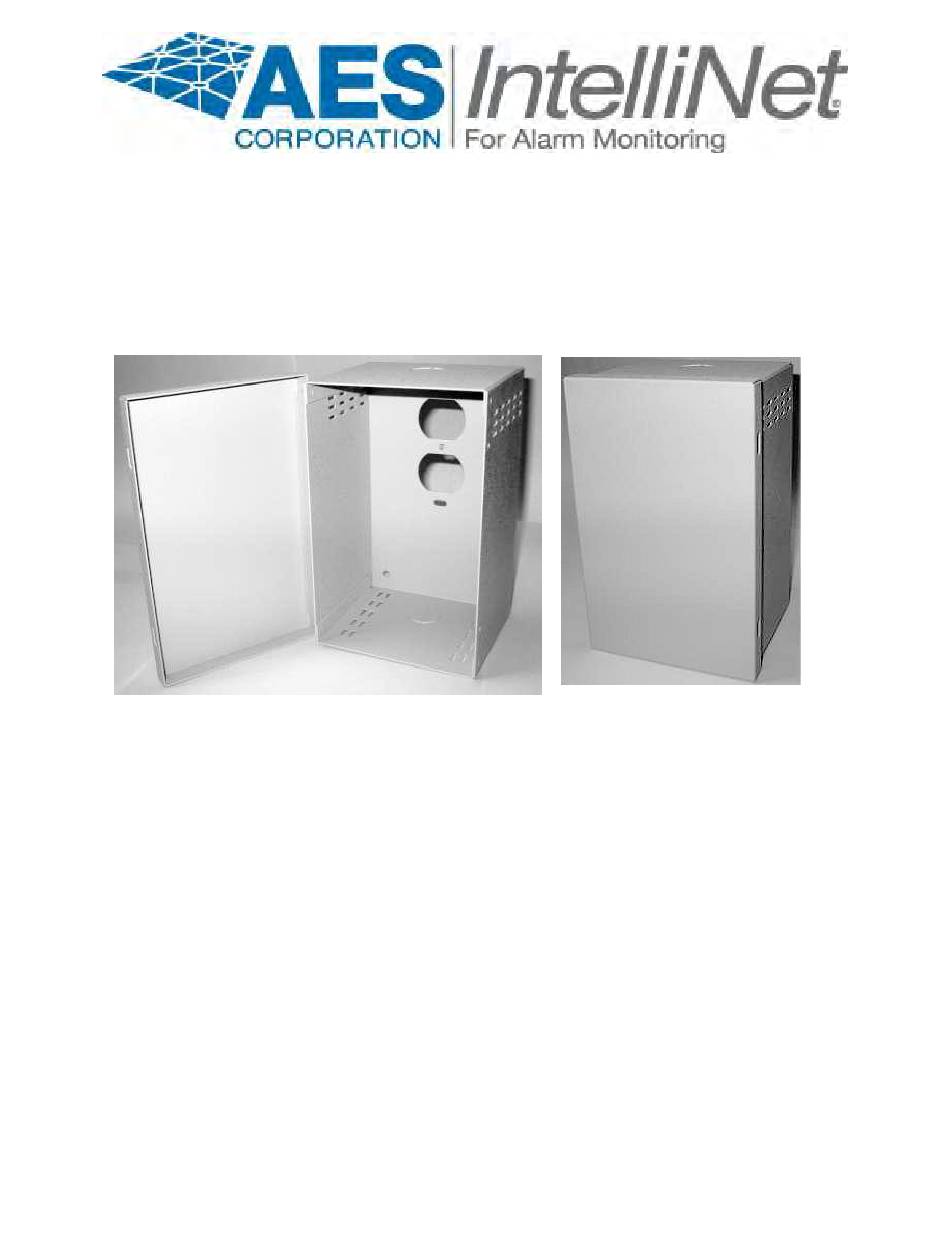

AES 1640-ENCL Enclosure
Cover Open
Cover Closed
Installation Manual
Table of Contents
1. Product Description: ....................................................................................................... 2
2. Safety Considerations: .................................................................................................... 2
3. Technical Specifications: ................................................................................................ 3
4. Installation Instructions:.................................................................................................. 3
5 Warranty / Service Procedures: ....................................................................................... 5
40-1640-ENCL Revision 1c September 19, 2022
1
Advertisement
Table of Contents
Related Manuals for AES IntelliNet 1640-ENCL
Summary of Contents for AES IntelliNet 1640-ENCL
-
Page 1: Table Of Contents
AES 1640-ENCL Enclosure Cover Open Cover Closed Installation Manual Table of Contents 1. Product Description: ....................... 2 2. Safety Considerations: ....................2 3. Technical Specifications: ....................3 4. Installation Instructions:....................3 5 Warranty / Service Procedures: ..................5 40-1640-ENCL Revision 1c September 19, 2022... -
Page 2: Product Description
1. Product Description: The 1640-ENCL is an inclosure intended to house and protect the AES 1640 or Amseco XF-1640 Transformer when used in a UL installation. It is designed to be installed over the recepticle replacing a standard wall plate. The enclosure is to be secured to the wall using the 4 mounting holes. -
Page 3: Technical Specifications
Turn off power to the receptacle at the service disconnect (breaker). Remove any existing wall plate. Place the AES 1640-ENCL over the receptacle and mark the four corner mounting holes. Affix appropriate wall mounting hardware (i.e.: molleys etc) if needed. - Page 4 Position the 1640-ENCL over the receptacle and re-install the duplex receptacle mounting screws. Do not tighten at this time. Verify proper alignment of receptacle and enclosure with wall mounting holes and secure enclosure to the wall. Tighten receptacle-mounting screws. 10. Connect conduit to the 1640-ENCL using the appropriate knockout. Use Flex Conduit in the installation of the 1640-ENCL to enable easier servicing of the receptacle and produce less strain on the Enclosure.
-
Page 5: Warranty / Service Procedures
(1) year from the date of purchase. At no cost to the original purchaser for parts or labor, AES will repair or replace any AES Product or any, part or parts thereof which are judged defective under the terms of this Warranty.
