Leap Frog MAGIC ADVENTURES GLOBE 6054 Manual

INTRODUCTION

Take a spin around the 10" Globe and explore geography, science, culture, languages and more through exciting facts, games and live-action BBC video.

INCLUDED IN THIS PACKAGE

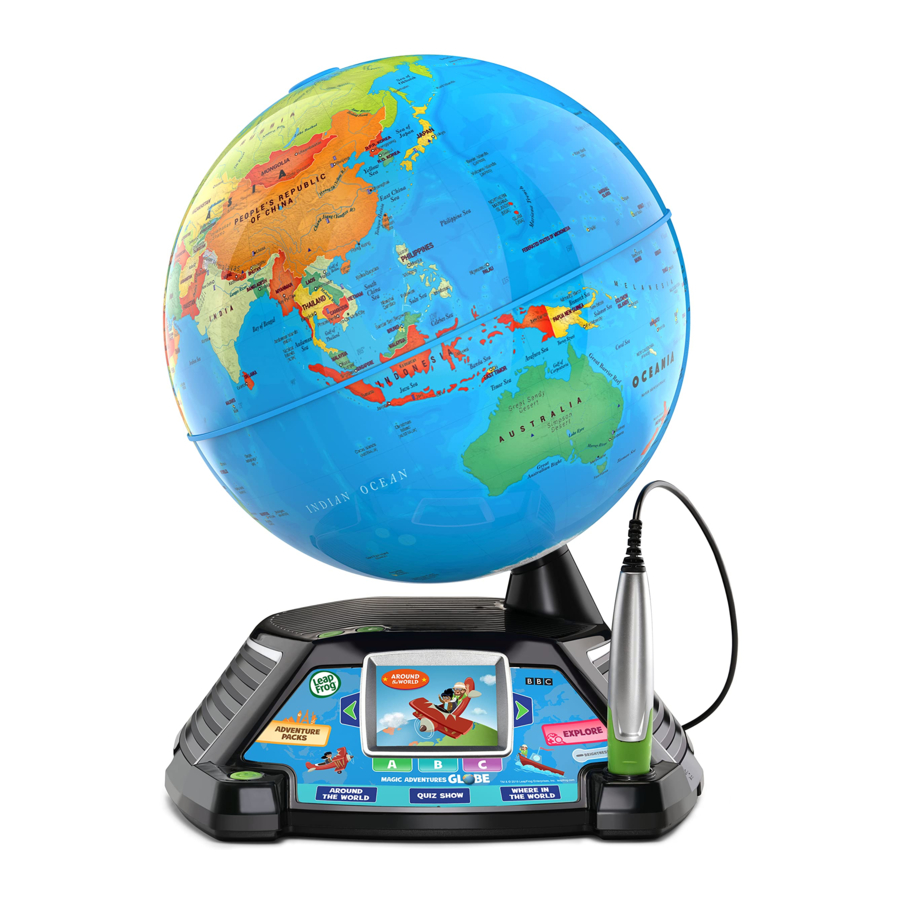

• Magic Adventures Globe™
• One micro-USB cable
• One parent's guide

All packing materials, such as tape, plastic sheets, packaging locks, removable tags, cable ties and packaging screws are not part of this toy, and should be discarded for your child's safety.

NOTE:
Please keep this parent's guide as it contains important information.

Unlock the packaging locks

Rotate the packaging locks 90 degrees counterclockwise.

Pull out the packaging locks and discard.

GETTING STARTED

BATTERY REMOVAL AND INSTALLATION

1. Make sure the unit is turned Off.
2. Locate the battery cover on the bottom of the unit, use a screwdriver to loosen the screw and open the battery cover.

3. Remove old batteries by pulling up on one end of each battery.
4. Install 4 new AA (AM-3/LR6) batteries into the battery box as illustrated. (The use of new alkaline batteries is recommended for maximum performance.)
5. Replace the battery cover and tighten the screw to secure.

BATTERY NOTICE

• Use new alkaline batteries for maximum performance.
• Use only batteries of the same or equivalent type as recommended.
• Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable, or new and used batteries.
• Do not use damaged batteries.
• Insert batteries with the correct polarity.
• Do not short-circuit the battery terminals.
• Remove exhausted batteries from the toy.
• Remove batteries during long periods of non-use.
• Do not dispose of batteries in fire.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the toy before charging (if removable).
• Rechargeable batteries are only to be charged under adult supervision.

Connecting the Adapter

• Make sure the unit is turned Off.
• Connect the adapter to the Micro-USB Port of the unit.
• Plug the adapter into a power socket.

Note: The use of an adapter will override the batteries.

AC Adapter Safety

• The toy is not intended for children under 3 years old.
• As with all electrical products, precautions should be used and observed during handling and use to prevent electric shock.
• Do not leave the toy plugged in for extended periods of time.
• As with all electrical products, precautions should be observed during handling to prevent electric shock.
• Connecting an AC adapter to a wall outlet should only be performed by an adult or a supervised child 8+ years of age.
• Never clean a plugged-in toy with liquid.
• Never use more than one adapter.
• The adapter is not a toy.
• If the USB cable is damaged, it cannot be used and must be replaced with a recommended cable.
• Examine the power adapter periodically for conditions that may result in the risk of fire, electric shock, or injury to persons (such as damage to the output cord, pins, housing or other parts). In the event of such conditions, the adapter should not be used until properly repaired or replaced.

AC Adapter Electrical Ratings:

Input: ~ 120VAC, 60Hz (for US); ~ 230VAC, 50Hz (for UK or EU);
~ 240VAC, 50Hz (for AS/NZL)

Output: DC 5V, 1.5A, 7.5VA
or DC 5V, 1A, 5VA

PRODUCT FEATURES

1. Power On/Off Button
   Press and hold the Power On/Off Button for a few seconds. The Globe will start up and you will hear a welcome message.
2. Stylus
   Touch the tip of the Stylus to the Globe or one of the icons on the Activity Panel.
3. Volume Control
   Press the – and + Volume Up/Down Buttons to adjust the volume.
4. Power Supply
   This device requires 4 AA batteries or a 5V 1A micro USB power adapter (not included).
5. Automatic Shut Off
   To preserve battery life, the Magic Adventures Globe^TM will automatically shut off after approximately five minutes without input. The unit can be turned on again by pressing the Power On/ Off Button.

NOTE: This product in is Try-Me mode in the packaging. After opening the package, power on the unit and use the Stylus to touch the Globe or icons on the Activity Panel.

ACTIVITIES

Explore Mode

In Explore mode, you can select any of the following 11 categories by tapping the Navigation Arrows using the Stylus:

• Continents
• Countries
• Animals
• Geology
• Landmarks
• Capitals
• Languages
• Flags
• Currency
• Size
• Mix-It-Up

After making a selection, use the Stylus to tap the Globe and explore the world, learning about your chosen category.

Game Modes

Launch any of the three game modes by tapping their icon on the Activity Panel and follow the instructions presented by your hosts, Reggie and Sarah.

Games include:

• Around the World in 20 Days
• Amazing World Quiz Show
• Where in the World?

ADVENTURE PACKS (sold separately)
You can download additional content to your Magic Adventures Globe^TM to expand the categories and games. New subjects include: Dinosaurs and Prehistoric Beasts, Ancient Civilizations, People and Inventions, and World Cultures.

Connect the Magic Adventures Globe^TM to your computer with the included USB cable.

Install the LeapFrog^® Connect application from leapfrog.com/connect on your computer.*

Follow the instructions on screen to create or sign into a LeapFrog^® Parent Account and register your Magic Adventures Globe^TM .

Select App Center to find, purchase and install Adventure Packs.

Disconnect the system and your child is ready to play.

* System requirements can be found at https://www.leapfrog.com/system-requirements.

A very small percentage of the public, due to an existing condition, may experience epileptic seizures or momentary loss of consciousness when viewing certain types of flashing colors or patterns, especially on television. While the Magic Adventures Globe^TM does not contribute to any additional risks, we do recommend that parents supervise their children while they play video games. If your child experiences dizziness, altered vision, disorientation, or convulsions, discontinue use immediately and consult your physician. Please note that focusing on an LCD screen at close range for a prolonged period of time may cause fatigue or discomfort. We recommend that children take a 15-minute break for every hour of play.

OTHER NOTES:
Static electricity may cause the Magic Adventures Globe^TM to malfunction. In cases where Magic Adventures Globe^TM is malfunctioning due to static electricity, reset the Globe by pressing and holding the Power On/Off Button for about 10 seconds until the LCD Screen turns off, then wait for a while before restarting the unit. Or, if the static electricity malfunction occurred during the downloading process, disconnect the USB Cable, delete the corrupted file, then reset the Globe as described above. Then, reconnect the USB Cable and restart the download process.

CARE & MAINTENANCE

1. Keep the unit clean by wiping it with a slightly damp cloth.
2. Keep the unit out of direct sunlight and away from any direct heat source.
3. Remove the batteries if the unit will not be in use for an extended period of time.
4. Do not drop the unit on hard surfaces and do not expose the unit to moisture or water.
5. NEVER try to dismantle the unit.

Using the Stylus

• Do not use the Stylus if it is broken.
• Do not look directly into the Stylus light.
• Put the Stylus back in the Stylus Holder when not in use.

Cleaning the LCD Screen

• Slightly dampen a soft, lint-free cloth with water and wipe the screen to loosen dirt.
• Using a clean and dry cloth, wipe the screen dry. Repeat these two steps as needed.

TROUBLESHOOTING

If for some reason the program/activity stops working, please follow these steps:

1. Turn the unit Off.
2. Interrupt the power supply by removing the batteries.
3. Let the unit stand for a few minutes, then replace the batteries.
4. Turn the unit back On. The unit should now be ready to use again.
5. If the unit still does not work, replace with an entire set of new batteries.

IMPORTANT NOTE:
If the problem persists, please call our Consumer Services Department at 1-800-701-5327 in Canada or email support@leapfrog.com.
Creating and developing LeapFrog^® products is accompanied by a responsibility that we take very seriously. We make every effort to ensure the accuracy of the information, which forms the value of our products. However, errors sometimes can occur. It is important for you to know that we stand behind our products and encourage you to contact us with any problems and/or suggestions you might have. A service representative will be happy to help you.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

leapfrog.ca
