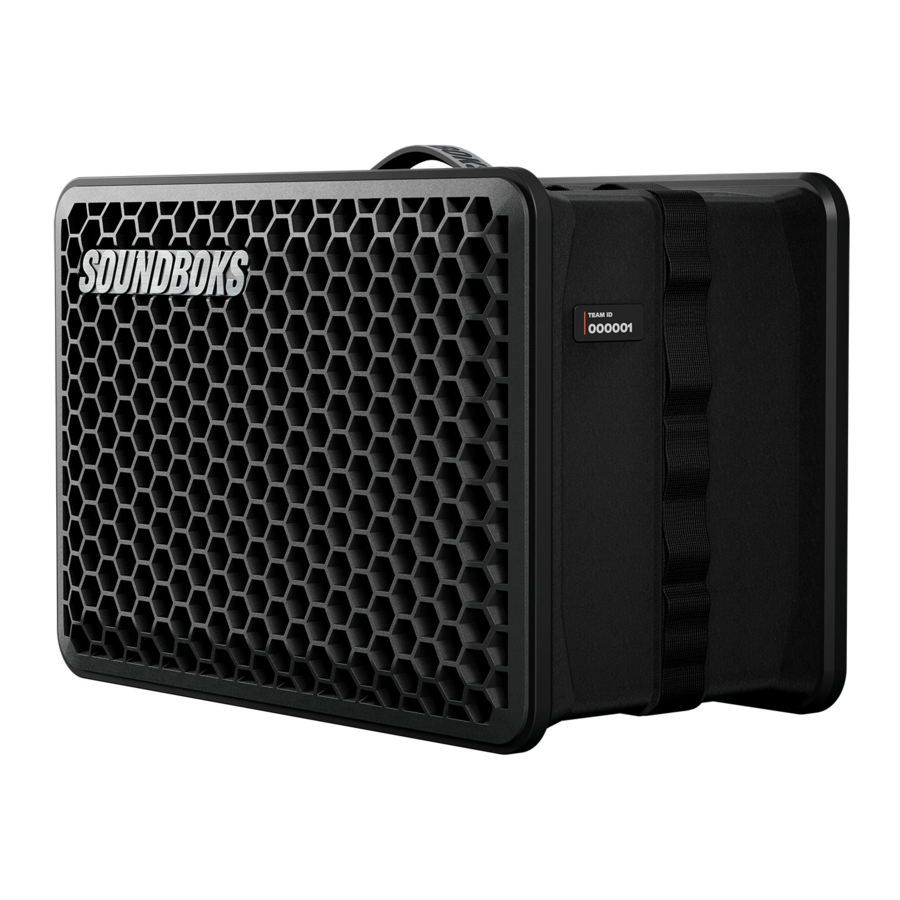

SOUNDBOKS GO Manual

Quick start guide

1. Before first use, charge the battery fully by using a USB-C compliant charger, or by using the official SOUNDBOKS The Charger (sold separately). Charge time using The Charger is approx. 2 hours.
   Wanna play music while charging? Make sure to use a USB-C compliant power supply able to deliver at least 65W, or use the official SOUNDBOKS The Charger (sold separately).
2. Once charged, slide (don't force) The Battery LED-side-down until it fits snugly into the battery slot. Then plug the round power connector into the SOUNDBOKS.
3. To power up your SOUNDBOKS press and hold the volume knob for a few seconds. When the LEDs around the volume knob light up, you're ready to connect.
4. To connect, find and select SOUNDBOKS #YourTeamID in your device's Bluetooth settings. Your unique Team ID is located on the left side of your speaker.
5. Choose your favorite song, crank it up to 11, and vibe out!

Your Device

Overview

1. Tweeter
2. Bass Driver
3. Reflex Ports
4. Rubber Bumper
5. Power Button
6. Volume Knob
7. Bluetooth LED Indicator
8. Bond Button
9. Connect Button
10. Handle
11. Loop Velcro Strap
12. AUX Connector
13. Team ID
14. Battery Port
15. DC Input
16. The Battery
17. Strap
18. LED Battery Life Indicator
19. Battery Level Status Button
20. Rubber Bumper
21. USB-C Port

21. Pole Mount

Specifications

SOUND
Amplifier
Patented Infineon MERUS multilevel amplifier technology for industry-leading efficiency

Driver Units
1 × 10" 96dB Woofer Bass reflex system
1 × 1" 102dB Horn mounted tweeter

Acoustics
SOUNDBOKS Bass Enhancer DSP (custom software to boost bass and loudness, similar in style to SOUNDBOKS (Gen. 3), but custom made for SOUNDBOKS Go)
Custom psycho acoustics profile for added feeling of bass at a lower power consumption
High-efficiency boost converter
Powerful DSP for audio processing (similar chip but new software)
A unique tweeter temperature sensing protection algorithm in the amplifier ensures that the tweeter driver will never get too hot or malfunction.

Connectivity
Bluetooth 5.0
TeamUp connection - Wirelessly daisy chain up to 5 (total) nearby SOUNDBOKS Go speakers (SKAA) AUX socket

Compatibility
Compatible with iPhone and Android

BUILD
Dimensions
32 × 46 × 27 cm (12.6 × 18.1 × 10.1 inches (H × W × D))

Weight
9.2 kg / 21 lb

Materials
ABS and Polycarbonate Front Baffle, Center Cabinet and Back Plate
ABS Battery Port
Powder Coated Aluminum Volume Knob
Silicone Rubber Handle, Bond and Connect Button
Woven Polyester Strap with Polyester Velcro

Features
Loops in Strap for clipping on accessories
Swappable Batteries
Three reflex ports for increased bass response
Ø35mm Pole mount
Host/Join mode for wireless TeamUP
Volume Control with On/Off functionality

THE BATTERY
Life
99.84Wh or 7.8Ah capacity at 12,8V
40 hours at mid-volume
10 hours at full volume
2 hours full recharge with the SOUNDBOKS charger.

Cell type
12.8V, 7.8Ah Lithium Iron Phosphate (LiFePO4)
Temperature range:

• Charge condition: 0C to 45C
• Discharge condition: -15C to 55C

Output (USB-C)
10W USB PD, 5v 2A

Design
Reinforced ABS casing - IPX6
5-step LED battery-life indicator
Heavy-duty DC-connector
Dirt cover over USB connector
Carry strap
Battery charge LED indication

Battery management system (BMS)
Constant safety-parameter monitoring
Over and under-voltage protection
Over and under-capacity protection
Short circuit protection
Temperature guard
Advanced cell voltage management

Dimensions
Mass 1,0kg, Width 150mm, Length 65mm, Height 96
Mass 2.2lb, Width 5.9inches, Length 2.6 inches, Height 3.8 inches

LED behavior

Your SOUNDBOKS Go will preserve power by deactivating trailing LEDs after 10 seconds of constant volume level.

SKAA & Bond Button

The following is the official SKAA RECEIVER USER'S GUIDE. It describes in detail how to operate and troubleshoot the Bond Button, located on the top of your SOUNDBOKS Go. The Bond Button is the control button for JOIN-mode through the wireless daisy chaining feature, TeamUP. Each SKAA receiver has a Green List which remembers your favorite transmitters. A Green Indicator on your receiver means you are listening to a favorite or hunting for one. Your receiver can also explore to find new transmitters—an Amber Indicator means you are exploring for transmitters that are not on your Green List. A Cluster is a product with two or more pieces that behave as one. The Bond Button lets you select which transmitter you're listening to. The Bond Button has the logo consisting of two arrows.

The SKAA Compatible Badge found on the Product certifies that this Product has been tested and is fully compliant with all of the requirements of the SKAA Standard and has been granted SKAA Certification. This Product will work seamlessly with other products in the SKAA ecosystem of audio transmitting and receiving devices. For more information on the SKAA Standard, please visit www.SKAA.com.

The Battery & Charger

Overview

1. Battery DC Plug
2. DC Cable
3. Carry Strap
4. LED Battery Life Indicator
5. Battery Level Status Button
6. USB-C Port

Charging the Battery

Charge the battery outside of the SOUNDBOKS
Insert the USB-C plug of your compatible USB-C charger into The Battery and plug the power cord into your nearest power outlet.

While using your SOUNDBOKS, you can simultaneously use the USB-C port by either:

1. Charge your phone or any other USB-C compliant device, or
2. Charge The Battery while using the SOUNDBOKS by connecting it to the official SOUNDBOKS Charger, or any USB-C PD certified charger.

For using the SOUNDBOKS at full volume while charging, use the official SOUNDBOKS Charger or any USB-C PD compliant charger capable of delivering at least 65W.

Remember to unplug your battery after it has been fully charged and never to leave it charging for more than 6 hours at a time, as this can potentially damage the battery.
All official SOUNDBOKS chargers and batteries carries the SOUNDBOKS logo on the back print

Final Remarks

We hope that you'll have an awesome time with your SOUNDBOKS product, and please feel free to reach out to us with questions, ideas, or anything else. We'd love to talk to you!

Business Address:
SOUNDBOKS Inc.
1968 S. Coast Hwy #2510
Laguna Beach CA 92651
United States of America
info@SOUNDBOKS.com

For rest of the World:
SOUNDBOKS ApS
CVR: 36457597
Esromgade 15, 1107
2200 Copenhagen N
Denmark
+45 78 75 03 06
info@SOUNDBOKS.com
