Spectra 9 Plus Manual

Important Safety Information

READ ALL INSTRUCTIONS BEFORE USING
When using electrica products, basic safety precautions should always be followed

To reduce the risk of electrocution

1. DO NOT USE WHILE BATHING.
2. DO NOT PLACE OR STORE PRODUCT WHERE IT CAN FALL OR BE PULLED
3. DO NOT PLACE IN OR DROP INTO WATER OR OTHER LIQUID.
4. DO NOT REACH FOR A PRODUCT THAT HAS FALLEN INTO WATER, UNPLUG THE PRODUCT IMMEDIATELY
5. DO NOT EXCEED 5 MINUTES IN MICROWAVE, NEVER IMMERSE MAIN BODY IN WATER

To reduce the risk of burns, electrocution, fire, or injury to persons.

1. THIS PRODUCT SHOULD NEVER BE LEFT UNATTENDED WHEN PLUGGED IN.
2. CLOSE SUPERVISION IN NECESSARY WHEN THIS PRODUCT IS USED NEAR INFANTS OR CHILDREN.
3. USE THIS PRODUCT ONLY FOR ITS INTENDED USE AS DESCRIBED IN THIS MANUAL DO NOT USE ATTACHMENTS NOT RECOMMENDED BY THE UZINMEDICARE CO.
4. NEVER OPERATE THIS PRODUCT IF IT HAS A DAMAGED CORD OR PLUG IF IT IS NOT WORKING PROPERLY, IF IT HAS BEEN DROPPED OR DAMAGED DROPPED INTO WATER, OR IF ANY PARTS ARE BROKEN OR MISSING.
5. KEEP THE CORD AWAY FROM HEATED SURFACES
6. NEVER USE WHILE SLEEPING OR DROWSY.
7. DO NOT USE OUTDOORS OR OPERATE WHERE AEROSOL SPRAY. PRODUCTS ARE BEING USED OR WHERE OXYGEN IS BEING ADMINISTERED
8. THE AC/DC ADAPTOR CORD SHOULD BE UNPLUGGED FROM THE OUTLET WHEN NOT IN USE
9. DO NOT DISASSEMBLE OR MODIFY THE PRODUCT
10. DO NOT INHALE OR SWALLOW SMALL PARTS
11. ALLERGIC REACTIONS MAY OCCUR
12. LINT, DUST, LIGHT(INCLUDING SUNLIGHT), ETC CAN BE ADVERSELY AFFECT SAFETY AND ESSENTIAL PERFORMANCE
13. AC/DC ADAPTOR MUST BE EASY TO UNPLUG POSITION DURING USAGE

If you feel pain in your breast or nipple, turn the pump off or adapter plug out and remove from your breast. Consult your healthcare professional (Suction can be broken by inserting finger between the breast and breast shield or by shutting the pump off)

Important Symbol

WARNING!
This is designed to be a personal use product Use of this breast pump by any other than the original owner presents health and performance risks and void the product warranty

Indication for use

This is a powered breast pump to be used by lactating women to express and collect milk from their breasts. This is intended for a single user.

Pumping Guide

1. Center the assembled breast shields over your nipples. It is important that your nipples are drawn evenly into the center of the flange and not distorted in any way.
2. Press the on/off button and press massage button "Massage button symbol" for massage mode before pumping.
3. The massage mode will encourage the letdown reflex which triggers the start of milk flow

TIP - to help letdown, try a warm compress on the breast before pumping, thinking about your baby and most of all, relaxing, will help you to letdown your milk when expressing. Massaging the upper area of your breast can also assist draining the breast.

4. Once your milk starts to flow, press the massage button again to switch to expression mode.
5. Adjust the vacuum and cycle to find your preferred setting.
6. Express milk from each breast for 10-15 minutes If single pumping, then alternate breasts.
7. Tum pump off after few seconds later when pumping finished.

TIP - It is more effective to pump for a shorter time at more frequent intervals than to pump for a longer time at wider intervals If exclusively pumping, we suggest pumping every 2-3 hours, at least 8 times a day to maintain supply.
NOTE: EVEN WHEN YOU ARE USING THE BREAST PUMP, BREASTFEED YOUR BABY WHENEVER YOU CAN.

Always breastfeed your baby directly when you can, even when using this product. Ask your heathcare provider for personalised advice for your situation.

Parts & Assembly

Use a damp(not wet) cloth to wipe down the pump body.

If the hose becomes cloudy or dirty, it should be replaced

Applied parts

(Parts may vary by countries)

Before using the Spectra 9 Plus breast pump for the first time, sterilise the breast shield kit using your preferred sterilisation method.
[Parts may bend if boiled over 5 minutes.]

How to assemble Back-flow protector

1. Insert silicone membrane into lower protector.

2. Insert upper case into silicone membrane assembled


• How to Disassemble
  1. After holding the lower case of protector by thumb like above picture 1, full the upper case to direction of the arrow for disassemble.

• Parts name


How to use the product

1. Clean the kit and connect the power.
2. Connect the tubing to the breast shield and assemble the bottle onto the breast shield
3. Set the vacuum power to the lowest position
4. Set the nipple in the center of the breast shield and tum the unit on
5. Adjust the suction strength properly
6. Tum the kit off after use

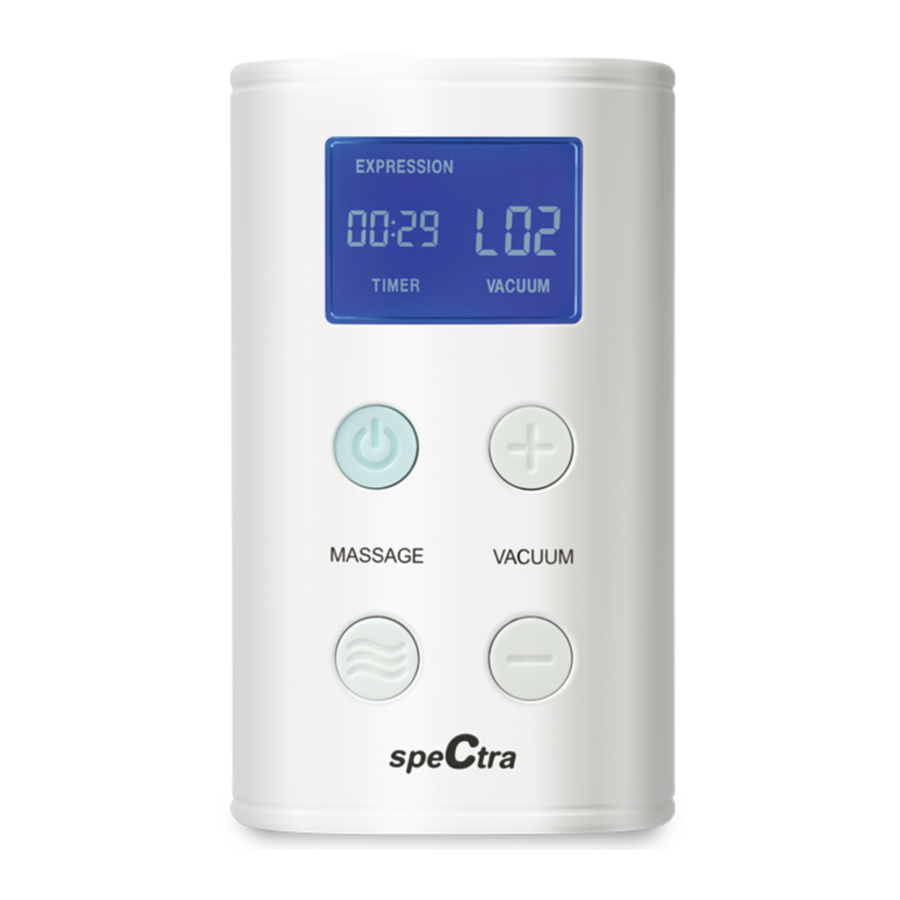

LCD Screen and control button

Battery information

The battery used in this device may present a risk of fire or chemical burn if mistreated.
Do not disassemble, heat or incinerate.
Do not disassemble and do not dispose of in fire.

How to use double pump

Cleaning and disinfection

First time use
Sterilise all parts of the breast shield kit excluding the tubing using your preferred sterilisation method. You do not need to sterilise the tubing as it will not be in contact with your breastmilk.
Do not sterilise the pump body

Subsequent use
Disassemble and wash all parts of your breast shield kit that come into contact with your breast and breastmilk and wash in warm soapy water, then rinse in clean water and airdry.
Keep parts covered when not in use.

Baby feeding components that are used with breastmilk do not need sterilisation after every use. however you may wish to sterilise every few uses as a hygiene precaution and to remove fat residue.

All parts are dishwasher safe.
If required, the pump body can be cleaned with a damp(not wet) cloth.

NOTE: TO ELIMINATE CONDENSATION OR MILK IN THE TUBING, WASH AND DRY IT IMMEDIATELY. TO CLEAN MAIN BODY, WIPE MAIN BODY WITH A CLEAN DAMP CLOTH.

How to store breast milk

• Make sure your hands are clean and dry before handling expressed breastmilk
• Storage containers should be sterilised before being used to store breastmilk. If you intend to store your breastmilk in the same bottle or container you have expressed into, ensure it is sterilised before use. Spectra milk storage bags are presterilised.
• Try not to touch the insides of the storage containers.
• Seal the container with a solid lid or secure the ziplock seal if using Spectra milk storage bags. Label each container with the date the milk was pumped.
• Breast milk that will be frozen should have at least one inch between the milk and the container lid. Frozen milk expands as it freezes.
• Store milk away the freezer or refrigerator door to avoid changes in temperature that may compromise the milk.

How long can I store breast milk?

Source: Breastfeeding Made Easier at Home and Work, womenshealth.gov

How do I thaw and use stored breast milk

• Always make sure to check the date on the milk's container before using. Do not use undated milk, or milk that has been stored too long.
• Thaw frozen milk in the refrigerator or under cool, running water.
• Heat the milk under warm, running water and gently swirl the container to mix the milk.
• If warm water is not available, heat a pan of water on the stove. Once the water is warm, not boiling, remove the pan from the stove and place the milk container in the pan. Never warm the milk container directly on the stove.
• Never microwave breast milk because microwaves can cause dangerous hot spots that could burn you or a baby.
• Always test the temperature of the milk on the inside of your wrist before feeding it to a baby. The milk should feel warm, not hot
• After thawing, milk should be stored in the refrigerator for no more than 24 hours.
  Never refreeze thawed.
  Throw away previously frozen milk that is not used within 24 hours.

Troubleshooting

Use and Storage environment

Specifications

Model: Spectra 9pIus
Protection Type: Class II
Weight: 290g

Adaptor
Manufacturer: Dongguan Shilong FuhuaElectronic Co.,Ltd.
Model No: U ES18LCP-090140SPA
Input: 100-240V~50/60Hz, 500mA
Output: 9V 1.4 A
Battery: Li-Polymer 7.4V 900mAh

1. Type of protection against electric shock: Class II equipment

2. Degree of protection against electric shock: Type BF applied parts

3. Classification according to the degree of protection against ingress of water: IP22
4. This equipment is not suitable for use in the presence of flammable anesthetics or oxygen.
5. Mode of operation: Continuous.

WARRANTY CARD

Spectra 9 Plus
Origin: Republic of Korea
Address: 54, 56, Dongtansandan 5-gil, Hwaseong-si, Gyeonggi-do, 18487, Republic of Korea
Telephone: +82-70-5228-0983

Record following information:
Name
Telephone
Mobile Phone
Address

European Authorized Representative

Obelis s.a
Bd. Gnral Wahis, 53, 1030 Brussels, Belgium
Tel +32(0) 2 732 59 54 Fax +32(0) 2 732 60 03
E-mail: mail@obelis.net

Uzinmedicare Co., Ltd.
54, 56, Dongtansandan 5-gil, Hwaseong-si,
Gyeonggi-do, 18487, Republic of Korea
Tel: +82-70-5228-0983 / www.uzinmedicare.com
