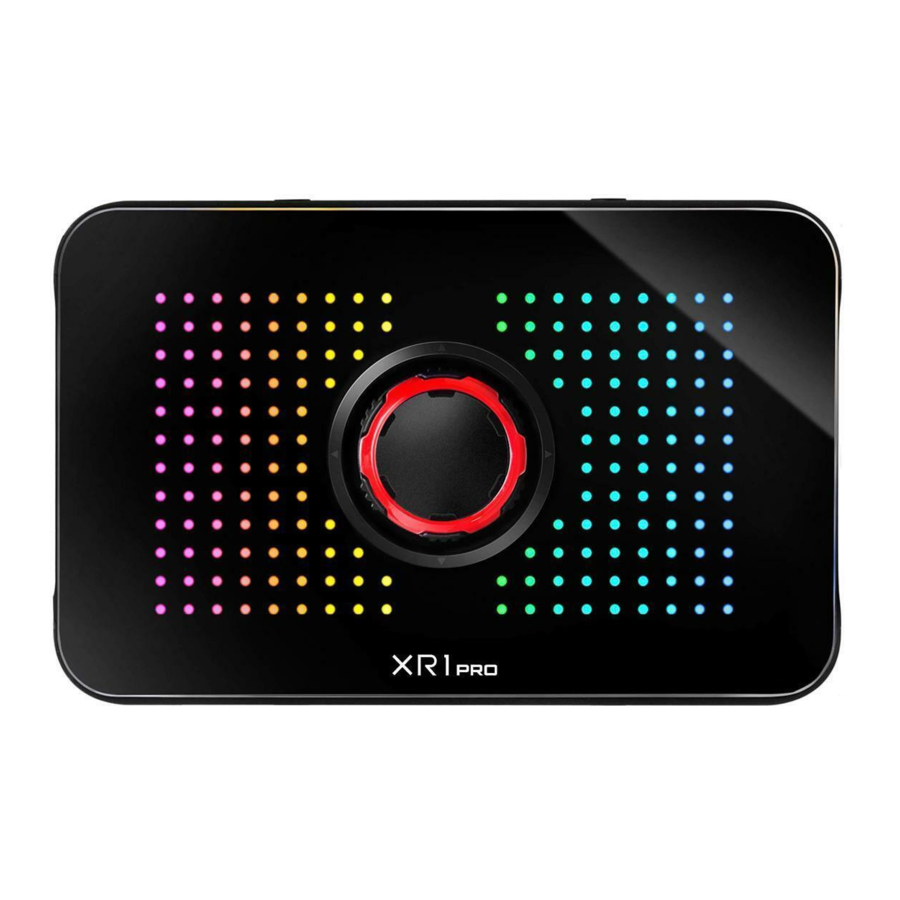

EVGA XR1 PRO Manual

Inside The Box

Please check all these items are included.

Specification

Control Dial Function

	Up: Select Lighting Effect
	Down: Select Lighting Effect
	Left: Switch to Adjust the Volume of Mic In
	Right: Switch to Adjust Volume of Console Party Link
	Volume Adjustment Mode: Control the Volume of Mic In / Console Party Link Lighting Adjustment Mode: Control the LED Lighting Effect / Speed
Press	Press and Hold 10s: Factory Reset Press: Disable / Enable Mic In

LED Indications

	Gradient White	USB 3.0 Mode Standby with USB 3.0 Connection Mode
	Gradient Yellow	USB 2.0 Mode Standby with USB 2.0 Connection Mode
	Flashing White Twice	Resetting Device
	Solid Red	Mic In Muted
	Gradient Red	USB signal issue (No Video)
	Gradient Green	USB signal issue (No Support for Up Scale)
	Gradient Blue	USB signal issue (HDCP)

Device Layout

Configuration Set Up for Desktop/Laptop

For Game Consoles

For Video Conference

Using your EVGA XR1 PRO with OBS (Open Broadcaster Software^®)

OBS is a free and open source software solution for video recording and live streaming and is recommended by EVGA to utilize the EVGA XR1 PRO Capture Card.
You will need to download the OBS software to get started from https://obsproject.com/download
Once you've downloaded and installed OBS, an auto configuration wizard will run upon opening the program for the first time. It will attempt to find the most appropriate settings that your PC can handle. You can manually change these settings later. (Reference the EVGA XR1 PRO Capture Card's Quick Guide on how to connect your device to the EVGA XR1 PRO Capture Card and to your streaming device.)
OBS doesn't capture any video by default, you will need to enable your EVGA XR1 PRO Capture Card by adding it as a source. Either click on the + or right click inside the box labeled "Sources" and then add device and select your EVGA XR1 PRO Capture Card.
