Zhiyun TransMount Manual

Packing list

The product package comes with the following items. It there are any missing items, please contact ZHIYUN or your local distributor.

Please use the HDMI cables provided to achieve better performance.
When using a non-ZHIYUN HDMI cable, channels 36 and 40 may not be available.

Getting to know the Product

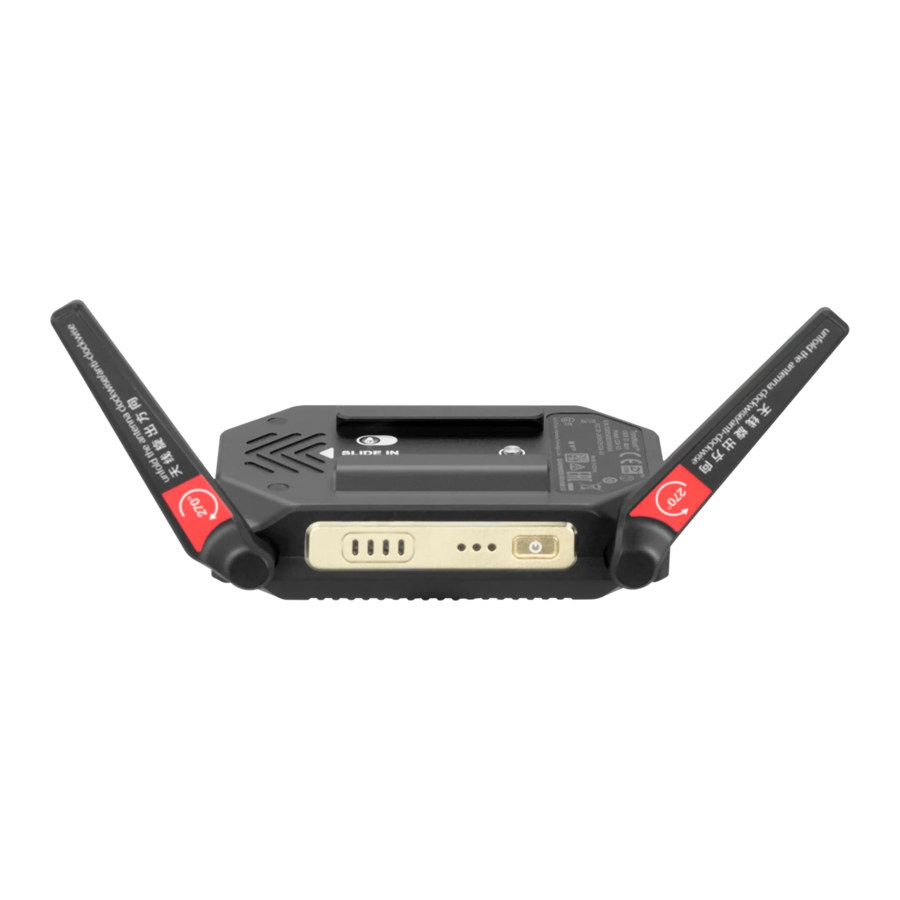

TransMount Video Transmission Transmitter (A1) (hereinafter referred to as the "transmitter")

1. Antenna
2. Type-C charging/communication port
3. Battery indicator lights
4. Status indicator lights
5. Power Button
6. Mounting plate slot
7. Safety lock
8. Type-C camera control port
9. HDMI video input port

Description of indicator lights and buttons

1. Battery indicator lights
   • Displays battery level after powering on.
     A steady red light indicates that the battery level is less than 10%.
     One solid white indicator light indicates that the battery level is at 0-25%.
     Two solid white indicator lights indicate that the battery level is at 25-50%,
     Three solid white indicator lights indicate that the battery level is at 50-75%
     Four solid white indicator lights indicate that the batten/level is at 75-100%.
   • When charging, the white lights will light up one by one. The four white lights will stay on after the device is fully changed.
2. Status indicator lights
   Green light [ ]
   • A steady light indicates that the Wi-Fi is working normally.
   • A slow blinking light indicates that the Wi-Fi is not ready,

Blue light [ ]

• A steady light indicates that you are Currently the 5.2G frequency hand.

3. Power button [ ]
   • Long press for three seconds to power device on or off.
   • After powering on, pressing the power button three times consecutively will toggle between the 5.2G and 5.8G frequency hands.
   • After powering on, pressing the power button five times consecutively will restore factory settings, reset Wi-Fi information, etc.

Charging and Battery

The transmitter uses built-in batteries. Before using it tor the first time, please fully charge the transmitter to activate the battery and to ensure smooth use of the product.

Charging method: Use the Type-C USB cable provided in the package to connect the adapter (5V/2A, not included with the product) to the Type-C charging/communication port on the transmitter. Charging is complete when the four battery indicator lights remain on.

It is recommended to fully charge the device before each use. The device performance will be affected if the battery is too low.

App Download

Scan the OR code above (Android 5.0 and above or iOS 9.0 and above) or search tor "ZY Play" in your phone's app store to download the app.

1. Users can make better use of the various functions of the transmitter with the dedicated "ZY Play" app.
2. The app is subject to updates. Please always refer to the latest version.

Installation and Use

Installing and connecting to the ZHIYUN CRANE 2S

1. This installation uses the ZHIYUN CRANE 2S as an example. Take out the transmitter mounting plate, two screws and a wrench. Mount the transmitter mounting plate to the bottom of the CRANE 2S's quick release base (note the direction of the notch). and use the wrench to tighten the screws.

2. Place the transmitter with the mounting plate slot facing up, align the transmitter mounting plate, push the transmitter toward the tilt axis motor until it clicks into the safety lock. then rotate the antenna about 230° to complete the installation.


The antenna can only be rotated in one direction, the maximum rotation angle is 270°. Please pay attention to the rotation direction.

3. Take out the image transmission control cable {LN-UCUC-A03, Transmitter To stabilizer Only} and connect the CRANE 2S camera control port to the transmitter's Type-C charging/communication port.


This cable is used for communication between the CRANE 2S and the transmitter. After connecting this cable, the CRANE 2S will supply power to the transmitter, which may have a slight effect on the battery life of the CRANE 2S.

4. Connect camera and transmitter with corresponding camera control cable and HDMI cable. Choose which camera control cable and HDMI cable to use according camera USB port type and HDMI part type.


1. It is recommended that the CRANE 2S and transmitter be shut down and powered off before installing or removing the cable. The actual color of the wire is black. The red color used in the manual is only used for illustrative purposes.
2. Atter installing the equipment, you need to adjust the balance ot the CRANE 2S. Peter to the CRANE 2S manual tor instructions on how to do balance adjustment.

Using on the ZHIYUN CRANE 2S

1. The ZHIYUN CRANE 2S is used as an example here. Turn on the CRANE 2S. enter the settings menu, select "Camera Settings", and then select "ccs (extension)". Turn on the transmitter and camera. When the screen on the CRANE 2S displays a connection successful icon [ ] and emits a beep sound. you may then control the camera using the CRANE 2S handle.
2. Open the "ZY Play" app and select the product page corresponding to CRANE 2S. Tap "Connect now", and select the CRANE 2S with the corresponding Bluetooth name.
3. After entering the image transmission interface on the app. click the Wi-Fi icon [ ]), Then, follow the prompts to connect to the transmitter's Wi-Fi (initial default password: 12345678). Click the image transmission icon [ ] to begin image transmission. You can view the real-time image on the camera and control camera recording and the rotation of the CRANE 2S gimbal through the app.

When using with WEEBILL 2, the real-time footage of the camera can be viewed directly on the touch screen of WEEBILL 2 and can also achieve SmartFolIow.

Installing and connecting to other devices

1. This installation takes the camera hot shoe as an example. Take out the transmitter, mounting plate and a 1/4 screw. Mount the 1/4 screw on the transmitter mounting plate and cold shoe mount, and then mount them an the camera hot shoe as a whole (pay attention to the direction of the notch). Then, tighten the 1/4 screw.

2. Place the transmitter with the mounting plate slot facing down, align the transmitter mounting plate, push the transmitter until it clicks into the safety look, then rotate the antenna about 90° to complete the installation.

3. Connect camera and transmitter with corresponding camera control cable and HDMI cable. Choose which camera control cable and HDMI cable to use according camera USB port type and HDMI port type.


You can use a standard Type-C USB data cable to connect the transmitter's Type-C charging/communication port to a power bank or power adapter (not included in the package). This data cable is used tor power supply. Standard output voltage and current ot the power bank or power adapter: 5V 2A.

Using with other devices

1. Power on the transmitter and the camera.
2. Open the Wi-Fi settings on your mobile phone and connect to the transmitter's Wi-Fi (initial default password: 12345678). Open the "ZY Play" app, select the product page corresponding to the transmitter. and click "Connect Now'.
3. After entering the image transmission interface on the app, click the image transmission icon [ ] to begin image transmission, You can view the real-time image on the camera, and control camera recording through the app.

1. The Wi-Fi name of the transmitter can be viewed on the transmitter label sticker (USER ID: XXXX).
2. Video transmission supports HDMI output to P format cameras, but does not support I format output cameras. Video transmission resolution depends on the camera's HDMI output. 1080P is recommended.
3. During image transmission, the DSLR camera needs to be adjusted to live view mode before the HDMI signal can be output normally.
4. The transmitter only supports simultaneous connection with up to three mobile The first device connected will be able to control the transmitter and camera.

For examples and details on how to use the control cables, refer to the "TransMount Image Transmission Transmitter 2.0 Camera Compatibility List" on the official website.

Firmware Upgrade

Method 1: Upgrade using the carrier's network.

1. Power on the transmitter and connect to the carrier's network on your mobile phone.
2. Open the Wi-Fi settings on your mobile phone and connect to the transmitter's Wi-Fi (initial default password: 12345678). Open the "ZY Play" app and select the product page corresponding to the transmitter.
3. If the "ZY Play" app prompts that the firmware can be upgraded, tap to begin the operation. The transmitter will automatically shut down after the upgrade has successfully completed.

This method is only available for mobile phones that can still use the carriers's network to browse the web after the mobile phone Wi-Fi has been connected to the transmitter, such as some iPhones.

Method 2: Upgrade using the router's Wi-Fi network.

1. Power on the transmitter.
2. Open the Wi-Fi settings on your mobile phone and connect to the transmitter 's Wi-Fi (initial default password: 12345678). Open the 'ZY Play" app and select the product page corresponding to the transmitter. When you are prompted to "Enter now' exit the "ZY Play" app.
3. Open the Wi-Fi settings on your mobile phone and connect to the router's Wi-Fi network. Open the "ZY Play" app again. If the "ZY Play" app prompts you to upgrade the firmware, tap to download the upgraded firmware.
4. Alter the download. Open the Wi-Fi settings on your mobile phone. Connect to the transmitter's Wi-Fi and return to the "ZY Play" app. Select the upgrade operation. The transmitter will automatically shut down after the upgrade has completed successfully.

Before upgrading the firmware, please ensure that the transmitter has more than 50% power remaining. Do not exit the app interface or switch the app to the background during the upgrade process. Pay attention to the app prompts.

Product Specifications

Product model: COV-03

Reading Tips

Legends:
Hints and Tips
Important

Scanning the QR code while you are on the carrier's network may incur data charges, which will be charged by your network carrier. It is recommended to perform the operation while connected to Wi-Fi.

Warnings

The transmitter is a high-precision device. Users be equipped with basic hands-on skills and common safety knowledge, and the device should be used with care. Read the entire transmitter user guide to become familiar with the features of this product before operating it. Failure to operate the product correctly can result in damage to the product or personal property, or cause serious injury. This product is not intended for use by children. Do not use the transmitter with incompatible components or in any way that does not follow the safety guidelines in me product documentation provided by ZHIYUN. The safety guidelines herein contain instructions for safety, operation and maintenance. It is essential to read and follow all of the instructions and warnings in the user guide price to assembly, setup or use of the transmitter, in order to operate the product correctly and avoid damage or serious injury.

Safe Operation Guidelines

Note:

1. The transmitter is a high-precision control device. Damage may be caused to the transmitter if it is dropped or subject to external force, and this may result in the device malfunctioning.
2. The transmitter is not waterproof. Do not let the transmitter come into contact with any kind of liquid, including cleaning liquids. It is recommended to use a dry soft cloth to clean the transmitter
3. Protect the transmitter from dust and sand during use.

In order to avoid fire, property loss and personal injury, the following safely guidelines must be followed during battery use, charging and storage.

Use: Ensure that the battery is fully charged before use.

Charging: The battery will automatically stop charging when it is fully charged. After charging is complete, disconnect the battery trom the charger.

Storage:

1. If leaving the product unused for over 10 days. discharge the battery to for 40%-65% for storage, which can extend the battery life.
2. When the battery voltage is too low, the battery will enter low power consumption mode. Charge the battery to exit low power consumption mode.

Maintenance:

1. Do not overcharge or over-discharge the battery, or it may cause damage to the batteries.
2. Battery performance may be affected if they are not used for a long time.
3. Do not use in environments where the temperature is too high or too low.
4. Charge and discharge every 3 months or so to keep the battery active.

Warranty

To obtain ZHIYUN warranty service, please follow the steps below

1. It the product fails or if any problem occurs after purchasing the product. please contact a local authorized ZHIYUN distributor for assistance. If there is no local authorized ZHIYUN distributor, you may also contact ZHIYUN's customer service via email at info@zhiyun-tech.com or through ZHIYUN's website at www.zhiyun-tech.com
2. Your local distributor or ZHIYUN's customer service will guide you through the whole service procedure regarding any product issue or problem you may encounter. ZHIYUN reserves the right to reexamine damaged or returned products.

Contact Card

Scan the QR code below to stay tuned for more information of ZHIYUN.

Official website

Facebook (Zhiyun Tech)

Facebook (Zhiyun Support)

Instagram

YouTube

Tel: +86 400 900 6868
USA Hotline:
+1 808-319-6137, 9:00-18:00 GMT-7, Mon-Fri
Europe Hotline:
+49 (0)6101 8132 180, 10:00-17:00 GMT+1, Mon-Fri
Email: info@zhiyun-tech.com
Website: www.zhiyun-tech.com
Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guiln, 541004, Guangxi, China
