Xtorm FS510 Fuel Series, FS5101 Manual

SPECIFICATIONS

	10.000 mAh Li-Polymer / 37Wh
	1x USB-C PD 20W 1x USB-C 18W 1x USB-A 22.5W (QC 3.0 18W / SCP 22.5W)
	USB-C PD 18W input
	136x71x15 mm
	218 grams
	1x USB-C PD cable 1x Manual

When using multiple outputs
When using 2 outputs
/ Share 15W
/ Share 15W
/ Share 15W

When using all outputs
/ / Share 15W

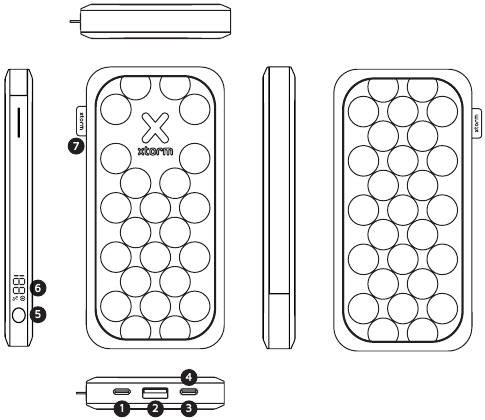

PRODUCT OVERVIEW

1. Output
   USB-C PD 18W
2. Output
   USB-A 22.5W
   QC 3.0 18W / SCP 22.5W
3. Output
   USB-C 20W
4. Input
   USB-C PD 18W
5. Power Button
6. Digital Power Indicator
7. Official Xtorm Label

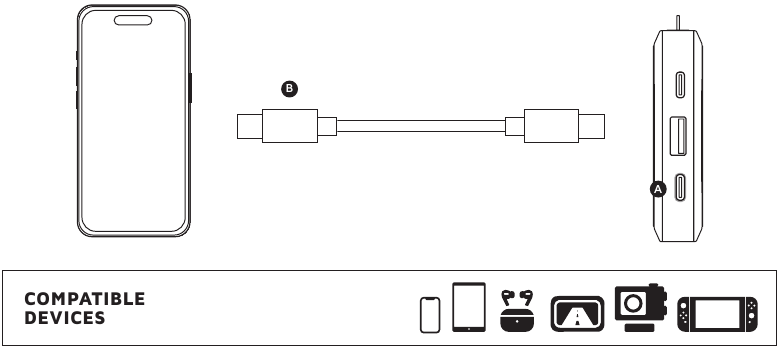

CHARGING YOUR DEVICE

1. Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.
2. Charging some devices requires a charging cable other than the one supplied.
   E.g. an Apple Lightning or a Micro USB cable.

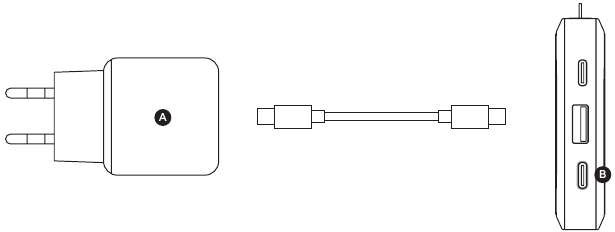

RECHARGING THE PRODUCT

1. Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.
2. For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 3.4 hours.

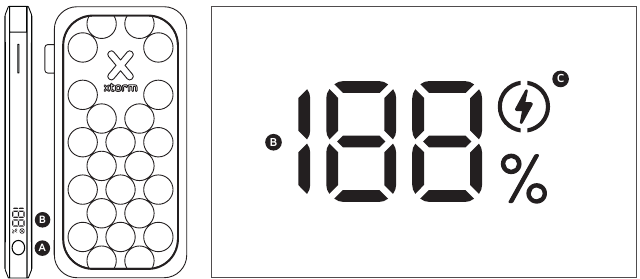

LED POWER INDICATOR

1. Power Button function:
   • Single press to turn on the Power Bank.
   • Double press to turn off the Power Bank.
2. The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).
3. The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

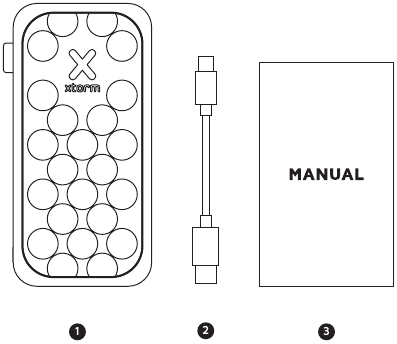

IN THE BOX

1. FS510x
   Power Bank
2. USB-C PD Cable
3. Manual

CUSTOMER SUPPORT
support@tag.nl
+31 (0)30 635 4800

TELCO ACCESSORIES GROUP
Hoofdveste 19, 3992DH Houten
The Netherlands

XTORM.EU
