Summary of Contents for Telestar SATPLUS Light

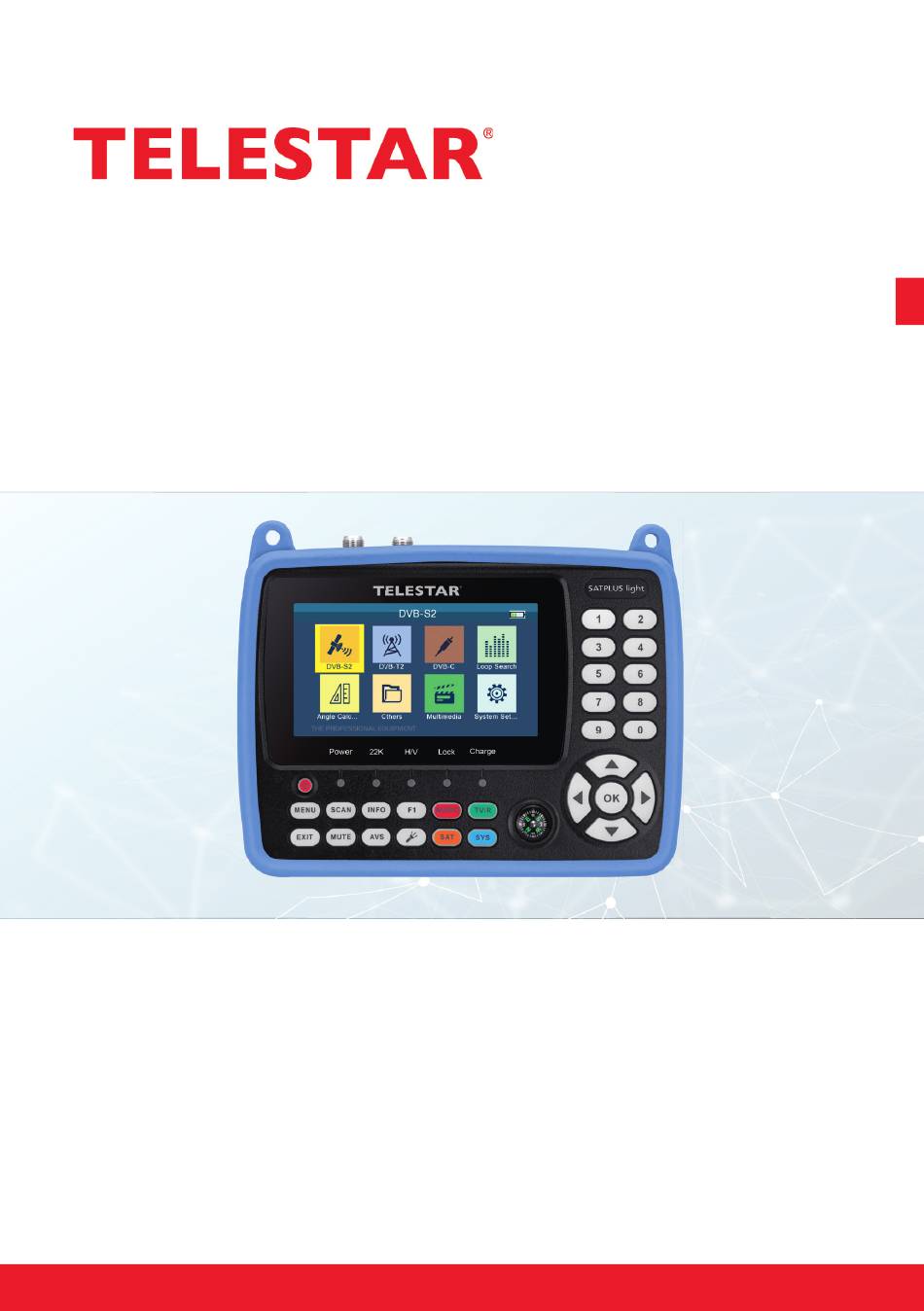

- Page 1 SATPLUS Light Manual Digital DVB-S/S2/T/T2/C measuring receiver V1_29_04_24 www.telestar.de...
- Page 2 User Manual...
-
Page 3: Table Of Contents
12 CE MARKING ........TELESTAR SATPLUS light... -
Page 4: Foreword
All technical data and functions described in these operating instructions are correct at the time of printing and are subject to change without prior notice. We accept no liability for printing errors and mistakes. Copying and reproduction is only permitted with the express authorisation of TELESTAR-DIGITAL GmbH. Status: 01/2024... -
Page 5: Safety Instructions
A distinction is made between 2 variants Abb. 2 Fig. 1: Outside plus / inside minus Fig. 2: Inside plus / outside minus Appliances with this symbol may only be operated indoors in a dry environment TELESTAR SATPLUS light... -
Page 6: Intended Use
2. SAFETY INSTRUCTIONS 2.2 Intended use The device serves as a measuring receiver for audio/video signals transmitted via satellite, DVB-T/2 and DVB-C. Any other operation or use of the device is considered improper and may result in personal injury or damage to property. Do not use the device for any other purpose. Operate the device indoors only; the device is intended for private use only and not for commercial use. -
Page 7: Operational Safety
> Please check the appliance for damage before each use. If you notice any visible damage or the appli- ance is visibly damaged, please do not use it. > If you notice a technical or mechanical problem, please contact TELESTAR Service. > Only use the power supply unit included in the scope of delivery! >... -
Page 8: Handling Batteries
It may be necessary to reset the device to the factory settings. If this is not successful, please contact your dealer or contact TELESTAR Digital GmbH directly. Further information can also be found on page 4. Please remove all parts from the packaging and completely remove all packaging materials. -
Page 9: Scope Of Delivery
3. SCOPE OF DELIVERY TELESTAR Service Centre Am Weiher 14, 56766 Ulmen e-mail: service@telestar.de NUMBER DESCRIPTION TELESTAR® SATPLUS Light User Manual External power supply AV adapter cable Rubber cover 12 Volt DC connection cable BNC-Cinch adapter TELESTAR SATPLUS light... -
Page 10: Device Overview

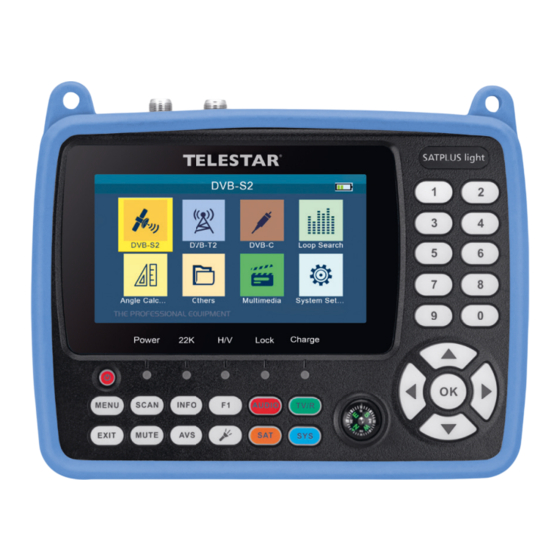

4. DEVICE OVERVIEW 1.3 PRODUCT OVERVIEW& ILLUSTRATION 4.1 Control panel and connections 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 Abbildung 1 Description Turn on/off meter NAME FUNCTION On/Off Switches the device on or off Power indicator light Power Operating status LED... - Page 11 Calls up various functions in the menu. TV/R Switches between TV and radio mode. Function blue Calls up various functions in the menu. Compass Navigation cross For navigation in the menu. OK button confirms a selection Keyboard To enter a value directly TELESTAR SATPLUS light...
- Page 12 4. DEVICE OVERVIEW LLUSTRATION 4.1 Control panel and connections 26 27 28 Abbildung 2 NAME FUNCTION FUNCTION LNB (satellite RF input) Antenna connection Satellite reception system RF (DVB-T/T2 / n/off meter DVB-C RF input) RF connection for measuring DVB-T/T2 or DVB-C signals. 12 V voltage output for operating external devices with 12 V power indicator light DC Out...
-
Page 13: Initial Commissioning
5.1. Initial Commissioning With the TELESTAR SATPLUS light, you are able to set up and align a satellite system optimally and easily. You can also use the device to measure DVB-C and DVB-T/DVB-T2 signals. Before using the device for the first time, the battery should be charged. - Page 14 Update > Via the USB interface, you have the option of updating the operating software of the device, which can be downloaded from www.telestar.de if required. The software provided on the website must be unpacked. The unpacked file is then copied to a suitable storage medium and connected to the measuring receiver via USB.
-
Page 15: Sat Measuring Range
> Select the transponder on which the receiver is to receive a signal from the selected satellite. Frequency > You can change the frequency of the selected transponder if required. Enter the frequency in this line using the numeric keypad. TELESTAR SATPLUS light... -
Page 16: Dvb-S/S2 Presetting Unicable / Dcss
6. SAT-MEASURING RANGE 6.1. DVB-S/S2 default setting Symbol rate > To adjust the symbol rate if necessary, switch to the Symbol rate line and enter the value using the numeric keypad. Polarisation > Switch between Horizontal (H/V LED red) or Vertical (H/V LED green) here if required. >... - Page 17 Satellite position on which the measurement is performed. 7. transponder parameters Transponder number and transponder frequency on which the measurement is being carried out. 8. transponder parameters Symbol rate and polarisation on which the measurement is performed. TELESTAR SATPLUS light...
-
Page 18: Enlarged Display
6. SAT-MEASURING RANGE 6.2. DVB-S/S2 measurement 9. RollOff The roll-off factor generally describes the edge steepness when filtering a signal. In satellite transmission, the roll-off factors are used to define the edge steepness of the DVB-S2 signal. The lower the number, the lower the required frequency bandwidth. -
Page 19: Updating The Satellite Programme List
> Press the OK button. A tick appears in front of the satellite name. > Press the blue SYS (Search) button. Select „Search“ and confirm with OK. > If necessary, change the search parameters to suit your requirements. > Press OK to start the search. TELESTAR SATPLUS light... -
Page 20: Dvb-T/T2 - Dvb-C Measurement Range
7. DVB-T/T2 - DVB-C MEASUREMENT RANGE 7.1. DVBT/T2 DVB-C measurement > To carry out a measurement in the DVB-T/T2 or DVB-C range, please select the DVB-T menu or DVB-C menu item in the main menu and confirm with OK. Please note in the DVB-T/T2 range: If you have an active antenna that you operate on the device, you can activate an antenna supply voltage via the coax input of the device here. - Page 21 S/N measurement for analogue transmission methods. The measurement range extends up to 20 dB. 3. C/N Carrier-to-noise , carrier-to-noise ratio The distance between the carrier and the noise is measured. A good C/N is a prerequisite for all other qualities BER, MER. TELESTAR SATPLUS light...
- Page 22 7. DVB-T/T2 - DVB-C MEASUREMENT RANGE 7.1. DVBT/T2 DVB-C measurement 4 BER The measurement of the bit error rate is used to assess the quality of a DVB signal. The error correction mechanisms in the digital receiver are used to determine the bit error rate. The data stream before and after correction is compared and the number of corrected bits is deter- mined.
-
Page 23: Programme List
> Press the OK button. A symbol appears next to the programme name. > Use the navigation buttons to select the position where you want to save the programme using the yellow cursor. > Press the orange SAT button (move) The programme is now moved to the desired position. TELESTAR SATPLUS light... - Page 24 8. PROGRAMME LIST 8.1. Editing programmes Deleting programmes from the list You can delete one or more preset programmes or existing programmes in the receiver. NOTE! This setting deletes all selected programmes! To save programmes in the device again, please carry out a new search or reset the device to the factory settings.
-
Page 25: Save Programme List To Usb Data Carrier
The programme data is written to the USB data carrier. After a message appears on the display, the programmes and channel information are saved. After successful transfer to the USB stick, a message appears which must be acknowledged by pres- sing the OK button. TELESTAR SATPLUS light... -
Page 26: Importing The Programme List Via Usb
8. PROGRAMME LIST 8.3. Importing the programme list via USB A programme list saved on USB can be imported into the device. > Connect a USB data carrier to the device on which you have saved a programme list as described in chapter 8.2. -
Page 27: Special Functions
> Select the desired satellite position and confirm with OK. > Then select the transponders/channels to be displayed. Confirm with OK. The device checks all selected transponders/channels and displays the corresponding reception parameters. TELESTAR SATPLUS light... -
Page 28: Factory Settings
9. SPECIAL FUNCTIONS 9.2. Factory settings You can reset the device to the factory settings. NOTE! Please note that all settings and programme list changes will be lost with this procedure. Select the System settings menu item in the main menu using the navigation buttons confirm with OK. -
Page 29: Multimedia
> Change to the Multimedia menu item and confirm with OK. > Select the file type you want to play in the top line. (Film, Photo, Music) > Select the folder in which the file you want to play is located. > Confirm with OK. TELESTAR SATPLUS light... -
Page 30: Technical Data
10. TECHNICAL DATA HF PART Frequency range DVB-C/-T/-T2, DAB+, TV, FM 48-862 MHz Frequency range DVB-S/-S2 950–2150 MHz TV standards B/G, I, D/K, M, N SAT RECEIVER Input level range -65 to -25 dBm Control signal 22 Khz, DiSEqCTM 1.2, SCR single-cable system LNB power supply 13V/18V, I max. - Page 31 AV OUT 3.5 mm jack audio stereo/video TV output HDMI 1.4 USB connection USB 2.0 DC supply 12 V hollow plug socket DIMENSIONS AND WEIGHT Dimensions (W × H × D) mm 175*140*45 mm Weight kg 0,62 kg TELESTAR SATPLUS light...
- Page 32 10. TECHNICAL DATA TECHNICAL DATA SPARE PART Manufacturer Shenzhen Yunsheng High Tech Electronics Co., Ltd Model number YS03A-120150E Input voltage 100-240V AC Input frequency 50-60Hz Output voltage 12V DC Output current 1,5A Output power Average efficiency during operation 84,0% Efficiency at low load (10%) 80,0% Power consumption at no load ≤0.1W...
-
Page 33: Disposal Instructions
Information on the disposal of old batteries and rechargeable batteries can also be obtained from specialised waste disposal companies and municipal and local authorities. This disposal is free of charge for you. Protect the environment and dispose of them properly. TELESTAR SATPLUS light... -
Page 34: Ce Marking
12. CE-MARKING Your device bears the CE mark and fulfils all necessary EU standards, and TELESTAR DIGITAL GmbH hereby confirms that the TELESTAR SATPLUS light device complies with the essential protection requirements of the Radio Equipment Devices Directive 2014/53/EU (RED), the RoHS Directive (2011/65/EU), the REACH Regulation 1907/2006 and the ErP Directive (2009/125/EU).
